Lowest-Power, Cost-Optimized, Mid-Range FPGAs
PolarFire® FPGAs deliver award-winning performance with exceptional security, reliability and the lowest power consumption in their class. Spanning from 48K to 481K programmable Logic Elements (LEs), these mid-range devices include options with integrated 12.7 Gbps transceivers for high-speed serial connectivity in communications, imaging and embedded system applications.

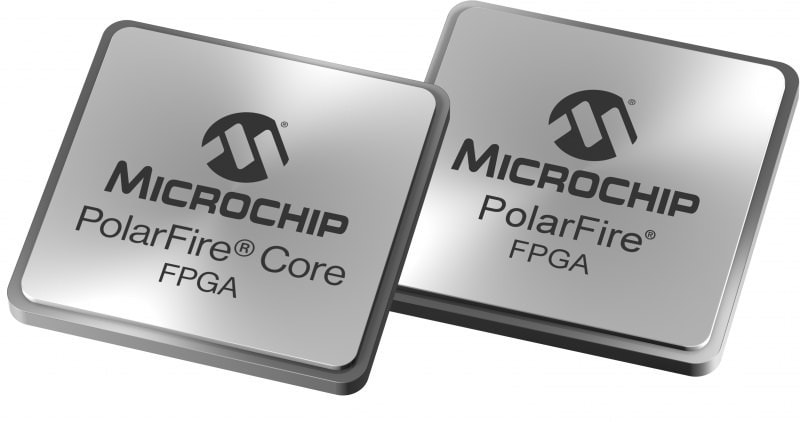

Introducing PolarFire Core FPGAs
The PolarFire FPGA family now includes cost-optimized Core devices for applications that don’t require high-speed serial transceivers. These FPGAs offer up to 481K LEs with a wide range of logic densities, packaging options, fast I/O and configuration flexibility to meet diverse performance, power and cost requirements.
Cost-Optimized Architecture
- Architecture and process optimizations for 50K–500K LE devices
- Transceiver performance optimized for 12.7 Gbps, which yields smaller size
- PolarFire Core FPGA family offers same PolarFire FPGA features without the transceivers for cost-sensitive applications
- 1.6 Gbps I/Os supporting DDR4/DDR3/LPDDR3, LVDS-hardened I/O gearing logic with CDR (supports SGMII/GbE links on GPIOs)
- Best-in-class high-performance, hardened security IP in mid-range devices
- Small form factor 11 × 11 mm package option
Power Optimization
- Lowest power FPGAs: One-tenth (1/10) static power compared to competing devices
- Transceivers optimized for 12.7 Gbps, which yields half the power of competing devices
- Integrated hard IP: DDR PHY, PCIe® endpoint/root port, crypto processor
- Total power (static and dynamic): up to 50% lower power
- PolarFire Core FPGA family offers same PolarFire FPGA features without the transceivers for even lower-power options
