SAMA7 Microprocessors

View All Parametrics

Arm® Cortex®-A7 Based Microprocessors (MPUs)

Designed for consumer and industrial applications, our high-performance Arm Cortex-A7-based SAMA7 MPU family runs at up to 1 GHz and support multiple memories including DDR3, LPDDR3 and QSPI/Octal Flash.

These devices contain a rich set of peripherals to simplify your design including graphics (LCD, 2D GPU, MIPI-DSI®, LVDS), imaging (MIPI CSI-2®), audio subsystems, dual Ethernet, CAN FD connectivity and robust security features.

We also provide a comprehensive development environment through our mainline Linux® OS distribution and our separate MPLAB® development ecosystem to design your end product at the bare-metal or RTOS level.

SAMA7 MPUs

SAMA7G54

  • Arm Cortex-A7 core running at up to 1 GHz
  • 16-bit DDR2, DDR3(L), LPDDR2, LPDDR3
  • One 10/100/1000 Gigabit Ethernet MAC and one 10/100 Ethernet MAC
  • Six CAN FD ports
  • Two-lane MIPI CSI-2 (D-PHY)
Explore SAMA7G54 Parametrics

SAMA7D65

  • Arm Cortex-A7 core running at up to 1 GHz
  • 16-bit DDR2, DDR3(L), LPDDR2, LPDDR3
  • Two Gigabit Ethernet MAC with TSN support
  • Five CAN FD ports
  • LCD controller, 2D GPU, MIPI-DSI, LVDS
Explore SAMA7D65 Parametrics

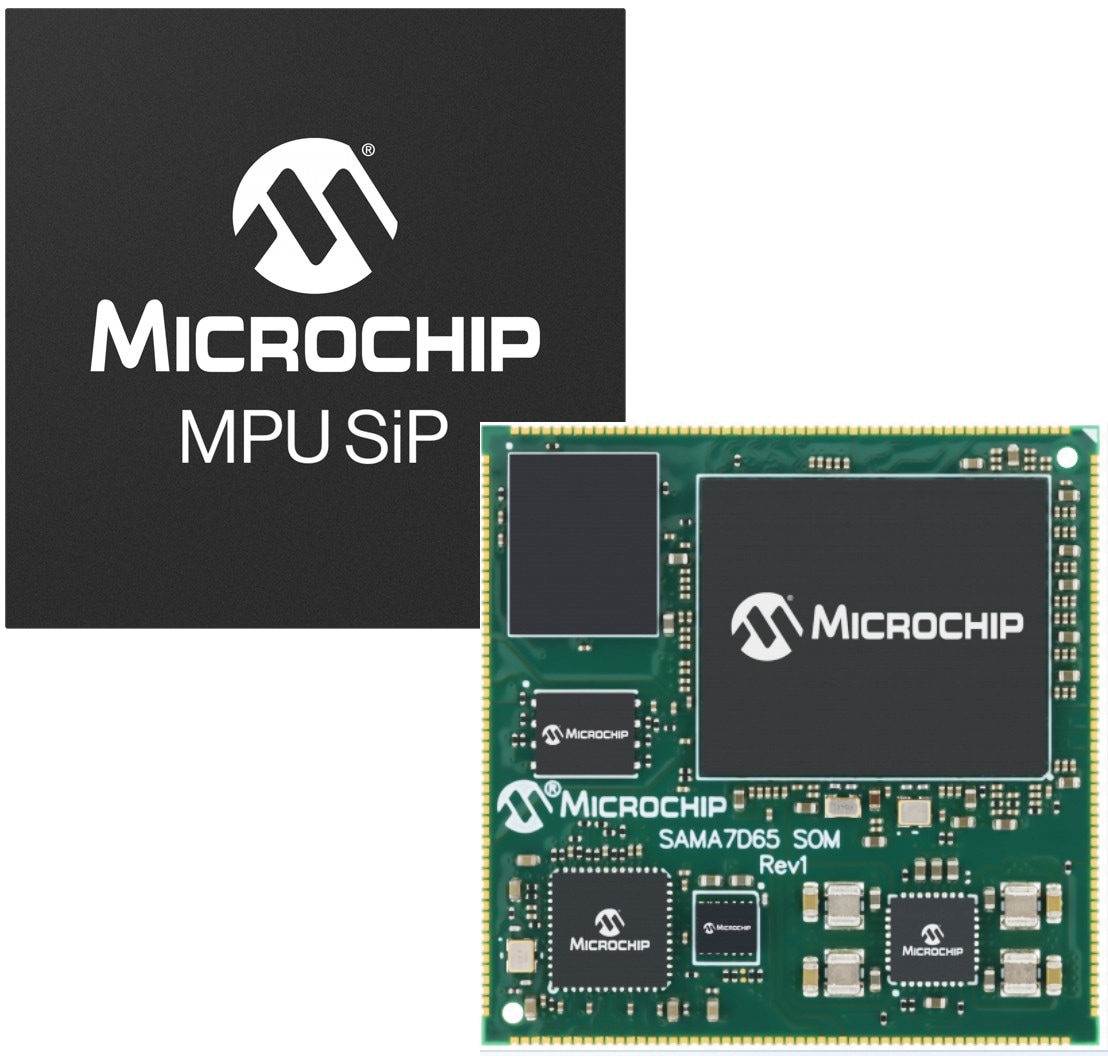

SiPs and SOMs

Simplify Your Development and Speed Up Your Time to Market

To facilitate the use of MPUs in your next design, our System in Packages (SiPs) feature integrated DRAM, and our System on Modules (SOMs) offer integrated DRAM plus features such as power management, wireless connectivity and on-board NAND Flash.

Explore SiPs and SOMs

Getting Started

Visit our Developer Help website to access a complete suite of development resources for the SAMA7 family including reference designs, software packages, hardware documentation and in-depth boot process.

Developer Help Graphic

Solutions

Graphics Applications

Graphics

Differentiate your products with aesthetically pleasing and feature-rich embedded Graphical User Interfaces (GUIs) that offer intuitive menus, vivid graphics and easy device interaction.

Learn More
Automotive Interior Concept Image

Automotive

Our 32-bit MPU-based solutions meet the demands of modern in-car systems, including control panels, gateways, telematics and audio applications. These MPUs are AEC-Q100 Grade 2 qualified and supported by our client-driven obsolescence policy to enable long-term availability and reliability.

Learn More
Industrial Automation Concept Image

Industrial Automation Communications

Accelerate your industrial automation design with robust, real-time industrial communication stacks that are seamlessly supported on our MPUs.

Learn More
OpenBMC Block Diagram

OpenBMC

Our MPUs run OpenBMC for Baseboard Management Controllers (BMCs) targeting applications such as power shelves, cooling systems, storage components and higher-end switches.

Learn More
Video

AI/ML Object Detection and Counting

This demonstration of our parking lot/truck loading bay monitoring application, which is based on Edge Impulse’s Faster Objects, More Objects (FOMO) detection model, showcases the AI/ML capabilities of the SAMA7G54 MPU.

To view this video, please click manage cookies below and accept functional cookies.
Manage Cookies

Design Help

Need Help Choosing a Product for Your Design?

Our Client Support team is here to support you. Use the link below to schedule a call with a member of our team, use our live chat widget in the bottom right corner or submit a question for assistance and we will follow up with you as soon as possible.











MPU Design Partners

We partner with design consultants to assist with your MPU-based designs. Learn more about how our design partners can accelerate your time to market.

Design Partners
