Our portfolio of precision DC, single-phase and poly-phase power measurement solutions can solve the growing needs of energy management across residential, industrial and automotive applications.

Featured AC/DC Power and Energy Devices

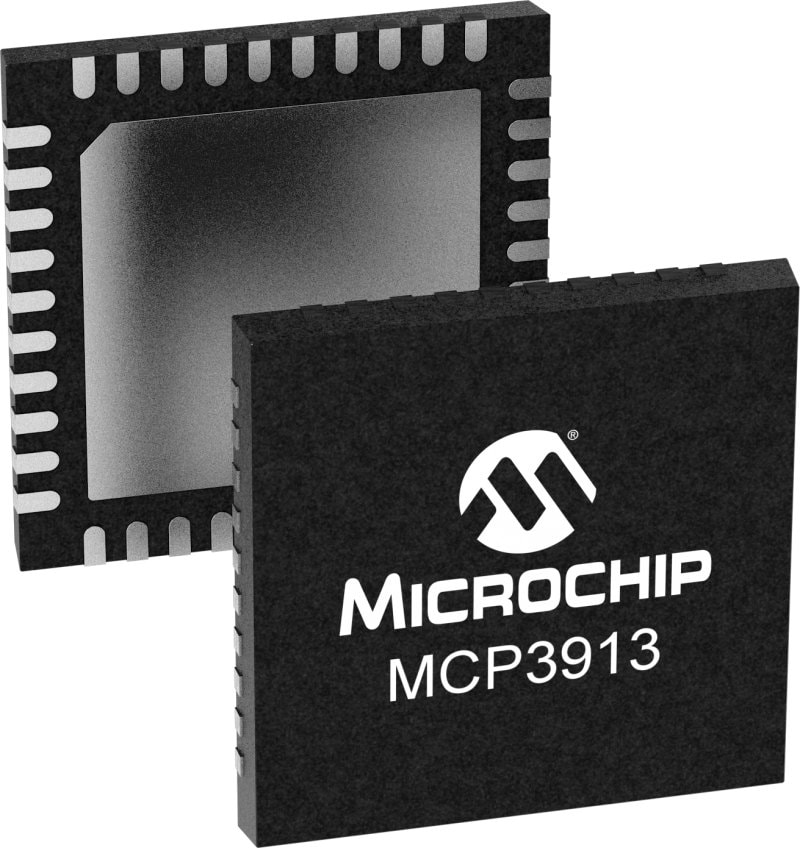

MCP3913

  • 24-bit Resolution
  • Six Simultaneous Sampling Channels
  • 0.1% Accuracy over 10,000:1 Dynamic Range

MCP3910

  • 24-bit Resolution
  • Two Simultaneous Sampling Channels
  • 0.1% Accuracy over 10,000:1 Dynamic Range

MCP39F511A

  • 24-bit Resolution
  • Two Simultaneous Sampling Channels
  • 0.1% Accuracy over 4,000:1 Dynamic Range

Companion Products


Voltage References

Looking for a precision voltage reference for your data conversion system to help improve accuracy? Check out our voltage reference products.

Operational Amplifiers

Looking for a complete amplifier solution for your data conversion application? Check out our wide selection of operational amplifiers

AutomotiveProducts


Our innovative automotive-grade mixed-signal products are designed to fit small footprints, consume very little power and operate in high-temperature and electromagnetic environments.

AC/DC Power and Energy Devices


View All Parametrics
Product Power Type Device Type Power Monitoring Resolution (bits) Input Channels Sample Rate (kSPS Max)
MCP3901 Single-Phase Energy Meter Analog Front End AC, DC 24 2 64
MCP3903 Poly-Phase Energy Meter Analog Front End AC, DC 24 6 64
MCP3905A Single-Phase Energy Meter IC AC, DC 16 2 14
MCP3905L Single-Phase Energy Meter IC AC, DC 16 2 14
MCP3906A Single-Phase Energy Meter IC AC, DC 16 2 14
MCP3909 Single-Phase Energy Meter IC AC, DC 16 2 14
MCP3910 Single-Phase Energy Meter Analog Front End AC, DC 24 2 125
MCP3911 Single-Phase Energy Meter Analog Front End AC, DC 24 2 125
MCP3912 Poly-Phase Energy Meter Analog Front End AC, DC 24 4 125
MCP3913 Poly-Phase Energy Meter Analog Front End AC, DC 24 6 125
MCP3914 Poly-Phase Energy Meter Analog Front End AC, DC 24 8 125
MCP3918 Single-Phase Energy Meter Analog Front End AC, DC 24 1 125
MCP3919 Poly-Phase Energy Meter Analog Front End AC, DC 24 3 125
MCP39F501 Single-Phase Power Monitoring AC 24 2 0.0125
MCP39F511 Single-Phase Power Monitoring AC 24 2 0.0125
MCP39F511A Single-Phase Power Monitoring AC, DC 24 2 0.0125
MCP39F511N Single-Phase, Poly-Phase Power Monitoring AC 24 3 0.0125
MCP39F521 Single-Phase Power Monitoring AC, DC 24 2 0.0125
View All Parametrics
Product Power Type Power Monitoring Resolution (bits) Input Channels Measurement Error (%) Dynamic Range
MCP3901 Single-Phase AC, DC 24 2 0.1
MCP3905A Single-Phase AC, DC 16 2 0.1 500:1
MCP3905L Single-Phase AC, DC 16 2 0.1 500:1
MCP3906A Single-Phase AC, DC 16 2 0.1 1000:1
MCP3909 Single-Phase AC, DC 16 2 0.1 1000:1
MCP3910 Single-Phase AC, DC 24 2 0.1 10000:1
MCP3911 Single-Phase AC, DC 24 2 0.1 10000:1
MCP3918 Single-Phase AC, DC 24 1 0.1 10000:1
MCP39F501 Single-Phase AC 24 2 0.1 4000:1
MCP39F511 Single-Phase AC 24 2 0.1 4000:1
MCP39F511A Single-Phase AC, DC 24 2 0.1 4000:1
MCP39F511N Single-Phase, Poly-Phase AC 24 3 0.5 4000:1
MCP39F521 Single-Phase AC, DC 24 2 0.1 4000:1
View All Parametrics
Product Power Type Power Monitoring Resolution (bits) Input Channels Measurement Error (%) Dynamic Range
MCP3903 Poly-Phase AC, DC 24 6 0.1
MCP3912 Poly-Phase AC, DC 24 4 0.1 10000:1
MCP3913 Poly-Phase AC, DC 24 6 0.1 10000:1
MCP3914 Poly-Phase AC, DC 24 8 0.1 10000:1
MCP3919 Poly-Phase AC, DC 24 3 0.1 10000:1
MCP39F511N Single-Phase, Poly-Phase AC 24 3 0.5 4000:1
View All Parametrics
Product Power Type Power Monitoring Resolution (bits) Input Channels Measurement Error (%) Dynamic Range
MCP3901 Single-Phase AC, DC 24 2 0.1
MCP3903 Poly-Phase AC, DC 24 6 0.1
MCP3905A Single-Phase AC, DC 16 2 0.1 500:1
MCP3905L Single-Phase AC, DC 16 2 0.1 500:1
MCP3906A Single-Phase AC, DC 16 2 0.1 1000:1
MCP3909 Single-Phase AC, DC 16 2 0.1 1000:1
MCP3910 Single-Phase AC, DC 24 2 0.1 10000:1
MCP3911 Single-Phase AC, DC 24 2 0.1 10000:1
MCP3912 Poly-Phase AC, DC 24 4 0.1 10000:1
MCP3913 Poly-Phase AC, DC 24 6 0.1 10000:1
MCP3914 Poly-Phase AC, DC 24 8 0.1 10000:1
MCP3918 Single-Phase AC, DC 24 1 0.1 10000:1
MCP3919 Poly-Phase AC, DC 24 3 0.1 10000:1
MCP39F511A Single-Phase AC, DC 24 2 0.1 4000:1
MCP39F521 Single-Phase AC, DC 24 2 0.1 4000:1
