New Products Q2 2026
New Products at a Glance
- New Releases: 15 Products and 2 Reference designs
- Product Categories: 8-bit MCUs, Digital Signal Controllers (DSCs), Operational Amplifiers (Op Amps), Clock and Timing, Discrete Solutions, FPGAs, Networking, Memory, Power Management, Security, Sensors and Motor Drive, Wireless Connectivity and Reference Designs
- Markets: Automotive, Industrial Automation, Aerospace and Defense, Medical, Consumer Electronics, Smart Home, Data Center and Computing, Communications, Robotics, IoT Infrastructure and Smart Appliances
- Focus Areas: Low-Power Embedded Processing, Real-Time Motor Control, Precision Analog, Edge AI, Single Pair Ethernet, Embedded Memory, Power Management, Hardware Security, Magnet-less Position Sensing, Bluetooth® LE, Thread® and Wireless Motor Control
Microcontroller (MCU) Products
AVR32LA32, AVR32LA28, AVR32LA20, AVR32LA14 AVR16LA32, AVR16LA28, AVR16LA20, AVR16LA14: 8-bit MCUs
1.62V MCUs Revolutionizing Touch Interfaces in Low-Voltage and Low-Power Applications
Small footprint MCUs designed for low-voltage and low-power edge nodes, housekeeping, system monitoring and Human-Machine Interface (HMI), found in automotive, industrial and data center and computing. Brings true 1.8V operation and the latest series of Peripheral Touch Controller (PTC) hardware.
Features:
- 1.62V to 5.5V supply voltage range
- 60 nA typical and 200 nA maximum in standby mode with full SRAM retention
- PTC with enhanced moisture robustness and water tolerance, 2x Signal-to-Noise Ratio (SNR), 4x faster response time
- Up to 32 pins and 27 touch channels
- Program and Debug Interface Disable (PDID)
- Touch library support in MPLAB® Code Configurator (MCC)
Markets and applications:
- Wearable devices
- Consumer electronics
- Home automation
- Industrial and medical
- Battery-powered sensors
- Automotive HMI
- Data center and Computation
See AVR32LA/28/20/14 Microcontrollers Datasheet →

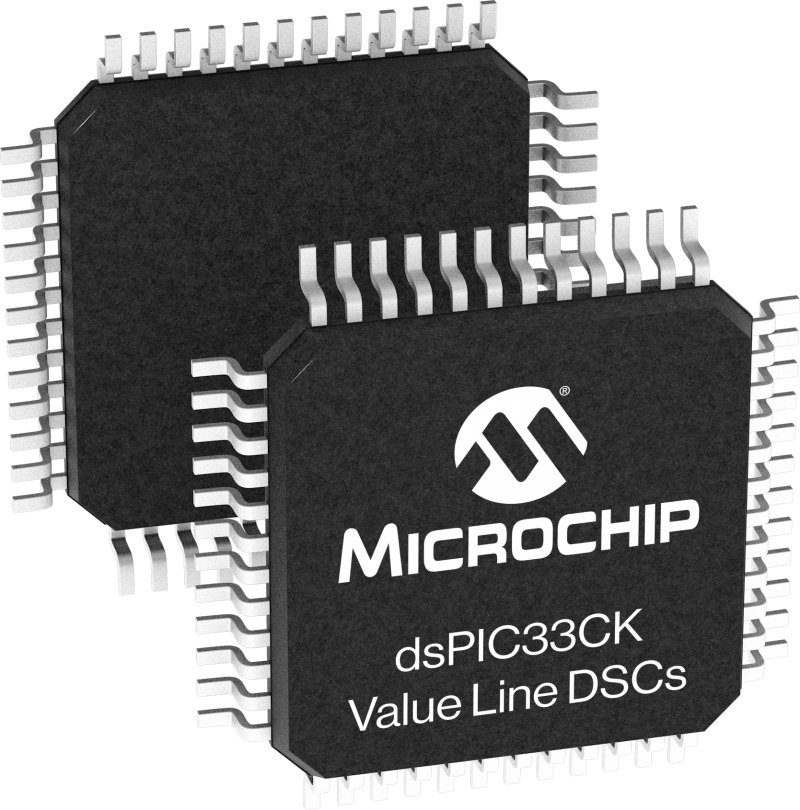

dsPIC33CK Value Line Digital Signal Controllers (DSCs)
Deterministic Real-Time Control for Cost-Optimized Designs: Motor Control, Advanced Sensing and Capacitive Touch, Starting at $0.51
Essential performance at consistent pricing regardless of purchase volume.
Features:
- Essential Real‑Time Performance: Up to 100 MHz deterministic control, high‑resolution PWMs and 12‑bit ADC for cost-sensitive applications
- Integrated Design That Lowers BOM: Balanced on‑chip peripherals and high-performance core reduce external components and overall system cost
- Scalable Platform With Seamless Reuse: Scalable memory options from 32 KB to 256 KB and dsPIC33CK Digital Signal Controller (DSC) compatibility enable software reuse and easy migration
- Accelerated Development: The MPLAB® Development Ecosystem and low‑cost Curiosity Nano development board help accelerate design and development
Markets and applications:
- Target Segments
- Automotive, Industrial, Consumer and Medical
- Target Applications
- Motor Control: Fans, compressors, pumps, actuators and Field-Oriented Control (FOC)
- Advanced Sensing: Current, fluid level, ultrasonic, exhaust, position, pressure and rain sensing
- Capacitive Touch: Steering wheel touch buttons, dashboard control and overhead consoles
See dsPIC33CK256MC006 Value Line DSCs Datasheet →
Amplifiers and Linear Integrated Circuits (ICs)
MCP60711/1U/2/4: 10 MHz Precision Op Amps
Precision Op Amps Engineered for Ultimate Measurement Accuracy- Combining Low Offset, Low Noise and High Bandwidth for Precision Applications
Single-, dual- and quad precision Op Amps with an integrated Electromagnetic Interface (EMI) Filter.
Features:
- Trimmed Voltage Offset
- Low voltage offset, 180 µV maximum
- High Common-Mode Rejection Ratio (CMRR) and Power Supply Rejection Ratio (PSRR), approximately 80 dB minimum
- Low Quiescent Current
- Operating Voltage from 2.2V to 5.5V
- 720 µA typical supply current
- Low Noise
- 5.4 nV/√Hz at 100 kHz
- Enhanced EMI Rejection
- EMIRR of 71 dB at 1.8 GHz
- AEC-Q100 Grade 1 qualification
Markets and applications:
- Industrial control
- Medical instrumentation
- Test and measurement
- Active filters
- Analog-to-Digital Converter (ADC) drivers
- Automotive systems (AEC-Q100 qualified)
See MCP6071x Datasheet →

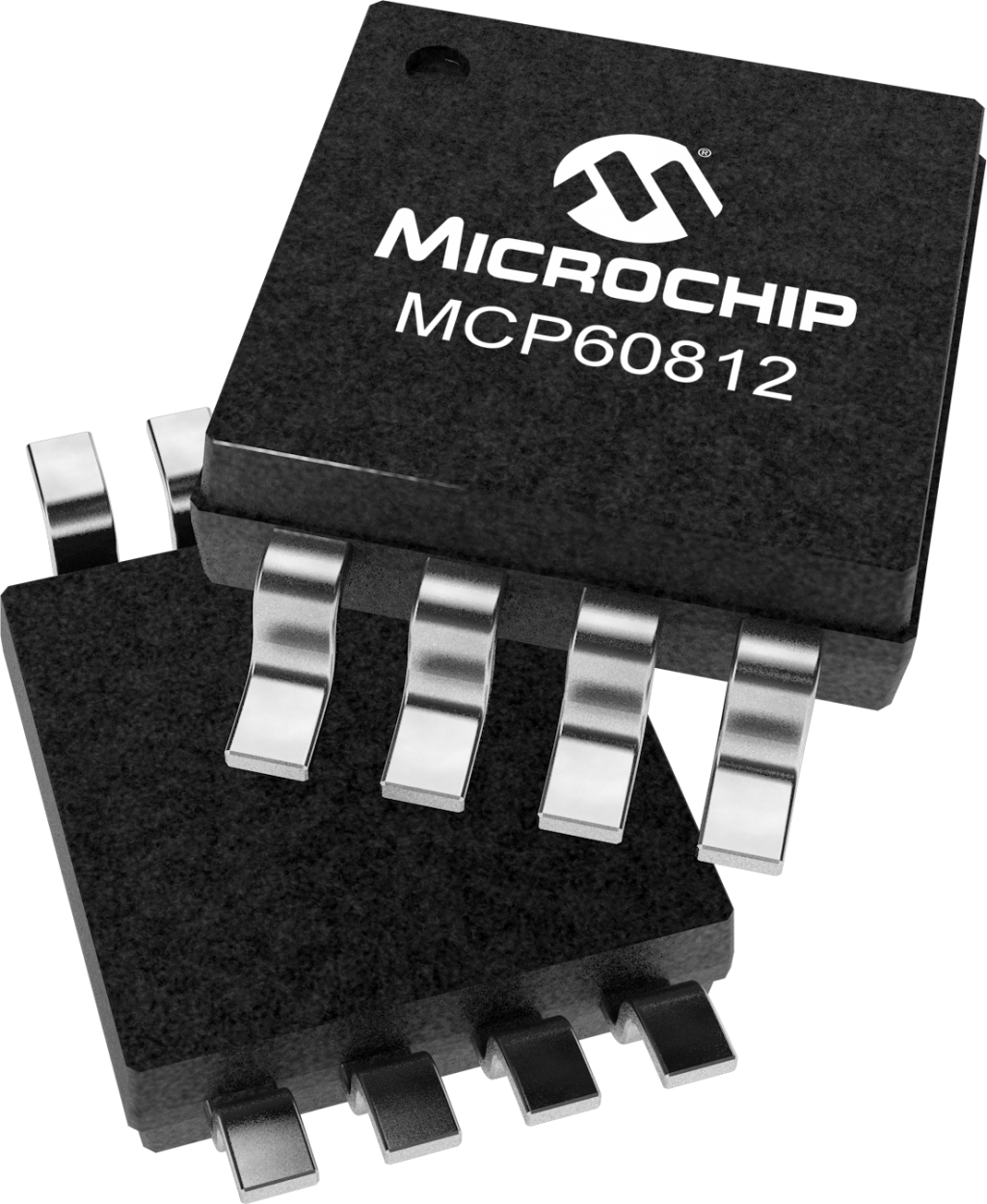

MCP60811/1U/2/4: 25 MHz Precision Op Amps
Precision Op Amps Engineered for Ultimate Measurement Accuracy - Combining Low Offset, Low Noise and High Bandwidth for Precision Applications
Single-, dual- and quad-channel precision Op Amps with Integrated EMI Filter.
Features:
- Trimmed Voltage Offset
- Low voltage offset, 180 µV maximum
- High CMRR/PSRR, approximately 80 dB minimum
- Low quiescent current
- Operating voltage from 2.2V to 5.5V
- 2.5 mA typical supply current
- Low Noise
- 3.9 nV/√Hz at 100 kHz
- Enhanced EMI Rejection
- EMIRR of 85 dB at 2.4 GHz
- AEC-Q100 Grade 1 Qualification
Markets and applications:
- Industrial control
- Medical instrumentation
- Test and measurement
- Active filters
- ADC drivers
- Automotive systems (AEC-Q100 qualified)
See MCP6081x Datasheet →
Clock and Timing Components

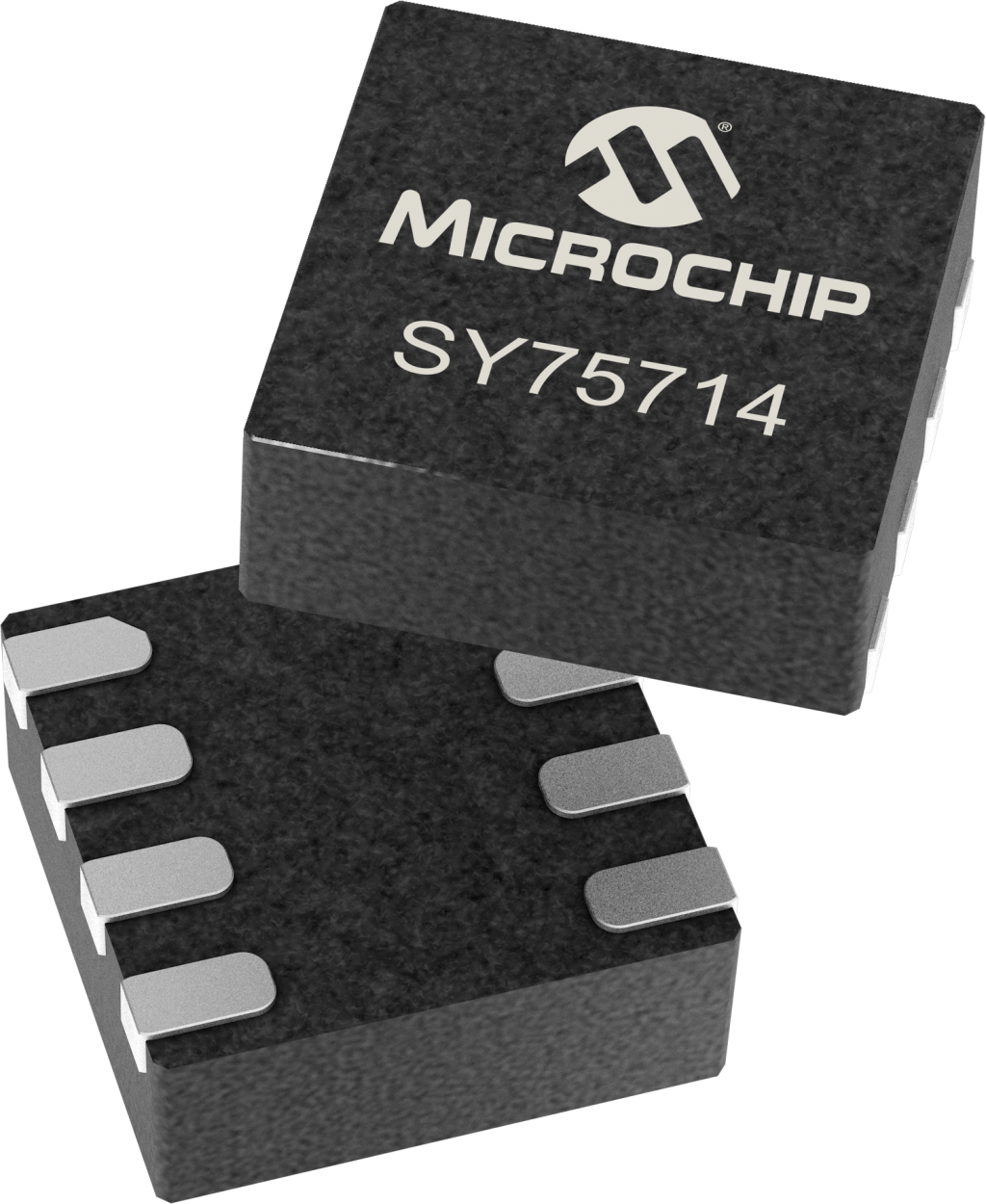

SY75707TWL-TR, SY75712TWL-TR and SY75714TWL-TR
1.2V LVCMOS Buffers Enable 3.3V to 1.2V Clock Translation for FPGA and SoC Applications
This ultra-compact, low-jitter buffer is well suited for translating differential or single-ended clock and data signals in space-constrained, low-power and cost-sensitive applications.
Features:
- Differential HCSL/LVPECL/LVDS or single-ended input
- Two to four LVCMOS outputs
- SY75707: 1.8V to 3.3V VDDIN to 1.2V to 1.8V VDDO power
- SY75712/14: 1.2V to 1.8V VDD power rail
- Ultra-low additive jitter 32 fs (typical) in 12 kHz to 20 MHz band at 156.25 MHz
- 250 MHz maximum frequency
Markets and applications:
- The ultra-low additive jitter buffer provides signal integrity for the industrial, communications and data center markets.
See SY75707, SY75712 and SY75714 Datasheet →
View SY75707, SY75712 and SY75714 Products Page →
Discrete Active Components
JANPTX1N5555UJ through JANPTX1N5558UG, JANPTX1N5629AUJ through JANPTX1N5665AUG, JANPTX1N5907UG and JANPTX1N5907UJ: High-Reliability Discrete Solutions
Industry First: Microchip Debuts DLA-Qualified Transient Voltage Suppressor (TVS) Producs for MIL-PRF-19500 Appendix J - Learn More
Non-hermetic series of unidirectional TVS devices qualified per MIL-PRF-19500/716.
Features:
- Unidirectional TVS with surface-mount packages
- Moisture Sensitivity Level (MSL) 1 rating with no dry pack required per IPC/JEDEC J-STD-020
- Suppresses transients up to 1,500W at 10/1000 µs (micro-seconds)
- Clamps transients in less than 100 ps (picoseconds)
- Working voltage (VWM) range from 5V to 175V
Sample applications:
- Inductive switching environments
- Airborne avionics
- Electrical systems requiring low voltage
See JAN(P)TX Datasheet →
View JANPTX1N5646AUJ Products Page →
FPGAs and PLDs

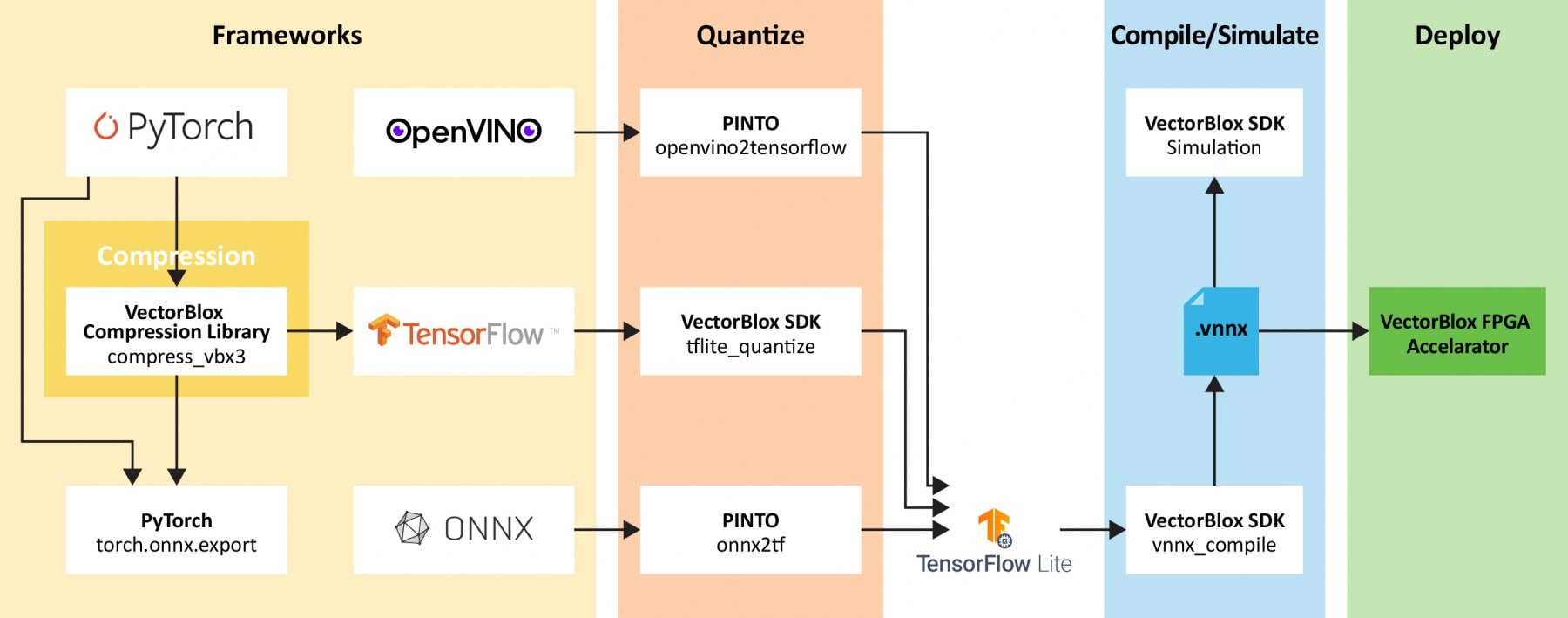

CoreVectorBlox: FPGA Design Tools Edge AI
Run Larger, Higher-Resolution AI Models Within Fixed Edge Memory Limits with VectorBlox™ 3.0
Combines structured and unstructured compression to reduce memory footprint and support edge AI deployment within fixed memory constraints.
Features:
- VBX 3.0 introduces structured and unstructured model compression
- 1.3x–1.6x higher performance with less than 1.1% accuracy loss
- ~20% higher performance and approximately 20% lower power compared to VBX 2.0 (no compression)
- Improved AI-per-watt through reduced compute and Double Data Rate (DDR) bandwidth
- Enhanced CoreVectorBlox™ IP efficiency with lower Lookup Table (LUT) and DDR utilitzation compared to VBX 2.0
- Reference design power below 6W
Markets and applications:
- Industrial vision
- Robotics
- Surveillance
- Aerospace and defense
- Medical imaging
- Edge AI and smart cameras
See VectorBlox-SDK GitHub Page →
View VectorBlox™ Accelerator Software Development Kit (SDK) for PolarFire® FPGAs Page →
High-Speed Networking Components

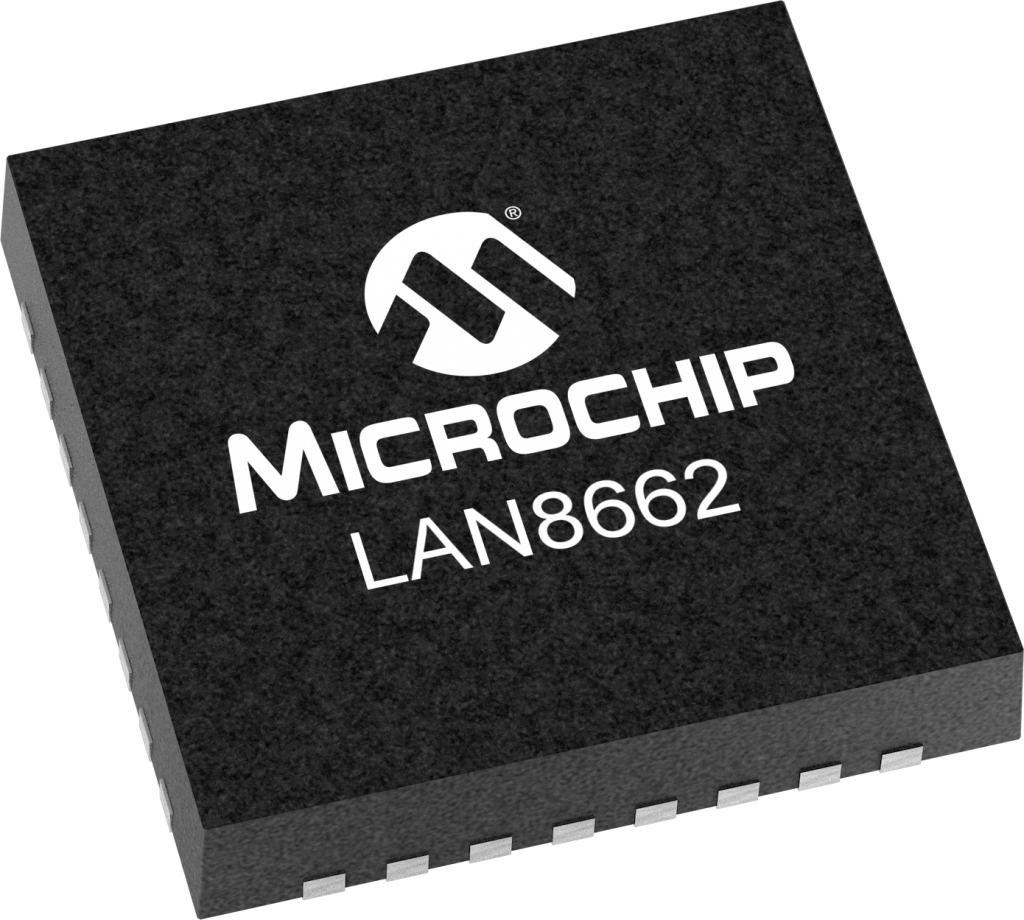

LAN8660, LAN8661, LAN8662: Single Pair Ethernet
10BASE-T1S Endpoints with Remote Control Protocol (RCP) for Smart, Centralized Edge Control
These 10BASE-T1S devices integrate sensors and actuators directly into a T1S network, helping reduce the need for gateways or additional software programming required. These devices are available in versions optimized for control (LAN8660), lighting (LAN8661) and audio (LAN8662).
Features:
- Standards-based RCP and Scalable service-Oriented Middleware over IP (SOME/IP)
- Time synchronization with generalized Precision Time Protocol (gPTP)
- Digital input and output pins with multiple serial communication interfaces, including Inter-Integrated Circuit (I2C), Serial Peripheral Interface (SPI) and Universal Asynchronous Receiver Transmitter (UART)
- AEC-Q100 (-40°C to +125°C) and ISO26262 Functional Safety Qualified
Markets and applications:
- Automotive interior/exterior lighting
- Distance, pressure, temperature, speed, acceleration and vibration monitoring
- Touch and button sensors
- Motor and pump regulation
- Intercom and seat-to-seat communication
- Remote displays
- Voltage or current measurement
See LAN866x Datasheet is in the Secure Document Extranet (SDE) →
View LAN8660, LAN8661 and LAN8662 Products Page →
Memory Products

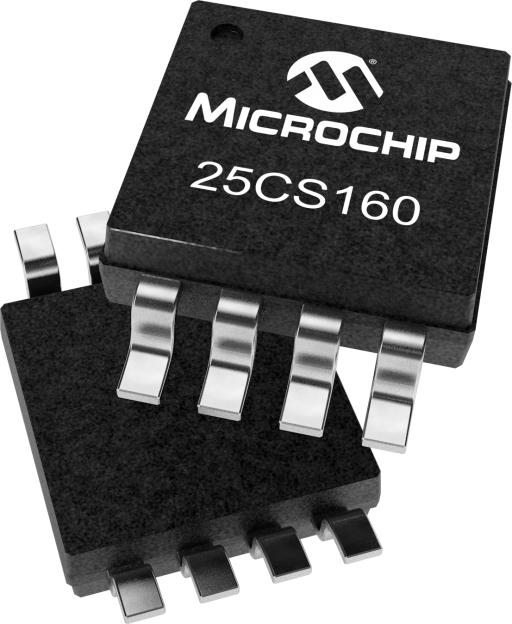

25CS080 and 25CS160: Serial EEPROM
Next-Generation SPI EEPROM With Advanced Features
8 Kb and 16 Kb Serial SPI EEPROM with Enhanced Feature Set.
Features:
- Identification and Traceability
- Factory-programmed 128-bit serial number
- Lockable ID Page
- Manufacturer ID
- Data Integrity and Protection
- Built-in Error Correcting Code (ECC)
- More than 4 Million erase/write cycles
- Enhanced software write protection
- Under-Voltage Lockout (UVLO)
- AEC Q100 Grade 0 (-40 to +150°C) Qualified
- Backwards compatible to legacy Atmel and Microchip EEPROMs
Markets and applications:
- Power, energy and electrical infrastructure
- Industrial automation and control
- Automotive and e-mobility
- Communications, networking and computing
- Consumer, smart building and IoT
- Medical and healthcare equipment
See 25CS080 and 25CS160 Datasheet →
View 25CS080 and 25CS160 Product Page →

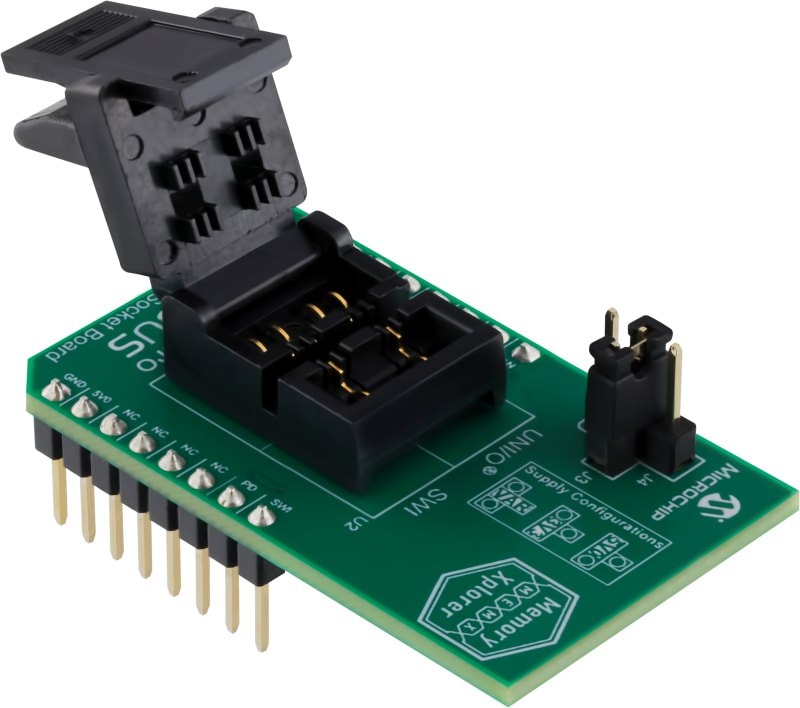

EV60D49A, EV94T74A, EV34X05A and EV08L40A: Memory Xplorer Embedded Memory Evaluation Platform
New EEPROM Dev Tools Lowers Cost
Redesigned development tool hardware helps reduce cost compared to the previous solution.
Features:
- Test features such as write protect, software addressing, serial numbers and Media Access control (MAC) addresses
- Evaluate variable features including voltage range and operating frequencies
- Support EEPROM devices with the enhanced feature set in the 24CSxxx and 25CSxxx series
- Generate, write and load Hexadecimal (HEX) files or read and erase memory
- Software and user guides available for download
Explore EV60D49A Base Board, EV94T74A I2C Daughterboard, EV34X05A SPI Daughterboard and EV08L40A Single-Wire Daughterboards and Documentation →
Power Management
MCP16503: PMIC
Cost-effective Board for Evaluating and Adopting 32-bit dsPIC33A Digital Signal Controllers (DSCs)
Advanced Power Management IC for MPUs.
Features:
- Resistor-selectable output voltage for each channel
- High-accuracy output voltage designed to meet MPU core supply requirements
- Reduces board area and component count by up to 50% compared to discrete solutions
- Provides system power with six power rails, including four buck converters (1A) and two LDOs ared at 300 mA
- 32-pin VQFN package
Markets and applications:
- High-performance, general-purpose MPUs
- μC/μP, FPGA and Digital Signal Processor (DSP) power
- Industrial computing, data center and high-performance Artificial Intelligence (AI) applications
See MCP16503 Datasheet →
View MCP16503 Product Page →
Security Products

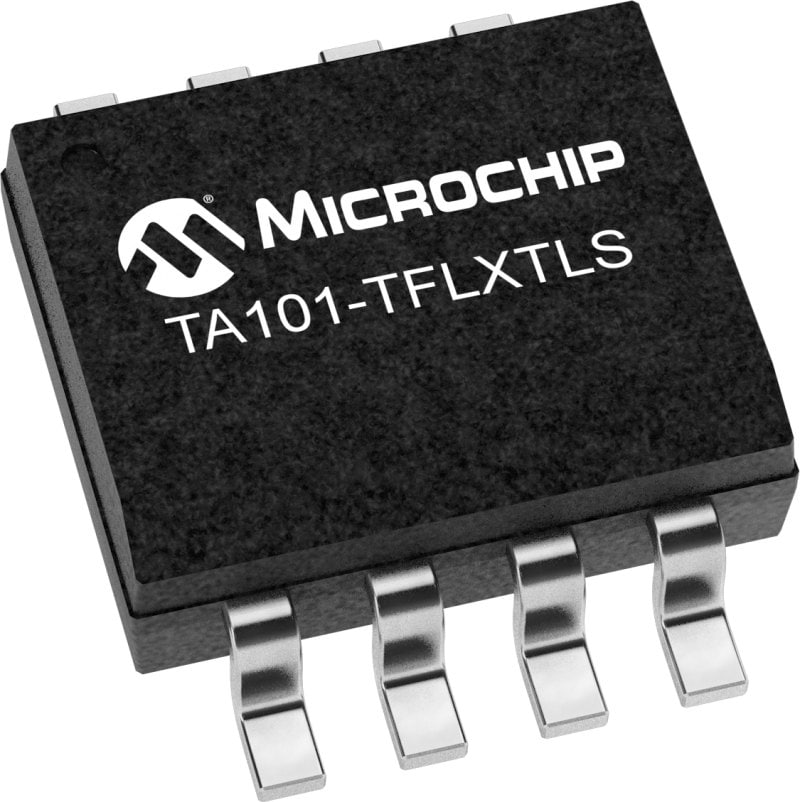

TA101 TrustFLEX (TA101-TFLXTLS): Secure Authentication ICs
Add Hardware Root of Trust Into Existing Public Key Infrastructure (PKI) and Cloud Environments
Factory-provisioned companion Hardware Security Module (HSM) with hardware authentication next to any MCU or MPU helping support Cyber Resilience Act (CRA) and IEC 62443 compliance.
Features:
- Drop-in hardware authentication for customer-supported PKI and cloud infrastructures
- Microchip in-factory provisioning within secure facilities prevents exposure of customer secrets
- Configurable use-case examples including secure boot, firmware updates, Transport Layer Security (TLS)/PKI, Qi 1.3 and multi-key access)
- Helps reduce development time and simplify documentation
- Hardware configurator for streamlined prototyping and production
- Companion device for MCUs and MPUs
- Designed for customer with existing security SaaS infrastructure
- RSA, ECC, SHA and AES cryptographic algorithms
Markets and applications:
- Industrial automation, IoT infrastructure and connected medical equipment requiring IEC 62443 and CRA compliance
- Secure boot, authenticated firmware updates and TLS/PKI network authentication
- Qi 1.3 wireless charging authentication and multi-key access management
- Media Access Control Security (MACsec) for automotive and industrial

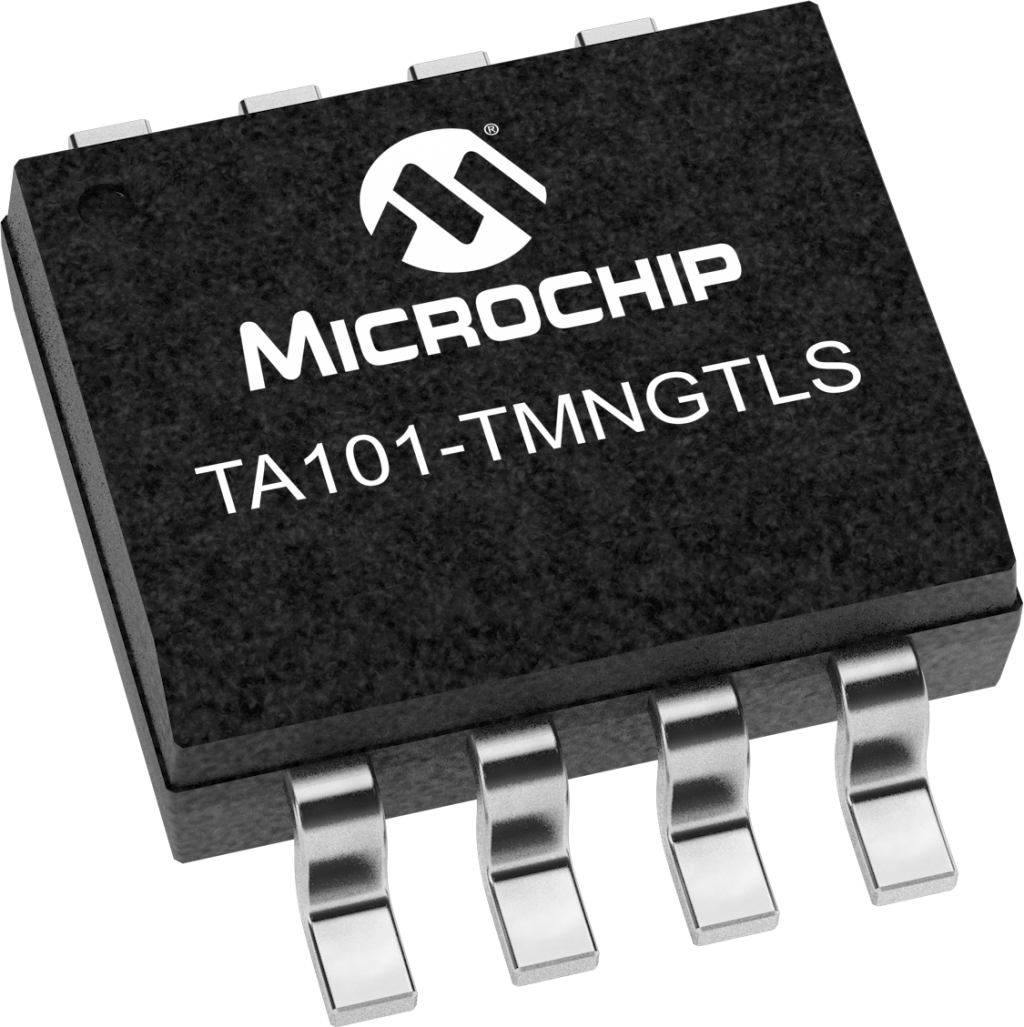

TA101 TrustMANAGER (TA101-TMNGTLS): Secure Authentication ICs
Advanced Hardware Security With Streamlined Lifecycle Management
Companion HSM IC with managed in-field Firmware Over-the-Air (FOTA) provisioning via keySTREAM, helping support IoT security for MCU and MPU applications requiring CRA and IEC 62443 compliance.
Features:
- Remote and in-field provisioning, configuration and lifecycle credential management via Kudelski IoT keySTREAM
- PKI, code signing and FOTA without requiring in-house product security infrastructure
- Designed to support CRA and IEC 62443 requirements
- Companion devices for MCUs and MPUs
- Streamlined integration with cloud-managed hardware-rooted trust architectures
- Designed for customers with limited security infrastructure
- RSA, ECC, SHA and AES cryptographic algorithms
Markets and applications:
- Industrial automation, IoT infrastructure and connected medical equipment requiring IEC 62443 and CRA compliance
- Automotive in-vehicle networking and Software-Defined Vehicle (SDV) architectures and Electric Vehicle (EV) charging security
- Remote PKI generation, fleet and credential management, configuration, code signing and secure firmware updates (FOTA)
Sensors and Motor Drive Components

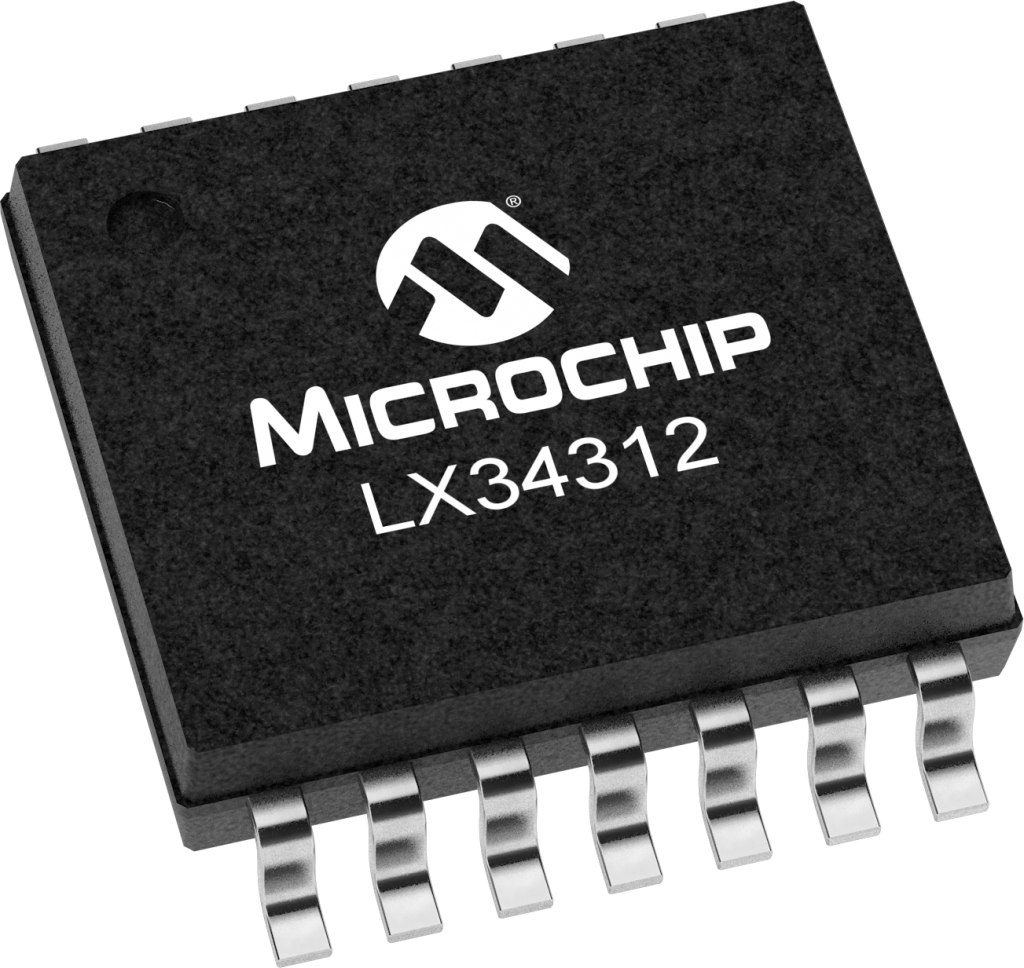

LX34312: Inductive Position Sensors
High Accuracy Magnetless Position Sensing for Supply Resilience and Flexible Product Design
2 kHz sample rate sensor for position sensing in applications requiring high accuracy, functional safety, flexible sensor design and strong supply resiliency.
Features:
- 2 kHz or lower sample rate sensor for low-speed applications
- 22 fully customizable calibration segments
- Three times the gain of the LX3302A, enabling:
- Smaller sensors
- Larger airgaps
- Greater flexibility in air-gap variation
- SENT 2016-capable
- Enhanced emissions performance
- Dual-fab supply in Asia and the U.S.
- ISO 26262 ASIL C Compliant
- AEC Q100 Grade 0 (-40°C to +150°C)
- Standard 14-pin TSSOP package
Markets and applications:
- Actuators
- Cooling valves
- Assembly-line rail and laner positions
- Garage door position sensing
- Brake and accelerator pedals
- Clutch position sensing
- Park lock sensors
- Steering angle sensing
See LX34312 Datasheet is in the Secure Document Extranet (SDE) →
View LX34312 Product Page →
Wireless Connectivity

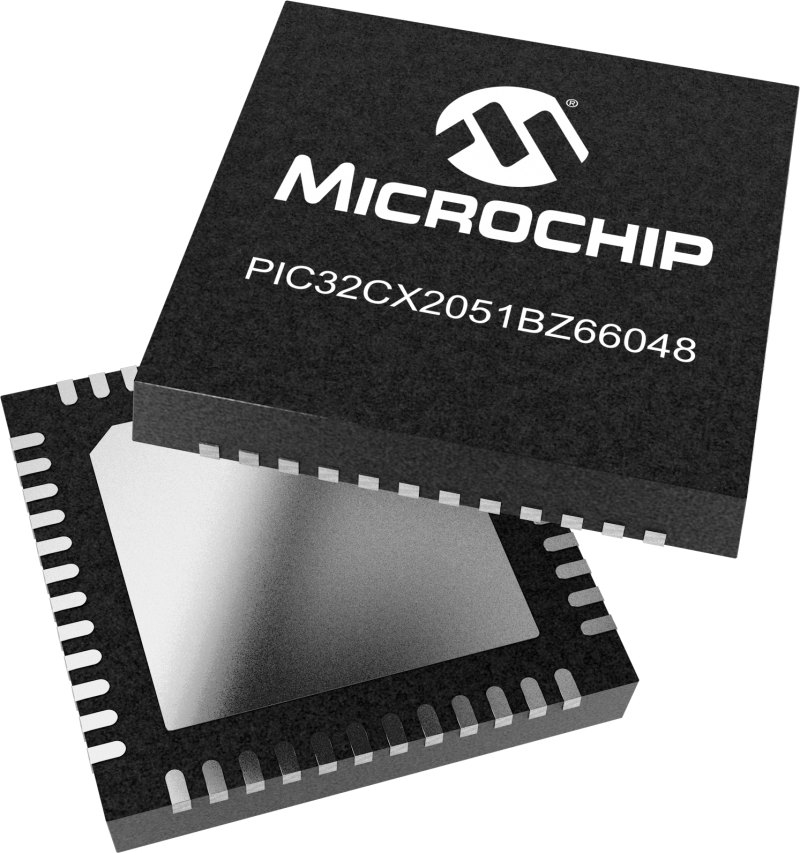

PIC32CX2051BZ66048: BLE6.0, Thread 1.3.0
Highly Integrated Multiprotocol Wireless Systems-on-Chip (SoCs)
48-pin Bluetooth® Low Energy (Bluetooth LE) and Thread® wireless MCU with compact size, rich peripherals and secure boot support.
Features:
- Certified against Bluetooth Core 6.0
- Support for 802.15.4 protocols including Thread and proprietary protocols
- 128 MHz ARM® Cortex® processor
- Optimized for compact wireless product design
- Extensive peripheral options for wireless MCU applications, including:
- Controller Area Network (CAN)
- Touch and graphics
- Motor control with Pulse-Width Modulation (PWM) and feedback encoder support
- General-Purpose Input/Output (GPIO)
- Large memory space for complex applications:
- 2 MB Flash memory and 512 KB RAM
- Operating temperature up to 125C (AEC-Q100 Grade 1 qualified)
Markets and applications:
- Thermostats
- Remote control panels
- Home appliances
- Industrial equipment
- Portable medical devices
See PIC32CX-BZ6 and PIC32WM-BZ6 Microcontrollers Datasheet →
View PIC32CX2051BZ66048 Microcontrollers →
Reference Designs
Bluetooth LE Servo Motor Control Demonstration
Enable the Servo Motor Control and Bluetooth LE Connection within a Single MCU
Control a servo motor using a Bluetooth LE MCU.
Features:
- Enables wireless servo motor control from a mobile phone app using Bluetooth LE
- PIC32-BZ6 wireless MCU drives the servo motor through PWM output
- Helps simplify Bluetooth LE integration for motorized systems
- Helps reduce development time with ready-to-use firmware and hardware configuration
- Provides a platform for evaluating wireless motor control
Markets and applications:
- Smart home
- Smart appliance
- Medical
- Robotics
Microchip Components:
Bluetooth LE Brushed DC Motor Control Demonstration
Monitor and Control a Brushed DC Motor with Bluetooth LE MCU
Reference Design Connecting Low-Power Display to a Wireless MCU.
Features:
- Monitor and control a brushed DC motor wirelessly via Bluetooth LE and a mobile phone app
- Build the motor control loop with Quadrature Encoder Interface (QEI) and PWM output
- Ready-to-use hardware and software for evaluation
- Helps Simplify wireless motor control integration
- Helps reduce development time for proof-of-concept projects
Markets and applications:
- Smart home
- Smart appliance
- Medical
- Robotics
