Special-purpose Analog-to-Digital Converters (ADCs) perform dedicated functions such as dual-slope conversion, voltage-to-frequency conversion, frequency-to-voltage conversion and 3½ digit Binary-Coded Decimal (BCD) and binary conversion. These devices may be combined with other functions such as driving Liquid Crystal Displays (LCDs) or Light Emitting Diodes (LEDs).
Featured Special-Purpose ADCs

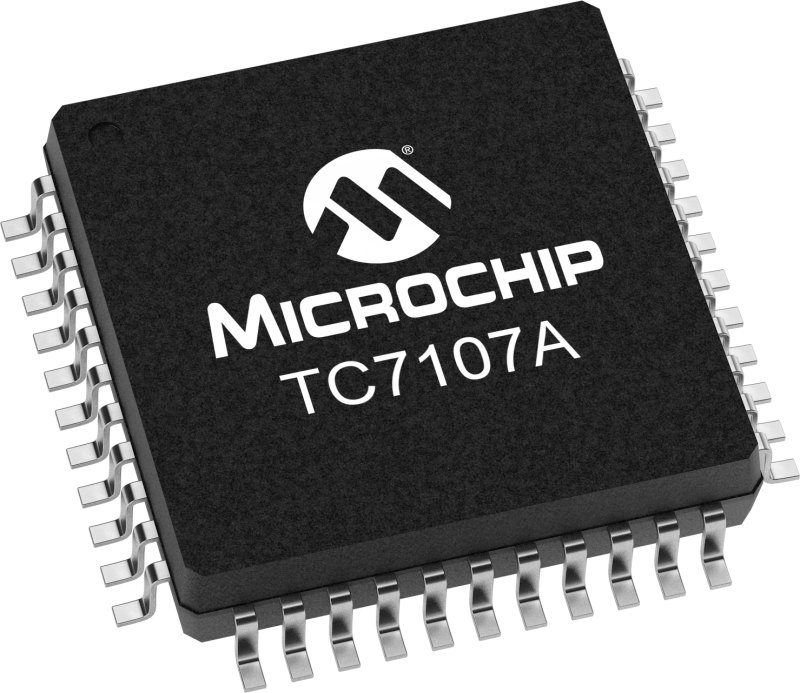

TC7107A
- 3½ Digit ADC
- Direct LED Display Drive
- Low Drift VREF : 20 ppm/°C
TC7109A
- 12-bit Resolution ADC
- Single Channel
- 10 Samples Per Second (SPS) Dual Slope

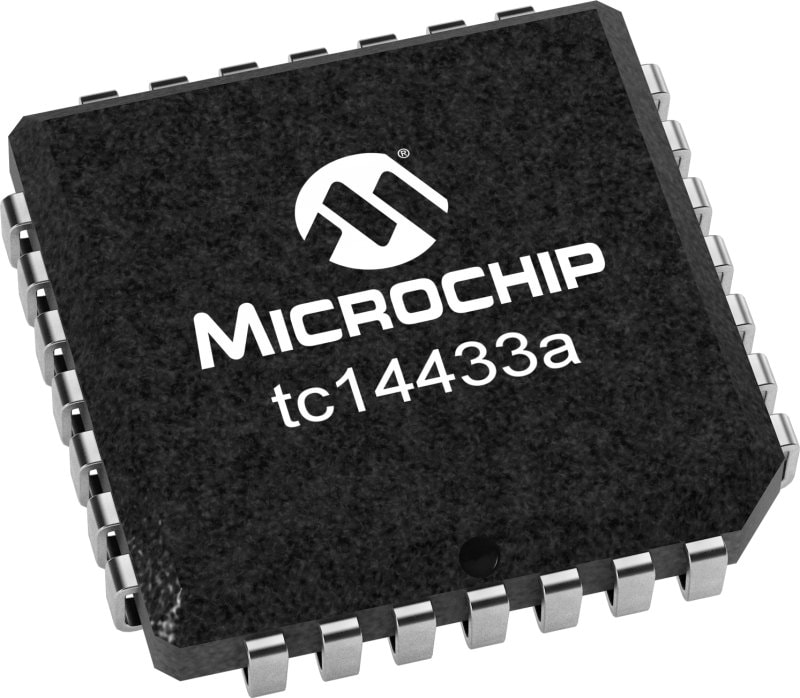

TC714433A
- 3½ Digit ADC
- Single Channel
- 25 SPS Dual Slope
Companion Products
Voltage References
Looking for stable voltage references for your data conversion system to help improve accuracy and reduce error? Check out our voltage reference products.
Operational Amplifiers
Looking for a complete amplifier solution for your data conversion application? Check out our wide selection of operational amplifiers.
Automotive Products
Our innovative automotive-grade mixed-signal products are designed to fit small footprints, consume very little power and operate in high-temperature and electromagnetic environments.
Products
- Display
- Dual Slope ADCs
- BCD and Binary ADCs
- Voltage-to-Frequency ADCs
| Product | Display Type | Resolution (Digits) | Resolution (Counts) | For DMM, DPM, Data Logger | Hold Function | Temperature Range (°C) |
|---|---|---|---|---|---|---|
| TC7106 | LCD | 3.5 | 2000 | Yes | No | -25 to 85 |
| TC7106A | LCD | 3.5 | 2000 | No | Yes | -25 to 85 |
| TC7107 | LED | 3.5 | 2000 | No | Yes | -25 to 85 |
| TC7107A | LED | 3.5 | 2000 | No | Yes | -25 to 85 |
| TC7116 | LCD | 3.5 | 2000 | No | Yes | -25 to 85 |
| TC7116A | LCD | 3.5 | 2000 | No | Yes | -25 to 85 |
| TC7117 | LED | 3 | 2000 | No | Yes | -25 to 85 |
| TC7117A | LED | 3 | 2000 | No | Yes | -25 to 85 |
| TC7126 | LCD | 3.5 | 2000 | No | No | -25 to 85 |
| TC7126A | LCD | 3.5 | 2000 | No | No | -25 to 85 |
| TC7129 | LCD | 4.5 | 20000 | No | No | 0 to 70 |
| Product | Resolution | Input Channels | Sample Rate (SPS Max) | Input Range (V) | Interface | Comments |
|---|---|---|---|---|---|---|
| TC500 | Up to 16 bits | 1 | 30 | -4.2V to 4.2V | 3-wire | The TC520A allows SPI™ interface to the TC500 |
| TC500A | Up to 17 bits | 1 | 30 | -4.2V to 4.2V | 3-wire | The TC520A allows SPI™ interface to the TC500A |
| TC510 | Up to 17 bits | 1 | 30 | -4.2V to 4.2V | 3-wire | The TC520A allows SPI™ interface to the TC510 |
| TC514 | Up to 17 bits | 4 | 30 | -2.5V to 2.5V | 3-wire | The TC520A allows SPI™ interface to the TC514 |
| TC520A | Up to 17 bits | 0 | 30 | Serial Port | TC500/500A/510/514 Companion | |
| TC7109 | 12 bits plus sign bit | 1 | 30 | -4.2V to 4.2V | Serial Port | Dual Slope ADC |
| TC7109A | 12 bits plus sign bit | 1 | 30 | -4.2V to 4.2V | Serial Port | Dual Slope ADC |
| Product | Device Type | Resolution (Digits) | Resolution (Counts) | Interface | For DMM, DPM, Data Logger | Input Range (V) |
|---|---|---|---|---|---|---|
| TC14433 | BCD | 3.5 | 2000 | MUXed BCD | Yes | 0.1999 to 1.999 |
| TC14433A | BCD | 3.5 | 2000 | MUXed BCD | Yes | 0.1999 to 1.999 |
| TC850 | Binary | 15 | 32768 | 8-bit Parallel | No | -3.5 to +3.5 |
| Product | Frequency Range (kHz) | INL (LSB Max) | Analog Supply Voltage Range (V) | Temperature Range (°C) | Comments |
|---|---|---|---|---|---|
| TC9400 | 100 | 2 | -7.5 to 7.5 | -40 to 85 | V2F (0.05%), F2V (0.05%) @10kHz |
| TC9401 | 100 | 2 | -7.5 to 7.5 | -40 to 85 | V2F (0.01%), F2V (0.02%) @10kHz |
| TC9402 | 100 | 2 | -7.5 to 7.5 | -40 to 85 | V2F (0.25%), F2V (0.25%) @10kHz |
