The need to accurately measure a dynamic current is critical in a wide variety of applications, such as monitoring or charging batteries, creating a current controlled feedback loop for a power supply or motor, or simply to monitor current levels for safety reasons. Our current sense amplifiers provide a high-flexibility, high-precision solution to maximize efficiency and reliability with a zero-drift architecture, which makes your design more robust across a wide range of environmental conditions and applications.



  • High-voltage current sense amplifiers featuring a wide specified input common-mode range provide the flexibility to address a variety of voltage rails, including overhead for transients

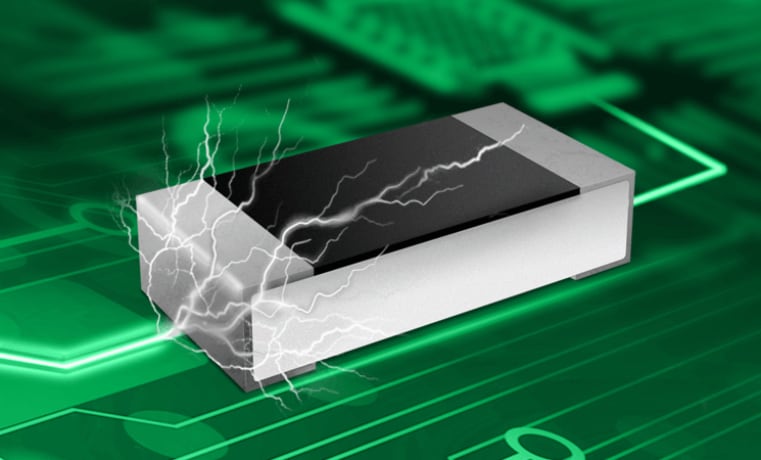

  • The zero-drift architecture enables ultra-low offsets, allowing you to use smaller shunt resistors without sacrificing resolution
  • Integrated, on-chip Electromagnetic Interference (EMI) filters reduce high-frequency interference and are ideal for harsh, electrically noisy environments

Looking for a More Integrated Solution?

We provide a variety of devices to monitor power, voltage, current, zero cross detection and energy accumulation. Whether you need to monitor a DC voltage or a single- or poly-phase AC line, our innovative and easy-to-use products provide highly integrated solutions to meet your design challenges.

Need to Support High-Voltage AC/DC Current Monitoring?

The HV780x series of high side current monitors offers a wide input voltage range and low quiescent current, making these devices well suited for a variety of offline, battery-powered and portable applications.

Current Sense Amplifiers

View All Parametrics
Product Input Common Mode Voltage Min (V) Input Common Mode Voltage Max (V) Vos Max (µV) Bandwidth (kHz) Iq Typical (µA) Iq Max (µA)
MCP6C02 3 65 16 500 490 725
MCP6C04 3 52 30 500 500 840

Amp’titudes Episode 13 – Current Sensing

This video discusses the use of amplifier in shunt-based current sensing applications and the pros and cons of high-side and low-side monitoring. http://www.microchip.com/linear
