Digital imaging applications require very-low-latency signaling and very high accuracy, as well as uncompressed video data delivery from the camera to the host device. The download speed can range from 1.25 Gbps to 12.5 Gbps. Here are several types of applications where you can effectively use our data and video equalizers, repeaters, transmitters and transceivers.

Machine Vision and Factory Automation

Machine vision systems need to be able to capture very-high-resolution and high-frame-rate video images quickly. These video images need to have enough resolution and clarity to view them as still images. These systems, which typically include high-speed industrial cameras and industrial frame-grabber cards, require very-high-bandwidth, uncompressed transmission of video data at the lowest latency possible. CoaXPress® technology offers the speed, performance and flexibility to meet the requirements of these high-end applications:

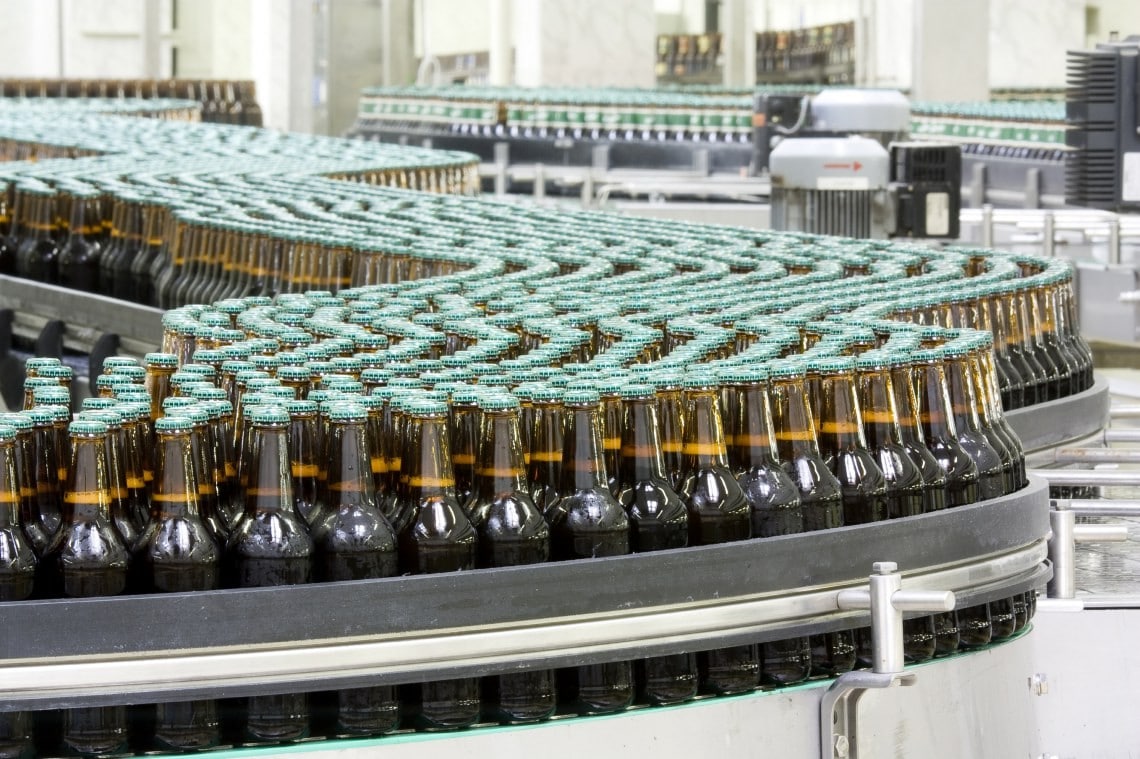

  • Industrial bottling inspection systems
  • Food sorting systems
  • Medical imaging
  • Traffic monitoring

Security and Surveillance

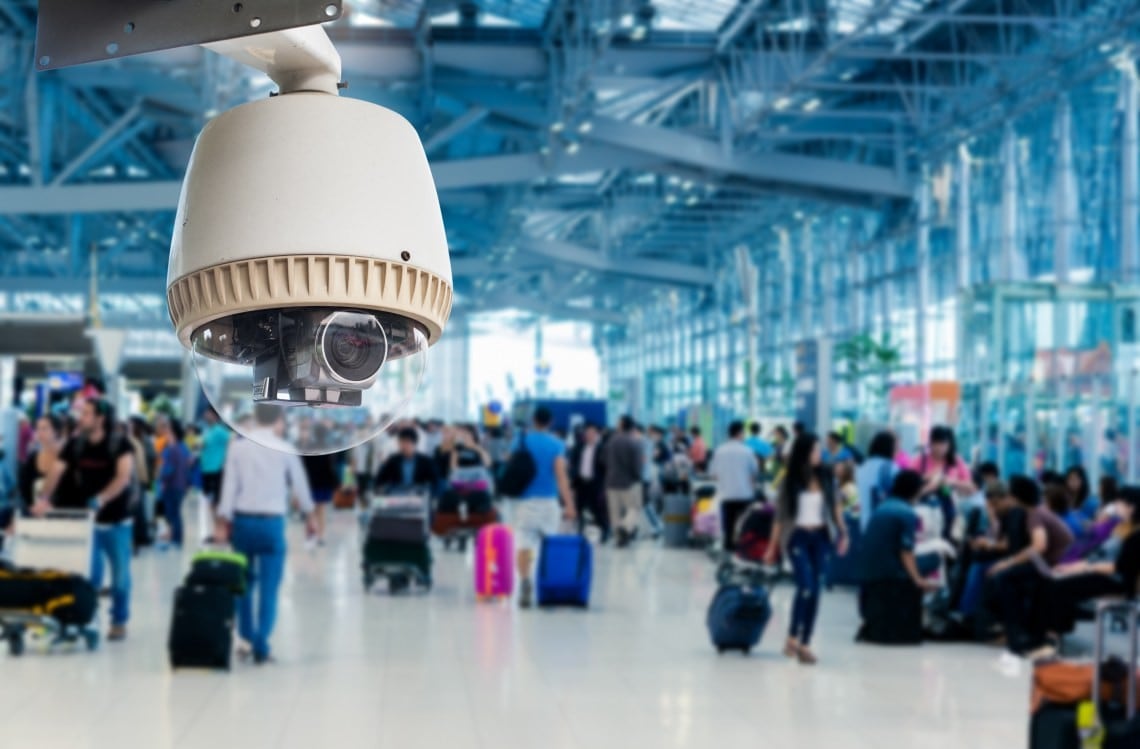

Security and surveillance applications typically require high-speed security cameras for monitoring people or traffic and other types of surveillance imaging. These cameras need to be able to capture and send high-speed video over very long distances of cables. The low-latency, high-resolution High Definition Serial Data Interface (HD-SDI) can support a high frame rate and uncompressed video data for these types of applications:

  • Security camera and host capture cards
  • Casino monitoring
  • Traffic monitoring
  • Video surveillance

We Offer These Solutions for Your Design


Equalizers (Receivers)

Our auto-adaptive coaxial cable video equalizers enable the signal recovery performance to automatically adapt to compensate for different cable lengths, varying temperatures, system aging and other factors. They support simultaneous video downlink, uplink for camera control and power over a single coaxial cable and are designed for the lowest-achievable power consumption to reduce the amount of wasted energy and unwanted heat within systems.

Transmitters (Drivers)

Our cable drivers enable frequency separation on a single copper cable to allow video, control and power signals to be transmitted simultaneously without interference.

Transceivers (Equalizers/ Transmitters/Repeaters)

Our transceivers are chipsets consisting of a transmitter that is integrated into a camera and an equalizer that is integrated into the frame grabber on the system head end. Our single-chip transceiver devices also feature integrated Clock-Data-Recovery (CDR), which enables them to also be used as cable extenders/repeaters. Real-time cable link signal integrity test capability ensures link quality at all times and  low-frequency clock recovery for camera-side devices.

Supported Protocols


We offer solutions that are compatible with these networking protocols, depending on the requirements of your specific application

  • CoaXPress® Technology
  • HD-SDI

Data and Video Transceivers

View All Parametrics
Product Status 5K Pricing Downlink Speed (Gbps) Uplink Speed (Mbps) Power over Coaxial Cable Device Type Coaxial Cable Support Device Power Consumption Temp Range (° C) Clock-Data Recovery (CDR) Pin Compatible Packages
EQCO125T40 In Production $20.40 12.5 40 Yes Receiver 75-ohm and 50-ohm 125mW @1.25V -40 to 85 CDR for up- and downlink Yes 16/QFN
EQCO125X40 In Production $22.44 12.5 40 Yes Receiver 75-ohm and 50-ohm 125mW @1.25V -40 to 85 CDR for up- and downlink Yes 16/QFN
EQCO31R20 In Production $19.55 3.125 20 Yes Receiver 75-ohm and 50-ohm <70mW @1.2V -40 to 85 No CDR No 16/QFN
EQCO31T20 In Production $19.55 3.125 20 Yes Transmitter 75-ohm and 50-ohm <70mW @1.2V -40 to 85 No CDR No 16/QFN
EQCO31X20 In Production $15.30 3.125 20 Yes Receiver 75-ohm and 50-ohm 87.5mW @1.25V -40 to 85 CDR for up- and downlink Yes 16/QFN
EQCO62R20 In Production $25.66 6.25 20 Yes Receiver 75-ohm and 50-ohm <70mW @1.2V -40 to 85 No CDR No 16/QFN
EQCO62T20 In Production $25.66 6.25 20 Yes Transmitter 75-ohm and 50-ohm <70mW @1.2V -40 to 85 No CDR No 16/QFN
EQCO62X20 In Production $18.36 6.25 20 Yes Receiver 75-ohm and 50-ohm 100mW @1.25V -40 to 85 CDR for up- and downlink Yes 16/QFN
View All Parametrics
Product Status 5K Pricing Temp Range Min.(° C) Temp Range Max.(° C) Power Consumption Package Size (mm) Package Type Pin Count Package Pitch Operating Voltage Min (V) Operating Voltage Max (V) Storage Temp Range Min.(° C) Storage Temp Range Max.(° C) Packages

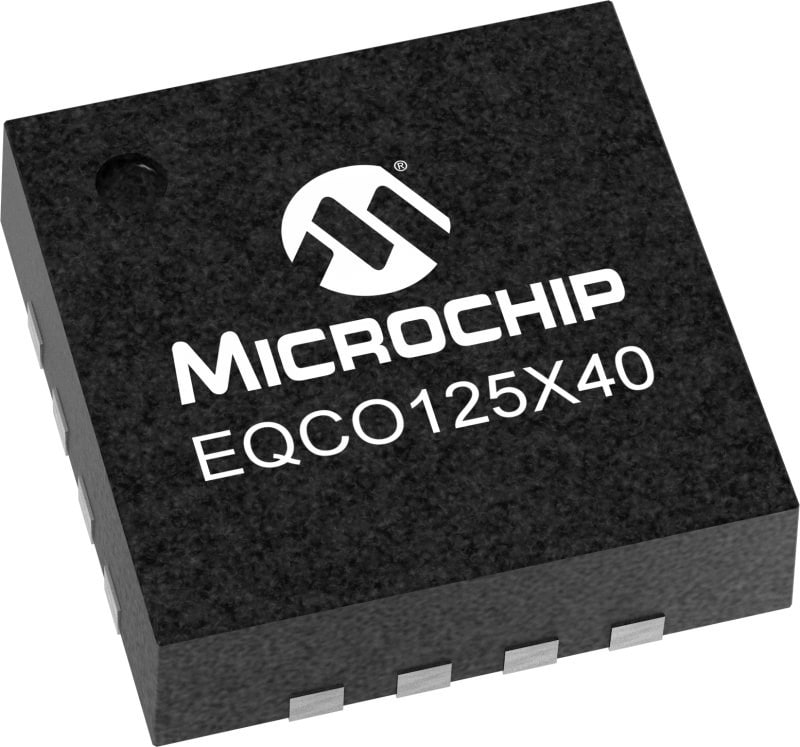

EQCO125X40 In Production $22.44 -40 85 125mW @1.25V 4x4 QFN 16 0.65mm pin pitch 1.15 1.25 -65 150 16/QFN

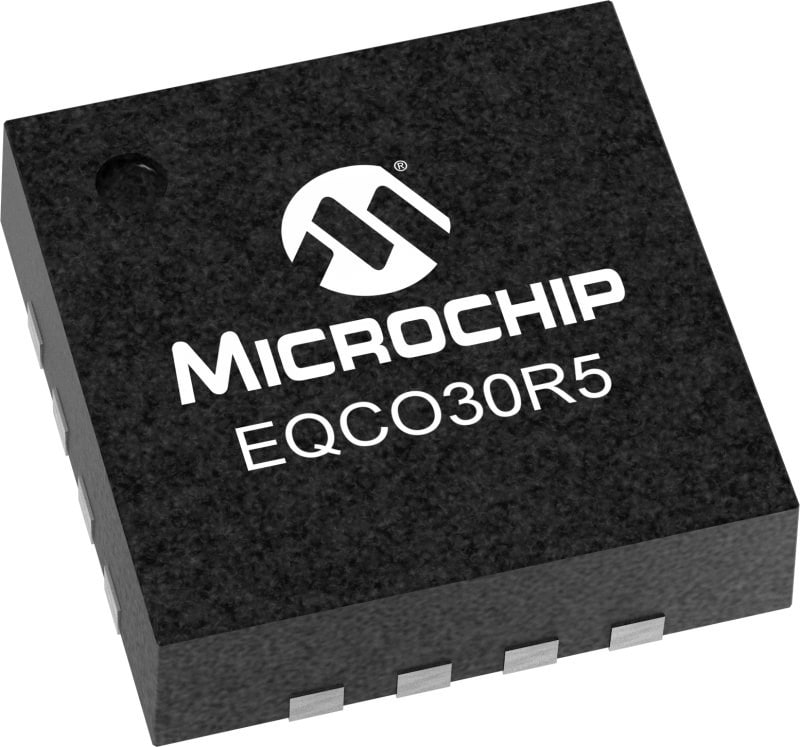

EQCO30R5 In Production $4.02 -40 85 150mW 4x4 QFN 16 0.65mm pin pitch 3.15 3.45 16/QFN
EQCO30R5 In Production $4.02 -40 85 150mW 4x4 QFN 16 0.65mm pin pitch 3.15 3.45 16/QFN
EQCO31R20 In Production $19.55 -40 85 <70mW @1.2V 4x4 QFN 16 0.65mm pin pitch 1.15 1.25 -65 150 16/QFN
EQCO31X20 In Production $15.30 -40 85 87.5mW @1.25V 4x4 QFN 16 0.65mm pin pitch 1.15 1.25 -65 150 16/QFN
EQCO62R20 In Production $25.66 -40 85 <70mW @1.2V 4x4 QFN 16 0.65mm pin pitch 1.15 1.25 -65 150 16/QFN
EQCO62X20 In Production $18.36 -40 85 100mW @1.25V 4x4 QFN 16 0.65mm pin pitch 1.15 1.25 -65 150 16/QFN
View All Parametrics
Product Status 5K Pricing Downlink Speed (Gbps) Uplink Speed (Mbps) Power over Coaxial Cable Device Type Coaxial Cable Support Device Power Consumption Temp Range (° C) Clock-Data Recovery (CDR) Pin Compatible Packages
EQCO125T40 In Production $20.40 12.5 40 Yes Receiver 75-ohm and 50-ohm 125mW @1.25V -40 to 85 CDR for up- and downlink Yes 16/QFN
EQCO125X40 In Production $22.44 12.5 40 Yes Receiver 75-ohm and 50-ohm 125mW @1.25V -40 to 85 CDR for up- and downlink Yes 16/QFN
EQCO30T5 In Production $3.26 3.125 5 Yes Transmitter 75 and 50 Ohm 150mW -40 to 85 No CDR No 16/QFN
EQCO31T20 In Production $19.55 3.125 20 Yes Transmitter 75-ohm and 50-ohm <70mW @1.2V -40 to 85 No CDR No 16/QFN
EQCO31X20 In Production $15.30 3.125 20 Yes Receiver 75-ohm and 50-ohm 87.5mW @1.25V -40 to 85 CDR for up- and downlink Yes 16/QFN
EQCO62T20 In Production $25.66 6.25 20 Yes Transmitter 75-ohm and 50-ohm <70mW @1.2V -40 to 85 No CDR No 16/QFN
EQCO62X20 In Production $18.36 6.25 20 Yes Receiver 75-ohm and 50-ohm 100mW @1.25V -40 to 85 CDR for up- and downlink Yes 16/QFN
View All Parametrics
Product Status 5K Pricing Temp Range Min.(° C) Temp Range Max.(° C) Power Consumption Package Size (mm) Package Type Pin Count Package Pitch Operating Voltage Min (V) Operating Voltage Max (V) Storage Temp Range Min.(° C) Storage Temp Range Max.(° C) Packages
EQCO125X40 In Production $22.44 -40 85 125mW @1.25V 4x4 QFN 16 0.65mm pin pitch 1.15 1.25 -65 150 16/QFN
EQCO30R5 In Production $4.02 -40 85 150mW 4x4 QFN 16 0.65mm pin pitch 3.15 3.45 16/QFN
EQCO30R5 In Production $4.02 -40 85 150mW 4x4 QFN 16 0.65mm pin pitch 3.15 3.45 16/QFN
EQCO30T5 In Production $3.26 -40 85 150mW 4x4 QFN 16 0.65mm pin pitch 3.15 3.45 -65 150 16/QFN
EQCO31R20 In Production $19.55 -40 85 <70mW @1.2V 4x4 QFN 16 0.65mm pin pitch 1.15 1.25 -65 150 16/QFN
EQCO31T20 In Production $19.55 -40 85 <70mW @1.2V 4x4 QFN 16 0.65mm pin pitch 1.15 1.25 -65 150 16/QFN
EQCO31X20 In Production $15.30 -40 85 87.5mW @1.25V 4x4 QFN 16 0.65mm pin pitch 1.15 1.25 -65 150 16/QFN
EQCO62R20 In Production $25.66 -40 85 <70mW @1.2V 4x4 QFN 16 0.65mm pin pitch 1.15 1.25 -65 150 16/QFN
EQCO62T20 In Production $25.66 -40 85 <70mW @1.2V 4x4 QFN 16 0.65mm pin pitch 1.15 1.25 -65 150 16/QFN
EQCO62X20 In Production $18.36 -40 85 100mW @1.25V 4x4 QFN 16 0.65mm pin pitch 1.15 1.25 -65 150 16/QFN
