Telecommunication Clock Systems

Accurate, Centralized Reference Signals for the Communications Marketplace

Designed to meet the needs of today's demanding and complex communications infrastructures, our modular distribution systems support an extensive variety of input references, oscillators, output frequencies and input/output interface styles with powerful network-based management tools and complete power supply plans.

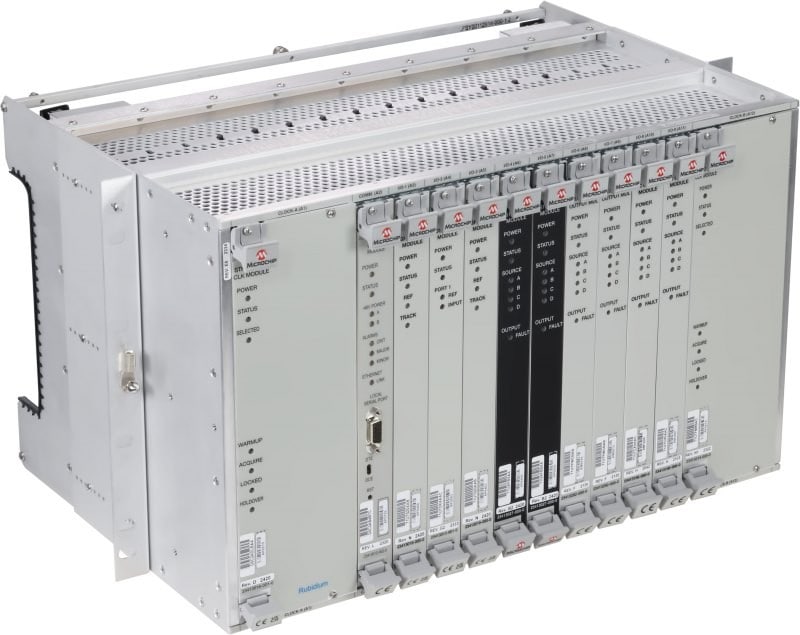

SSU 2000 and SSU 2000e

  • Fully configured SSU 2000 system (rear connectors) that provides T1/E1/CC output total capacity of up to 1280 unprotected ports or 640 protected ports
  • Fully configured SSU 2000e system (front connectors) that supports up to 460 T1/E1 outputs of protected or unprotected ports
  • Clock cards include ITU-T Type 1 (enhanced quartz oscillator), Type II (Stratum 2E, enhanced rubidium oscillator) and Type III (Stratum 3E, enhanced quartz oscillator)
  • Communications card has RADIUS SFTP and SSH support and NTP client functionality
  • System is managed by TimePictra® platform

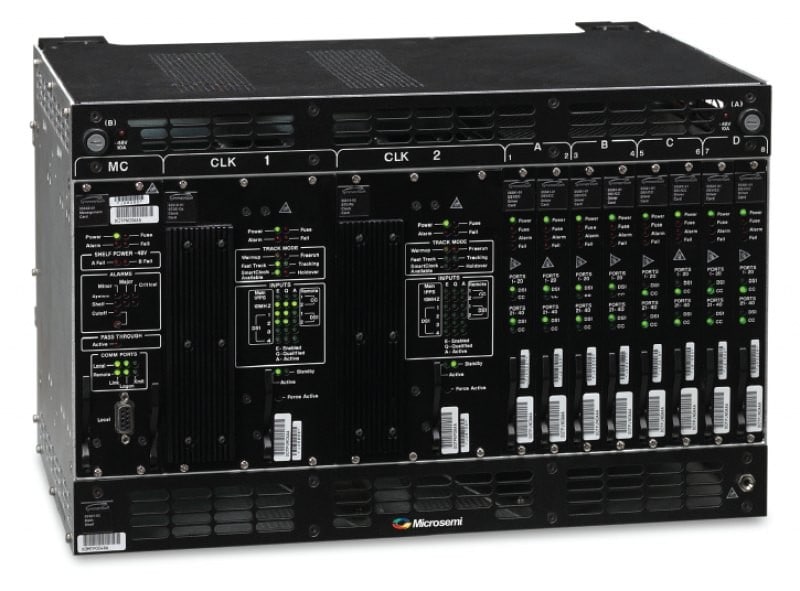

TimeHub® 5500 Platform

  • Supports all physical layer synchronization requirements
  • Offers a choice of two clock cards: Type II (Stratum 2E, enhanced rubidium oscillator) or Type III (Stratum 3E, enhanced quartz oscillator)
  • Includes more than 1400 protected outputs per system that are managed by TimePictra platform
  • Contains a single output card that generates CC and DS1 signals
  • Offers high Quality of Service (QoS) delivery of NGN applications and content over carrier networks

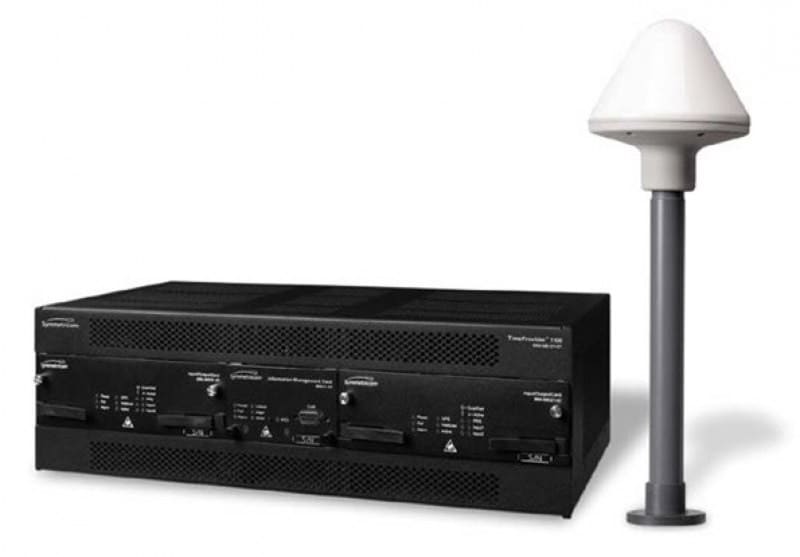

TimeProvider® 1100 Series

  • Economical and compact
  • Up to 64 1+1 protected and configurable outputs per system
  • Fully redundant and protected
  • Type II/Stratum 2 and Type I/Stratum 3E holdover IOC options
  • Universal input and output cards

SyncSystem 4380A

  • Functions as the centerpiece of a time scale system
  • Integrates clock measurement and clock ensemble using KAS-2 algorithm
  • Delivers local realization of UTC and contribution to worldwide UTC time scale
  • Includes GNSS common view and related reports for interfacing with BIPM

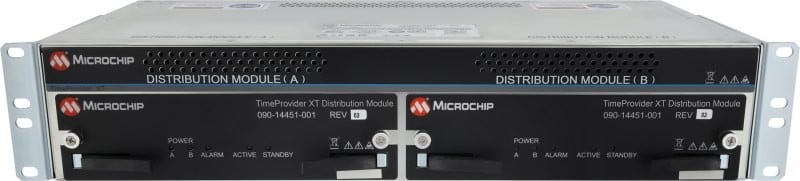

TimeProvider® XT Extension System

  • The TimeProvider® XT extension system allows you to migrate E1/T1/CC signal outputs to the TimeProvider 4x00 Grandmaster while supporting all future protocols and standards
  • The frequency source for the TimeProvider XT extension system is a TimeProvider 4x00 Grandmaster with up to 200 framed E1, T1, DS1, CC, 2.048 MHz and 1.544 MHz outputs
  • All configurations, status monitoring and alarm reporting are done via the TimeProvider 4x00 Grandmaster
