SSU 2000 and SSU 2000e Synchronization Supply Units

Download Data Sheet

Carrier-Grade Synchronization Supply Units for Communications Networks

The SSU 2000 and SSU 2000e are fully manageable carrier-grade synchronization systems used by communications network operators to generate and distribute superior synchronization signals for their networks. The SSU 2000 conforms to ANSI standards and is NEBS certified and the SSU 2000e front access shelf is ETSI certified. Both systems use the same plug-in cards and provide frequency network timing capabilities for SDH/SONET networks. T1, E1 and CC output cards may be configured in redundant pairs, providing 20 1+1 fully protected outputs per pair. A fully configured SSU 2000 system provides T1/E1 output total capacity of up to 1280 unprotected ports or 640 protected ports. A fully configured SSU 2000e system supports up to 460 protected or unprotected ports.

Key Features

High capacity
Modular system
Integrated GPS
E1, T1 and composite clock outputs
RADIUS and SSH options
Performance monitoring on all inputs
Management: TL1 and ICS, option for SNMP, TimeCraft GUI
TimePictra^® Synchronization Management System support

Key Benefits

Fully redundant for service delivery protection
Proven interoperability
High capacity E1 and T1 ports

Major Applications

Primary Reference Source (PRS)
SSU, Building Integrated Timing Supply (BITS), Stand Alone Synchronization Equipment (SASE) and Timing Signal Generator (TSG)
SDH/SONET and GPON networks
Telecommunications, power utility, government and other private networks

Products

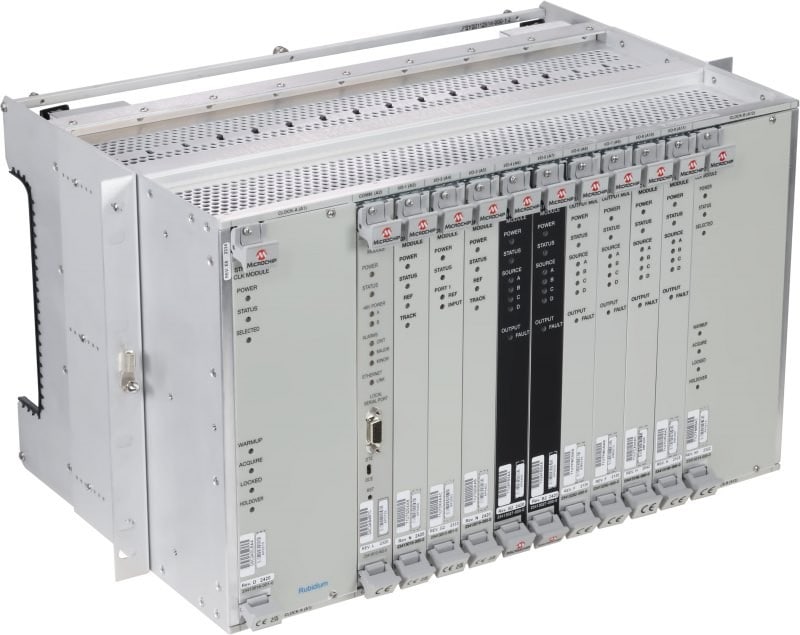

SSU 2000 Main Shelf

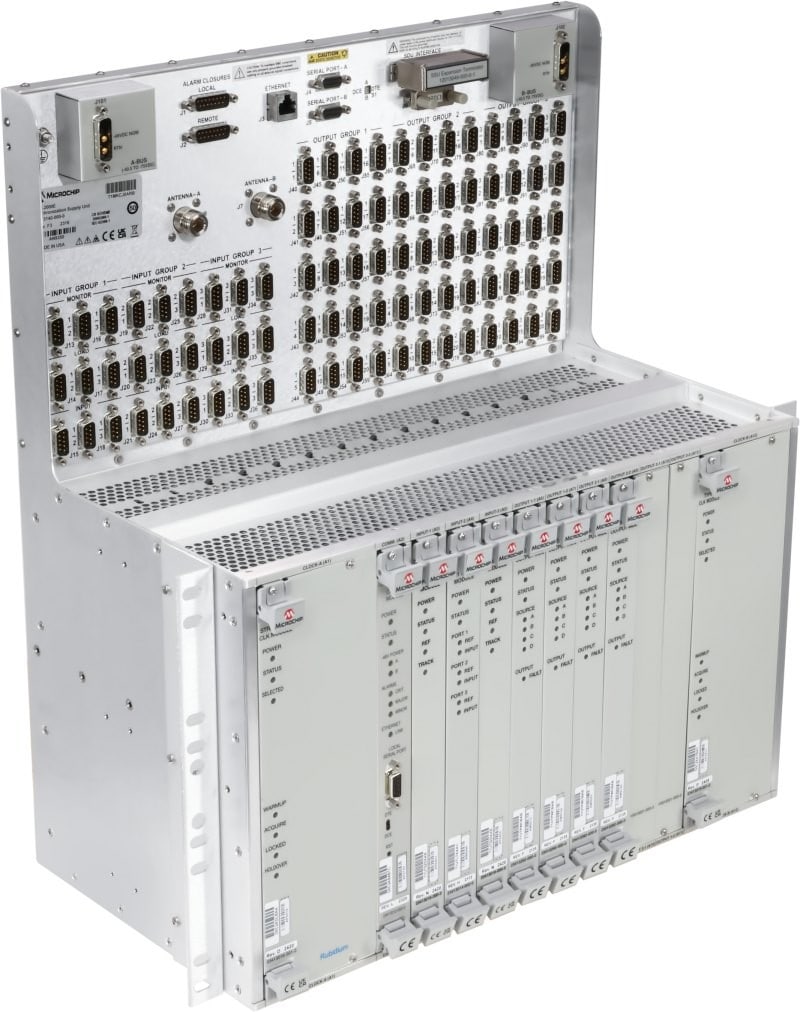

SSU 2000e Main Shelf

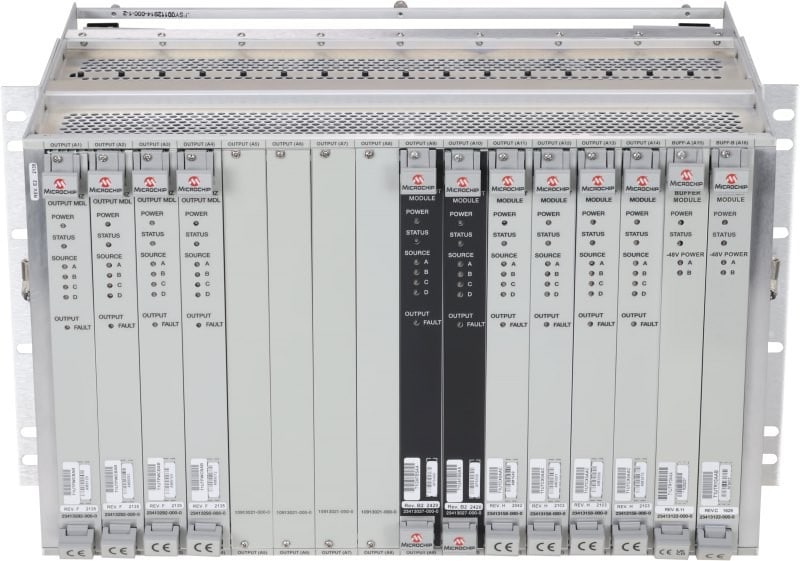

SDU 2000 Expansion Shelf

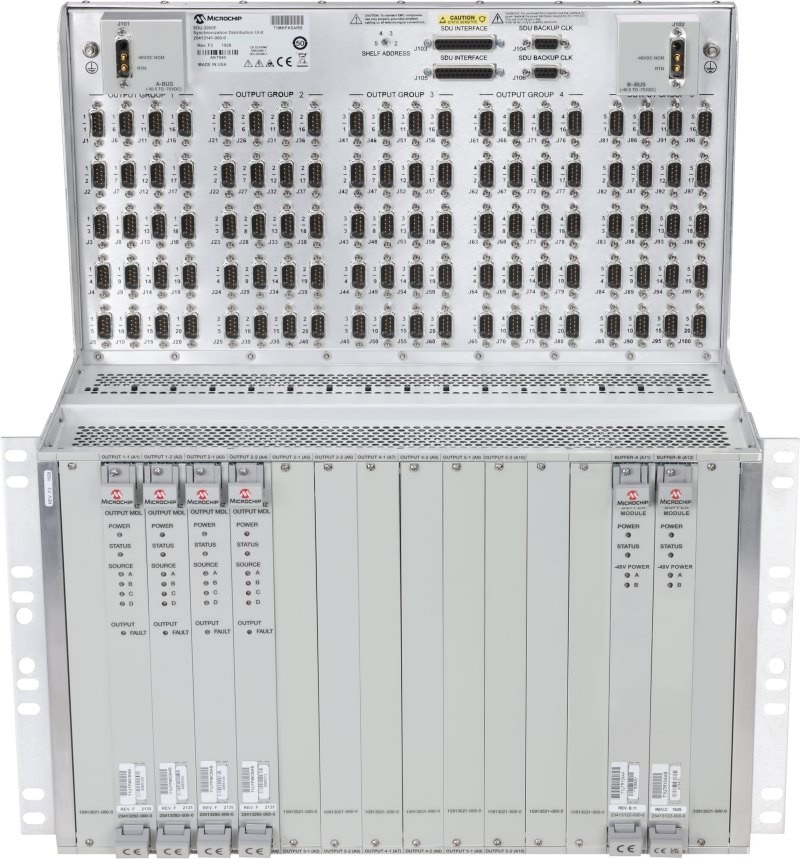

SDU 2000e Expansion Shelf

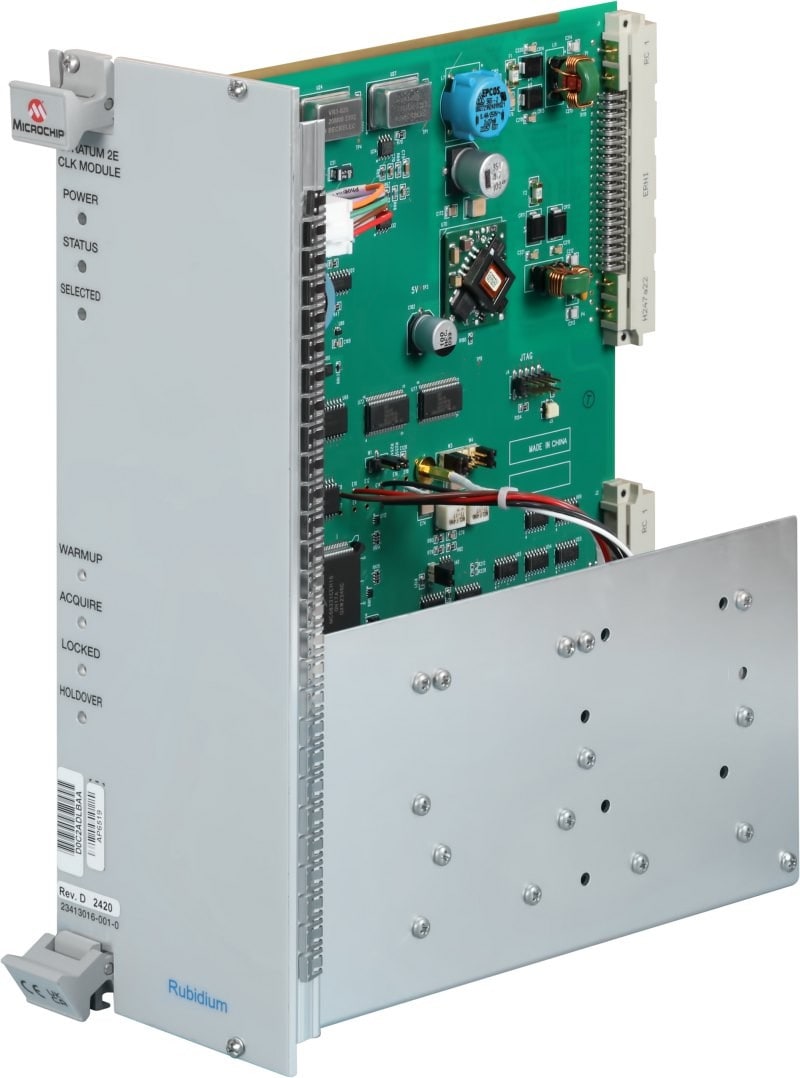

SSU 2000 MAC Stratum 2e Rubidium Clock Module

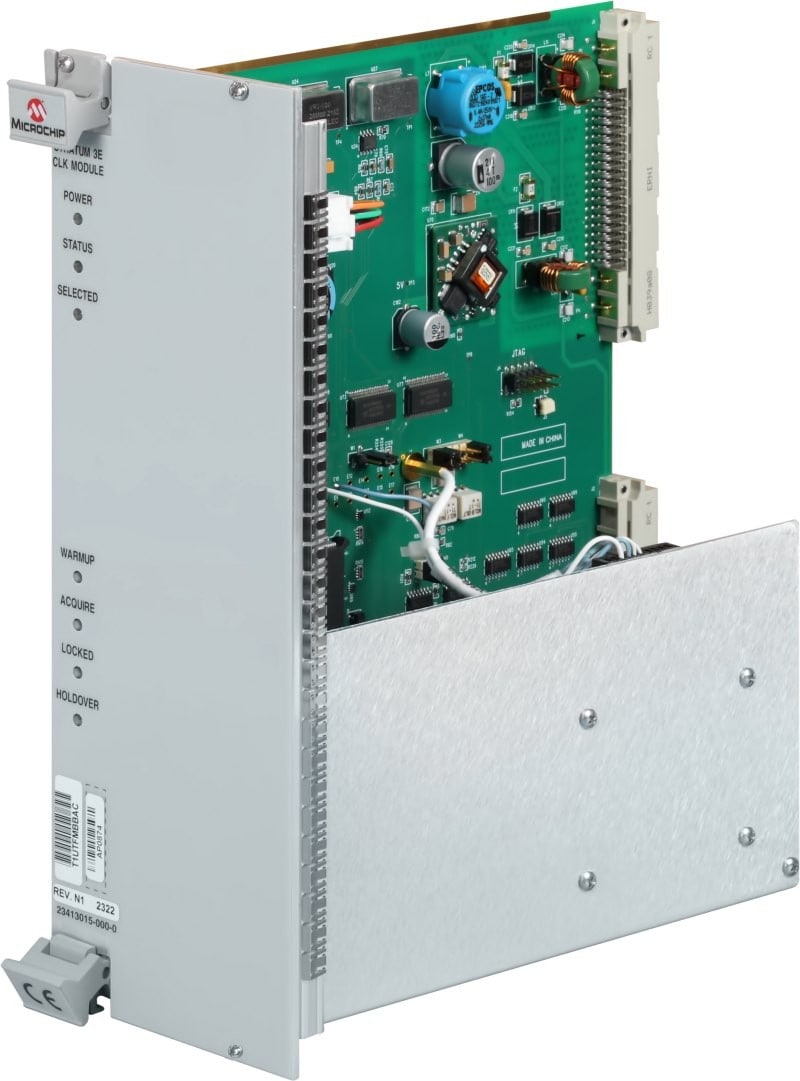

SSU 2000 Stratum 3e Quartz Clock Module

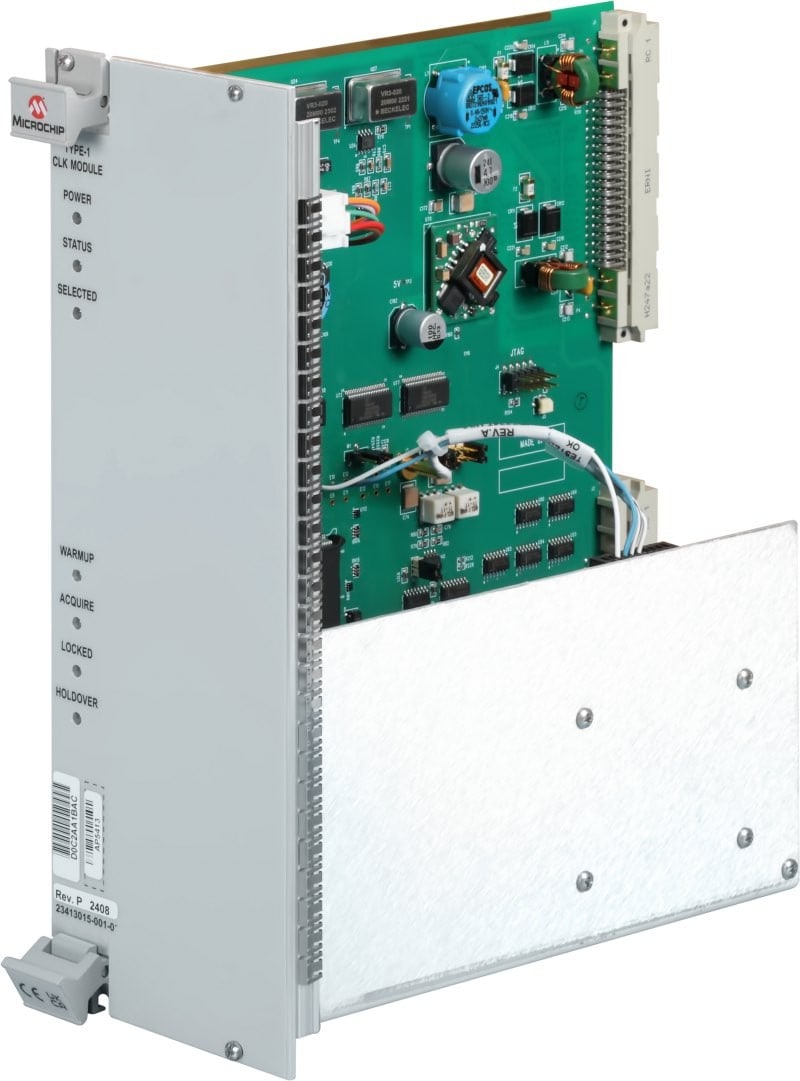

SSU 2000 Type 1 Clock Module

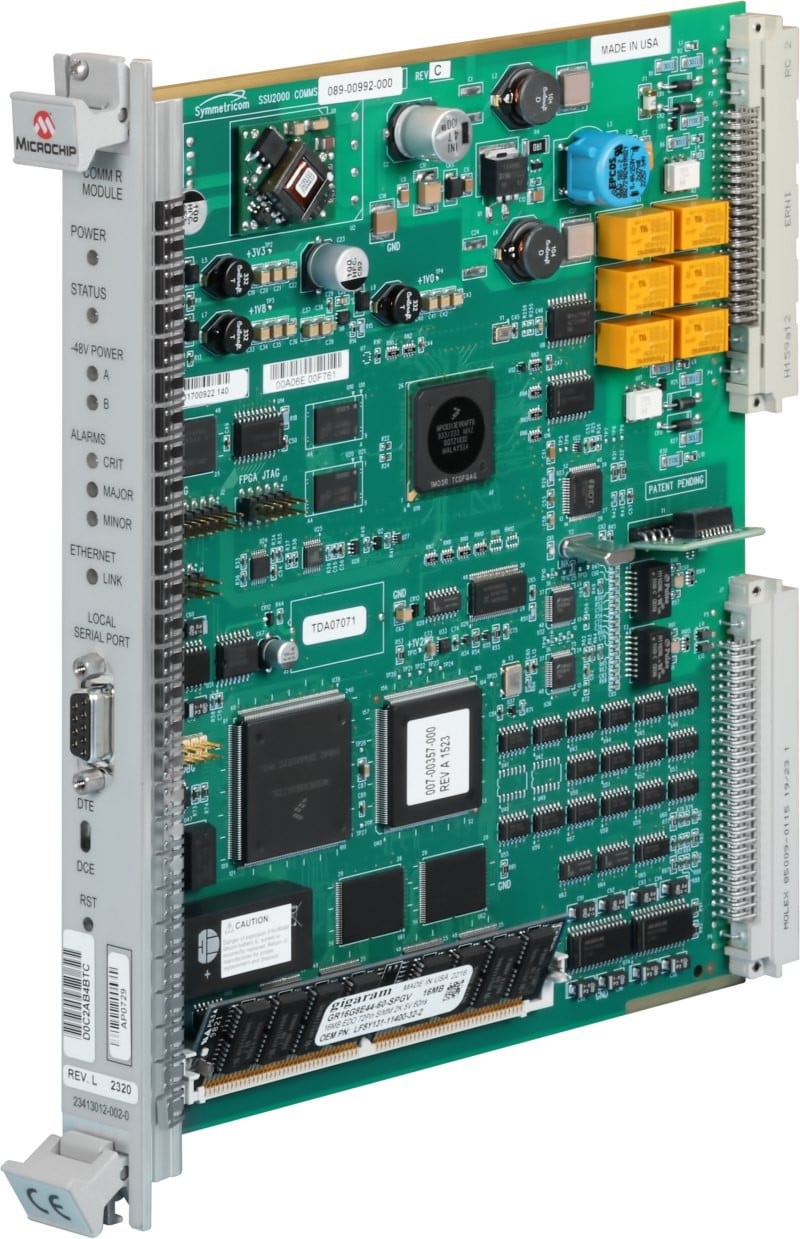

SSU 2000 RADIUS Capable and SSH COMMS Module With SNMPv2/v3

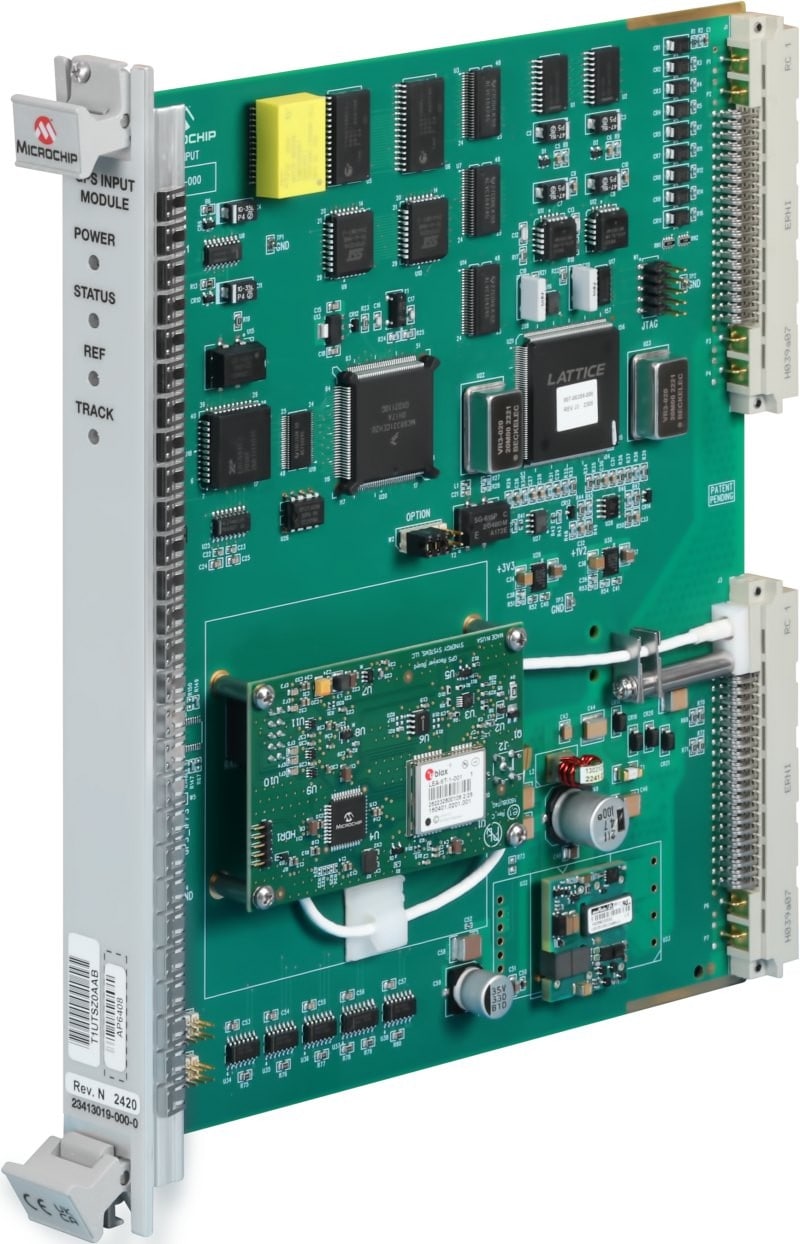

SSU 2000 GPS Input Module

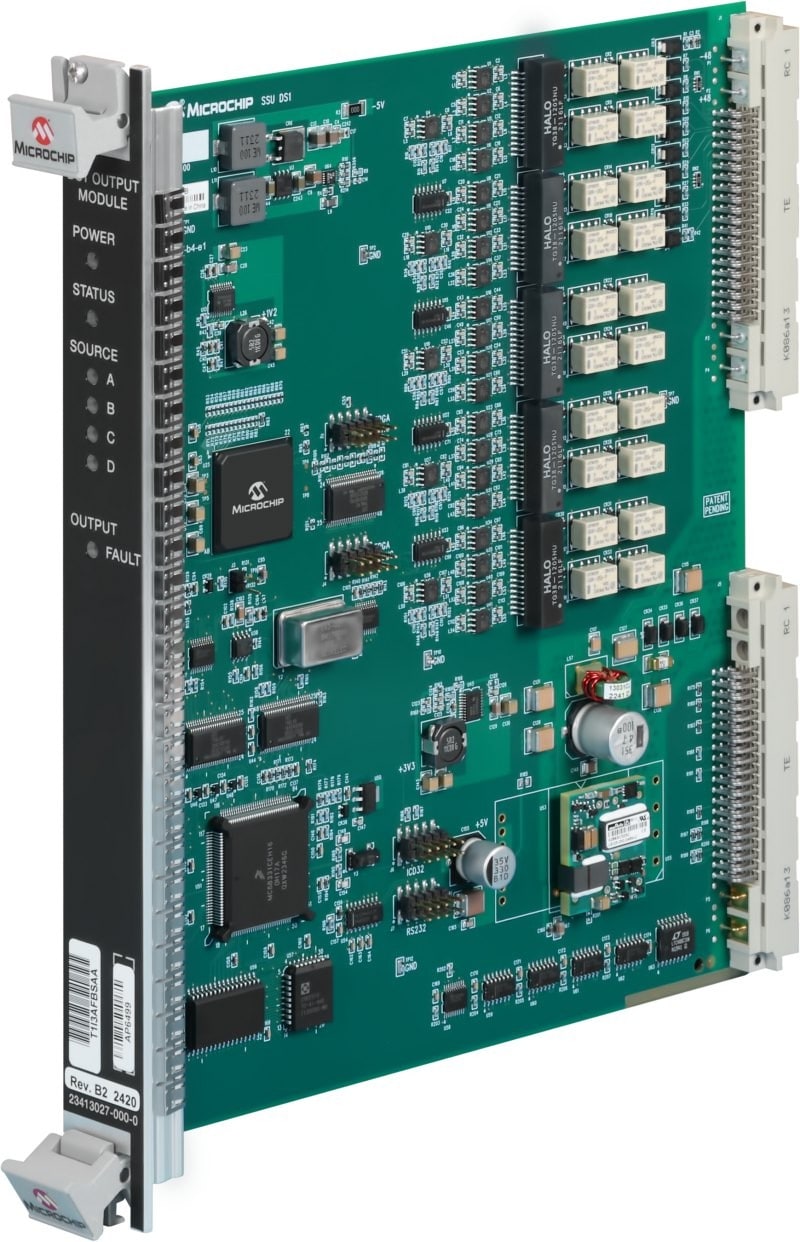

SSU 2000 DS1 Output Module

SSU 2000/2000e High Capacity Synchronization Supply Unit/BITS for Carrier Grade Network

This video offers a brief review of the functionality and features of the SSU 2000/2000e platform, which is used by communications network operators worldwide to generate and distribute superior SONET/SDH TDM synchronization.
