Turnkey Microcontrollers With Capacitive Touch
Ready-to-Use Solutions for Buttons, Sliders, Wheels and Proximity
Featured
MTCH2120: Reduce Costs Without Compromising Touch Robustness
With an I2C interface, a complete touch ecosystem and no software engineering required, the MTCH2120 combines the flexibility of our touch library with the time savings of a touch turnkey device. Other features include:
- Visualization, tuning and validation through the touch plug-in within MPLAB® Data Visualizer
- Host protocol configuration embedded in MPLAB Code Configurator (MCC)
- MTCH2120 host code examples in MPLAB Discover
- Built-in configurable GPIO expanding capabilities
- Easy tune feature built in, minimizing design efforts further
Is a Microcontroller Running the Microchip Touch Library a Better Option for You?
We also offer a wide range of 8-, 16- and 32-bit microcontrollers (MCUs) with dedicated on-chip touch peripherals and core-independent touch dsPIC33 DSCs along with easy-to-use code configurators to make it easy to create an integrated touch solution.
Tools and Software
- Evaluation Kits
- Software Tools
- MPLAB Tools for VS Code
These featured hardware tools make it easy to create your capacitive touch sensing application. For a complete selection, visit the Touch Development Tools page to explore more options.
The MTCH1010 Evaluation Kit enables a complete out of the box experience to explore the water tolerant and robust touch of the MTCH1010. The MTCH1010 is a single button touch turnkey device fulfilling the demanding expectations in touch. The MTCH1010 is full GPIO controlled and configured for most fast integration.
The Microchip Touch Bridge (MTB) is a tuning bridge for Microchip touch designs with the convenience of bidirectional communication wired (USB) or wireless (Bluetooth). The Microchip Touch Bridge firmware is provided through MPLAB Discover and continously upgraded in features.

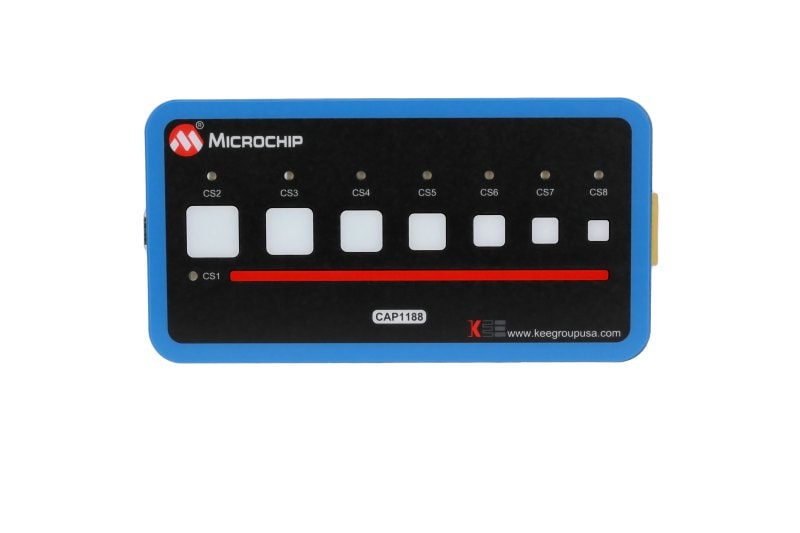

The CAP1188 evaluation kit provides an easy platform for evaluating and developing a variety of capacitive touch sense applications using CAP11XX family.
.The CAP1298 evaluation kit provides an easy platform for evaluating and developing a variety of capacitive touch sense and proximity applications using CAP12XX family
This Evaluation Board provides an easy platform for evaluating the Capacitive Touch Controller MTCH108. It features different buttons sizes and a proximity sensor. The board is also compatible with MTCH102 and MTCH105.
The AT42QT1010 evaluation kit provides an easy way to evaluate and develope a variety of capacitive touch sense application using the AT42QT1010 turnkey touch device.
Touch Examples
MPLAB Discover is a catalog of fully configured and complete source code, projects, examples and software applications. Use it as your starting point for your touch projects
MPLAB Data Visualizer for Touch
MPLAB Data Visualizer is a free debugging tool that graphically displays run-time variables in an embedded application. Available as a plug-in for MPLAB X Integrated Development Environment (IDE) or a stand-alone debugging tool, it can receive data from various sources such as the Embedded Debugger Data Gateway Interface (DGI) and COM ports. You can also track your application's runtime behavior using a terminal or graph.
Metal over Cap Deflection Tool
Metal over Cap (MoC) tool to calculate activation forces for MoC projects
MPLAB Tools for VS Code are a set of extensions that integrate the MPLAB development ecosystem with VS Code, offering a seamless and efficient environment for developing designs based on Microchip devices.
MPLAB X IDE is a highly configurable software platform that provides powerful, free tools for developing, debugging and qualifying embedded designs that use microcontrollers and digital signal controllers.
MPLAB Code Configurator supports 8-bit, 16-bit and 32-bit PIC® microcontrollers. MCC is incorporated into both the downloadable MPLAB X Integrated Development Environment (IDE) and the cloud-based MPLAB Xpress IDE.
MPLAB® Harmony is a modular framework that provides interoperable firmware libraries for application development on 32-bit microcontrollers and microprocessors.
Documentation
- Documentation
- Legacy Documentation
Documentation
Application Notes
Brochures
Data Sheets
Product Brief
