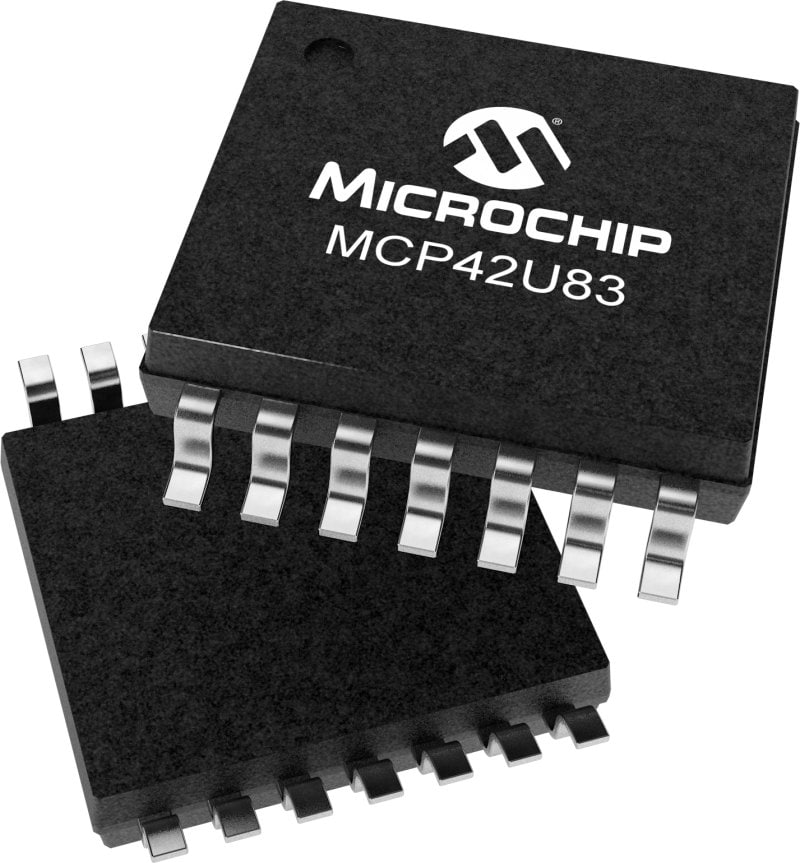

Microchip’s large portfolio of Digital Potentiometers (DigiPots) service a broad range of precision-controlled applications. Our portfolio enables fine tuning with highly accurate, small form factor, digitally controlled resistor solutions. These low-power, compact devices feature six to eight bits of resolution, one- to four-channel counts and are available in both volatile and nonvolatile memory types to support a wide variety of design needs. Tiny packages such as SC-70 and DFN (2 x 3 mm) are offered for space-constrained systems.
Our digital potentiometers offer better precision because of our Integral Nonlinearity (INL), total unadjusted error specs and increase in resolution. Microchip’s digital potentiometers minimize development risk and increase system performance by providing reliable, well-documented functionality and quick fixes for design flaws.
Already know what you need? Buy Now!
Download the Digital Potentiometers Design Guide

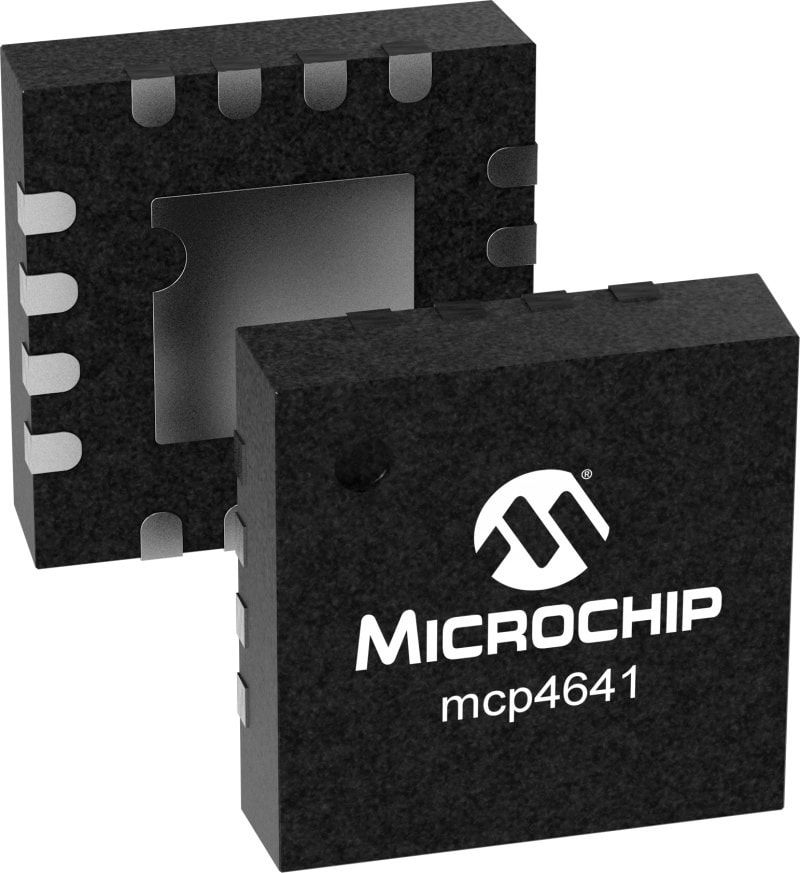

Nonvolatile
- Automatic recall of potentiometer wiper settings for increased system performance
- WiperLock™ technology for added EEPROM security
- General purpose memory locations for calibration

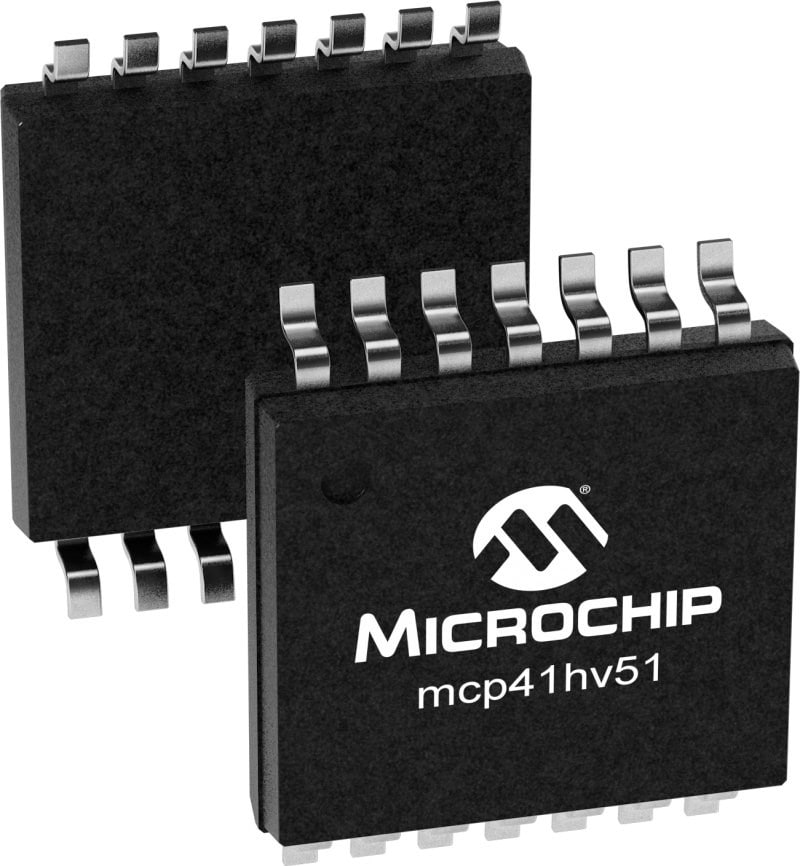

High Voltage
- +36V Terminal Voltage Range (DGND = V-)
- ±18V Terminal Voltage Range (DGND = V- + 18V)
- High voltage provides support for applications using power rails from 10V to 36V or ±5V to ±18V
Automotive Recommended
- Grade 1 extended temperature range: -40 °C to +125 °C
- Digital technology eliminates the failure of mechanical POTs
- Available in 6-, 7- and 8-bit devices, volatile and nonvolatile
- Additional electromagnetic filtering on select devices provide additional protection in electrically harsh environments
View All Parametrics

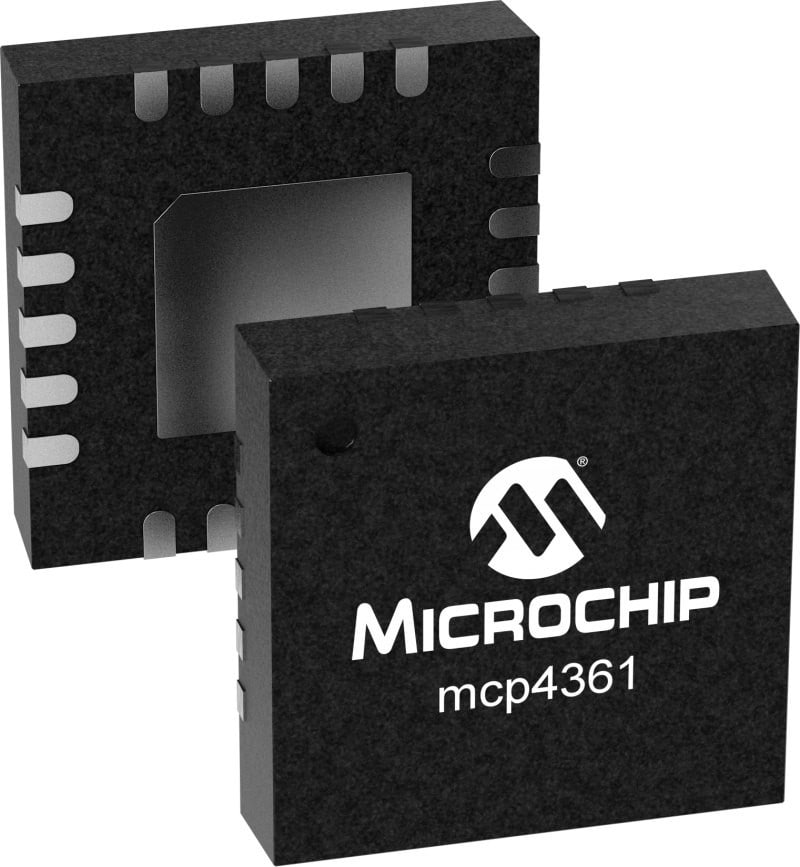

| Product | No of Channels | Resolution (No of Taps) | Interface | Memory Type | Resistance (ohms) k | Max. INL ± (LSB) | Max DNL ±(LSB) | Temperature Range (°C) | Automotive Recommended | Status | Packages | 5K Pricing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MCP4011 | 1 | 64 | Up / Down Protocol | Volatile | 2.1, 5, 10, 50 | 0.5 | 0.5 | -40 to +125 | Yes | In Production | 8/DFN, 8/MSOP, 8/SOIC | $0.37 |
| MCP4012 | 1 | 64 | Up / Down Protocol | Volatile | 2.1, 5, 10, 50 | 0.5 | 0.5 | -40 to +125 | Yes | In Production | 6/SOT-23 | $0.37 |
| MCP4013 | 1 | 64 | Up / Down Protocol | Volatile | 10,2.1,5,50 | 0.5 | 0.5 | -40 to +125 | Yes | In Production | 6/SOT-23 | $0.37 |
| MCP4014 | 1 | 64 | Up / Down Protocol | Volatile | 2.1, 5, 10, 50 | 0.5 | 0.5 | -40 to +125 | Yes | In Production | 5/SOT-23 | $0.37 |
| MCP4021 | 1 | 64 | Up / Down Protocol | Non-volatile | 2.1, 5, 10, 50 | 0.5 | 0.5 | -40 to +125 | Yes | In Production | 8/DFN, 8/MSOP, 8/SOIC | $0.56 |
| MCP4022 | 1 | 64 | Up / Down Protocol | Non-volatile | 2.1, 5, 10, 50 | 0.5 | 0.5 | -40 to +125 | Yes | In Production | 6/SOT-23 | $0.57 |
| MCP4023 | 1 | 64 | Up / Down Protocol | Non-volatile | 2.1, 5, 10, 50 | 0.5 | 0.5 | -40 to +125 | Yes | In Production | 6/SOT-23 | $0.57 |
| MCP4024 | 1 | 64 | Up / Down Protocol | Non-volatile | 10,2.1,5,50 | 0.5 | 0.5 | -40 to +125 | Yes | In Production | 5/SOT-23 | $0.57 |
| MCP41HV31 | 1 | 127 | SPI | Volatile | 5, 10, 50, 100 | 0.5 | 0.125 | -40 to +125 | Yes | In Production | 14/TSSOP, 20/QFN | $0.98 |
| MCP4017 | 1 | 128 | I²C | Volatile | 5, 10, 50, 100 | 0.5 | 0.25 | -40 to +125 | Yes | In Production | 6/SC70 | $0.37 |
| MCP4018 | 1 | 128 | I²C | Volatile | 5, 10, 50, 100 | 0.5 | 0.25 | -40 to +125 | Yes | In Production | 6/SC70 | $0.37 |
| MCP4019 | 1 | 128 | I²C | Volatile | 5, 10, 50, 100 | 0.5 | 0.25 | -40 to +125 | Yes | In Production | 5/SC70 | $0.37 |
| MCP40D17 | 1 | 128 | I²C | Volatile | 5, 10, 50, 100 | 0.5 | 0.25 | -40 to +125 | Yes | In Production | 6/SC70 | $0.37 |
| MCP40D18 | 1 | 128 | I²C | Volatile | 5, 10, 50, 100 | 0.5 | 0.25 | -40 to +125 | Yes | In Production | 6/SC70 | $0.37 |
| MCP40D19 | 1 | 128 | I²C | Volatile | 5, 10, 50, 100 | 0.25 | 0.5 | -40 to +125 | Yes | In Production | 5/SC70 | $0.37 |
| MCP4331 | 4 | 128 | 2 SPI | Volatile | 5, 10, 50, 100 | 1 | 0.5 | -40 to +125 | Yes | In Production | 20/PDIP, 20/QFN, 20/TSSOP | $0.98 |
| MCP4531 | 1 | 128 | I²C | Volatile | 5, 10, 50, 100 | 0.5 | 0.25 | -40 to +125 | Yes | In Production | 8/DFN, 8/MSOP | $0.48 |
| MCP45HV31 | 1 | 128 | I²C | volatile | 5, 10, 50, 100 | 0.5 | 0.125 | -40 to +125 | Yes | In Production | 14/TSSOP, 20/QFN | $0.99 |
| MCP4131 | 1 | 129 | SPI | Volatile | 10,100,5,50 | 0.5 | 0.25 | -40 to +125 | Yes | In Production | 8/DFN, 8/MSOP, 8/PDIP, 8/SOIC | $0.48 |
| MCP4132 | 1 | 129 | SPI | Volatile | 5, 10, 50, 100 | 1.125 | 0.375 | -40 to +125 | Yes | In Production | 8/DFN, 8/MSOP, 8/PDIP, 8/SOIC | $0.48 |
| MCP4141 | 1 | 129 | SPI | Non-volatile | 10,100,5,50 | 0.5 | 0.25 | -40 to +125 | Yes | In Production | 8/DFN, 8/MSOP, 8/PDIP, 8/SOIC | $0.58 |
| MCP4142 | 1 | 129 | SPI | Non-volatile | 5, 10, 50, 100 | 1.125 | 0.375 | -40 to +125 | Yes | In Production | 8/DFN, 8/MSOP, 8/PDIP, 8/SOIC | $0.58 |
| MCP4231 | 2 | 129 | SPI | Volatile | 10,100,5,50 | 0.5 | 0.25 | -40 to +125 | Yes | In Production | 14/PDIP, 14/SOIC, 14/TSSOP, 16/QFN | $0.65 |
| MCP4232 | 2 | 129 | SPI | Volatile | 5, 10, 50, 100 | 1.125 | 0.375 | -40 to +125 | Yes | In Production | 10/DFN, 10/MSOP | $0.65 |
| MCP4241 | 2 | 129 | SPI | Non-volatile | 10,100,5,50 | 0.5 | 0.25 | -40 to +125 | Yes | In Production | 14/PDIP, 14/SOIC, 14/TSSOP, 16/QFN | $0.76 |
| MCP4242 | 2 | 129 | SPI | Non-volatile | 5, 10, 50, 100 | 1.125 | 0.375 | -40 to +125 | Yes | In Production | 10/DFN, 10/MSOP | $0.65 |
| MCP4332 | 4 | 129 | 2 SPI | Volatile | 5, 10, 50, 100 | 1.125 | 0.375 | -40 to +125 | Yes | In Production | 14/TSSOP | $0.98 |
| MCP4341 | 4 | 129 | SPI | Non-volatile | 5, 10, 50, 100 | 0.5 | 0.25 | -40 to +125 | Yes | In Production | 20/PDIP, 20/QFN, 20/TSSOP | $1.01 |
| MCP4342 | 4 | 129 | SPI | Non-volatile | 5, 10, 50, 100 | 1 | 0.375 | -40 to +125 | Yes | In Production | 14/TSSOP | $1.01 |
| MCP4351 | 4 | 129 | 2 SPI | Volatile | 5, 10, 50, 100 | 0.5 | 0.25 | -40 to +125 | Yes | In Production | 20/PDIP, 20/QFN, 20/TSSOP | $0.98 |
| MCP4431 | 4 | 129 | I²C | Volatile | 5, 10, 50, 100 | 1 | 0.5 | -40 to +125 | Yes | In Production | 20/QFN, 20/TSSOP | $0.98 |
| MCP4432 | 4 | 129 | I²C | Volatile | 5, 10, 50, 100 | 1 | 0.5 | -40 to +125 | Yes | In Production | 14/TSSOP | $0.98 |
| MCP4441 | 4 | 129 | I²C | Non-volatile | 5, 10, 50, 100 | 0.5 | 0.25 | -40 to +125 | Yes | In Production | 20/QFN, 20/TSSOP | $0.98 |
| MCP4442 | 4 | 129 | I²C | Non-volatile | 5, 10, 50, 100 | 0.8 | 0.375 | -40 to +125 | Yes | In Production | 14/TSSOP | $0.98 |
| MCP4532 | 1 | 129 | I²C | Volatile | 5, 10, 50, 100 | 0.8 | 0.375 | -40 to +125 | Yes | In Production | 8/DFN, 8/MSOP | $0.48 |
| MCP4541 | 1 | 129 | I²C | Non-volatile | 5, 10, 50, 100 | 0.5 | 0.25 | -40 to +125 | Yes | In Production | 8/DFN, 8/MSOP | $0.58 |
| MCP4631 | 2 | 129 | I²C | Volatile | 5, 10, 50, 100 | 0.5 | 0.25 | -40 to +125 | Yes | In Production | 14/TSSOP, 16/QFN | $0.65 |
| MCP4632 | 2 | 129 | I²C | Volatile | 5, 10, 50, 100 | 0.8 | 0.375 | -40 to +125 | Yes | In Production | 10/DFN, 10/MSOP | $0.65 |
| MCP4641 | 2 | 129 | I²C | Non-volatile | 5, 10, 50, 100 | 1 | 0.5 | -40 to +125 | Yes | In Production | 14/TSSOP, 16/QFN | $0.76 |
| MCP4642 | 2 | 129 | I²C | Non-volatile | 5, 10, 50, 100 | 1 | 0.5 | -40 to +125 | Yes | In Production | 10/DFN, 10/MSOP | $0.76 |
| MCP41HV51 | 1 | 255 | SPI | Volatile | 5, 10, 50, 100 | 1 | 0.25 | -40 to +125 | Yes | In Production | 14/TSSOP, 20/QFN | $1.09 |
| MCP41010 | 1 | 256 | SPI | Volatile | 10 | 1 | 1 | -40 to +125 | Yes | In Production | 8/PDIP, 8/SOIC | $1.03 |
| MCP41050 | 1 | 256 | SPI | Volatile | 50 | 1 | 1 | -40 to +125 | Yes | In Production | 8/PDIP, 8/SOIC | $1.03 |
| MCP41100 | 1 | 256 | SPI | Volatile | 100 | 1 | 1 | -40 to +125 | Yes | In Production | 8/PDIP, 8/SOIC | $1.03 |
| MCP42010 | 2 | 256 | SPI | Volatile | 10 | 1 | 1 | -40 to +125 | Yes | In Production | 14/PDIP, 14/SOIC, 14/TSSOP | $1.54 |
| MCP42050 | 2 | 256 | SPI | Volatile | 50 | 1 | 1 | -40 to +125 | Yes | In Production | 14/PDIP , 14/SOIC, 14/TSSOP | $1.54 |
| MCP42100 | 2 | 256 | SPI | Volatile | 100 | 1 | 1 | -40 to +125 | Yes | In Production | 14/PDIP, 14/SOIC, 14/TSSOP | $1.54 |
| MCP4352 | 4 | 256 | 2 SPI | volatile | 5, 10, 50, 100 | 0.5 | 0.25 | -40 to +125 | Yes | In Production | 14/TSSOP | $0.98 |
| MCP4542 | 1 | 256 | I²C | Non-volatile | 5, 10, 50, 100 | 1 | 0.5 | -40 to +125 | Yes | In Production | 8/DFN, 8/MSOP | $0.58 |
| MCP45HV51 | 1 | 256 | I²C | volatile | 5, 10, 50, 100 | 0.5 | 0.125 | -40 to +125 | Yes | In Production | 14/TSSOP, 20/QFN | $1.09 |
| MCP4151 | 1 | 257 | SPI | Volatile | 5, 10, 50, 100 | 1 | 0.5 | -40 to +125 | Yes | In Production | 8/DFN, 8/MSOP, 8/PDIP, 8/SOIC | $0.65 |
| MCP4152 | 1 | 257 | SPI | Volatile | 5, 10, 50, 100 | 1.5 | 0.5 | -40 to +125 | Yes | In Production | 8/DFN, 8/MSOP, 8/PDIP, 8/SOIC | $0.65 |
| MCP4161 | 1 | 257 | SPI | Non-volatile | 10,100,5,50 | 1 | 0.5 | -40 to +125 | Yes | In Production | 8/DFN, 8/MSOP, 8/PDIP, 8/SOIC | $0.70 |
| MCP4162 | 1 | 257 | SPI | Non-volatile | 5, 10, 50, 100 | 1.5 | 0.5 | -40 to +125 | Yes | In Production | 8/DFN, 8/MSOP, 8/PDIP, 8/SOIC | $0.70 |
| MCP4251 | 2 | 257 | SPI | Volatile | 5, 10, 50, 100 | 1 | 0.5 | -40 to +125 | Yes | In Production | 14/PDIP, 14/SOIC, 14/TSSOP, 16/QFN | $0.67 |
| MCP4252 | 2 | 257 | SPI | Volatile | 5, 10, 50, 100 | 1.5 | 0.5 | -40 to +125 | Yes | In Production | 10/DFN, 10/MSOP | $0.67 |
| MCP4261 | 2 | 257 | SPI | Non-volatile | 10,100,5,50 | 1 | 0.5 | -40 to +125 | Yes | In Production | 14/PDIP, 14/SOIC, 14/TSSOP, 16/QFN | $0.88 |
| MCP4262 | 2 | 257 | SPI | Non-volatile | 5, 10, 50, 100 | 1.5 | 0.5 | -40 to +125 | Yes | In Production | 10/DFN, 10/MSOP | $0.88 |
| MCP4361 | 4 | 257 | SPI | Non-volatile | 5, 10, 50, 100 | 1 | 0.5 | -40 to +125 | Yes | In Production | 20/PDIP, 20/QFN, 20/TSSOP | $1.36 |
| MCP4362 | 4 | 257 | SPI | Non-volatile | 5, 10, 50, 100 | 1 | 0.5 | -40 to +125 | Yes | In Production | 14/TSSOP | $1.36 |
| MCP4451 | 4 | 257 | I²C | Volatile | 5, 10, 50, 100 | 1 | 0.5 | -40 to +125 | Yes | In Production | 20/QFN, 20/TSSOP | $0.98 |
| MCP4452 | 4 | 257 | I²C | Volatile | 5, 10, 50, 100 | 1 | 0.5 | -40 to +125 | Yes | In Production | 14/TSSOP | $0.98 |
| MCP4461 | 4 | 257 | I²C | Non-volatile | 5, 10, 50, 100 | 1 | 0.5 | -40 to +125 | Yes | In Production | 20/QFN, 20/TSSOP | $1.36 |
| MCP4462 | 4 | 257 | I²C | Non-volatile | 5, 10, 50, 100 | 1 | 0.5 | -40 to +125 | Yes | In Production | 14/TSSOP | $1.36 |
| MCP4551 | 1 | 257 | I²C | Volatile | 5,10,50,100 | 1 | 0.5 | -40 to +125 | Yes | In Production | 8/DFN, 8/MSOP | $0.65 |
| MCP4552 | 1 | 257 | I²C | Volatile | 5,10,50,100 | 1 | 0.5 | -40 to +125 | Yes | In Production | 8/DFN, 8/MSOP | $0.65 |
| MCP4561 | 1 | 257 | I²C | Non-volatile | 5, 10, 50, 100 | 0.5 | 0.25 | -40 to +125 | Yes | In Production | 8/DFN, 8/MSOP | $0.70 |
| MCP4562 | 1 | 257 | I²C | Non-volatile | 5, 10, 50, 100 | 0.5 | 0.25 | -40 to +125 | Yes | In Production | 8/DFN, 8/MSOP | $0.70 |
| MCP4651 | 2 | 257 | I²C | Volatile | 5,10,50,100 | 1 | 0.5 | -40 to +125 | Yes | In Production | 14/TSSOP, 16/QFN | $0.67 |
| MCP4652 | 2 | 257 | I²C | Volatile | 5, 10, 50, 100 | 1 | 0.5 | -40 to +125 | Yes | In Production | 10/DFN, 10/MSOP | $0.67 |
| MCP4661 | 2 | 257 | I²C | Non-volatile | 5, 10, 50, 100 | 1 | 0.5 | -40 to +125 | Yes | In Production | 14/TSSOP, 16/QFN | $0.91 |
| MCP4662 | 2 | 257 | I²C | Non-volatile | 5, 10, 50, 100 | 1 | 0.5 | -40 to +125 | Yes | In Production | 10/DFN, 10/MSOP | $0.91 |
MCP401XEV Evaluation Board
This video gives customers a brief overview of the MCP40D1X digital potentiometer family and demonstrates the steps of using the MCP401XEV Evaluation Board. www.microchip.com/MCP401XEV

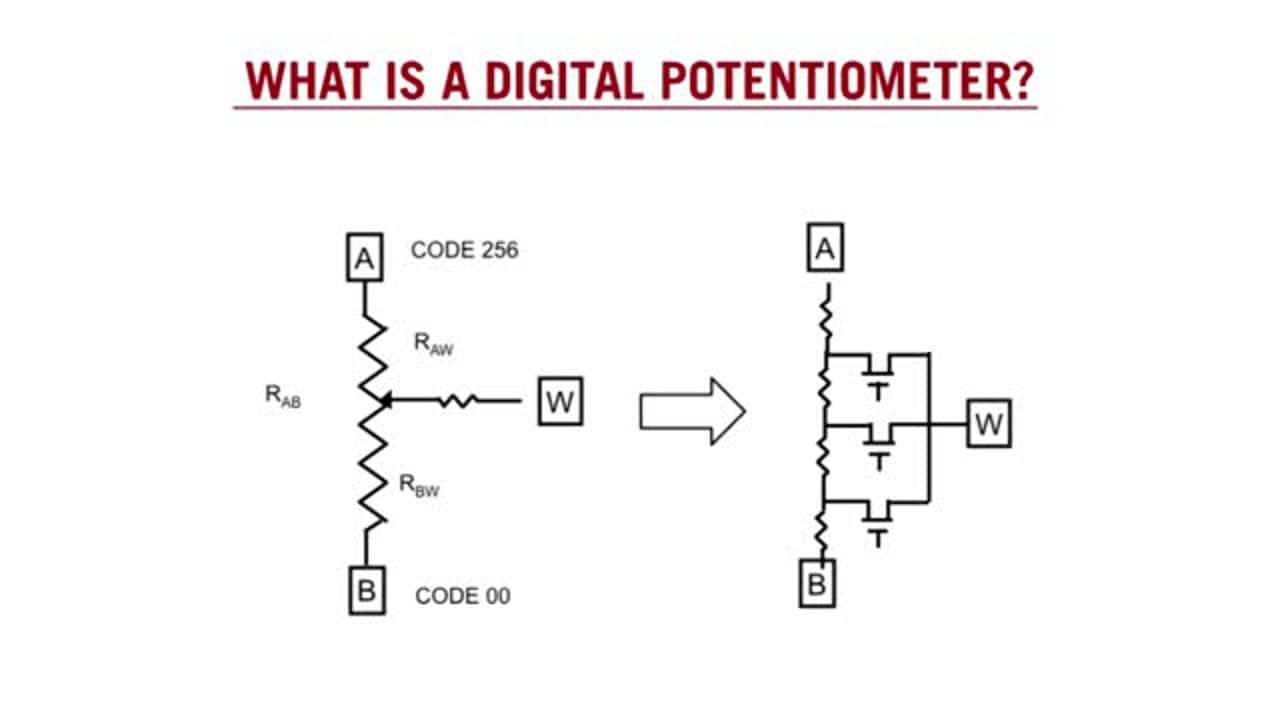

MCP46XXEV Tutorial
This is a tutorial of the MCP46xxEV digital potentiometer evaluation board. www.microchip.com/mcp46xxev
