SAM9 Arm926EJ-S™ Core-Based Hybrid MCUs

If your application that is currently running on a microcontroller (MCU) needs to handle more data for connectivity and processing and/or to support display resolution above VGA, you need to upgrade your design. Running at frequencies of up to 800 MHz, our low-power hybrid MCUs bridge the gap between an MCU and a microprocessor (MPU).They are supported by our MPLAB® X Integrated Development Environment (IDE) and MPLAB Harmony to enable development for Real-Time Operating System (RTOS) and bare-metal software, Linux® OS and Microchip mainline distributions.These hybrid MCUs help you design your application by keeping the temperature specification under the ambient temperature condition (Tambient) unlike typical MPUs where Tjunction is used.Our hybrid MCUs come with a rich set of peripherals and user interfaces, including on-device Double Data Rate (DDR), Systems-in-Packages (SiPs) and Systems on Modules (SOMs), to simplify the design for cost-sensitive consumer, IoT and industrial applications.

SAM9 Hybrid MCUs

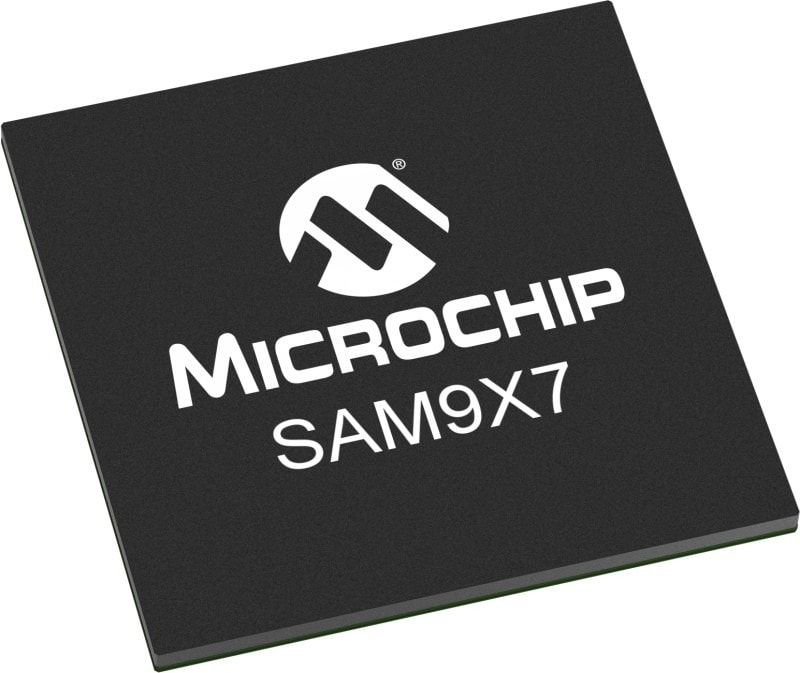

SAM9X7 Series

  • 800 MHz operation
  • DDR2/DDR3L and NAND Flash external memory interfaces
  • LCD controller with RGB, LVDS and MIPI® DSI® interfaces
  • One 10/100/1000 Mbps Ethernet Mac controller with IEEE® 1588 and TSN support, RGMII and RMII
  • Two CAN FD ports and up to 13 FLEXCOMs, such as USART, SPI and TWI/I2C
Explore SAM9X7 Series Parametrics

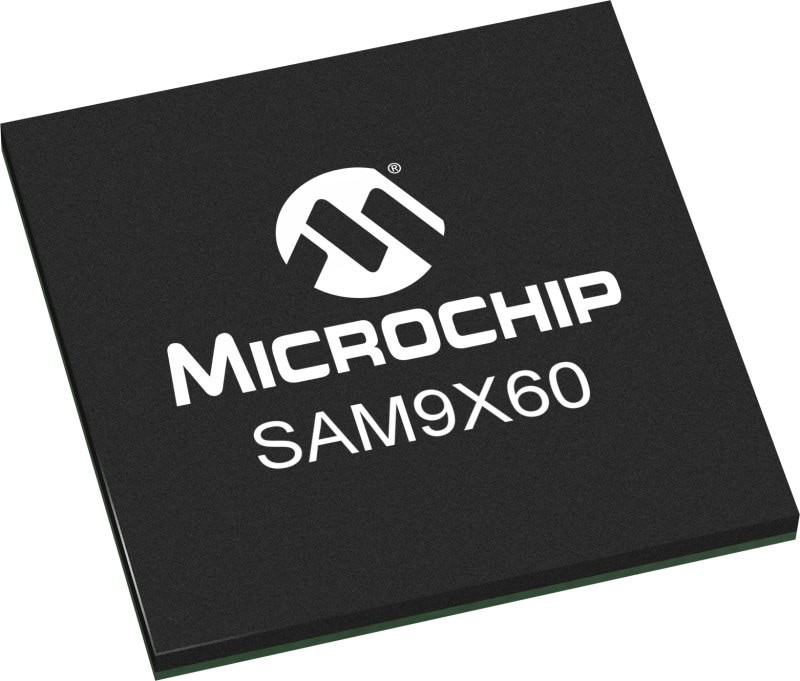

SAM9X60

  • 600 MHz operation
  • SDRAM, LPSDR, LPDDR, DDR2 and NAND Flash external memory interfaces
  • Resistive touch
  • Two Ethernet ports, two SD/embedded Multimedia Card (eMMC) ports, three Hi-Speed USB ports
  • Up to two CAN ports and up to seven UARTs
Explore SAM9X60
ProductsExternal DRAM Memory InterfaceConnectivity GraphicsSecurityEmbedded Flash
SAM9X75DDR2/3LUSB, CAN-FD, Gb Ethernet (TSN)LVDS,RGB, MIPI- DSI,  LCDYes_
SAM9X72DDR2/3LUSB, CAN-FD, Gb Ethernet (TSN)LVDS,RGB,LCDYes_
SAM9X70DDR2/3LUSB, Gb Ethernet (TSN)_Yes_
SAM9X60SDRAM/DDR2/ LPDDR

USB, CAN,x2 10/100 Ethernet



RGB, LCDYes_
SAM9X35SDRAM/DDR2USB, CAN, 10/100 EthernetRGB, LCDYes_
SAM9X25DDR2/LPDDR, SDRAM/LPSDRAMUSB, CAN, x2 10/100 Ethernet___
SAM9M11SDRAM/DDR2/ LPDDRUSB, 10/100 EthernetRGB, LCD, Video Dec__
SAM9M10SDRAM/DDR2/ LPDDRUSB, 10/100 EthernetRGB, LCD, Video DecYes_
SAM9G46SDRAM/DDR2/ LPDDRUSB, 10/100 EthernetRGB, LCDYes_
SAM9G45SDRAM/DDR2/ LPDDRUSB, 10/100 EthernetRGB, LCDYes_
SAM9G35SDRAM/DDR2/ LPDDRUSB, 10/100 EthernetRGB__
SAM9G25SDRAM/DDR2/ LPDDRUSB, 10/100 Ethernet___
SAM9G20SDRAMUSB, 10/100 Ethernet___
SAM9XESDRAMUSB, 10/100 Ethernet__Yes
RM9200SDRAMUSB, 10/100 Ethernet___

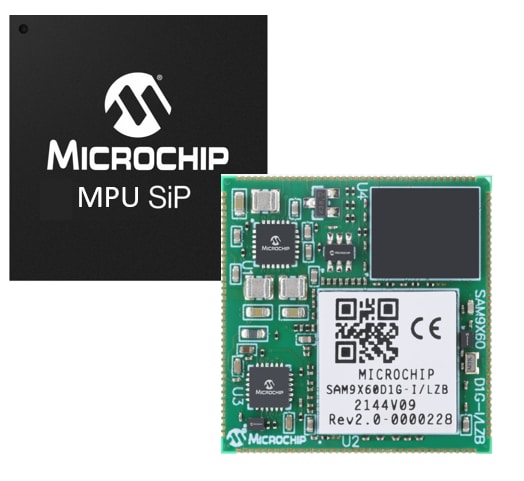

SiPs and SOMs

Simplify Your Development and Speed Up Your Time to Market

To facilitate the use of MPUs in your next design, our Systems in Packages (SiPs) feature integrated DRAM, and our Systems on Modules (SOMs) offer integrated DRAM plus features such as power management, wireless connectivity and on-board NAND Flash.

SiPs and SOMs

Getting Started

Visit our Developer Help website to access a complete suite of development resources for the SAM9 family including reference designs, software packages, hardware documentation and in-depth boot process.

Developer Help Graphic

Solutions

Microchip Graphics Suite Image

Graphics

Differentiate your products with our aesthetically pleasing and feature-rich embedded Graphical User Interfaces (GUIs) that offer intuitive menus, vivid graphics and easy device interaction

Learn More
Automotive Interior Concept Image

Automotive

Our 32-bit MPU-based solutions meet the demands of modern in-car systems, including control panels, gateways, telematics and audio applications. These MPUs are AEC-Q100 Grade 2 qualified and supported by our client-driven obsolescence policy to enable long-term availability and reliability.

Learn More
Industrial Automation Concept Image

Industrial Automation Communications

Accelerate your industrial automation design with robust, real-time Industrial communication stacks that are seamlessly supported on our MPUs.

Learn More

Applications

Round Display Coffee Maker HMI

This smooth, high-resolution UI demo based on SAM9X75’s 2D GPU, native MIPI DSI® and maXTouch® controller enables precise, low-latency gestures even with steam, moisture or gloves.

Learn More

Round Display Home Automation HMI

This smooth, high-end UI experience powered by SAM9X75’s 2D GPU and MIPI DSI, with maXTouch® technology, enables precise touch even in harsh conditions. It includes built-in connectivity; security and a compact, integrated design to simplify development and enable scalable, reliable performance.

Learn More

Low-Cost WVGA Graphics Example With MIPI DSI®

This demo features the SAM9X7 series with 2 Gb DDR3L, including the SAM9X75D2G—a high-performance, ultra‑low‑power Arm926EJ‑S™ processor running up to 800 MHz, with support for MIPI DSI®, LVDS, RGB and 2D graphics.

Learn More

Round LCD Instrument Cluster

The design, based on the SAM9X75 Arm926EJ-S MPU, helps accelerate development by providing a fully tested demonstration application, while enabling efficient power management and processing performance. It supports a wide range of display interface options and features a Wi‑Fi®‑ready architecture to facilitate seamless integration into connected systems.

Learn More

Design Help

Need Help Choosing a Product for Your Design?

Our Client Support team is here to support you. Use the link below to schedule a call with a member of our team, use our live chat widget in the bottom right corner or submit a question for assistance and we will follow up with you as soon as possible.











Client support representative on phone image

MPU Design Partners

We partner with design consultants to assist with your MPU-based designs. Learn more about how our design partners can accelerate your time to market.

Design Partners
