SmartROC 3200 RAID-on-chip controllers provide a fully integrated PCIe Gen 4 switch based on Switchtec™ technology for minimum latency and maximum performance when connecting to NVMe media. Capable of bifurcations from x1 to x8 when connecting to storage, the SmartROC 3200 is ready for all performance grades and configurations of NVMe SSDs. The SmartROC 3200 supports RAID and controller-based encryption for PCIe Gen 4 NVMe SSDs, SAS-4 media and SATA media.
SmartIOC 2200 controllers provide a comprehensive feature set for enterprise server data storage solutions and best-in-class performance. These highly integrated solutions offer up to ×16 PCIe connectivity to the host, up to 32 storage lanes and advanced manageability through industry-standard interfaces. As with all of our Smart Storage solutions, drivers for all major operating systems and a comprehensive set of management tools (including a GUI and CLI) are available, enabling unified management across your server and storage infrastructure.
Performance: Offer greater bandwidth and RAID performance than any other controller available today with up to 28.6 Gbps bandwidth, 850,000 IOPS and 11.7 Gbps in RAID 5, 10.5 Gbps in RAID 6, 17.9 Gbps controller-based encryption and over 3 million HBA IOPS.
Security: Our hardware root of trust provides a solid foundation to safeguard information and protect against nefarious firmware or supply chain attacks. We also have the only data-at-rest controller-based encryption for NVMe, SAS and SATA.
Manageability: Our persistent, unified storage management tools, now with streamlined industry-standard storage management capabilities such as Integrated BMC management features and RDE/PLDM support, make manageability a snap.
SmartRAID, SmartHBA and HBA SAS/SATA adapters offer the industry’s most reliable, secure, low-power and high-performance storage solutions. They deliver substantial reductions in operating costs and significant power savings when compared to alternative solutions at equivalent port densities. Unique features—such as maxCache, which allows for Solid State Storage Drives (SSDs) to be configured as cache, and Zero-Maintenance Cache Protection (ZMCP), which enables instant cache protection—also maximize performance. Our entire portfolio leverages core IP with consistent tools and broad compatibility across the product platform to make our solutions easy to deploy and manage.
Solutions for data-at-rest encryption are now a security requirement in many market segments such as healthcare, finance, e-commerce, federal government branches and insurance. These markets constitute a significant overall percentage of the deployed storage. Data center managers face the challenge of safeguarding data while still meeting continually increasing performance demands for large-scale applications, such as web serving, file serving, databases, Online Transaction Processing (OLTP), machine learning and High-Performance Computing (HPC).

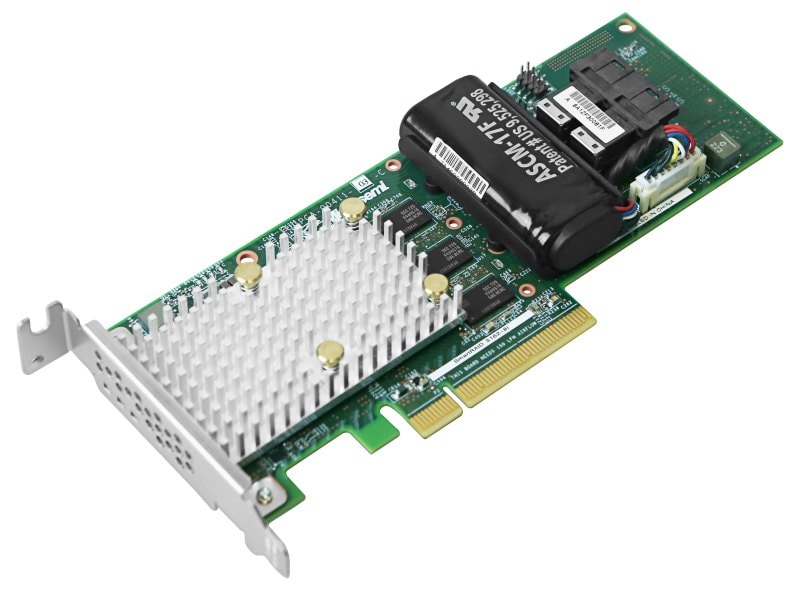

The SmartRAID 3162-8i /e, with our maxCrypto™ controller-based encryption, delivers data protection with little to no impact on latency or I/O performance. The 3162-8i /e offers superior advantages over Self-Encrypting Drives (SEDs) and integrates seamlessly into existing storage infrastructures, allowing data center managers to deploy a uniform, scalable encryption strategy across the enterprise.

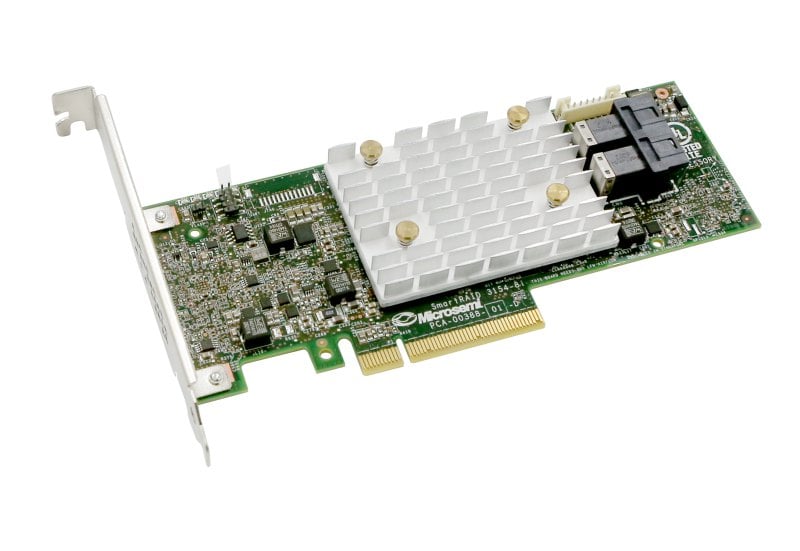

The entry-level Adaptec SmartRAID 3100E RAID adapters are a cost-effective hardware RAID solution. They have been added to our trusted Smart Storage platform to support deployments that use fewer drives and can benefit from caching capabilities but do not need the full cache backup or advanced RAID levels of our full-featured RAID adapters. Some key benefits include:
Product | Status | Port Count | Interface | RAID Level | Physical Dimensions | Form Factor | MTBF at 40°C | Controller | Connectors | Packages |
---|---|---|---|---|---|---|---|---|---|---|
A1100-16E | In Production | 16 external | 8-Lane PCIe Gen 3 | 2.535 in H x 6.6 in L(64 mm x 167 mm) | Low-profile, MD2 | 2.73M hours | 12 Gbps SmartIOC 2100 | 6 (x4) SFF-8643 | Please call for package information | |
A1100-16I | In Production | 16 internal | 8-Lane PCIe Gen 3 | 2.535 in H x 6.6 in L(64 mm x 167 mm) | Low-profile, MD2 | 2.73M hours | 12 Gbps SmartIOC 2100 | 6 (x4) SFF-8643 | Please call for package information | |
A1100-24I | In Production | 24 internal | 8-Lane PCIe Gen 3 | 2.535 in H x 6.6 in L(64 mm x 167 mm) | Low-profile, MD2 | 2.73M hours | 12 Gbps SmartIOC 2100 | 6 (x4) SFF-8643 | Please call for package information | |
A1100-4I | In Production | 4 internal | 8-Lane PCIe Gen 3 | 2.535 in H x 5.2 in L(64 mm x 132.08 mm) | Low-profile, MD2 | >1.4M hours | 12 Gbps SmartIOC 2100 | 6 (x4) SFF-8643 | Please call for package information | |
A1100-8E | In Production | 8 external | 8-Lane PCIe Gen 3 | 2.535 in H x 6.6 in L(64 mm x 167 mm) | Low-profile, MD2 | 1.38M hours | 12 Gbps SmartIOC 2100 | 6 (x4) SFF-8643 | Please call for package information | |
A1100-8I | In Production | 8 internal | 8-Lane PCIe Gen 3 | 2.535 in H x 6.6 in L(64 mm x 167 mm) | Low-profile, MD2 | 1.36M hours | 12 Gbps SmartIOC 2100 | 6 (x4) SFF-8643 | Please call for package information | |
A1100-8I8E | In Production | 8 internal 8 external | 8-Lane PCIe Gen 3 | 2.535 in H x 6.6 in L(64 mm x 167 mm) | Low-profile, MD2 | 2.73M hours | 12 Gbps SmartIOC 2100 | 6 (x4) SFF-8643 | Please call for package information | |
A2100-16I | In Production | 16 internal | 8-Lane PCIe Gen 3 | 0, 1, 10, 5 | 2.535 in H x 6.6 in L(64 mm x 167 mm) | Low-profile, MD2 | 2.73M hours | 12 Gbps SmartIOC 2100 | 6 (x4) SFF-8643 | Please call for package information |
A2100-24I | In Production | 24 internal | 8-Lane PCIe Gen 3 | 0, 1, 10, 5 | 2.535 in H x 6.6 in L(64 mm x 167 mm) | Low-profile, MD2 | 2.73M hours | 12 Gbps SmartIOC 2100 | 6 (x4) SFF-8643 | Please call for package information |
A2100-4I4E | In Production | 4 internal 4 external | 8-Lane PCIe Gen 3 | 0, 1, 10, 5 | 2.535 in H x 5.2 in L(64 mm x 132.08 mm) | Low-profile, MD2 | >1.4 M hours | 12 Gbps SmartIOC 2100 | 2 (x4) SFF-8643/2 (x4) SFF-8644 | Please call for package information |
A2100-8I | In Production | 8 internal | 8-Lane PCIe Gen 3 | 0, 1, 10, 5 | 2.535 in H x 6.6 in L(64 mm x 167 mm) | Low-profile, MD2 | 1.76M hours | 12 Gbps SmartIOC 2100 | 6 (x4) SFF-8643 | Please call for package information |
Product | Product Name | SKU | Status | Port Count | Interface | RAID Level | Physical Dimensions | Form Factor | MTBF at 40 C | Controller | Connectors | Cache | SSD Cache Protection | Cache Protection | Packages |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
A3100-4I | SmartRAID 3101-4i | 2291700-R | In Production | 4 internal | 8-Lane PCIe Gen 3 | Hardware RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM | 2.535 in H x 6.6 in L(64 mm x 167 mm) | Low-profile, MD2 | 12 Gbps SmartROC 3100 | 1 (x4) SFF-8643 | 1 GB DDR4/2100 MHz | Please call for package information | |||
A3100-8I | SmartRAID 3102-8i | 2294800-R | In Production | 8 internal | 8-Lane PCIe Gen 3 | Hardware RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM | 2.535 in H x 6.6 in L(64 mm x 167 mm) | Low-profile, MD2 | 12 Gbps SmartROC 3100 | 2 (x4) SFF-8643 | 2 GB DDR4/2100 MHz | maxCache 4.0 | Please call for package information | ||
A3150-16I | SmartRAID 3154-16i | 2295000-R | In Production | 16 internal | 8-Lane PCIe Gen 3 | Hardware RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM | 2.535 in H x 6.6 in L(64 mm x 167 mm) | Low-profile, MD2 | 12 Gbps SmartROC 3100 | 4 (x4) SFF-8643 | 4 GB DDR4/2100 MHz | maxCache 4.0 | Embedded Flash backup, Tethered ASCM-35 supercap | Please call for package information | |
A3150-24I | SmartRAID 3154-24i | 2294700-R | In Production | 24 internal | 8-Lane PCIe Gen 3 | Hardware RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM | 2.535 in H x 6.6 in L(64 mm x 167 mm) | Low-profile, MD2 | 12 Gbps SmartROC 3100 | 6 (x4) SFF-8643 | 4 GB DDR4/2100 MHz | maxCache 4.0 | Embedded Flash backup, Tethered ASCM-35 supercap | Please call for package information | |
A3150-8E | SmartRAID 3154-8e | 2290800-R | In Production | 8 external | 8-Lane PCIe Gen 3 | Hardware RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM | 2.535 in H x 6.6 in L(64 mm x 167 mm) | Low-profile, MD2 | 12 Gbps SmartROC 3100 | 2 (x4) SFF-8644 | 4 GB DDR4/2100 MHz | maxCache 4.0 | Embedded Flash backup, Tethered ASCM-35 supercap | Please call for package information | |
A3150-8I | SmartRAID 3154-8i | 2291000-R | In Production | 8 internal | 8-Lane PCIe Gen 3 | Hardware RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM | 2.535 in H x 6.6 in L(64 mm x 167 mm) | Low-profile, MD2 | 12 Gbps SmartROC 3100 | 2 (x4) SFF-8643 | 4 GB DDR4/2100 MHz | maxCache 4.0 | Embedded Flash backup, Tethered ASCM-35 supercap | Please call for package information | |
A3150-8I16E | SmartRAID 3154-8i16e | 2294600-R | In Production | 8 internal / 16 external | 8-Lane PCIe Gen 3 | Hardware RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM | 2.535 in H x 6.6 in L(64 mm x 167 mm) | Low-profile, MD2 | 12 Gbps SmartROC 3100 | 2 (x4) SFF-8643, 4 (x4) SFF-8644 | 4 GB DDR4/2100 MHz | maxCache 4.0 | Embedded Flash backup, Tethered ASCM-35 supercap | Please call for package information | |
A3150-8I8E | SmartRAID 3154-8i8e | 2295100-R | In Production | 8 internal / 8 external | 8-Lane PCIe Gen 3 | Hardware RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM | 2.535 in H x 6.6 in L(64 mm x 167 mm) | Low-profile, MD2 | 12 Gbps SmartROC 3100 | 2 (x4) SFF-8643, 2 (x4) SFF-8644 | 4 GB DDR4/2100 MHz | maxCache 4.0 | Embedded Flash backup, Tethered ASCM-35 supercap | Please call for package information | |
A3152-8i | SmartRAID 3152-8i | 2290200-R | In Production | 8 internal | 8-Lane PCIe Gen 3 | Hardware RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM | 2.535 in H x 6.6 in L(64 mm x 167 mm) | Low-profile, MD2 | 12 Gbps SmartROC 3100 | 2 (x4) SFF-8643 | 2 GB DDR4/2100 MHz | maxCache 4.0 | Embedded Flash backup, Tethered ASCM-35 supercap | Please call for package information | |
SmartRAID-3100 | In Production | Up to 24 Ports | 8-Lane PCIe Gen 3 | Hardware RAID 0, 1, 5, 6, 10, 50, 60, 1 ADM and 10 ADM | 2.535 in H x 6.6 in L(64 mm x 167 mm) | Low-profile, MD2 | 12 Gbps SmartROC 3100 | Please call for package information |
Product | Status | Port Count | Generation | Interface | RAID Level | Physical Dimensions | Controller Based Encryption (CBE) | Flexible Configuration | Packages |
---|---|---|---|---|---|---|---|---|---|
PM8222 | In Production | 8 | 12 Gbps | 8-Lane PCIe Gen 3 | 0, 1, 10, 5 | 23 mm x 23 mm | No | 773/BFBGA | |
PM8225 | In Production | 8 | 12 Gbps | 8-Lane PCIe Gen 3 | 0, 1, 10, 5 | 23 mm x 23 mm | Yes | 773/BFBGA | |
PM8238 | In Production | 16 | 12 Gbps | 8-Lane PCIe Gen 3 | 0, 1, 10, 5 | 27 mm x 27 mm | No | 1069/BFBGA | |
PM8239 | In Production | 16 | 12 Gbps | 8-Lane PCIe Gen 3 | 0, 1, 10, 5 | 27 mm x 27 mm | Yes | 1069/BFBGA | |
PM8242 | In Production | 24 | 12 Gbps | 8-Lane PCIe Gen 3 | 0, 1, 10, 5 | 27 mm x 27 mm | No | 1069/BFBGA | |
PM8243 | In Production | 24 | 12 Gbps | 8-Lane PCIe Gen 3 | 0, 1, 10, 5 | 27 mm x 27 mm | Yes | 1069/BFBGA | |
PM8252 | In Production | 8 | PCIe Gen 4 / SAS-4 | 8-Lane PCIe Gen 4 | 0, 1, 10, 5 | 25 mm × 25 mm | No | Please call for package information | |
PM8253 | In Production | 8 | PCIe Gen 4 / SAS-4 | 8-Lane PCIe Gen 4 | 0, 1, 10, 5 | 25 mm × 25 mm | Yes | Please call for package information | |
PM8262 | In Production | 8 | PCIe Gen 4 / SAS-4 | 16-Lane PCIe Gen 4 | 0, 1, 10, 5 | 25 mm × 25 mm | No | Please call for package information | |
PM8263 | In Production | 8 | PCIe Gen 4 / SAS-4 | 16-Lane PCIe Gen 4 | 0, 1, 10, 5 | 25 mm × 25 mm | Yes | Please call for package information | |
PM8266 | In Production | 16 | PCIe Gen 4 / SAS-4 | 32-Lane PCIe Gen 4 | 0, 1, 10, 5 | 35 mm × 35 mm | No | Please call for package information | |
PM8267 | In Production | 16 | PCIe Gen 4 / SAS-4 | 32-Lane PCIe Gen 4 | 0, 1, 10, 5 | 35 mm × 35 mm | Yes | Please call for package information | |
PM8270 | In Production | 16 | PCIe Gen 4 / SAS-4 | 16-Lane PCIe Gen 4 | 0, 1, 10, 5 | 31 mm × 31 mm | No | Please call for package information | |
PM8271 | In Production | 16 | PCIe Gen 4 / SAS-4 | 16-Lane PCIe Gen 4 | 0, 1, 10, 5 | 31 mm × 31 mm | Yes | Please call for package information | |
PM8274 | In Production | 16 | PCIe Gen 4 / SAS-4 | 32-Lane PCIe Gen 4 | 0, 1, 10, 5 | 31 mm × 31 mm | No | Please call for package information | |
PM8275 | In Production | 16 | PCIe Gen 4 / SAS-4 | 32-Lane PCIe Gen 4 | 0, 1, 10, 5 | 31 mm × 31 mm | Yes | Please call for package information |
Product | Status | Port Count | Generation | Interface | RAID Level | Physical Dimensions | Controller Based Encryption (CBE) | Flexible Configuration | Packages |
---|---|---|---|---|---|---|---|---|---|
PM8204 | In Production | 8 | 12 Gbps | 8-Lane PCIe Gen 3 | 0 1 5 6 50 60 | 23 mm x 23 mm | No | 773/FBGA | |
PM8205 | In Production | 8 | 12 Gbps | 8-Lane PCIe Gen 3 | 0 1 5 6 50 60 | 23 mm x 23 mm | Yes | 773/FBGA | |
PM8236 | In Production | 16 | 12 Gbps | 8-Lane PCIe Gen 3 | 0 1 5 6 50 60 | 27 mm x 27 mm | No | Please call for package information | |
PM8237 | In Production | 16 | 12 Gbps | 8-Lane PCIe Gen 3 | 0 1 5 6 50 60 | 27 mm x 27 mm | Yes | Please call for package information | |
PM8240 | In Production | 24 | 12 Gbps | 8-Lane PCIe Gen 3 | 0 1 5 6 50 60 | 27 mm x 27 mm | No | Please call for package information | |
PM8241 | In Production | 24 | 12 Gbps | 8-Lane PCIe Gen 3 | 0 1 5 6 50 60 | 27 mm x 27 mm | Yes | Please call for package information | |
PM8254 | In Production | 8 | PCIe Gen 4 / SAS-4 | 8-Lane PCIe Gen 4 | 0, 1, 5, 6, 10, 50, 60 | 25 mm × 25 mm, | No | Please call for package information | |
PM8255 | In Production | 8 | PCIe Gen 4 / SAS-4 | 8-Lane PCIe Gen 4 | 0, 1, 5, 6, 10, 50, 60 | 25 mm × 25 mm | Yes | Please call for package information | |
PM8264 | In Production | 8 | PCIe Gen 4 / SAS-4 | 16-Lane PCIe Gen 4 | 0, 1, 5, 6, 10, 50, 60 | 25 mm × 25 mm | No | Please call for package information | |
PM8265 | In Production | 8 | PCIe Gen 4 / SAS-4 | 16-Lane PCIe Gen 4 | 0, 1, 5, 6, 10, 50, 60 | 25 mm × 25 mm | Yes | Please call for package information | |
PM8268 | In Production | 16 | PCIe Gen 4 / SAS-4 | 16-Lane PCIe Gen 4 | 0, 1, 5, 6, 10, 50, 60 | 35 mm × 35 mm | No | Please call for package information | |
PM8269 | In Production | 16 | PCIe Gen 4 / SAS-4 | 16-Lane PCIe Gen 4 | 0, 1, 5, 6, 10, 50, 60 | 35 mm × 35 mm | Yes | Please call for package information | |
PM8272 | In Production | 16 | PCIe Gen 4 / SAS-4 | 16-Lane PCIe Gen 4 | 0, 1, 5, 6, 10, 50, 60 | 31 mm × 31 mm | No | Please call for package information | |
PM8273 | In Production | 16 | PCIe Gen 4 / SAS-4 | 16-Lane PCIe Gen 4 | 0, 1, 5, 6, 10, 50, 60 | 31 mm × 31 mm | Yes | Please call for package information | |
PM8276 | In Production | 16 | PCIe Gen 4 / SAS-4 | 32-Lane PCIe Gen 4 | 0, 1, 5, 6, 10, 50, 60 | 31 mm × 31 mm | No | Please call for package information | |
PM8277 | In Production | 16 | PCIe Gen 4 / SAS-4 | 32-Lane PCIe Gen 4 | 0, 1, 5, 6, 10, 50, 60 | 31 mm × 31 mm | Yes | Please call for package information | |
PM8278 | In Production | 16 | PCIe Gen 4 / SAS-4 | 32-Lane PCIe Gen 4 | 0, 1, 5, 6, 10, 50, 60 | 35 mm × 35 mm | No | Please call for package information | |
PM8279 | In Production | 16 | PCIe Gen 4 / SAS-4 | 32-Lane PCIe Gen 4 | 0, 1, 5, 6, 10, 50, 60 | 35 mm × 35 mm | Yes | Please call for package information |
Title | Download |
---|---|
SmartIOC 2100 Sell sheet | Download |
SmartRAID 3100E Sell Sheet | Download |
SmartROC 3100 Sell Sheet | Download |
Zero-Maintenance Cache Protection Technical Brief | Download |
maxCrypto Technical Brief | Download |
Universal Backplane Management (UBM) | Download |
Optimizing SMR Drives in RAID Configurations Whitepaper | Download |
Hardware RAID vs. Software RAID Whitepaper | Download |
Choosing the Right RAID Configuration Whitepaper | Download |
Adaptec SmartRAID 3100 | Download |
Adaptec 1100 Sell sheet | Download |
Adaptec SmartRAID 3162 | Download |
Adaptec HD Cables | Download |
Smart Storage Solutions Brochure | Download |
Adaptec SmartHBA 2100 | Download |
Microchip's unified Smart Storage stack powers the entire Smart family of Integrated Circuit (IC) and adapter products, leveraging core IP that has shipped in over 30 million servers and delivers one of the industry’s most reliable, highest-performing and lowest power storage controller software platforms.
SmartRAID 3100E 12 Gbps PCIe Gen 3 SAS/SATA RAID adapters deliver an entry-level solution with the robustness and performance of hardware RAID and the industry leading power of the SmartRAID 3100 series. The 3100E RAID adapters provide significant performance acceleration over other entry-level adapter card solutions through built-in DRAM cache, thus delivering a performant hardware RAID solution for cost-sensitive platforms that don’t require the full capabilities of our full featured SmartRAID adapters.
Encryption is a must for vertical markets needing data protection. The SmartRAID 3162-8i/e RAID adapter equipped with maxCrypto controller-based encryption (CBE) provides encryption for data-at-rest in the data center with virtually no difference in read or write performance.
As data centers grow, performance, power, security and reliability are more important considerations than ever. Find out how the SmartROC 3100 and SmartIOC 2100 handle these advanced security features using maxCrypto controlled-based encryption (CBE) without affecting performance.
Our Adaptec product line continues its storage leadership by launching industry-first open-source tools that configure, deploy, scale and manage our RAID adapters, Host Bus adapters and expanders for use with OpenStack’s Horizon dashboard in the data center.
ChipLink is an intuitive, Java-based, cross-platform Graphical User Interface (GUI) that allows developers to monitor, configure, and diagnose our data center products with immediate visual feedback, deploys a consistent toolset and offers many other advanced features that accelerate overall time-to-market for your design.
