Our highly flexible portfolio of comparator solutions, including devices with integrated references, multiple output configurations and windowed comparators, enables highly integrated, low-risk, low-power design options.

Highlights

  • Wide selection of low-power and high-speed comparators offering propagation delays from 12 µs to 47 ns to address a wide variety of applications
  • Extend battery run time with low-power comparators featuring ultra-low quiescent current down to 600 nA and operating voltages down to 1.5V
  • Windowed comparators in small 1.6 × 1.6 mm TDFN packages for space-constrained designs

Are You Working on an Automotive Application?


The low-power and low-noise performance of our AEC-Q100-qualified amplifiers and comparators makes them excellent choices for automotive designs.

Comparators


View All Parametrics
Product # of Channels Typical Prop Delay (ns) Output Supply Voltage Min. (V) Supply Voltage Max. (V) Iq Max (µA/comparator)
MCP6541 1 4000 Push Pull 1.6 5.5 1
MCP6541R 1 4000 Push Pull 1.6 5.5 1
MCP6541U 1 4000 Push Pull 1.6 5.5 1
MCP6542 2 4000 Push Pull 1.6 5.5 1
MCP6543 1 4000 Push Pull 1.6 5.5 1
MCP6544 4 4000 Push Pull 1.6 5.5 1
MCP6546 1 4000 Open Drain 1.6 5.5 1
MCP6546R 1 4000 Open Drain 1.6 5.5 1
MCP6546U 1 4000 Open Drain 1.6 5.5 1
MCP6547 2 4000 Open Drain 1.6 5.5 1
MCP6548 1 4000 Open Drain 1.6 5.5 1
MCP6549 4 4000 Open Drain 1.6 5.5 1
MCP6561 1 47 Push Pull 1.8 5.5 130
MCP6562 2 47 Push Pull 1.8 5.5 130
MCP6564 4 47 Push Pull 1.8 5.5 130
MCP6566 1 47 Open Drain 1.8 5.5 130
MCP6567 2 47 Open Drain 1.8 5.5 130
MCP6569 4 47 Open Drain 1.8 5.5 130
MCP65R41 1 4000 Push Pull 1.8 5.5 4
MCP65R46 1 4000 Open Drain 1.8 5.5 4
MIC6270 1 600 Open Drain 2 36 900
MIC7211 1 4000 Push Pull 2.2 10 12
MIC7221 1 4000 Open Drain 2.2 10 12
MIC833 1 5000 Open Drain 1.5 5.5 2
MIC841 1 12000 Push Pull/Open Drain 1.5 5.5 3
MIC842 1 12000 Push Pull/Open Drain 1.5 5.5 3

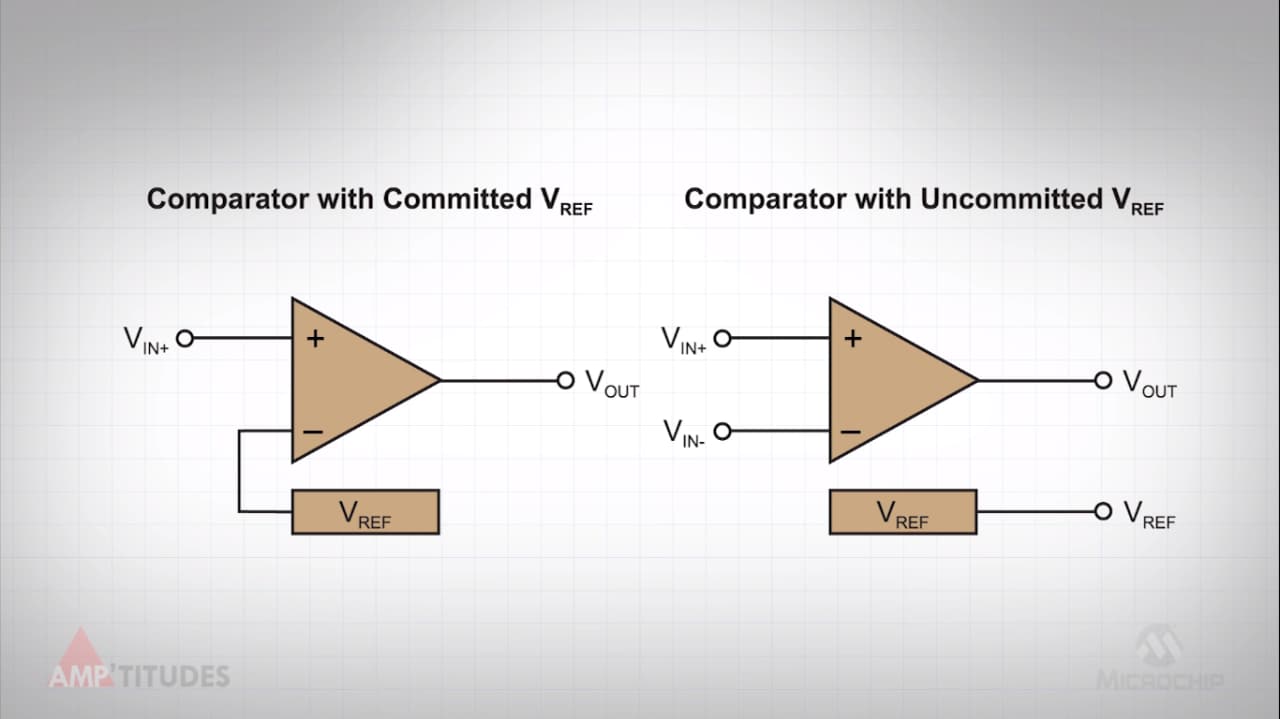

Amp’titudes Episode 15 – Windowed and Non-Windowed Comparators

This video provides a quick overview of the differences between a “standard” comparator and a windowed comparator.
