Flashtec NVMe controllers enable designers of the world’s leading enterprises and data centers to create the highest-performance SSDs using next-generation NAND technologies. These controllers support the standard NVMe host interface in a variety of form factors at a wide range of capacity points, and are optimized for maximum high-performance, random read/write operations. They perform all Flash management operations on chip while using minimal host processing and memory resources.

Flashtec NVMe Gen 4 PCIe® Controllers

Third-generation Flashtec NVMe 3016 and Flashtec NVMe 3108 enterprise and mainstream NVMe controllers address market demand for high-reliability, high-performance PCIe Gen 4 NVMe Solid State Drives (SSDs). The Flashtec NVMe 3016 enterprise controller delivers greater than 10 Gbps throughput and more than 2 million Input/Output Operations Per Second (IOPS), while the NVMe mainstream controller delivers 6 Gbps throughput and more than 1 million Input/Output Operations Per Second (IOPS).

Flashtec firmware development acceleration tools and programmable architecture enable SSD developers to control product differentiation through firmware customization. The Flashtec NVMe 3016 and NVMe 3108 controllers are part of a full end-to-end solution of storage infrastructure and endpoint solutions for PCIe Gen 4 applications.

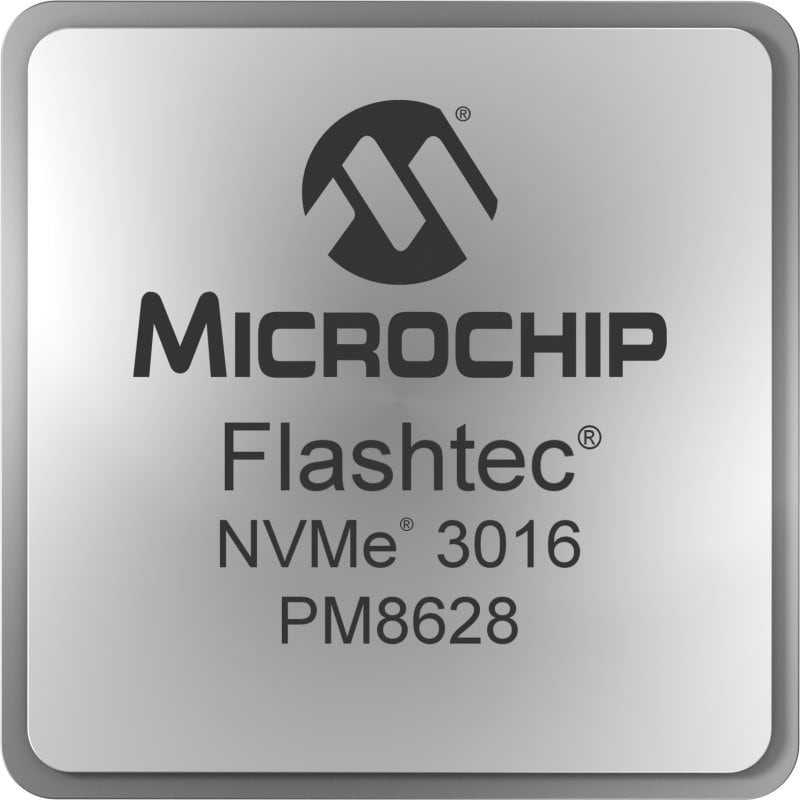

Flashtec NVMe 3016 Features

  • Offers PCIe Gen 4 ×8 or dual independent PCIe Gen 4 ×4 (active, active/standby) host interface
  • Provides 16 independent Flash channels, each supporting up to 16 Chip Enables (CEs)
  • Delivers 2M IOPs
  • Supports greater than 200 TB Flash capacity

Flashtec NVMe 3108 Features

Now Sampling

  • Offers PCIe Gen 4×4 or dual independent PCIe Gen 4×2 (active/active or active/standby) host interface
  • Provides 8 independent Flash channels, each supporting up to 16 Chip Enables (CEs)
  • Delivers 1M IOPs
  • Capable of greater than 64 TB Flash capacity

Common Features Include:


  • Secure boot and data encryption support
  • SLC, MLC, Enterprise MLC, TLC and QLC Flash with toggle and ONFI interface
  • NVMe compliant with PCIe 4.0 base specification and NVMe 1.4 protocol

Flashtec NVMe Gen 3 PCIe Controllers

The Flashtec NVMe controller family enables designers of the world’s leading enterprises and data centers to create the highest-performance SSDs using next-generation NAND technologies. Combining world-class capacity and flexibility in a variety of form factors, the Flashtec controller family is the reliable choice. These NVMe controllers support the standard NVMe host interface and are optimized for maximum high-performance, random read/write operations. They perform all Flash management operations on chip while using minimal host processing and memory resources, and firmware can be leveraged across the portfolio from the highest performance to more power-optimized and performance-targeted mainstream applications.

Features

  • Up to 20 TB Flash capacity using 256 Gb Flash
  • SLC, MLC, Enterprise MLC, and TLC Flash with toggle and ONFI interface
  • PCIe Gen 3 ×8 or dual independent PCIe Gen3 ×4 (active, active/standby) host interface
  • 16 independent Flash channels, each supporting up to 16 CEs
  • DDR3-2133 and DDR4-2400
  • Support for M.2, U.2, U.3, AIC, and Custom Form Factors
  • Optional ROM allows PCIe Flash controller to be used as a boot device
  • XTS-AES-256 encryption
  • Power fault and abrupt shutdown without data loss or corruption
  • Data integrity and reliability

Flashtec NVMe Controllers


View All Parametrics
Product Product Name Status Channels Flash Memory Capacity Performance Host Bus Interface System Memory Packages
PM8607 Flashtec® NVMe 2016 In Production 16 NAND channels (8 CE) 32 TB 1.2M+ RR IOPS (4 KB) PCIe Gen 3 x4/x8 or dual PCIe Gen3 x2/x4 DDR4-2400 1085/FBGA
PM8609 Flashtec® NVMe 2032 In Production 32 NAND channels (8 CE) 32 TB 1.2M+ RR IOPS (4 KB) PCIe Gen 3 x4/x8 or dual PCIe Gen3 x2/x4 DDR4-2400 1517/BBGA
PM8627 Flashtec® NVMe 3016 In Production 16 NAND channels +200 TB +2M million RR IOPS (4 KB) PCIe Gen 4 x8 or dual independent PCIe Gen 4 x4 DDR4-3200 Please call for package information
PM8632 Flashtec® NVMe 2108 In Production 8 NAND channels (8 CE) 16 TB 500K+ RR IOPS (4KB) PCIe Gen 3 x4 or dual PCIe Gen3 x2 DDR4-2133 Please call for package information
PM8640 Flashtec® NVMe 3108 Samples Available 8 NAND channels (16 CE) >6 GB/s 1M IOPs (4 KB) PCIe Gen 4 x8 or dual independent PCIe Gen 4 x4 DDR4 2400 Please call for package information

Documentation


Title
Download NVMe 2032/NVMe 2016 Sell Sheet Download
Flashtec NVMe 2108 Sell Sheet Download
Flashtec NVMe3016 Sell Sheet Download

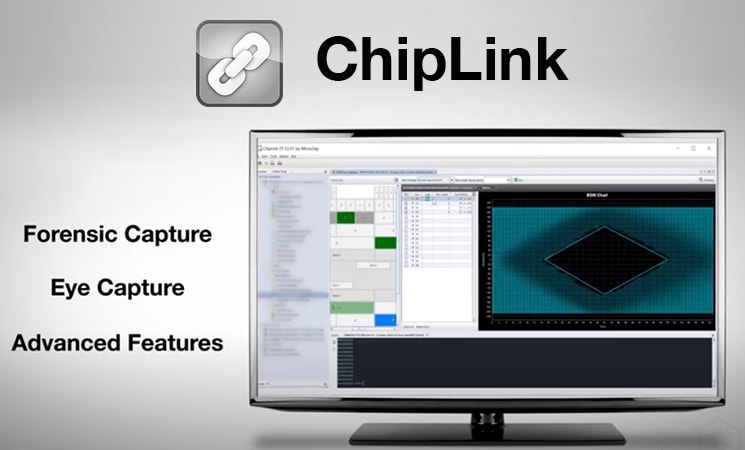

ChipLink is an intuitive, Java-based, cross-platform Graphical User Interface (GUI) that allows developers to monitor, configure, and diagnose our data center products with immediate visual feedback, deploys a consistent toolset and offers many other advanced features that accelerate overall time-to-market for your design.
