Solutions for High-Speed Data and Video Transmission Over Copper Cables
CoaXPress® Technology Solutions for Your High-Speed Digital Imaging Applications
What Are the Challenges of Delivering High-Speed Digital Imaging Over Coax Cables?
We Offer These Solutions for Your Design
Equalizers (Receivers)
Our auto-adaptive coaxial cable video equalizers enable the signal recovery performance to automatically adapt to compensate for different cable lengths, varying temperatures, system aging and other factors. They support simultaneous video downlink, uplink for camera control and power over a single coaxial cable and are designed for the lowest-achievable power consumption to reduce the amount of wasted energy and unwanted heat within systems.
Transmitters (Drivers)
Our cable drivers enable frequency separation on a single copper cable to allow video, control and power signals to be transmitted simultaneously without interference.
Transceivers (Equalizers/ Transmitters/Repeaters)
Our transceivers are chipsets consisting of a transmitter that is integrated into a camera and an equalizer that is integrated into the frame grabber on the system head end. Our single-chip transceiver devices also feature integrated Clock-Data-Recovery (CDR), which enables them to also be used as cable extenders/repeaters. Real-time cable link signal integrity test capability ensures link quality at all times and low-frequency clock recovery for camera-side devices.
Target Applications
Video cameras are used for digital image processing systems in many industries. Find out how our solutions are meeting the imaging challenges in these key applications:
- Machine Vision
- Factory Automation
- Security and Surveillance
Data and Video Transceivers
- CoaXPress Products
- Video Equalizers
- Video Transmitters
- Video Transceivers
View All Parametrics
| Product | Status | 5K Pricing | Downlink Speed (Gbps) | Uplink Speed (Mbps) | Power over Coaxial Cable | Device Type | Coaxial Cable Support | Device Power Consumption | Temp Range (° C) | Clock-Data Recovery (CDR) | Pin Compatible | Packages |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EQCO125T40 | In Production | $20.40 | 12.5 | 40 | Yes | Receiver | 75-ohm and 50-ohm | 125mW @1.25V | -40 to 85 | CDR for up- and downlink | Yes | 16/QFN |

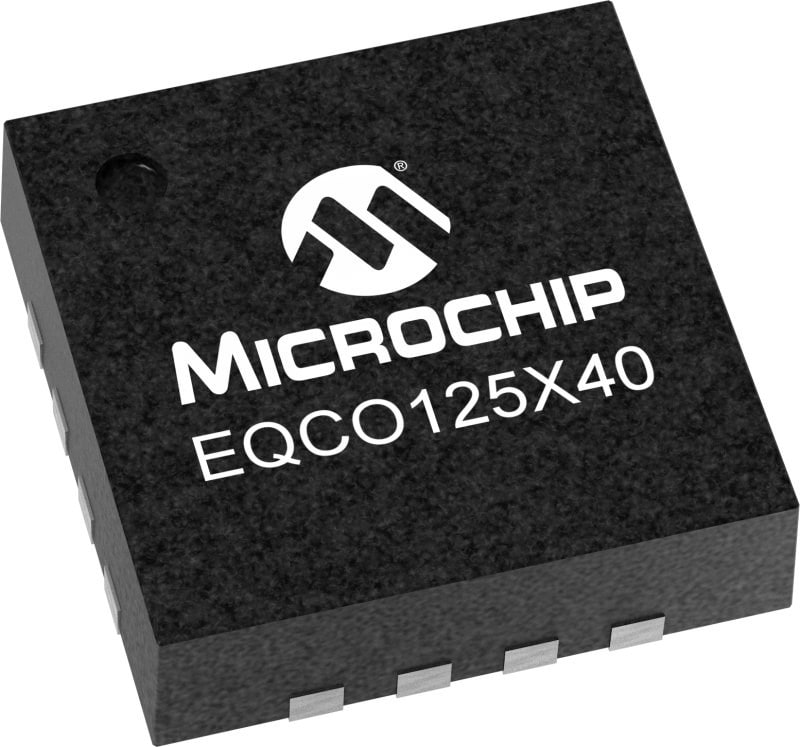

| EQCO125X40 | In Production | $22.44 | 12.5 | 40 | Yes | Receiver | 75-ohm and 50-ohm | 125mW @1.25V | -40 to 85 | CDR for up- and downlink | Yes | 16/QFN |
| EQCO31R20 | In Production | $19.55 | 3.125 | 20 | Yes | Receiver | 75-ohm and 50-ohm | <70mW @1.2V | -40 to 85 | No CDR | No | 16/QFN |
| EQCO31T20 | In Production | $19.55 | 3.125 | 20 | Yes | Transmitter | 75-ohm and 50-ohm | <70mW @1.2V | -40 to 85 | No CDR | No | 16/QFN |
| EQCO31X20 | In Production | $15.30 | 3.125 | 20 | Yes | Receiver | 75-ohm and 50-ohm | 87.5mW @1.25V | -40 to 85 | CDR for up- and downlink | Yes | 16/QFN |
| EQCO62R20 | In Production | $25.66 | 6.25 | 20 | Yes | Receiver | 75-ohm and 50-ohm | <70mW @1.2V | -40 to 85 | No CDR | No | 16/QFN |

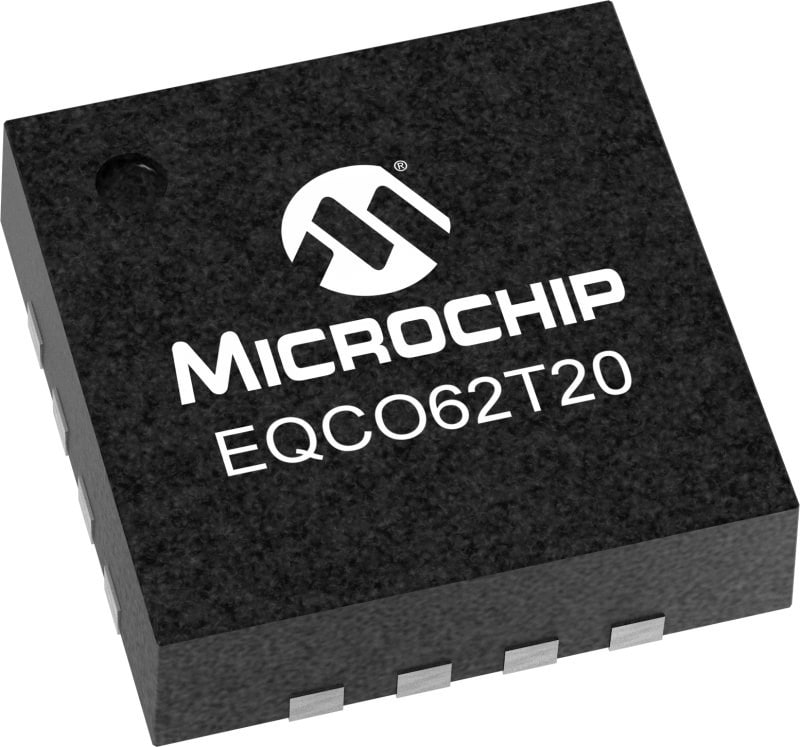

| EQCO62T20 | In Production | $25.66 | 6.25 | 20 | Yes | Transmitter | 75-ohm and 50-ohm | <70mW @1.2V | -40 to 85 | No CDR | No | 16/QFN |
| EQCO62X20 | In Production | $18.36 | 6.25 | 20 | Yes | Receiver | 75-ohm and 50-ohm | 100mW @1.25V | -40 to 85 | CDR for up- and downlink | Yes | 16/QFN |
View All Parametrics
| Product | Status | 5K Pricing | Temp Range Min.(° C) | Temp Range Max.(° C) | Power Consumption | Package Size (mm) | Package Type | Pin Count | Package Pitch | Operating Voltage Min (V) | Operating Voltage Max (V) | Storage Temp Range Min.(° C) | Storage Temp Range Max.(° C) | Packages |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EQCO125X40 | In Production | $22.44 | -40 | 85 | 125mW @1.25V | 4x4 | QFN | 16 | 0.65mm pin pitch | 1.15 | 1.25 | -65 | 150 | 16/QFN |
| EQCO30R5 | In Production | $4.02 | -40 | 85 | 150mW | 4x4 | QFN | 16 | 0.65mm pin pitch | 3.15 | 3.45 | 16/QFN | ||
| EQCO30R5 | In Production | $4.02 | -40 | 85 | 150mW | 4x4 | QFN | 16 | 0.65mm pin pitch | 3.15 | 3.45 | 16/QFN | ||
| EQCO31R20 | In Production | $19.55 | -40 | 85 | <70mW @1.2V | 4x4 | QFN | 16 | 0.65mm pin pitch | 1.15 | 1.25 | -65 | 150 | 16/QFN |
| EQCO31X20 | In Production | $15.30 | -40 | 85 | 87.5mW @1.25V | 4x4 | QFN | 16 | 0.65mm pin pitch | 1.15 | 1.25 | -65 | 150 | 16/QFN |
| EQCO62R20 | In Production | $25.66 | -40 | 85 | <70mW @1.2V | 4x4 | QFN | 16 | 0.65mm pin pitch | 1.15 | 1.25 | -65 | 150 | 16/QFN |
| EQCO62X20 | In Production | $18.36 | -40 | 85 | 100mW @1.25V | 4x4 | QFN | 16 | 0.65mm pin pitch | 1.15 | 1.25 | -65 | 150 | 16/QFN |
View All Parametrics
| Product | Status | 5K Pricing | Downlink Speed (Gbps) | Uplink Speed (Mbps) | Power over Coaxial Cable | Device Type | Coaxial Cable Support | Device Power Consumption | Temp Range (° C) | Clock-Data Recovery (CDR) | Pin Compatible | Packages |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EQCO125T40 | In Production | $20.40 | 12.5 | 40 | Yes | Receiver | 75-ohm and 50-ohm | 125mW @1.25V | -40 to 85 | CDR for up- and downlink | Yes | 16/QFN |
| EQCO125X40 | In Production | $22.44 | 12.5 | 40 | Yes | Receiver | 75-ohm and 50-ohm | 125mW @1.25V | -40 to 85 | CDR for up- and downlink | Yes | 16/QFN |
| EQCO30T5 | In Production | $3.26 | 3.125 | 5 | Yes | Transmitter | 75 and 50 Ohm | 150mW | -40 to 85 | No CDR | No | 16/QFN |
| EQCO31T20 | In Production | $19.55 | 3.125 | 20 | Yes | Transmitter | 75-ohm and 50-ohm | <70mW @1.2V | -40 to 85 | No CDR | No | 16/QFN |
| EQCO31X20 | In Production | $15.30 | 3.125 | 20 | Yes | Receiver | 75-ohm and 50-ohm | 87.5mW @1.25V | -40 to 85 | CDR for up- and downlink | Yes | 16/QFN |
| EQCO62T20 | In Production | $25.66 | 6.25 | 20 | Yes | Transmitter | 75-ohm and 50-ohm | <70mW @1.2V | -40 to 85 | No CDR | No | 16/QFN |
| EQCO62X20 | In Production | $18.36 | 6.25 | 20 | Yes | Receiver | 75-ohm and 50-ohm | 100mW @1.25V | -40 to 85 | CDR for up- and downlink | Yes | 16/QFN |
View All Parametrics
| Product | Status | 5K Pricing | Temp Range Min.(° C) | Temp Range Max.(° C) | Power Consumption | Package Size (mm) | Package Type | Pin Count | Package Pitch | Operating Voltage Min (V) | Operating Voltage Max (V) | Storage Temp Range Min.(° C) | Storage Temp Range Max.(° C) | Packages |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| EQCO125X40 | In Production | $22.44 | -40 | 85 | 125mW @1.25V | 4x4 | QFN | 16 | 0.65mm pin pitch | 1.15 | 1.25 | -65 | 150 | 16/QFN |
| EQCO30R5 | In Production | $4.02 | -40 | 85 | 150mW | 4x4 | QFN | 16 | 0.65mm pin pitch | 3.15 | 3.45 | 16/QFN | ||
| EQCO30R5 | In Production | $4.02 | -40 | 85 | 150mW | 4x4 | QFN | 16 | 0.65mm pin pitch | 3.15 | 3.45 | 16/QFN | ||
| EQCO30T5 | In Production | $3.26 | -40 | 85 | 150mW | 4x4 | QFN | 16 | 0.65mm pin pitch | 3.15 | 3.45 | -65 | 150 | 16/QFN |
| EQCO31R20 | In Production | $19.55 | -40 | 85 | <70mW @1.2V | 4x4 | QFN | 16 | 0.65mm pin pitch | 1.15 | 1.25 | -65 | 150 | 16/QFN |
| EQCO31T20 | In Production | $19.55 | -40 | 85 | <70mW @1.2V | 4x4 | QFN | 16 | 0.65mm pin pitch | 1.15 | 1.25 | -65 | 150 | 16/QFN |
| EQCO31X20 | In Production | $15.30 | -40 | 85 | 87.5mW @1.25V | 4x4 | QFN | 16 | 0.65mm pin pitch | 1.15 | 1.25 | -65 | 150 | 16/QFN |
| EQCO62R20 | In Production | $25.66 | -40 | 85 | <70mW @1.2V | 4x4 | QFN | 16 | 0.65mm pin pitch | 1.15 | 1.25 | -65 | 150 | 16/QFN |
| EQCO62T20 | In Production | $25.66 | -40 | 85 | <70mW @1.2V | 4x4 | QFN | 16 | 0.65mm pin pitch | 1.15 | 1.25 | -65 | 150 | 16/QFN |
| EQCO62X20 | In Production | $18.36 | -40 | 85 | 100mW @1.25V | 4x4 | QFN | 16 | 0.65mm pin pitch | 1.15 | 1.25 | -65 | 150 | 16/QFN |
