GNSS Timing Accessories

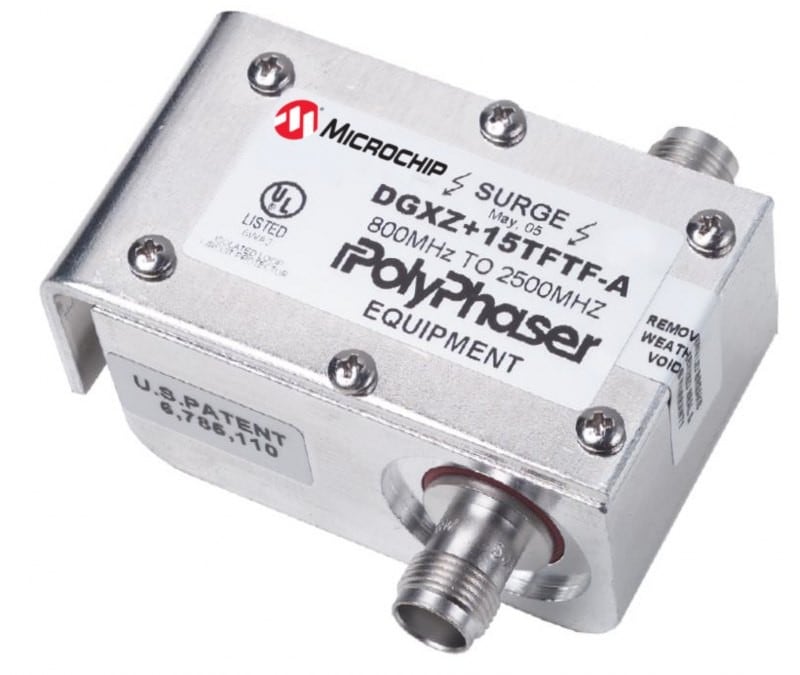

150-709 and 150-710

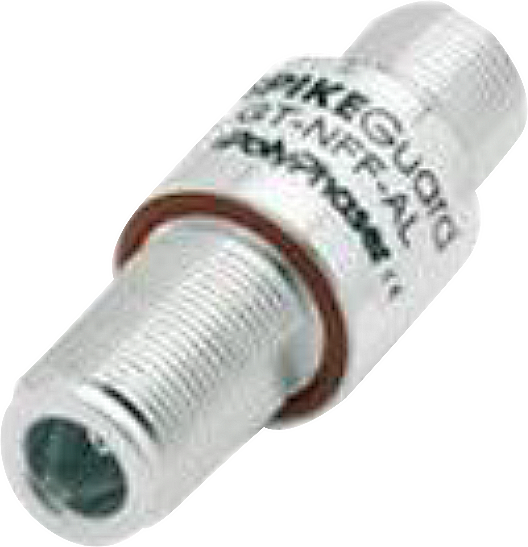

• Protect your systems from lightning damage
• Inline lightning arrestors are mounted on a low-impedance ground between the antenna and the point where the cable enters the building
• The lightning arrestors require no additional power or wiring except the ground lead

150-200

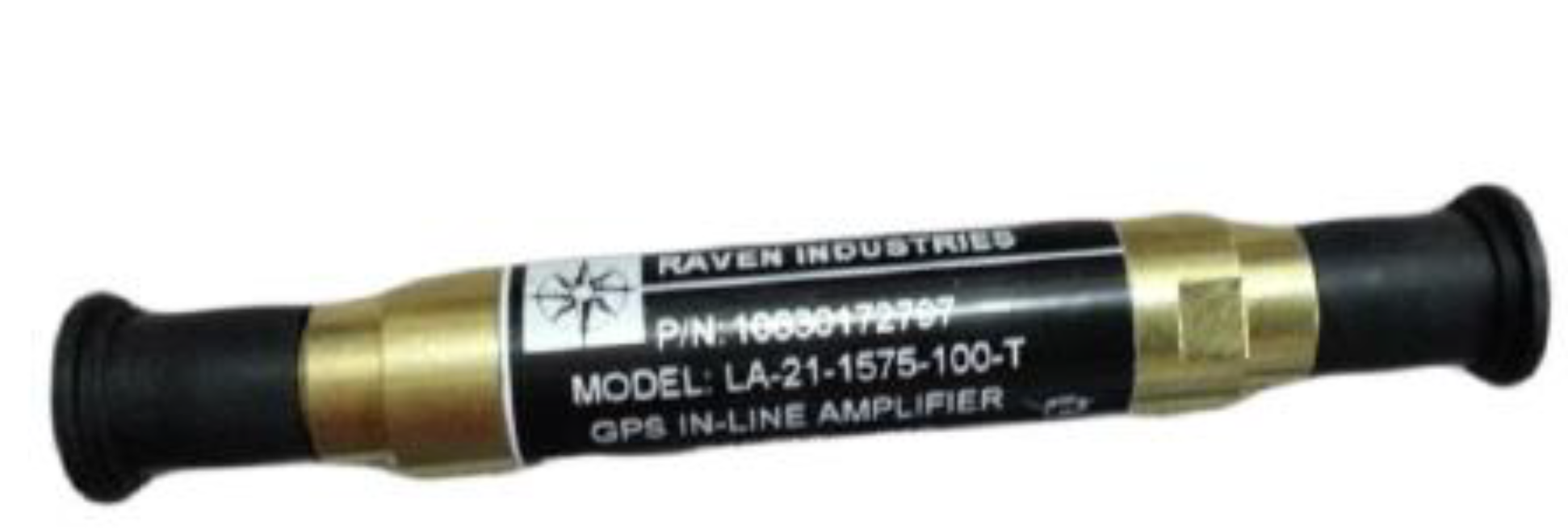

• Extended GPS antenna cable length up to 300 ft. (91m)
• Fits in line with the antenna cable
• No external power source required
• Simple installation

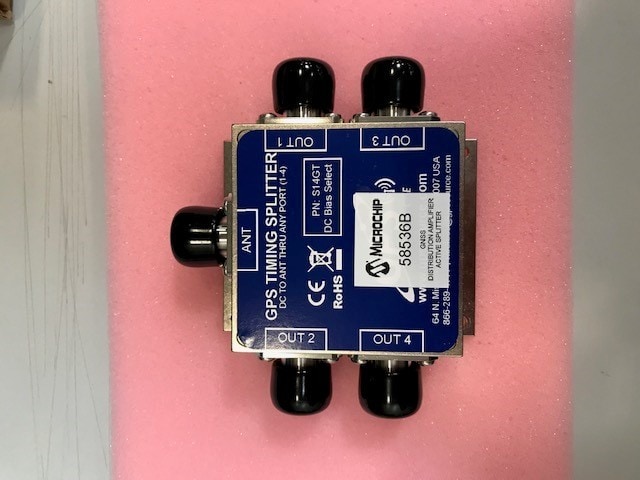

58536B

• GNSS L1 1:4 Active Splitter
• Has high isolation and is waterproof
• Distributes GPS, GLONASS, Galileo and BeiDou/compass frequencies
• Can be conveniently cascaded without adding separate amplifiers and bias tees between splitters
• Delivers precise GNSS signals over a wide temperature range and in harsh environmental conditions
• Eliminates feedback and interaction between any GNSS systems connected to it

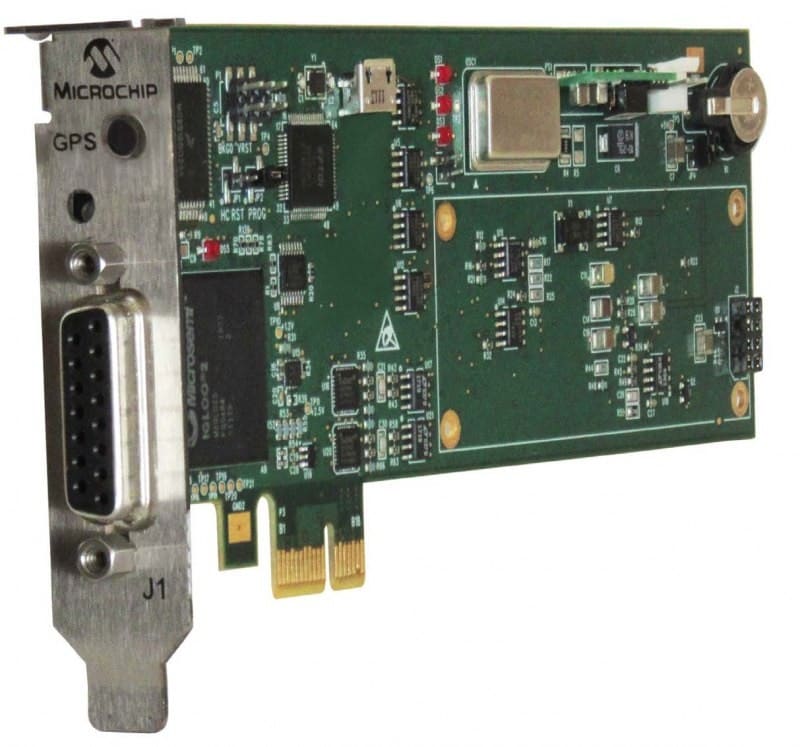

• GPS-enabled options
• PCIe and PCI form factors
• Nanosecond synchronization
• External frequency input
• Onboard battery-backed real-time clock

093-15202-010

This wide-band antenna is a precise, high-gain GNSS antenna that covers the BeiDouB1, Galileo E1, GPS L1, GLONASS L1 and SBAS (WAAS, EGNOS, QZSS and MSAS) frequency bands in the range of 1557 MHz to 1606 MHz.

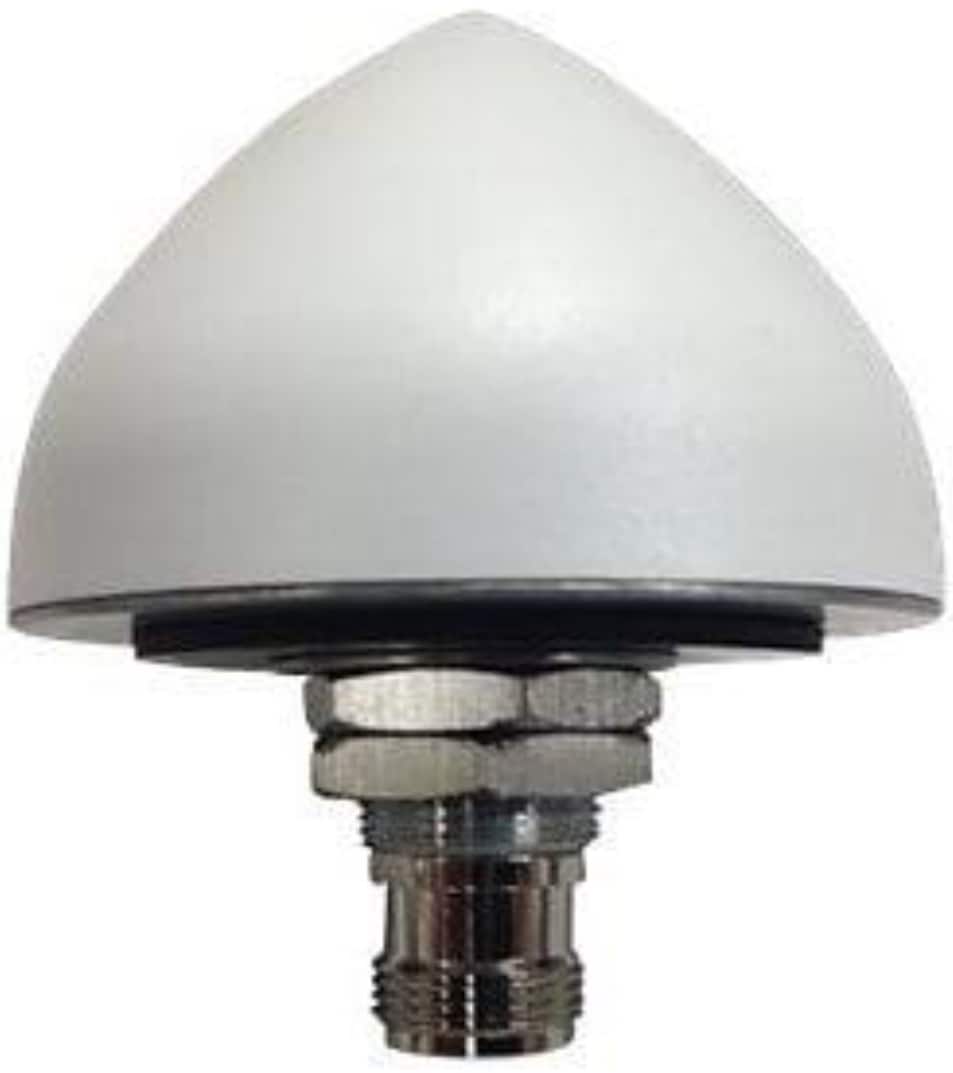

093-15202-001

This standard antenna used with the TimeProvider^® 4100 time server is a high-gain (40 dB) GNSS antenna that covers the GPS L1, Galileo E1, GLONASS L1 and SBAS (WAAS, EGNOS, QZSS and MSAS) frequency bands in the range of 1575 MHz to 1606 MHz.

093-15202-006

This wide-band antenna is a precision, high-gain GNSS an­tenna covering the BeiDou B1, Galileo E1, GPS L1, GLONASS L1 and SBAS (WAAS, EGNOS, QZSS and MSAS) frequency bands in the range of 1557 MHz to 1606 MHz.

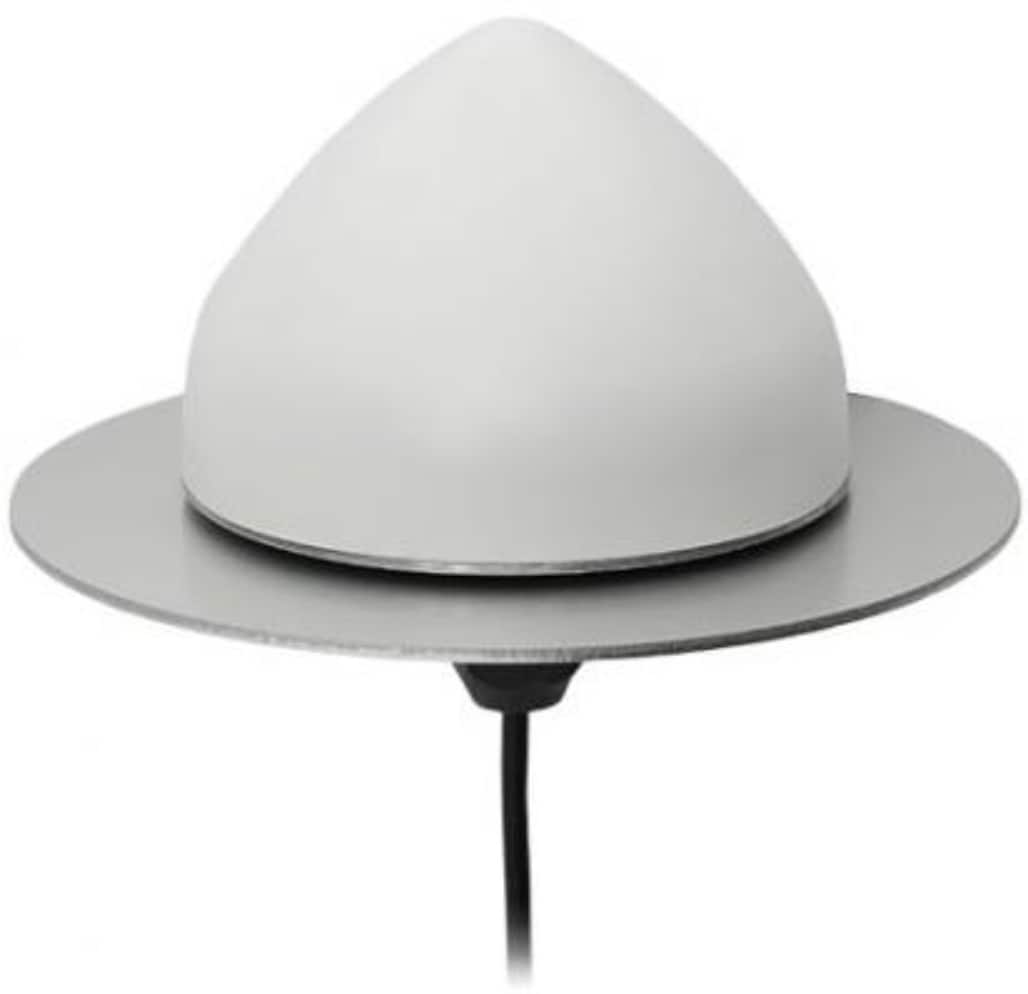

093-15041-001

This multi-band antenna (Part number 112-00163-000) is an Accutenna^® technology antenna. It provides triple-band GPS/QZSS-L1/L2/L5, GLONASS-G1/G2/G3, Galileo-E1/E5a/E5b, BeiDou-B1/B2/B2a and NavIC-L5, including the Satellite-Based Augmentation System (SBAS), frequency bands, which are available in the region of opera­tion—WAAS (North America), EGNOS (Europe), MSAS (Japan) or GAGAN (India). It also provides L-band correction services coverage and is especially designed for precision triple-frequency positioning.

093-15203-001

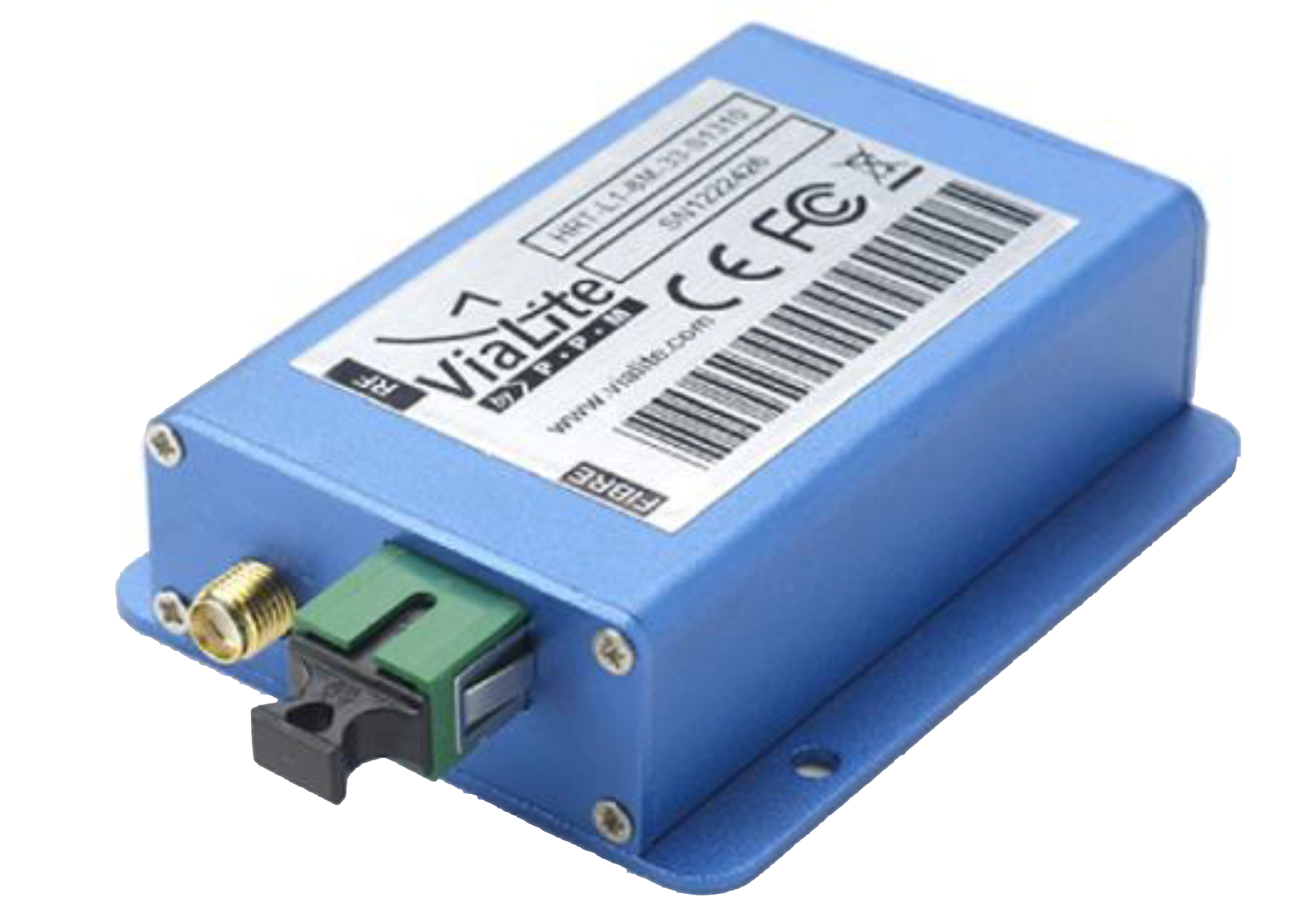

The GNSS RF-over-fiber kit is composed of an RF-to-fiber transmitter, a fiber-to-RF receiver, two external power supplies and four adapter cables. The fiber cable provided is a 3-meter-long cable that can be used for bench testing if needed.

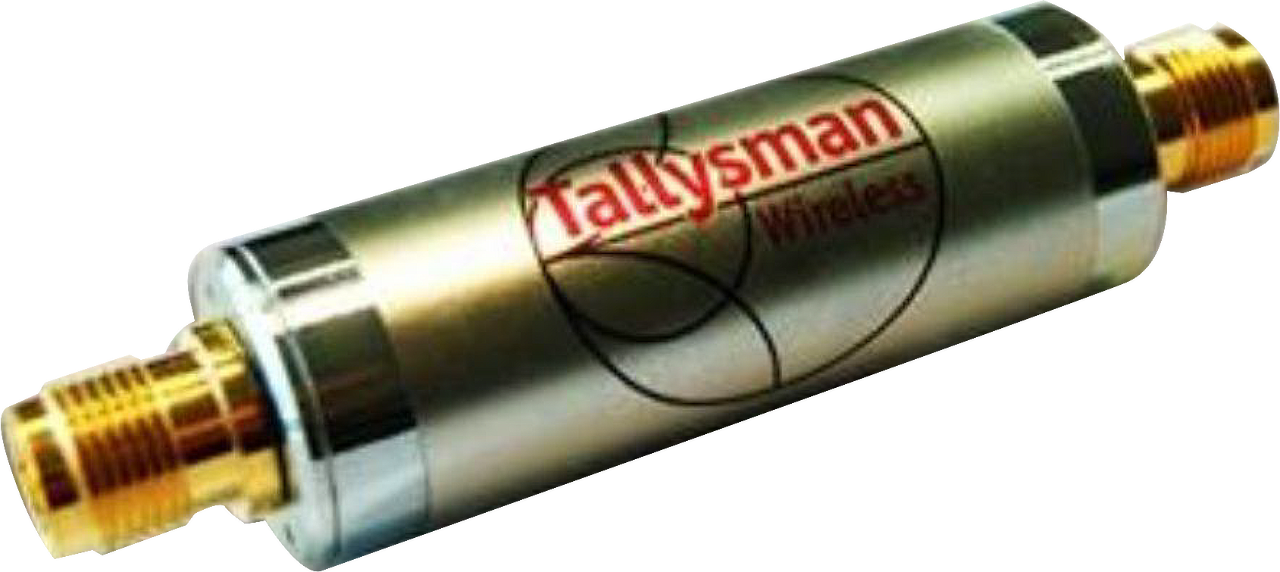

093-15202-005

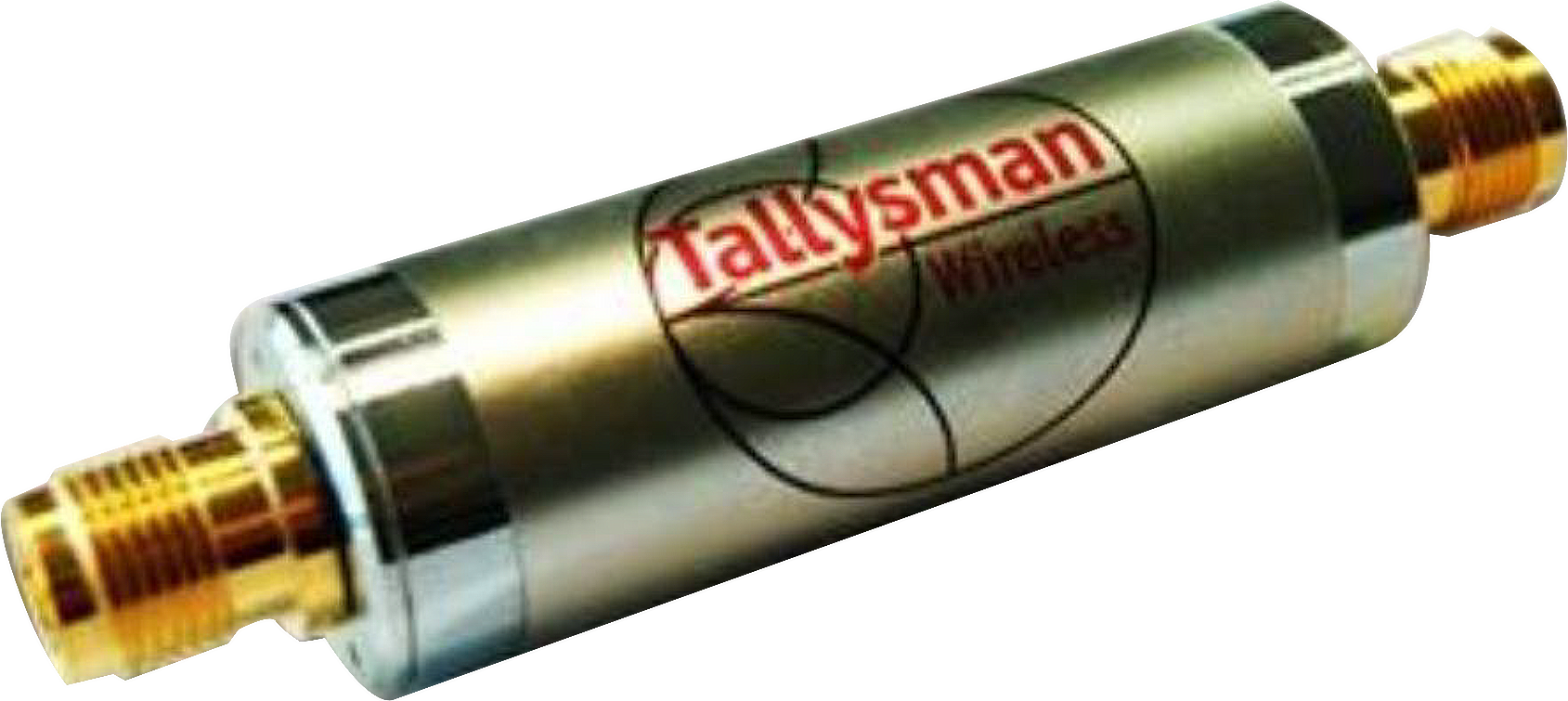

Cable length is a common cause for signal loss between the GNSS antenna and the GNSS receiver. As with any electromag­netic radio wave, GNSS signals become attenuated as they pass through an electrical cable. The amount of signal loss depends on the length and type of cable used. The inline amplifier attaches between the antenna and the antenna cable and uses the same power as the antenna, so does not require extra wiring.

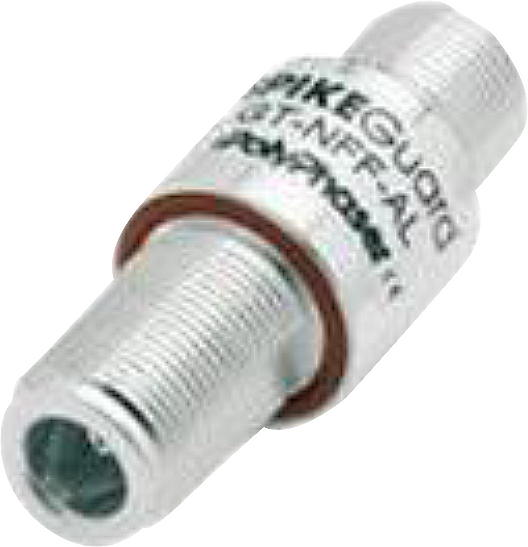

093-15202-002

Lightning strikes pose a significant threat to communication infrastructure worldwide by frequently damaging GPS antennas and receivers. Such damage often occurs not from direct strikes but from the high voltages induced when lightning hits nearby structures. To mitigate this risk, GPS antennas should be placed 15 meters away from lightning rods, towers or any structures that attract lightning.

093-15202-011

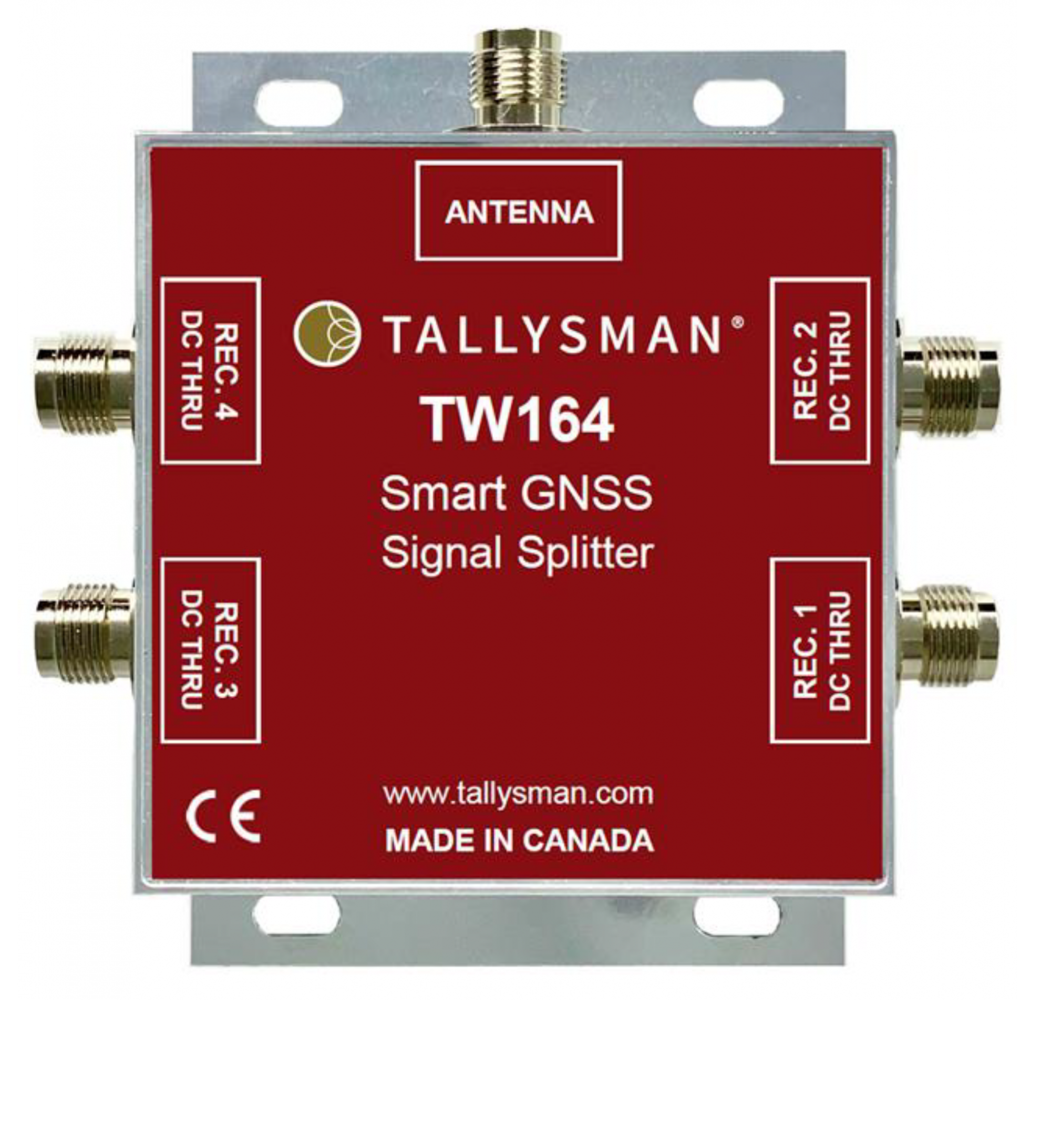

This multi-band, 1:4 active splitter enables a single GNSS referencing antenna/cable arrangement to support multiple synchronization systems.
