Power Line Communications (PLC) is a technology that carries data on a conductor that is primarily designed for electric power transmission. Since it can be used to implement two-way communications over existing power distribution networks, PLC is a key technology for use in the smart grid.

Our PLC solutions enable data to be transferred through AC and DC power lines, which reduces wiring costs in applications such as fire and alarm systems, smart lighting, home and building energy management systems and solar farms. When used with the accompanying firmware, our PLC modems can support applications requiring either basic connectivity (point-to-point or star topologies) or complex PLC networks (mesh topologies with routing). You can download examples for basic PLC connectivity, as well as complete implementations of state-of-the-art PLC protocols such as ITU-T G.9903 (G3-PLC®) and ITU-T G.9904 (PRIME), from this website.

In many parts of the world, Narrow-Band Power Line Communications (NB-PLC) technology has proven to be a robust and cost-optimized solution in large deployments of smart meters. With just a simple change of firmware, our PLC solutions can support any NB-PLC protocol. Our PLC reference designs are compliant with local regulations, such as Europe/CENELEC, USA/FCC and Japan/ARIB to further simplify your development.

Key Features


  • Support for multiple PLC protocols via simple firmware change
  • ITU-T G.9903 (G3) and G.9904 (PRIME) implementations provided
  • Power Line signal is transmitted in the band between 0 and 500 kHz
  • Baud rates range from few kbps (robust modes) to hundreds of kbps (fast modes)
  • Adaptive modulation scheme dynamically provides the best tradeoff between baud rate and robustness
  • Our PLC driver offers the industry’s highest efficiency to reduce power consumption and enhance modem durability
  • Firmware available for either basic PLC connectivity applications or complex PLC mesh networks with routing

Design Resources


Data Sheets


Title Download
PL485 Data Sheet Download
PL360 Data Sheet Download
ATPL250A Data Sheet Download

User Guides


Title Download
PL360 Security Features Download
PL360 Host Controller User's Guide Download

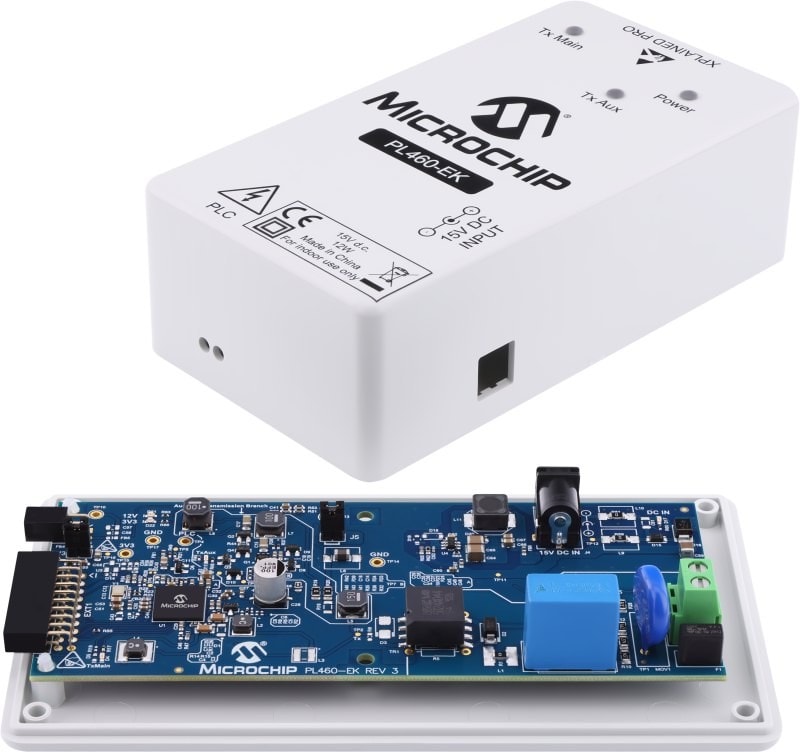

Evaluation Kits


Title
Description
PL485-EK Evaluation kit for Microchip PL360 PLC modem. It includes two PL360MB smart metering boards, allowing you to evaluate the PLC performance of PL360 device in point to point links. Supports G3-PLC and PRIME.
ATPL360-EK Evaluation board designed to be directly connected to low-voltage DC power rails covering the frequency range 95 .. 125kHz, as an example for industrial low-range applications. The kit can be coupled to the AC mains by means of Microchip accessory PLC-AC-Coupler.
PL360G55CB-EK
Evaluation board addressing PLC modular applications. Designed to comply with EN50065 regulation in the CENELEC-B band (95 .. 125 kHz), it supports G3-PLC.
PL360G55CF-EK

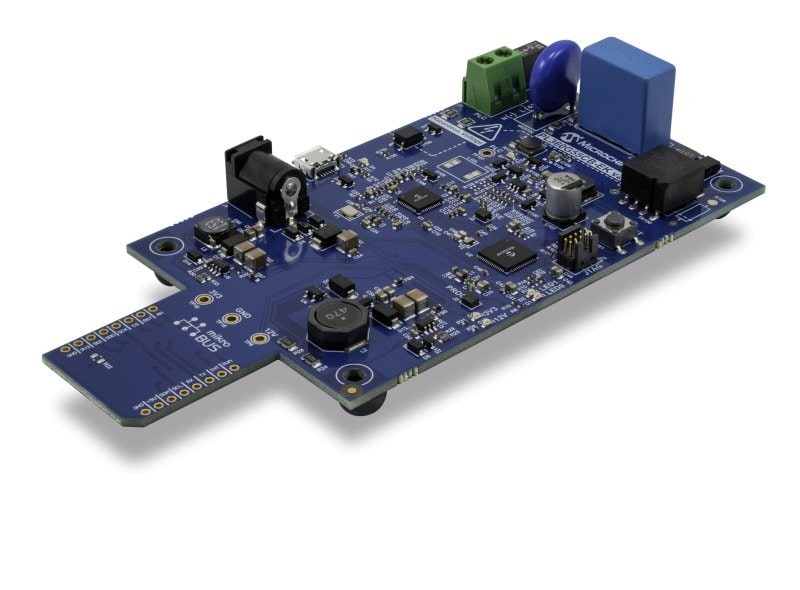

Evaluation board addressing PLC modular applications in the frequency range up to 500 kHz. Supports G3-PLC and PRIME.

Reference Designs


Title
Description
PLC Module for Data Concentrators Microchip solutions to implement PLC modules for data concentrators. G3-PLC, PRIME and multi-protocol supported.
PL360G55F Reference design of a PLC modem designed to operate in the band 150..500kHz, complying with FCC sub-part 15 regulation (USA).

Smart Energy Power Line Communications Products

View All Parametrics
Product Status Device Type Technology Frequency Band Crypto Engine Flash/SRam Temperature Range Packages
ATPL250 Not Recommended for new designs Transceiver G3 Up to 500 kHz AES128 -40 to 85 Please call for package information
PL360 In Production Modem G3/PRIME [0..500 ] kHz Yes -40 to 85 Please call for package information
PL485 In Production SOC G3/PRIME [0..500 ] kHz 512/160 -40 to 85 Please call for package information
