To meet the connectivity needs of robust embedded applications, we offer a broad portfolio of dsPIC33C Digital Signal Controllers (DSCs) and 32-bit microcontrollers (MCUs) with up to two integrated ISO11898-1:2015-compliant CAN Flexible Data-Rate (CAN FD) controllers. These products range from entry-level devices to high-performance products that are available in both industrial- and automotive-qualified solutions.

dsPIC33C Digital Signal Controllers

Our dsPIC33C family of DSCs delivers accelerated Digital Signal Processor (DSP) performance for high-performance embedded, motor control, digital power control and safety-critical applications. The dsPIC33C family includes a complementary portfolio of dsPIC33CH dual-core DSCs and dsPIC33CK single-core DSCs, featuring an integrated CAN FD controller along with the supporting free software libraries for robust communication and increased bandwidth.

The dual-core dsPIC33CH family is designed to facilitate executing dedicated, time-critical or safety-critical control code on the slave core while the master core is busy running the system and communication functions. The dsPIC33CK family offers a cost-effective, single-core option with the same high-performance core and advanced peripherals.

dsPIC33C DSCs feature dedicated peripherals for functional safety compliance in automotive, industrial and medical applications.

32-bit Microcontrollers

Our SAM C21 entry-level 32-bit MCUs with dual CAN FD interfaces are ideal for motor control, home appliance, industrial and automotive applications. With their support for 5V operation and for IEC 60730 functional safety, these devices are well suited for use in harsh environments.

Low-power SAM E5x mid-range 32-bit MCUs offer a wide range of connectivity options including CAN FD and 10/100 Ethernet as well as USB 2.0. These MCUs are ideal for a range of applications including IoT, motor control and automotive. SAM E5x MCUs include a hardware-based AES-256 encryption engine, a True Random Generator (TRG) and a Public Key Cryptography Controller (PUKCC).

SAM E70SAM V70 and SAM V71 high-performance 32-bit MCUs include up to two CAN FD interfaces 10/100 Ethernet with Ethernet-AVB support, a USB 2.0 interface and multiple serial interfaces, which make these devices ideal for automotive infotainment, drones, industrial applications and motor control applications.

Designs using these devices are supported by Microchip Studio Integrated Development Environment (IDE) and Atmel START, an online graphical configuration tool for embedded projects. Code examples and lower-level peripheral drivers are also included.



dsPIC33C DSC Features


  • 3V, −40°C to +150°C operation with AEC-Q100 Grade 0 qualification for designing robust systems
  • Up to two cores with 100 MIPS performance and a DSP engine to handle real-time operations
  • Up to two CAN FD modules
  • Scalable memory up to 512 KB Flash
  • Available in 28- to 80-pin packages for use in a wide range of applications
  • High-resolution Pulse-Width Modulators (PWMs):
    • Up to 16 channels to enable precision dual-motor control and integrated Power Factor Correction (PFC)
    • 250 ps resolution for high-efficiency digital power applications
  • Dedicated set of peripherals to ease functional safety compliance
  • Maximum peripheral integration in ultra-small packages lowers Bill of Materials (BoM) cost

32-bit Microcontroller Features


Entry Level

SAM C21Family

  • 48-MHz Arm® Cortex®-M0+ based MCU
  • Up to 256 KB of Flash and 32 KB of SRAM
  • Up to 8 KB for EEPROM emulation
  • Dual ISO CAN FD
  • Up to six Serial Communications Interfaces (SERCOMs) which can operate as USART, I2C, SPI, LIN master/slave and RS-485
  • Peripheral Touch Controller (PTC)
  • Two 12-Bit, 1 Msps Analog-to-Digital Converters (ADCs)
  • 10-bit, 350 ksps Digital-to-Analog Converter (DAC)
  • TQFP, QFN and WLCSP package options
  • AEC-Q100 Grade 1 Qualification

Mid Range

SAM E5x Family

  • 120-MHz Arm Cortex-M4F based MCU
  • Up to 1 MB of dual-bank Flash and 256 KB of SRAM, both with ECC
  • Dual ISO CAN FD
  • Up to eight serial communications interfaces (SERCOMs) which can operate as USART, I2C, SPI, LIN master/slave and RS-485
  • 10/100 Ethernet MAC with IEEE® 1588
  • Peripheral Touch Controller (PTC)
  • Full speed USB with embedded host/device
  • Integrated hardware security
  • Two 1 Msps, 12-bit ADCs with up to 32 channels and offset and gain error compensation
  • Two 1 Msps, 12-bit DACs and analog comparator
  • TQFP, QFN, TFBGA and WLCSP packages
  • AEC-Q100 Grade 1 Qualification

High Performance

SAM E70, SAM V70 and SAM V71 Families

  • 300 MHz Arm Cortex-M7 based MCU
  • Up to 2 MB of Flash with ECC
  • Up to 384 KB of SRAM with support for Tightly Coupled Memory (TCM)
  • 16 KB of I-Cache and 16 KB of D-Cache
  • Dual ISO CAN FD
  • 10/100 Ethernet MAC with IEEE 1588 and Ethernet AVB support
  • USB 2.0 Device/Mini Host High-Speed (USBHS)
  • MediaLB® bus (SAM V70 and SAM V71)
  • Three USARTs, five two-wire USARTs, two SPI interfaces, three Two-Wire Interfaces (TWIHS) (I2C-compatible)
  • Two Analog Front-End Controllers (AFECs), each supporting up to 12 channels with differential input mode and programmable gain stage
  • One 2-channel, 12-bit, 1 Msps-per-channel DAC
  • LQFP, TFBGA and UFBGA packages
  • AEC Q-100 Grade 2 Qualification

CAN FD MCU Products


View All Parametrics
Product Program Memory Size (KB) CPU Speed (MIPS/DMIPS) Pin Count RAM (bytes) Number of CAN Modules CodeGuard™ Security
dsPIC33CH128MP502 128 100 28 20480 1 None
dsPIC33CH128MP503 128 100 36 20480 1 None
dsPIC33CH128MP505 128 100 48 20480 1 None
dsPIC33CH128MP506 128 100 64 20480 1 None
dsPIC33CH128MP508 128 100 80 20480 1 None
dsPIC33CH256MP505 256 100 48 32768 2 Basic
dsPIC33CH256MP506 256 100 64 32768 2 Basic
dsPIC33CH256MP508 256 100 80 32768 2 Basic
dsPIC33CH512MP505 512 100 48 49152 2 Basic
dsPIC33CH512MP506 512 100 64 49152 2 Basic
dsPIC33CH512MP508 512 100 80 49152 2 Basic
dsPIC33CH64MP502 64 100 28 20480 1 None
dsPIC33CH64MP503 64 100 36 20480 1 None
dsPIC33CH64MP505 64 100 48 20480 1 None
dsPIC33CH64MP506 64 100 64 20480 1 None
dsPIC33CH64MP508 64 100 80 20480 1 None
dsPIC33CK128MP502 128 100 28 16384 1 Basic
dsPIC33CK128MP503 128 100 36 16384 1 Basic
dsPIC33CK128MP505 128 100 48 16384 1 Basic
dsPIC33CK128MP506 128 100 64 16384 1 Basic
dsPIC33CK128MP508 128 100 80 16384 1 Basic
dsPIC33CK256MP502 256 100 28 24576 1 Basic
dsPIC33CK256MP503 256 100 36 24576 1 Basic
dsPIC33CK256MP505 256 100 48 24576 1 Basic
dsPIC33CK256MP506 256 100 64 24576 1 Basic
dsPIC33CK256MP508 256 100 80 24576 1 Basic
dsPIC33CK32MP502 32 100 28 8192 1 Basic
dsPIC33CK32MP503 32 100 36 8192 1 Basic
dsPIC33CK32MP505 32 100 48 8192 1 Basic
dsPIC33CK32MP506 32 100 64 8192 1 Basic
dsPIC33CK64MP502 64 100 28 8192 1 Basic
dsPIC33CK64MP503 64 100 36 8192 1 Basic
dsPIC33CK64MP505 64 100 48 8192 1 Basic
dsPIC33CK64MP506 64 100 64 8192 1 Basic
dsPIC33CK64MP508 64 100 80 8192 1 Basic

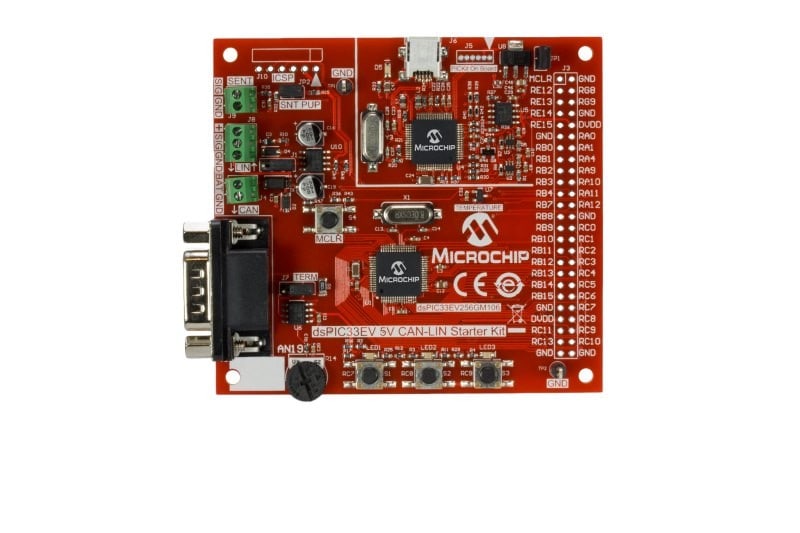

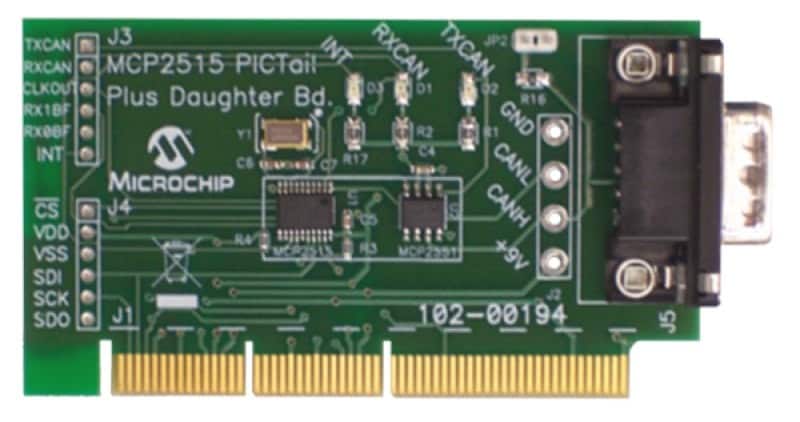

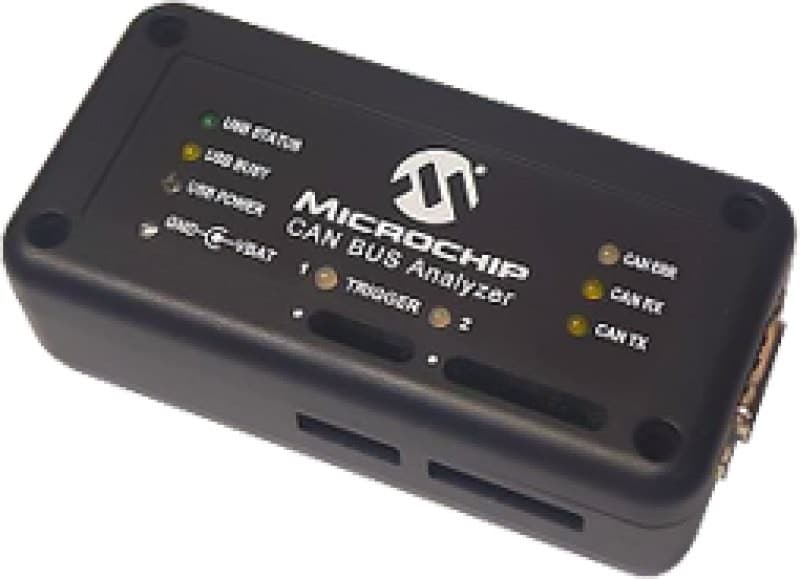

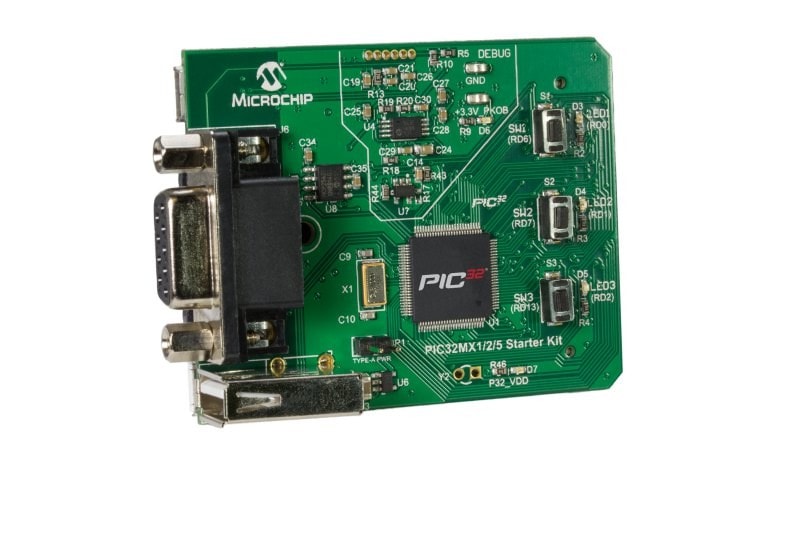

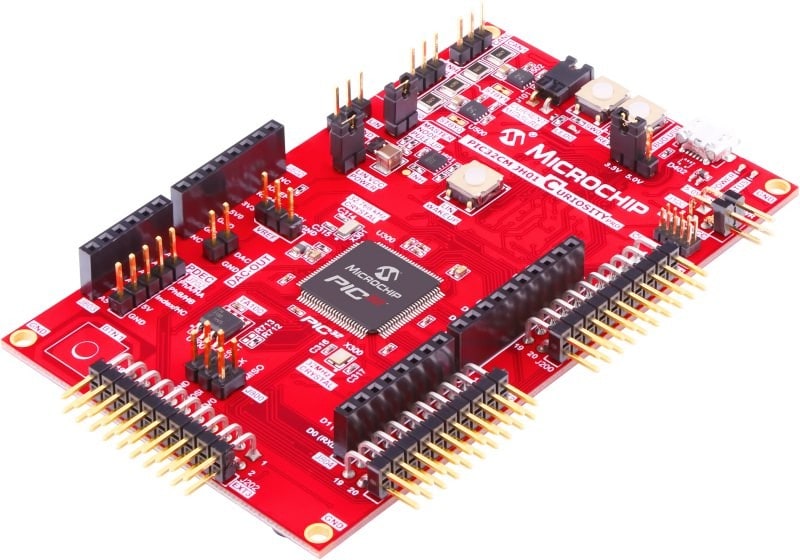

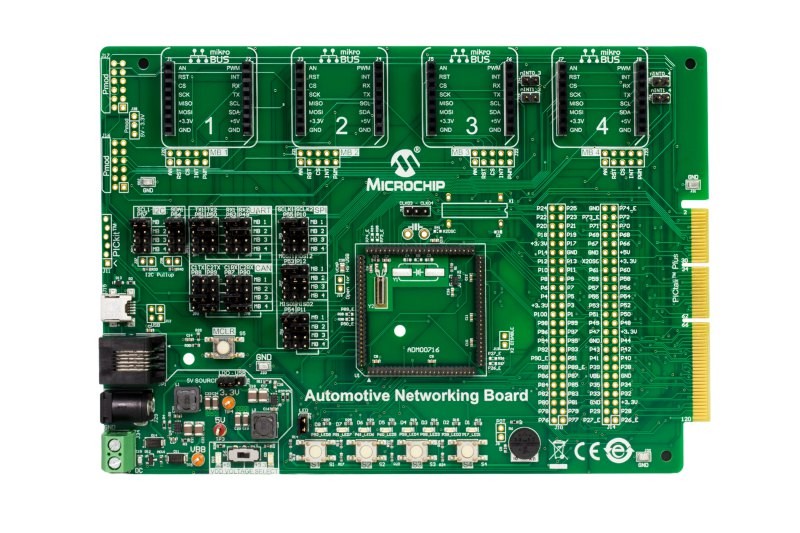

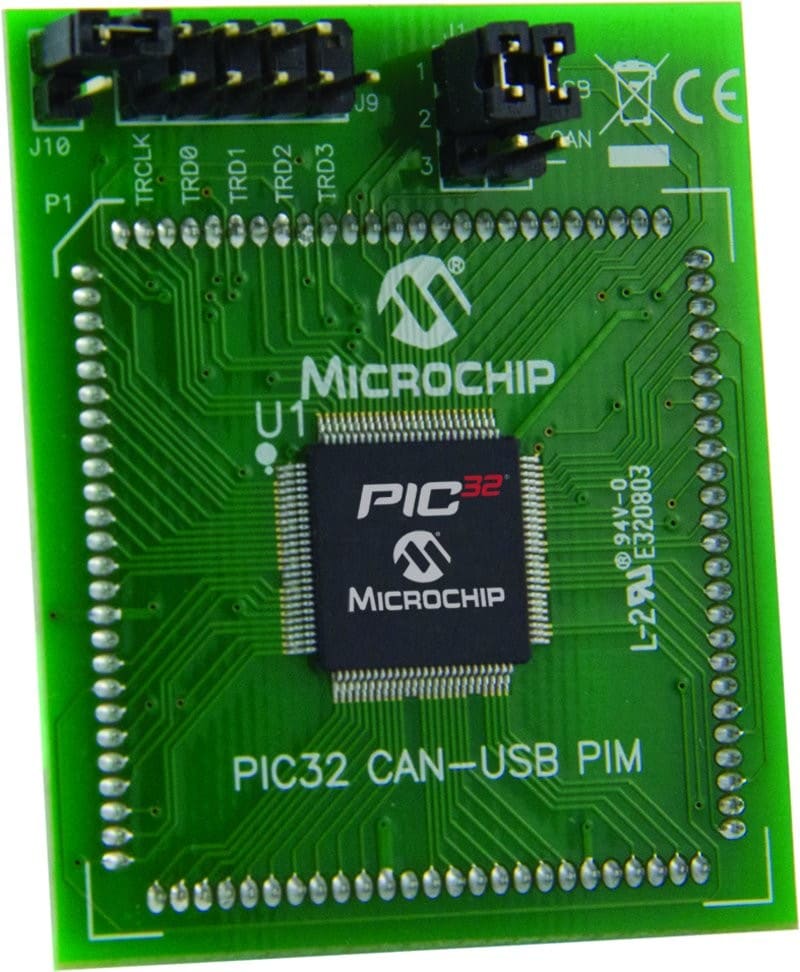

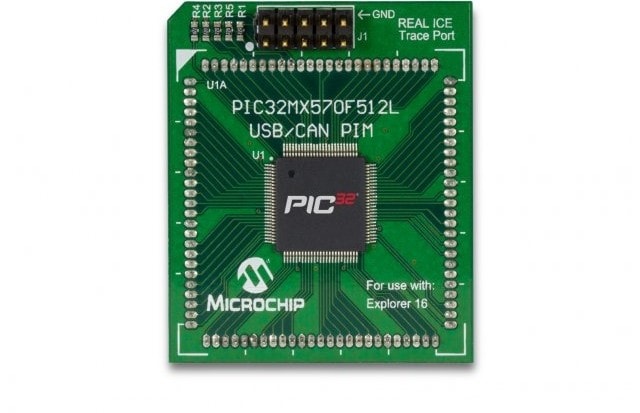

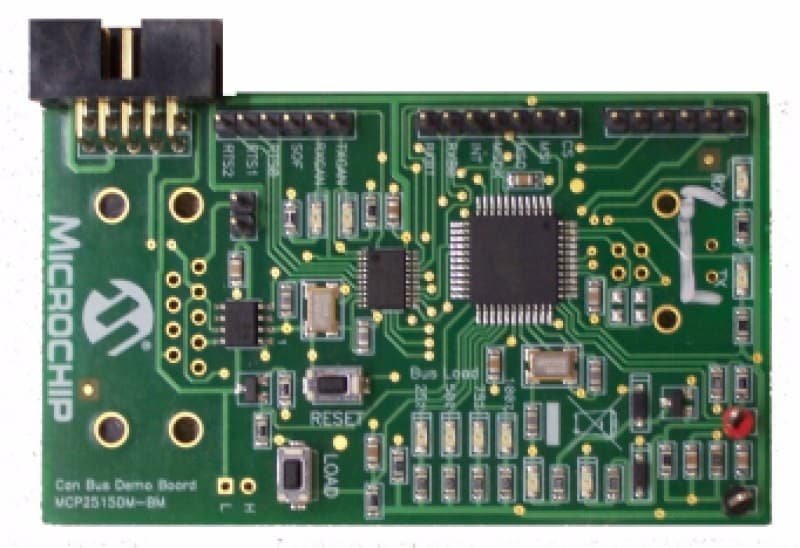

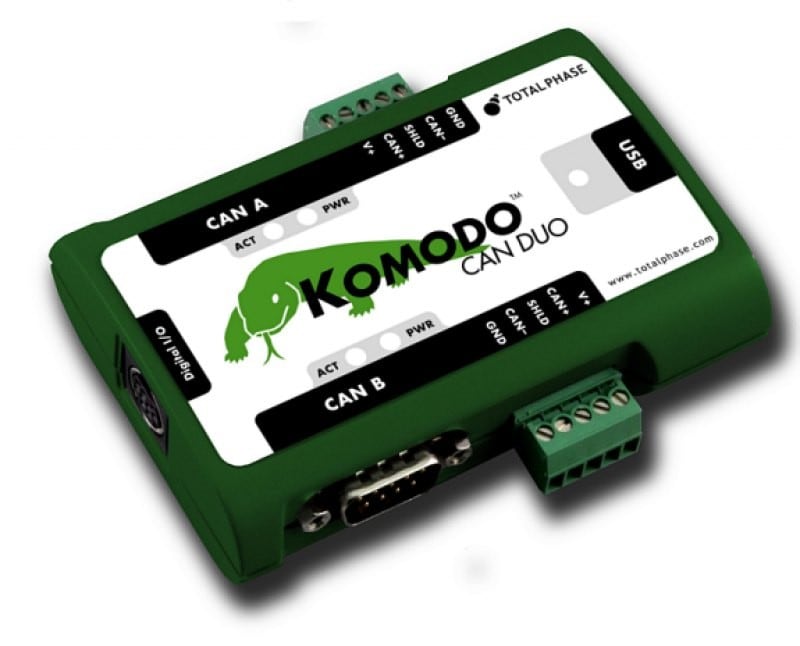

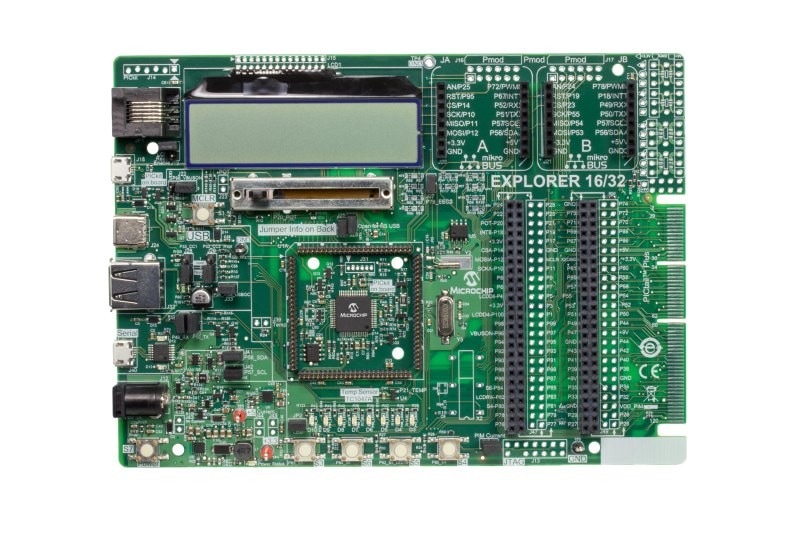

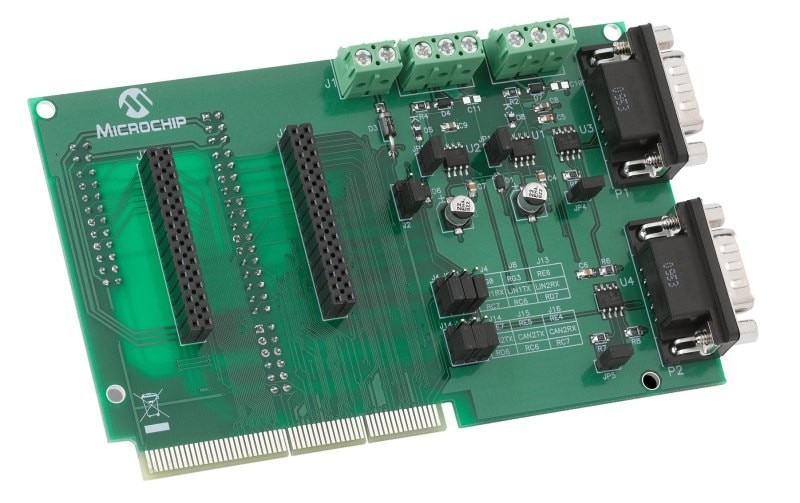

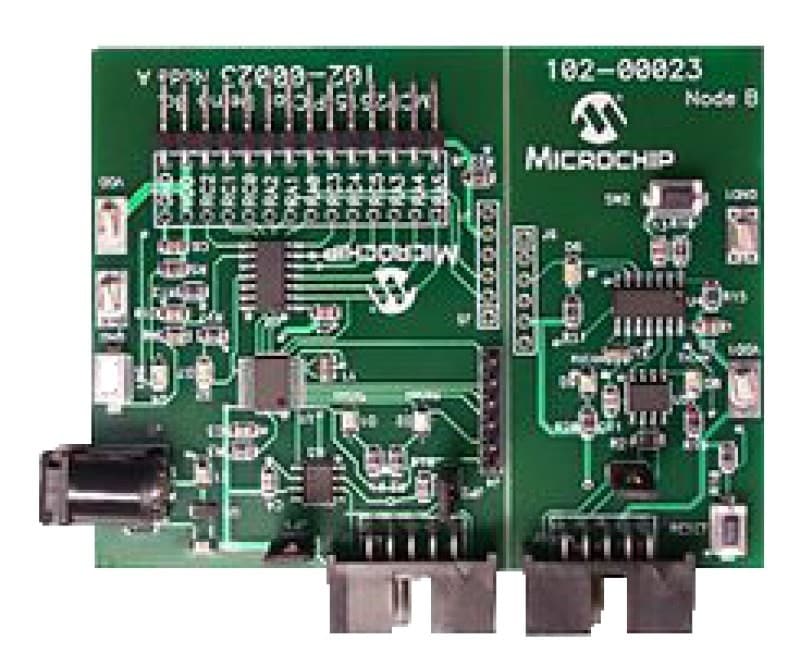

Development Tools


Documentation


Title Download
AN916 - Comparing CAN and ECAN Modules Download
AN1249 - ECAN Operation with DMA on dsPIC33F and PIC24H Devices Download
PLL Jitter and Its Effects on ECAN Technology Communications Download
Title Download
Automotive Network and Connectivity Solutions Download
Automotive Capabilities Brochure Download
Connectivity Solutions for Embedded Design Download
Low-Power Analog Solutions Brochure Download
Title Download
CE127 - Crosswire Communication between ECAN 1 and ECAN 2 modules Download
PIC32 CAN to Ethernet Bridge Demo Download
CE128 - ECAN FIFO Receive Example Download
CE227 - Crosswire Communication between ECAN 1 and ECAN 2 modules Download
CE129 - ECAN Remote Transmission Request Download
CE229 - ECAN Remote Transmission Request Download
CE034 - CAN Loopback Download
ECAN Mode 0 with Baud Download
CE228 - ECAN FIFO Receive Example Download
ECAN Listen Only Loopback Download
ECAN Mode1-2 RX15 Download
