Start Your New Design With Improved, Enhanced and Lower-Cost PIC32C MCUs
Compatible products with expanded features or options and that support the same set of 5V applications as the PIC32CM JH family include:
PIC32CM MC Family
- Cost optimized for motor and industrial control applications
- Memory option of 128 KB Flash and 16 KB RAM
- Pin compatible with PIC32CM JH MCUs in 32- and 48-pin packages
- Advanced analog peripherals for motor control
SAM C Family
- Memory options of up to 256 KB Flash and 64 KB RAM
- Available in 32-, 48-, 64- and 100-pin packages
- Pin compatible with PIC32CM JH MCUs in 32-, 48- and 64-pin packages
- Peripheral touch control for touch applications
- Supports multiple analog peripherals such as Analog-to-Digital Converters (ADCs), Delta-Sigma ADCs and Digital-to-Analog Converters (DACs)
Key Features for Your Application
Functional Safety
The PIC32CM JH family integrates hardware-based functional safety features that are used to implement ISO 26262, IEC 61508 and IEC 60730 applications. These features include:
- ECC with fault injection on both the Flash and SRAM
- Memory Built-In Self-Test (mBIST) for SRAM
- Loopbacks on many of the serial communications interfaces
- Clock Failure Detection (CFD)
- Hardware-based Cyclical Reduancy Check (CRC)
- Memory Protecion Unit (MPU)
- Peripheral Access Controller (PAC)
Enhanced Capacitive Touch
As an upgrade to the SAM C21, the PIC32CM JH family's Peripheral Touch Controller (PTC) includes the Driven Shield Plus to provide excellent moisture tolerance. Other features include:
- Support for mutual-capacitance and self-capacitence sensing
- One pin per electrode, which eleminates the need for external components
- Ability to add buttons, wheels, sliders and surfaces
- Wake-up on touch
Secure Boot Option
The PIC32CM JH can be used in appllications that require secure boot. It can be paired with one of our security ICs to provide additional security capabilities. These features can be used to implement secure boot:
- Configurable One-Time Programmable (OTP) section of Flash for secure boot code
- SHA-256 hardware with Integrity Check Monitor (ICM) for Direct Memory Access (DMA)
Other Features
Similar Devices
Target Applications
Automotive
- Door modules
- In-cabin capacitive touch
- Seat controls
- On-Board Diagnostics (OBD)
- Sensor nodes
- ISELED® protocol lighting
- Body electronics
Capacitive Touch
- Home appliances
- Automotive door, center consule and steering wheel controls
- Industrial controls
- Trackpads
- Keypads
Industrial
- Motor control
- I/O boards
- Industrial automation
- Programmable Logic Controllers (PLCs)
- Tools
- Software

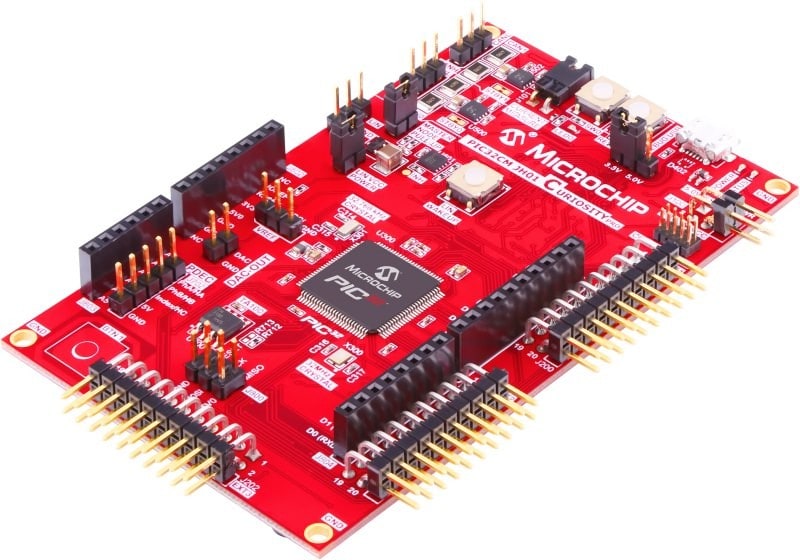

PIC32CM JH01 Curiosity Pro Development Board
Part Number: EV81X90A
The PIC32CM JH01 Curiosity Pro Evaluation Kit is an excellent way to begin evaluating and prototyping with PIC32CM JH Arm® Cortex®-M0+ based MCUs. It provides general-purpose embedded control capabilities with an enhanced Peripheral Touch Controller (PTC), functional safety features and an on-board TrustAnchor (TA100) CryptoAutomotive™ security IC.

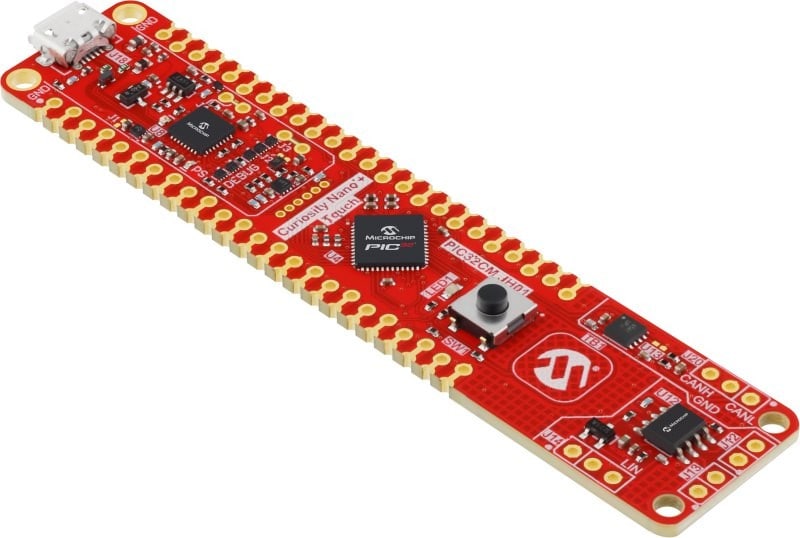

PIC32CM JH01 Curiosity Nano+ Touch Evaluation Kit
Part Number: EV29G58A
The PIC32CM JH01 Curiosity Nano+ Touch Evaluation Kit (EV29G58A) is a hardware platform that contains a PIC32CM5164JH01048 microcontroller (MCU). The Curiosity Nano+ Touch evaluation kit can be used as a stand-alone discovery element or may be combined with expansion elements for quick prototyping.
MPLAB® X Integrated Development Environment (IDE)
MPLAB X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers and digital signal controllers. MPLAB X IDE works seamlessly with the MPLAB development ecosystem of software and tools, many of which are completely free.
MPLAB Harmony v3 Software Framework
MPLAB Harmony v3 is a flexible, fully integrated embedded software development framework for 32-bit microcontrollers (MCUs). It enables robust framework development of interoperable RTOS-friendly libraries with quick and extensive Microchip support for third-party software integration. MPLAB Harmony includes a set of peripheral libraries, drivers and system services that are readily accessible for application development. The code development format allows for maximum re-use and reduces time to market.
