Integrated Motor Drivers With dsPIC® DSCs
Integrated Motor Drivers With dsPIC® DSCs, Full-Bridge Gate Drivers and CAN or LIN Transceivers
Interactive Block Diagram
Click on the highlighted sections of this diagram to explore the components in our integrated motor drivers.
Why Choose Our Integrated Motor Drivers?
Reduced Space and Cost
- Integrated dsPIC33 DSC, full-bridge MOSFET gate driver and a LIN or CAN/CAN FD transceiver in one device
- Reduced component count and board size
- Lower overall system cost
Real-Time Processing
- Real-time processing with the dsPIC33 DSC operating between 70 MHz and 100 MHz
- Up to 256 KB Flash memory with ECC
- Advanced motor control PWMs, 12-bit ADCs, fast op amps and comparators
- 32-bit optical/incremental encoder interface
Robust Operation
- AEC Q100 Grade 0 certified to support operation between −40°C and 150°C
- Overvoltage Lockout (OVLO) of 32V
- Transient 40V tolerance for up to 100 ms
- Power module thermal shutdown
Ecosystem and Support
- Complete ecosystem with hardware and software tools that enable faster time to market
- Reference designs and support from motor control experts
- Support for functional safety and security
Tools and Software
- Demo & Evaluation Boards
- Development Environment

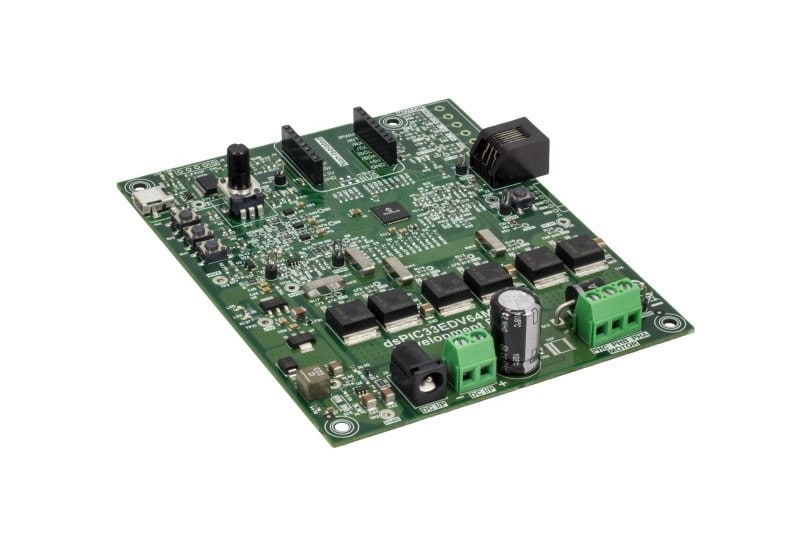

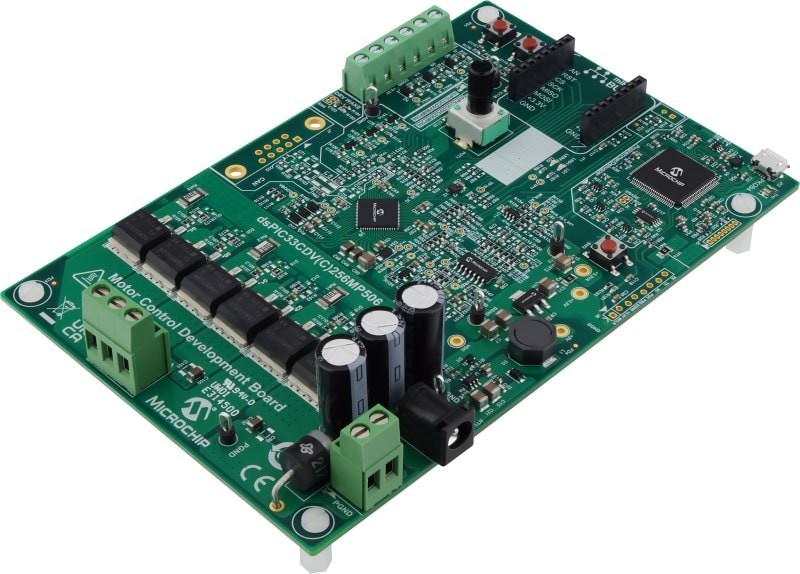

The dsPIC33EDV64MC205 Motor Control Development Board is designed to demonstrate the features of the dsPIC33EDV64MC205 System in Package (SiP). This dsPIC® DSC is a 16-bit Digital Signal Controller featuring high-speed PWM, op amps, advanced analog integrated with a 3-phase MOSFET gate driver. This board is targeted to drive a low-voltage three-phase Permanent Magnet Synchronous Motor or Brushless DC motor (PMSM/BLDC motor).
MPLAB X IDE is a highly configurable software platform that provides powerful, free tools for developing, debugging and qualifying embedded designs that use microcontrollers and digital signal controllers.
The MPLAB XC-DSC C Compiler is a full-featured, optimizing compiler that translates standard ANSI C programs into Digital Signal Controller (DSC) device assembly language sources. This compiler also supports many command-line options and language extensions that allow full access to the DSC device hardware capabilities and gives users fine control of the compiler code generator.
MPLAB Code Configurator supports 8-bit, 16-bit and 32-bit PIC® microcontrollers. MCC is incorporated into both the downloadable MPLAB X Integrated Development Environment (IDE) and the cloud-based MPLAB Xpress IDE.
MPLAB motorBench® Development Suite
Use this GUI-based software development tool for Field-Oriented Control (FOC) to automatically tune feedback control gains and generate source code for your MPLAB X IDE project.
Do You Need More Support for Your Motor Control Designs?
You can implement advanced motor control algorithms easily with our dsPIC33 DSCs that have specialized peripherals to meet a variety of requirements for high-performance applications.
