Our Power over Ethernet (PoE) injectors/midspans and switches offer industry-leading solutions for any PoE application. This complete portfolio of PoE systems enables delivery of up to 90W of flexible and reliable power over the Ethernet network to WLAN access points, network cameras, IP telephones, IP cameras and other IP-based devices. Our vendor-agnostic solutions support a wide range of applications in a variety of indoor, outdoor and industrial environments.
These solutions make it easy for users and system engineers to transition to the latest IEEE® 802.3bt standard by supporting both pre-standard and IEEE-compliant PoE devices up to 90W of power, without having to change network switches or cabling infrastructure.
As an innovator and thought leader in PoE technology, Microchip is the only supplier of PoE Powered Device (PD) ICs, PoE Power Sourcing Equipment (PSE) ICs, PoE systems (injectors/midspans and switches) and test equipment.
- PoE Systems
- 15.4W PoE
- 30W PoE
- 60W PoE
- 90-95W PoE

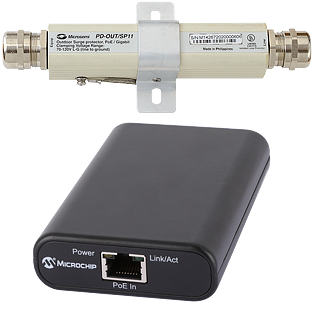

- PoE Accessories

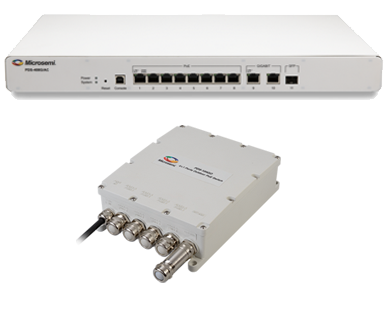

- PoE Switches
View All Parametrics
| Product | Status | Volume Pricing | Product Type | PoE Systems Type | Operating Environment | Power Per Port | Number of Ports | Data Rate | Managed | Input Power | Operating Humidity (%) | Operating Temperature (°C) | Rack Mountable | Warranty (Years) | Packages |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PD-3501G | Samples Available | $41.41 | 15.4W PoE | Midspan | Indoor | 15.4W | 1 | 1 Gbps | No | AC | 90 | 0 to 40 | No | 1 | Please call for package information |
| PD-3501GC | In Production | Call for pricing | 15.4W PoE | Midspan | Indoor | 15.4W | 1 | 1 Gbps | No | AC | 90 | -10 to 40 | No | 1 | Please call for package information |
| PD-3504G | In Production | $134.36 | 15.4W PoE | Midspan | Indoor | 15.4W | 4 | 1 Gbps | NA | AC | 90 | 0 to 40 | No | 1 | Please call for package information |
| PD-6512G | In Production | $506.16 | 15.4W PoE | Midspan | Indoor | 15.4W | 12 | 1 Gbps | Yes | AC | 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-6524G | In Production | $632.91 | 15.4W PoE | Midspan | Indoor | 15.4W | 24 | 1 Gbps | Yes | AC | 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9001-10GC | Samples Available | $168.16 | 30W PoE | Midspan | Indoor | 30W | 1 | 10 Gbps | No | AC | 90 | -10 to 40 | No | 1 | Please call for package information |
| PD-9001GC | Samples Available | Call for pricing | 30W PoE | Midspan | Indoor | 30W | 1 | 1G | No | AC | 90 | -10 to 40 | No | 1 | Please call for package information |
| PD-9001GI | In Production | $168.16 | 30W PoE | Midspan | Industrial | 30W | 1 | 1 Gbps | No | DC | 90 | -40 to 75 | No | 3 | Please call for package information |
| PD-9001GO | In Production | $210.41 | 30W PoE | Midspan | Outdoor | 30W | 1 | 1 Gbps | No | AC or DC | 90 | -40 to 65 | No | 3 | Please call for package information |
| PD-9001GR/AT | In Production | $66.76 | 30W PoE | Midspan | Indoor | 30W | 1 | 1 Gbps | No | AC | 90 | -20 to 40 | No | 1 | Please call for package information |
| PD-9001GR/SP | In Production | $100.56 | 30W PoE | Midspan | Indoor | 30W | 1 | 1 Gbps | No | AC | 90 | -10 to 50 | No | 1 | Please call for package information |
| PD-9004G | In Production | $218.86 | 30W PoE | Midspan | Indoor | 30W | 4 | 1 Gbps | No | AC | 90 | 0 to 40 | No | 1 | Please call for package information |
| PD-9006G | In Production | $759.66 | 30W PoE | Midspan | Indoor | 30W | 6 | 1 Gbps | Yes | AC and DC | 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9012G | In Production | $1,013.16 | 30W PoE | Midspan | Indoor | 30W | 12 | 1 Gbps | Yes | AC and DC | 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9024G | In Production | $1,266.66 | 30W PoE | Midspan | Indoor | 30W | 24 | 1 Gbps | Yes | AC and DC | 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9501-10GC | Samples Available | $209.76 | 60W PoE | Midspan | Indoor | 60W | 1 | 10 Gbps | No | AC | 95 | 0 to 40 | No | 1 | Please call for package information |
| PD-9501G | In Production | Call for pricing | 60W PoE | Midspan | Indoor | 60W | 1 | 1 Gbps | No | DC | 90 | -20 to 40 | No | 1 | Please call for package information |
| PD-9501G/SFP | In Production | $210.41 | 60W PoE | Midspan | Indoor | 60W | 1 | 1 Gbps | No | AC | 95 | -10 to 45 | No | 1 | Please call for package information |
| PD-9501GC | In Production | $100.56 | 60W PoE | Midspan | Indoor | 60W | 1 | 1 Gbps | No | AC | 95 | 0 to 40 | No | 1 | Please call for package information |
| PD-9501GCO | In Production | $235.76 | 60W PoE | Midspan | Outdoor | 60W | 1 | 1 Gbps | No | AC | 95 | -40 to 65 | No | 3 | Please call for package information |
| PD-9501GI | In Production | $210.41 | 60W PoE | Midspan | Industrial | 60W | 1 | 1 Gbps | No | DC | 90 | -40 to 75 | No | 3 | Please call for package information |
| PD-9501GO | In Production | $235.76 | 60W PoE | Midspan | Outdoor | 60W | 1 | 1 Gbps | No | DC | 95 | -40 to 50 | No | 3 | Please call for package information |
| PD-9501GR | In Production | Call for pricing | 60W PoE | Midspan | Indoor | 60W | 1 | 1 Gbps | No | AC | 90 | -10 to 45 | No | 1 | Please call for package information |
| PD-9501GR/SP | In Production | Call for pricing | 60W PoE | Midspan | Indoor | 60W | 1 | 1 Gbps | No | AC | 90 | -10 to 40 | No | 1 | Please call for package information |
| PD-9506G | In Production | Call for pricing | 60W PoE | Midspan | Indoor | 60W | 6 | 1 Gbps | Yes | AC and DC | 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9506GC | In Production | $1,013.16 | 60W PoE | Midspan | Indoor | 60W | 6 | 1 Gbps | Yes | AC | 10 to 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9512G | In Production | Call for pricing | 60W PoE | Midspan | Indoor | 60W | 12 | 1 Gbps | Yes | AC and DC | 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9512GC | In Production | $1,520.16 | 60W PoE | Midspan | Indoor | 60W | 12 | 1 Gbps | Yes | AC and DC | 10 to 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9524G | In Production | Call for pricing | 60W PoE | Midspan | Indoor | 60W | 24 | 1 Gbps | Yes | AC and DC | 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9524GC | In Production | $2,027.16 | 60W PoE | Midspan | Indoor | 60W | 24 | 1 Gbps | Yes | AC and DC | 10 to 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9601G | In Production | Call for pricing | 90-95W PoE | Midspan | Indoor | 95W | 1 | 1 Gbps | No | AC | 90 | -10 to 45 | No | 1 | Please call for package information |
| PD-9601GC | In Production | $125.91 | 90-95W PoE | Midspan | Indoor | 90W | 1 | 1 Gbps | No | AC | 95 | -10 to 40 | No | 1 | Please call for package information |
| PD-9601GO | In Production | $252.66 | 90-95W PoE | Midspan | Outdoor | 90W | 1 | 1 Gbps | No | AC | 90 | -40 to 65 | No | 3 | Please call for package information |
| PD-9606G | In Production | Call for pricing | 90-95W PoE | Midspan | Indoor | 95W | 6 | 1 Gbps | Yes | AC and DC | 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9606GC | In Production | $1,182.16 | 90-95W PoE | Midspan | Indoor | 90W | 6 | 1 Gbps | Yes | AC | 10 to 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9612G | In Production | Call for pricing | 90-95W PoE | Midspan | Indoor | 95W | 12 | 1 Gbps | Yes | AC and DC | 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9612GC | In Production | $1,689.16 | 90-95W PoE | Midspan | Indoor | 90W | 12 | 1 Gbps | Yes | AC and DC | 10 to 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9624GC | In Production | $2,197.00 | 90-95W PoE | Midspan | Indoor | 90W | 24 | 1 Gbps | Yes | AC and DC | 10 to 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-AFATBT-TESTER | In Production | Call for pricing | PoE Accessories | PoE Tester | Indoor | NA | NA | NA | NA | PoE | 90 | 0 to 40 | NA | 1 | Please call for package information |
| PDS-104GO | In Production | $928.66 | PoE Switches | Switch | Outdoor | 60W | 4 | 1 Gbps | Yes | AC | 90 | -40 to 50 | No | 3 | Please call for package information |
| PDS-408G | In Production | $828.10 | PoE Switches | Switch | Indoor | 90W | 8+3 | 1 Gbps | Yes | AC | 90 | 0 to 45 | Yes | 3 | Please call for package information |
| PoE-Accessories | In Production | $41.41 | PoE Accessories | Surge Protector | Outdoor | NA | 1 | 1 Gbps | NA | DC | 95 | -40 to 85 | No | 3 | Please call for package information |
| POE-EXTENDER | In Production | $134.36 | PoE Accessories | PoE Extender | Indoor | 30W | 1 | 1 Gbps | NA | DC | 90 | 0 to 40 | No | 1 | Please call for package information |
| PoE-Splitter | In Production | $58.31 | PoE Accessories | Splitter | Indoor | 54W | 1 | 1 Gbps | NA | PoE | 90 | 0 to 40 | No | 1 | Please call for package information |
| PoE-Tester | In Production | $21.13 | PoE Accessories | PoE Tester | Indoor | NA | NA | NA | NA | PoE | 90 | 0 to 40 | No | 1 | Please call for package information |
View All Parametrics
| Product | Status | Volume Pricing | PoE Systems Type | Operating Environment | Power Per Port | Number of Ports | Data Rate | Managed | Input Power | Operating Humidity (%) | Operating Temperature (°C) | Rack Mountable | Warranty (Years) | Packages |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PD-3501G | Samples Available | $41.41 | Midspan | Indoor | 15.4W | 1 | 1 Gbps | No | AC | 90 | 0 to 40 | No | 1 | Please call for package information |
| PD-3501GC | In Production | Call for pricing | Midspan | Indoor | 15.4W | 1 | 1 Gbps | No | AC | 90 | -10 to 40 | No | 1 | Please call for package information |
| PD-3504G | In Production | $134.36 | Midspan | Indoor | 15.4W | 4 | 1 Gbps | NA | AC | 90 | 0 to 40 | No | 1 | Please call for package information |
| PD-6512G | In Production | $506.16 | Midspan | Indoor | 15.4W | 12 | 1 Gbps | Yes | AC | 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-6524G | In Production | $632.91 | Midspan | Indoor | 15.4W | 24 | 1 Gbps | Yes | AC | 90 | 0 to 40 | Yes | 3 | Please call for package information |
View All Parametrics
| Product | Status | Volume Pricing | PoE Systems Type | Operating Environment | Power Per Port | Number of Ports | Data Rate | Managed | Input Power | Operating Humidity (%) | Operating Temperature (°C) | Rack Mountable | Warranty (Years) | Packages |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PD-9001-10GC | Samples Available | $168.16 | Midspan | Indoor | 30W | 1 | 10 Gbps | No | AC | 90 | -10 to 40 | No | 1 | Please call for package information |
| PD-9001GC | Samples Available | Call for pricing | Midspan | Indoor | 30W | 1 | 1G | No | AC | 90 | -10 to 40 | No | 1 | Please call for package information |
| PD-9001GI | In Production | $168.16 | Midspan | Industrial | 30W | 1 | 1 Gbps | No | DC | 90 | -40 to 75 | No | 3 | Please call for package information |
| PD-9001GO | In Production | $210.41 | Midspan | Outdoor | 30W | 1 | 1 Gbps | No | AC or DC | 90 | -40 to 65 | No | 3 | Please call for package information |
| PD-9001GR/AT | In Production | $66.76 | Midspan | Indoor | 30W | 1 | 1 Gbps | No | AC | 90 | -20 to 40 | No | 1 | Please call for package information |
| PD-9001GR/SP | In Production | $100.56 | Midspan | Indoor | 30W | 1 | 1 Gbps | No | AC | 90 | -10 to 50 | No | 1 | Please call for package information |
| PD-9004G | In Production | $218.86 | Midspan | Indoor | 30W | 4 | 1 Gbps | No | AC | 90 | 0 to 40 | No | 1 | Please call for package information |
| PD-9006G | In Production | $759.66 | Midspan | Indoor | 30W | 6 | 1 Gbps | Yes | AC and DC | 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9012G | In Production | $1,013.16 | Midspan | Indoor | 30W | 12 | 1 Gbps | Yes | AC and DC | 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9024G | In Production | $1,266.66 | Midspan | Indoor | 30W | 24 | 1 Gbps | Yes | AC and DC | 90 | 0 to 40 | Yes | 3 | Please call for package information |
View All Parametrics
| Product | Status | Volume Pricing | PoE Systems Type | Operating Environment | Power Per Port | Number of Ports | Data Rate | Managed | Input Power | Operating Humidity (%) | Operating Temperature (°C) | Rack Mountable | Warranty (Years) | Packages |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PD-9501-10GC | Samples Available | $209.76 | Midspan | Indoor | 60W | 1 | 10 Gbps | No | AC | 95 | 0 to 40 | No | 1 | Please call for package information |
| PD-9501G | In Production | Call for pricing | Midspan | Indoor | 60W | 1 | 1 Gbps | No | DC | 90 | -20 to 40 | No | 1 | Please call for package information |
| PD-9501G/SFP | In Production | $210.41 | Midspan | Indoor | 60W | 1 | 1 Gbps | No | AC | 95 | -10 to 45 | No | 1 | Please call for package information |
| PD-9501GC | In Production | $100.56 | Midspan | Indoor | 60W | 1 | 1 Gbps | No | AC | 95 | 0 to 40 | No | 1 | Please call for package information |
| PD-9501GCO | In Production | $235.76 | Midspan | Outdoor | 60W | 1 | 1 Gbps | No | AC | 95 | -40 to 65 | No | 3 | Please call for package information |
| PD-9501GI | In Production | $210.41 | Midspan | Industrial | 60W | 1 | 1 Gbps | No | DC | 90 | -40 to 75 | No | 3 | Please call for package information |
| PD-9501GO | In Production | $235.76 | Midspan | Outdoor | 60W | 1 | 1 Gbps | No | DC | 95 | -40 to 50 | No | 3 | Please call for package information |
| PD-9501GR | In Production | Call for pricing | Midspan | Indoor | 60W | 1 | 1 Gbps | No | AC | 90 | -10 to 45 | No | 1 | Please call for package information |
| PD-9501GR/SP | In Production | Call for pricing | Midspan | Indoor | 60W | 1 | 1 Gbps | No | AC | 90 | -10 to 40 | No | 1 | Please call for package information |
| PD-9506G | In Production | Call for pricing | Midspan | Indoor | 60W | 6 | 1 Gbps | Yes | AC and DC | 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9506GC | In Production | $1,013.16 | Midspan | Indoor | 60W | 6 | 1 Gbps | Yes | AC | 10 to 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9512G | In Production | Call for pricing | Midspan | Indoor | 60W | 12 | 1 Gbps | Yes | AC and DC | 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9512GC | In Production | $1,520.16 | Midspan | Indoor | 60W | 12 | 1 Gbps | Yes | AC and DC | 10 to 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9524G | In Production | Call for pricing | Midspan | Indoor | 60W | 24 | 1 Gbps | Yes | AC and DC | 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9524GC | In Production | $2,027.16 | Midspan | Indoor | 60W | 24 | 1 Gbps | Yes | AC and DC | 10 to 90 | 0 to 40 | Yes | 3 | Please call for package information |
View All Parametrics
| Product | Status | Volume Pricing | PoE Systems Type | Operating Environment | Power Per Port | Number of Ports | Data Rate | Managed | Input Power | Operating Humidity (%) | Operating Temperature (°C) | Rack Mountable | Warranty (Years) | Packages |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PD-9601G | In Production | Call for pricing | Midspan | Indoor | 95W | 1 | 1 Gbps | No | AC | 90 | -10 to 45 | No | 1 | Please call for package information |
| PD-9601GC | In Production | $125.91 | Midspan | Indoor | 90W | 1 | 1 Gbps | No | AC | 95 | -10 to 40 | No | 1 | Please call for package information |
| PD-9601GO | In Production | $252.66 | Midspan | Outdoor | 90W | 1 | 1 Gbps | No | AC | 90 | -40 to 65 | No | 3 | Please call for package information |
| PD-9606G | In Production | Call for pricing | Midspan | Indoor | 95W | 6 | 1 Gbps | Yes | AC and DC | 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9606GC | In Production | $1,182.16 | Midspan | Indoor | 90W | 6 | 1 Gbps | Yes | AC | 10 to 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9612G | In Production | Call for pricing | Midspan | Indoor | 95W | 12 | 1 Gbps | Yes | AC and DC | 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9612GC | In Production | $1,689.16 | Midspan | Indoor | 90W | 12 | 1 Gbps | Yes | AC and DC | 10 to 90 | 0 to 40 | Yes | 3 | Please call for package information |
| PD-9624GC | In Production | $2,197.00 | Midspan | Indoor | 90W | 24 | 1 Gbps | Yes | AC and DC | 10 to 90 | 0 to 40 | Yes | 3 | Please call for package information |
View All Parametrics
| Product | Status | Volume Pricing | PoE Systems Type | Operating Environment | Power Per Port | Number of Ports | Data Rate | Managed | Input Power | Operating Humidity (%) | Operating Temperature (°C) | Rack Mountable | Warranty (Years) | Packages |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PD-AFATBT-TESTER | In Production | Call for pricing | PoE Tester | Indoor | NA | NA | NA | NA | PoE | 90 | 0 to 40 | NA | 1 | Please call for package information |
| PoE-Accessories | In Production | $41.41 | Surge Protector | Outdoor | NA | 1 | 1 Gbps | NA | DC | 95 | -40 to 85 | No | 3 | Please call for package information |
| POE-EXTENDER | In Production | $134.36 | PoE Extender | Indoor | 30W | 1 | 1 Gbps | NA | DC | 90 | 0 to 40 | No | 1 | Please call for package information |
| PoE-Splitter | In Production | $58.31 | Splitter | Indoor | 54W | 1 | 1 Gbps | NA | PoE | 90 | 0 to 40 | No | 1 | Please call for package information |
| PoE-Tester | In Production | $21.13 | PoE Tester | Indoor | NA | NA | NA | NA | PoE | 90 | 0 to 40 | No | 1 | Please call for package information |
View All Parametrics
| Product | Status | Volume Pricing | PoE Systems Type | Operating Environment | Power Per Port | Number of Ports | Data Rate | Managed | Input Power | Operating Humidity (%) | Operating Temperature (°C) | Rack Mountable | Warranty (Years) | Packages |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PDS-104GO | In Production | $928.66 | Switch | Outdoor | 60W | 4 | 1 Gbps | Yes | AC | 90 | -40 to 50 | No | 3 | Please call for package information |
| PDS-408G | In Production | $828.10 | Switch | Indoor | 90W | 8+3 | 1 Gbps | Yes | AC | 90 | 0 to 45 | Yes | 3 | Please call for package information |
