We offer a complete line of CAN transceiver products supporting the new CAN FD standard with data rates up to 8 Mbps. These devices are compliant with the latest ISO 11898-2 (2016) specification and meet global EMC performance levels as certified by external third-party test houses. Our CAN transceivers serve today’s need for high-speed solutions while also providing a drop-in replacement path for CAN FD networks that are required by many automotive and industrial manufacturers. Offering a variety of operating modes and dedicated fail-safe features, these devices are an excellent choice for all types of high-speed CAN networks.
Our family of CAN transceivers includes a CAN Partial Networking transceiver that is fully compliant with the latest ISO 11898-2 (2016) standard.
High-Speed CAN and CAN FD Transceivers
- Data rate up to 8 Mbps
- Fully ISO 11898-1: 2016, SAE J2962-2 compliant
- Low EME and high EMI
- Remote wake-up capability via CAN bus
- Transmit data (TXD) dominant time-out function
- RXD recessive clamping detection
- Undervoltage detection on VCC and VIO pins
- CANH/CANL short-circuit and overtemperature protected and protected against transients in automotive environments
CAN Partial Networking Transceivers
- Fully compliant with ISO 11898-2: 2016 and SAE J2962-2
- Autonomous bus biasing
- Low EME and high EMI
- Data rate up to 5 Mbps
- Very low current consumption in Sleep and Standby mode with full wake-up capability
- Power-down of the complete node via the INH-output (switching off external voltage regulator(s))
- Six operation modes
- Four wake-up sources with wake-up source recognition
- Fail-safe and diagnostic features
- Watchdog with independent clock source
CAN FD Transceivers for Grade 0 Automotive Applications
Taking your automotive applications under the hood and into harsher environments just got easier with the industry’s first family of Controller Area Network (CAN) transceivers with automotive Grade 0 qualified parts. The ATA6562, ATA6563, ATA6564, ATA6565 and ATA6566 Grade 1 and 0 qualified CAN/CAN FD transceiver family have an ambient temperature rating of −40° to 125°C/150°C.
| Product | CAN FD | Operating Current Dominant (mA) | Operating Current Max (mA) | Operating Voltage Max. (V) | Operating Voltage Min. (V) |
|---|---|---|---|---|---|
| ATA6560 | Yes | 70 | 70 | 5.5 | 4.5 |
| ATA6561 | Yes | 70 | 70 | 5.5 | 4.5 |
| ATA6562 | Yes | 70 | 70 | 5.5 | 4.5 |
| ATA6563 | Yes | 70 | 70 | 5.5 | 4.5 |
| ATA6564 | Yes | 70 | 70 | 5.5 | 4.5 |
| ATA6565 | Yes | 140 | 70 | 5.5 | 4.5 |
| ATA6566 | Yes | 70 | 70 | 5.5 | 4.5 |
| ATA6571 | Yes | 65 | 0 | 28 | 4.5 |
| MCP2542FD | Yes | 70 | 10 | 5.5 | 4.5 |
| MCP2542WFD | Yes | 70 | 0 | 5.5 | 4.5 |
| MCP2544FD | Yes | 70 | 10 | 5.5 | 4.5 |
| MCP2544WFD | Yes | 70 | 0 | 5.5 | 4.5 |
| MCP2551 | No | 75 | 75 | 5.5 | 4.5 |
| MCP2557FD | Yes | 70 | 5 | 5.5 | 4.5 |
| MCP2558FD | Yes | 70 | 5 | 5.5 | 4.5 |
| MCP2561 | No | 70 | 10 | 5.5 | 4.5 |
| MCP25612FD | Yes | 140 | 10 | 5.5 | 4.5 |
| MCP2561FD | Yes | 70 | 10 | 5.5 | 4.5 |
| MCP2562 | No | 70 | 10 | 5.5 | 4.5 |
| MCP2562FD | Yes | 70 | 10 | 5.5 | 4.5 |

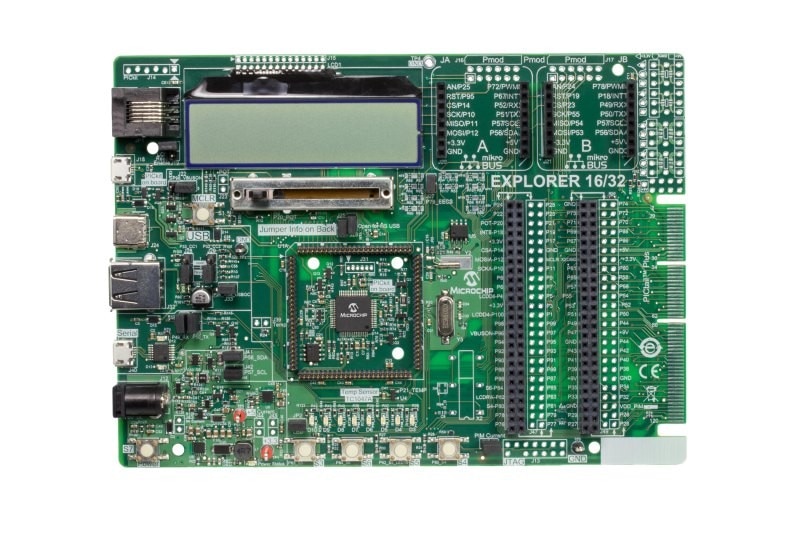

Explorer 16/32 Development Board
Part Number: DM240001-2
CAN 2.0 MCUs
- 16-bit PIC® MCUs and dsPIC® DSCs
- 32-bit PIC MCUs

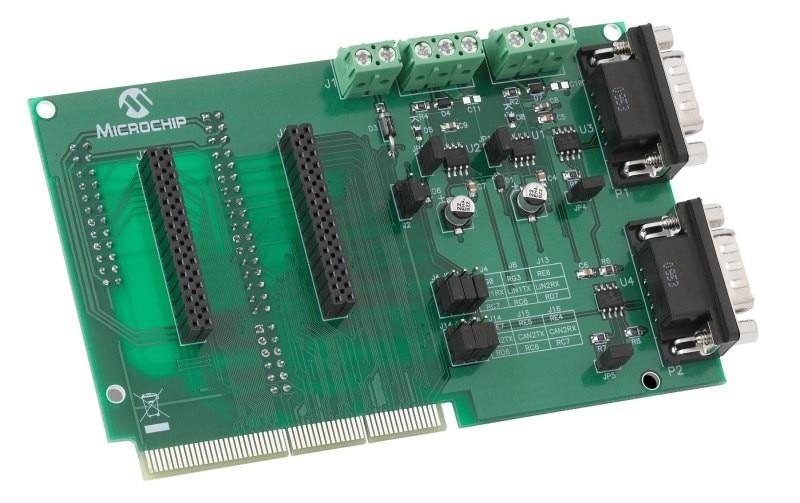

CAN/LIN PICtail™ Plus Daughter Board
Part Number: AC164130-2
CAN 2.0 MCUs
- 8-bit PIC MCUs
- 16-bit PIC MCUs and dsPIC DSCs
- 32-bit PIC MCUs

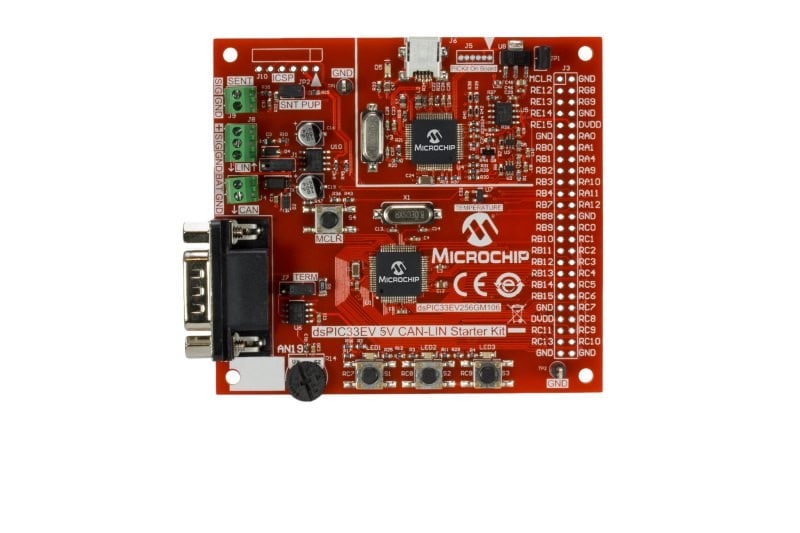

dsPIC33EV 5V CAN-LIN Starter Kit
Part Number: DM330018
CAN 2.0 MCUs
- 16-bit dsPIC DSCs

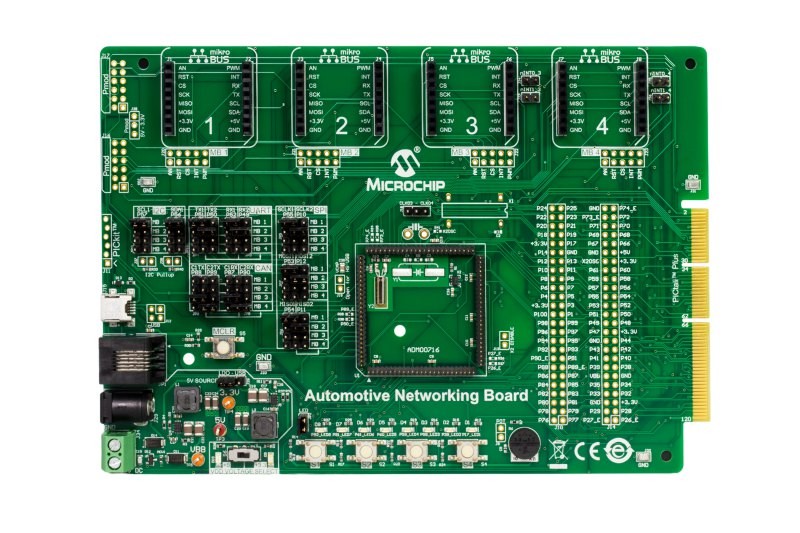

Automotive Networking Development Board
Part Number: ADM00716
CAN2.0 MCUs
- 8-bit PIC MCUs
- 16-bit PIC MCUs and dsPIC DSCs
- 32-bit PIC MCUs

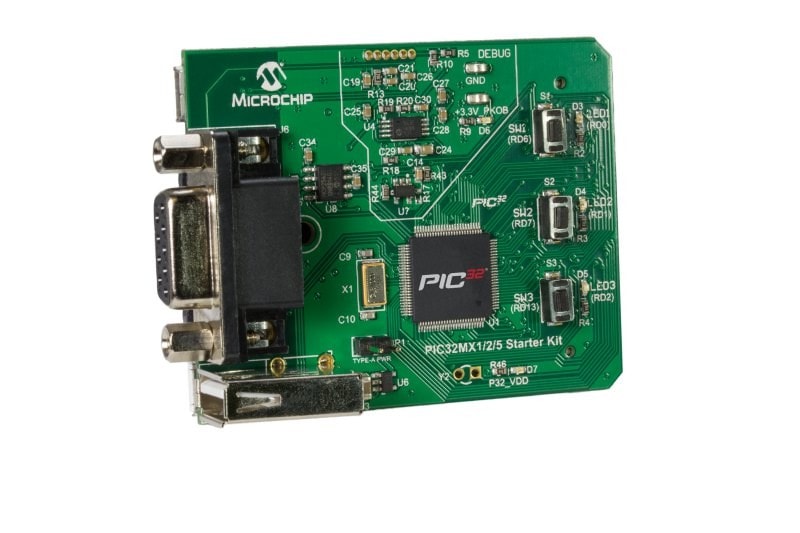

PIC32MX1/2/5 Starter Kit
Part Number: DM320100
CAN 2.0 MCUs
- 32-bit PIC MCUs

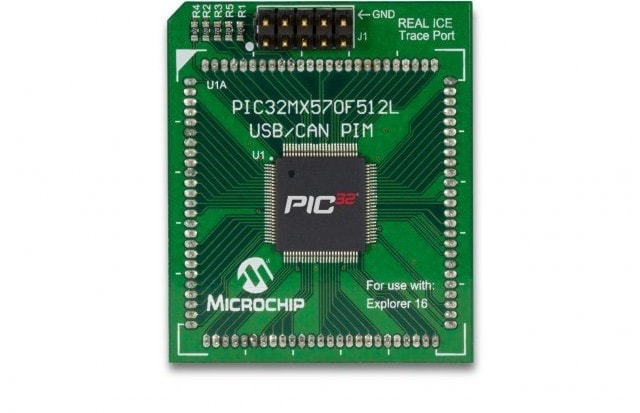

83 DMIPS PIC32MX570F512L CAN-USB Plug-In Module
Part Number: MA320015
CAN 2.0 MCUs
- 32-bit PIC MCUs

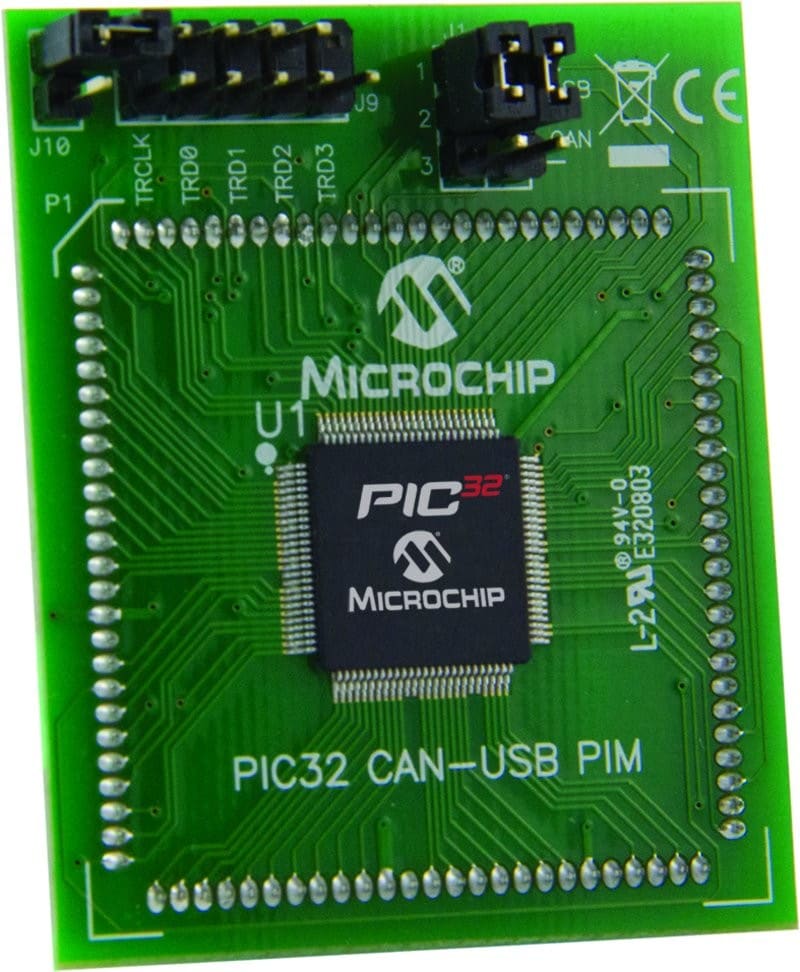

105 DMIPS PIC32MX795F512L CAN-USB Plug-In Module
Part Number: MA320003
CAN 2.0 MCUs
- 32-bit PIC MCUs

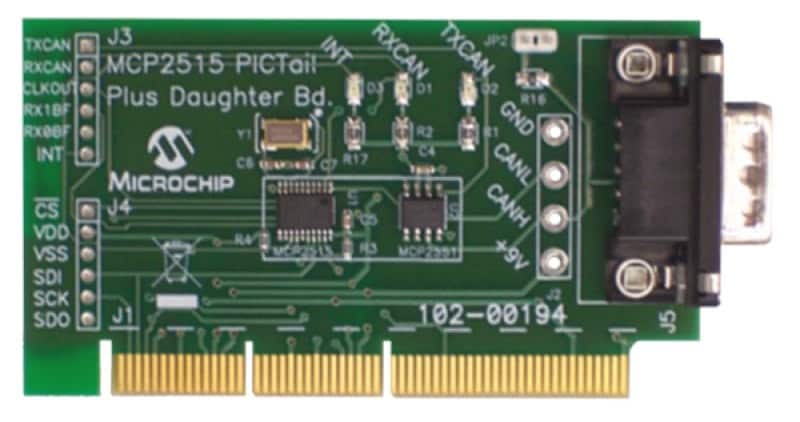

MCP2515 PICtail Plus Daughter Board
Part Number: MCP2515DM-PTPLS
- CAN Peripheral Products

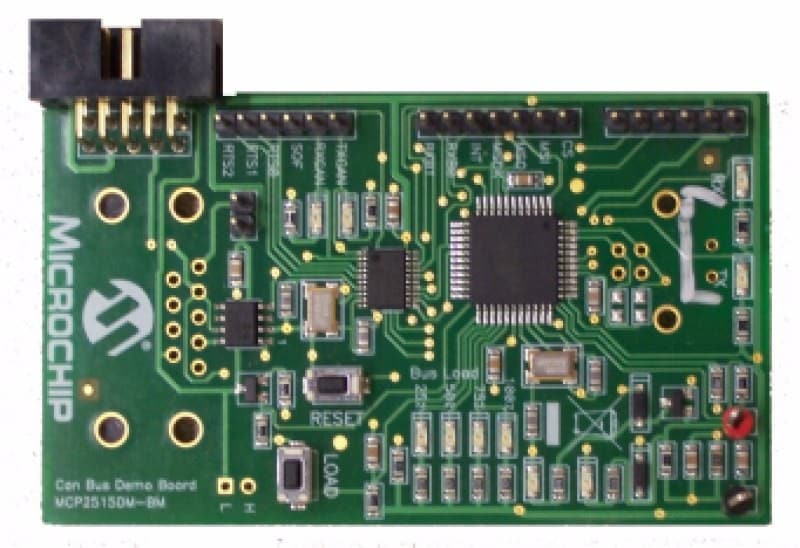

MCP2515 CAN Bus Monitor Demo Board
Part Number: MCP2515DM-BM
- CAN Peripheral Products

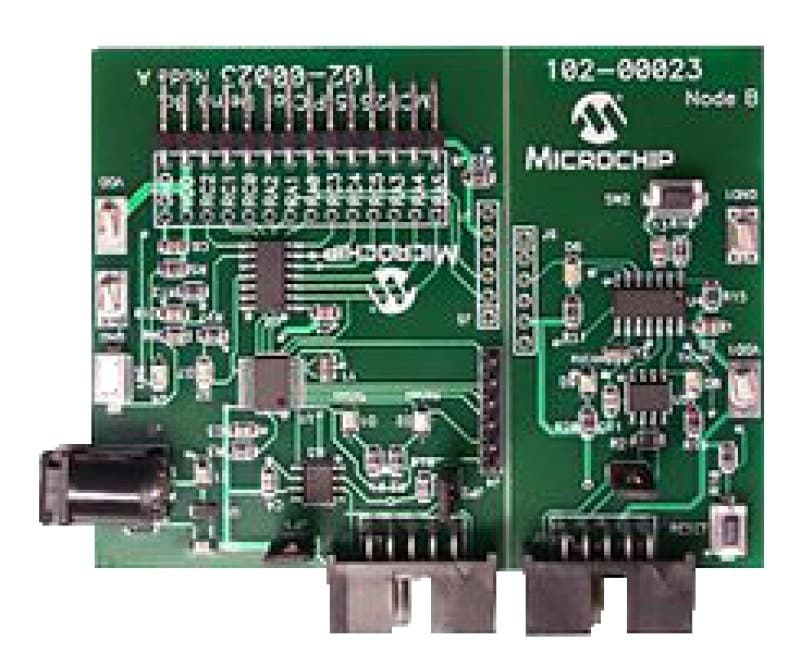

MCP2515 CAN Controller PICtail Demo Board
Part Number: MCP2515DM-PCTL
- CAN Peripheral Products

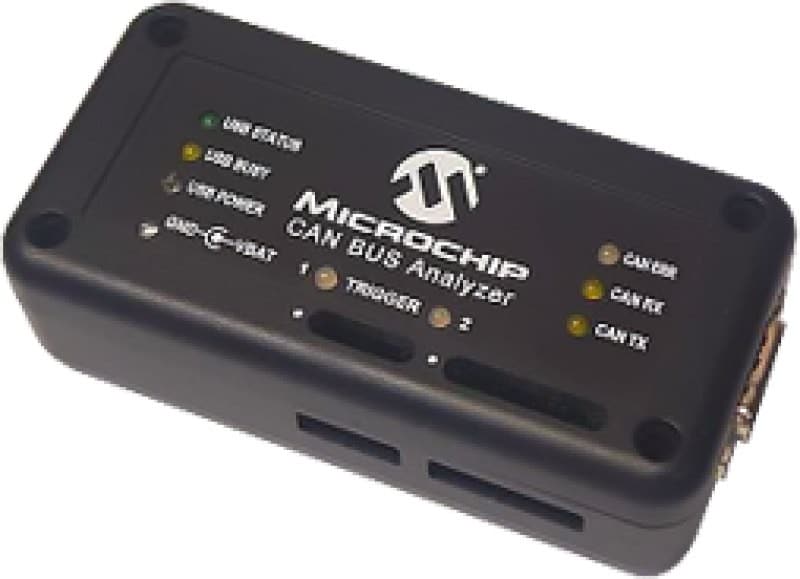

CAN Bus Analyzer Tool
Part Number: APGDT002
The CAN Bus Analyzer Tool is a simple-to-use, low-cost CAN bus monitor that can be used to develop and debug a high-speed CAN network. The tool supports CAN 2.0b and ISO11898-2 and offers a broad range of functions.

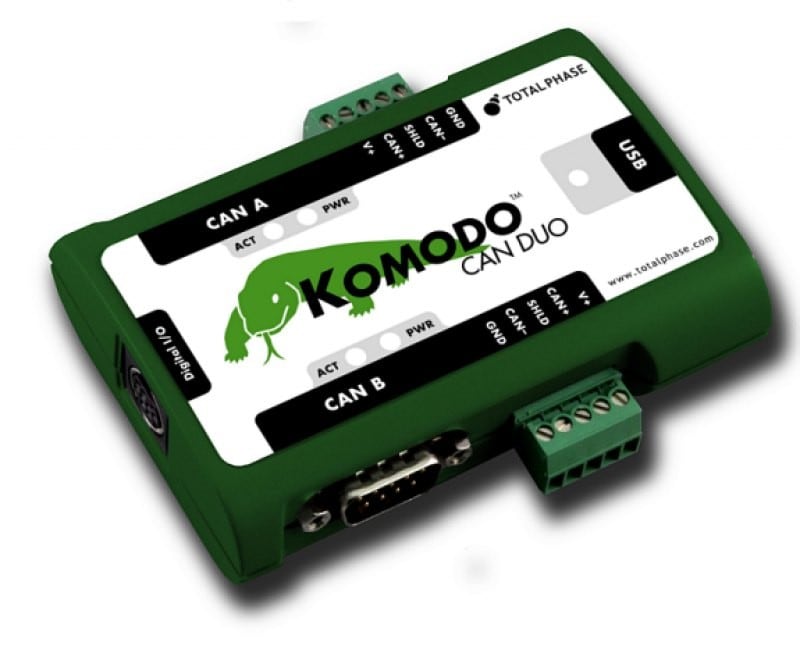

Total Phase Komodo™ CAN Duo Interface
Part Number: TTP100008
The Komodo CAN Duo Interface is a two-channel USB-to-CAN adapter and analyzer. The Komodo interface is an all-in-one tool capable of active CAN data transmission and non-intrusive CAN bus monitoring.
- Application Notes
- Brochures
- Code Examples
| Title | Download |
|---|---|
| CE127 - Crosswire Communication between ECAN 1 and ECAN 2 modules | Download |
| PIC32 CAN to Ethernet Bridge Demo | Download |
| CE128 - ECAN FIFO Receive Example | Download |
| CE227 - Crosswire Communication between ECAN 1 and ECAN 2 modules | Download |
| CE129 - ECAN Remote Transmission Request | Download |
| CE229 - ECAN Remote Transmission Request | Download |
| CE034 - CAN Loopback | Download |
| ECAN Mode 0 with Baud | Download |
| CE228 - ECAN FIFO Receive Example | Download |
| ECAN Listen Only Loopback | Download |
| ECAN Mode1-2 RX15 | Download |
