Ethernet Microcontrollers and Microprocessors

Ethernet Microcontroller (MCU) and Microprocessor (MPU) Solutions

We provide a full portfolio of robust, highly-integrated PIC® microcontrollers (MCUs) and SAM MCUs and microprocessors (MPUs) with Ethernet support. PIC32MX, PIC32MZ, SAM E and SAM V MCUs and SAMA5D3 MPUs feature Ethernet MACs with industry-standard MII, RMII or RGMII interfaces to connect with Ethernet PHYs and switches. These solutions enable robust Ethernet connectivity for a wide variety of applications.

Go to Ethernet FAQs Page

PIC Microcontrollers With MAC and PHY

PIC18F97J60

  • Integrated MAC and10BASE-T PHY
  • Fully compatible with 10/100/1000BASE-T networks
  • Up to 128 KB Flash
  • 8 KB Ethernet Buffer

Use With Our MAC Address Chips

  • Pre-Programmed, Globally Unique EUI-48™ MAC Address
  • Available in SPI, I²C and UNI/O® Bus
  • EUI-48 and EUI-64 compatible
  • Write protected codes

PIC Microcontrollers With MAC

PIC32MZ Family

  • 1 MB−2 MB Flash with Live Update
  • Fast Ethernet
  • Crypto engine, Hi-Speed USB (Device/Host/OTG), CAN, EBI, SQI, I²S and more

PIC32MX6/7 Families

  • Up to 512 KB Flash
  • Fast Ethernet
  • CAN, USB, I²S and more

SAM Microcontrollers With MAC

SAM V71

  • Arm® Cortex®-M7 based MCU
  • 10/100 Mbps Ethernet MAC with AVB support
  • TDM/I2S, CAN FD
  • Automotive grade

SAM E70

  • Arm Cortex-M7 based MCU
  • Dual CAN FD
  • Ethernet with IEEE® 1588 support, USB
  • Image sensor interface
  • AES hardware encryption engines

SAM E5

  • Arm Cortex-M4F based MCU, 120 MHz, up to 1 MB dual-panel Flash, 256 KB RAM
  • Integrated hardware security
  • 10/100 Mbps Ethernet MAC with IEEE 1588 support
  • Full-Speed USB
  • QSPI, dual SDHCs, dual CAN FD
  • Five low-power modes with 65 uA/MHz active power

SAM 4E

  • Arm Cortex-M4F based MCU, 120 MHz, up to 1 MB Flash
  • 10/100 Mbps Ethernet MAC with AVB and IEEE 1588 support
  • Full-speed USB
  • Dual CAN

SAM Microprocessors With MAC

SAMA5D3

  • Arm Cortex-A5 based MPU
  • Security
  • TrustZone® technology
  • Hardware encryption engine
  • Video decoder
  • Connectivity peripherals
  • Gigabit Ethernet/Fast Ethernet

Ethernet Devices

View All Parametrics
X

Similar Devices

View All Family Devices

Documentation

Application Notes

Title
An SNMP Agent for the Microchip TCP/IP Stack Download
AN1120- Ethernet Theory of Operation Download

Brochure

Title
Connectivity Solutions for Embedded Design Download

Reference Manual

Title
PIC32 Family Reference Manual, Sect. 35 Ethernet Controller Download

Ethernet Software

Free Licensed Microchip TCP/IP Stack

Our TCP/IP stack includes the following key features:

  • Supported Protocols: ARP, IP, ICMP, UDP, TCP, DHCP, SNMP, HTTP, FTP, TFTP
  • Socket support for TCP and UDP
  • Secure Sockets Layer (SSL)
  • NetBIOS Name Service
  • DNS - Domain Name System
  • TCPIP Discoverer
Microchip's TCP/IP stack

The stack is modular in design and is written in the ‘C’ programming language. Effective implementations can be accomplished in roughly 2–34 KB of code, depending on modules used, leaving plenty of code space on Microchip’s cost effective, high-density microcontrollers for the user application.

For more information on the Microchip TCP/IP Stack please visit www.microchip.com/tcpip.

Software
TCP/IP Stack
 Download
To download TCP/IP stack for PIC32 MCUs, visit Our MPLAB® Harmony Integrated Software Framework Download

Data Encryption Libraries

Software
To download data encryption libraries for PIC32 MCUs, visit our MPLAB Harmony Integrated Software Framework which includes Microchip’s Cryptographic Libraries and WolfSSL’s CyaSSL Embedded SSL Library. Download

Video Resources

Ethernet Devices

META-DX1: Terabit PHY with MACsec and FlexE

META-DX1: Terabit PHY with MACsec and FlexE

TCP/IP Configuration Utility

TCP/IP Configuration Utility

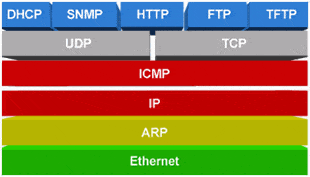

Microchip offers a free licensed TCP/IP stack optimized for the PIC18, PIC24, dsPIC and PIC32 microcontroller families. As shown in figure 2, the stack is divided into multiple layers, where each layer accesses services from one or more layers directly below it. Per specifications, many of the TCP/IP layers are "live", in the sense that they not only act when a service is requested, but also when events like time-out or new packet arrival occurs.

Embedded Connectivity Getting Started with Dev Tools

Embedded Connectivity Getting Started with Dev Tools

Embedded Connectivity Getting Started with Dev Tools

IPACK P-801 Gateway for Serial-to-Ethernet communications from IPLogiKa

IPACK P-801 Gateway for Serial-to-Ethernet communications from IPLogiKa

The IPACK P-801 Gateway is a powerful Serial-to-Ethernet gateway that adds quick, effortless and full 10/00 Base-T Ethernet connectivity to client applications. It has all the necessary physical and logical levels for Ethernet connections, making integration with the host computer very convenient and easy.

TWIZ5200: W5200 Ethernet PICtail Plus Board

TWIZ5200: W5200 Ethernet PICtail Plus Board

WIZnet’s W5200 Ethernet PICtail™ (Plus) board provides 10/100Mbps, half/full duplex Ethernet connectivity by onboard WIZnet W5200 Ethernet controller,which has hardwired TCP/IP processing engine. It works with Explorer 16, PIC32 I/O Expansion Board, PICDEM.net 2, PIC18 Explorer and others.

Medium One's IoT Ethernet Monitoring Kit

Medium One's IoT Ethernet Monitoring Kit

This video will guide you through the installation process of the DM990101 IoT Ethernet Monitoring Kit powered by Medium One.

http://www.mediumone.com/microchip

https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/32-bit-mcus

Connectivity Solutions featuring USB & Ethernet Session (DESIGN West 2012)

Connectivity Solutions featuring USB & Ethernet Session (DESIGN West 2012)

We live in a highly connected world. From personal devices to industrial systems, data transfer and control is critical to success. Two of the most widely deployed wired solutions are USB and Ethernet. This session helps embedded designers understand the challenges of using either of these communications standards in their applications and Microchip’s complete solution for easy integration.

Ethernet Demo at ESC SV 2011

Ethernet Demo at ESC SV 2011

Microchip demonstrates 16 bit embedded system displaying Google Maps on an attached graphical display with touch screen.

MPLAB® Harmony TCP/IP Stack

MPLAB® Harmony TCP/IP Stack

A quick overview of the MPLAB Harmony TCP/IP Stack and the benefits it brings to the high performance embedded networking applications.

https://www.microchip.com/en-us/tools-resources/configure/mplab-harmony

https://www.microchip.com/en-us/products/high-speed-networking-and-video/ethernet

USB and Ethernet Solutions Demonstration from CES 2017

USB and Ethernet Solutions Demonstration from CES 2017

USB Ethernet, Ethernet Switch and traffic demonstration with diagnostics and bandwidth monitoring. Based on the Microchip DU0141 demo platform.

Fast 100 Mbps Ethernet PICtail™ Plus Daughter Board Overview

The Fast 100 Mbps Ethernet PICtail™ Plus Daughter Board is an Ethernet demonstration board for evaluating Microchip Technologys ENC424J600 and ENC624J600 stand-alone 10/100 Ethernet controllers. The board is designed for flexibility and acts as an expansion board that can be plugged into Microchip's 8-, 16- and 32-bit microcontroller development boards
