Our USB bridge controllers provide an ultra-fast interface between a USB host and popular Flash media card formats, UART, SPI and Smart Card interfaces. These low-pin count, configurable and turnkey bridges are simple to implement and cost effective to deploy. They also can be used in conjunction with our Hi-Speed Inter-Chip (HSIC)-based USB 2.0 hub controllers for applications that demand low power consumption, a small device size and a cost-reduced BOM without compromising on performance or features. Ideal for enabling card reader functionality in low-power embedded applications, these small-footprint ICs can be used in many different applications including multi-function printers, set-top boxes, automobile audio systems, user authentication and point-of-sale terminals.
These solutions are backed by our client-driven obsolescence practice of continuing to supply a product for as long as possible and while demand for the product exists.
USB 2.0 Bridges
USB-to-UART/SPI Bridges
- Class 02h: USB-to-UART communications and I/O control
- Class 03h: Human Interface Device (HID), I/O control, EEPROM access
- Fully configurable VID and PID
- Eight general-purpose I/O pins
- 256 Bytes of user EEPROM
Smart Card Readers
USB-to-Ethernet Connectivity Solutions
USB-to-Ethernet Bridges
Products
- USB Bridges
- USB to Ethernet Bridge Products
- USB Hubs
- USB SmartHub™ ICs
- USB Switches and Transceivers
- USB-C® Power Delivery Controllers
- USB Graphics
- USB Port Power Controllers
Development Tools

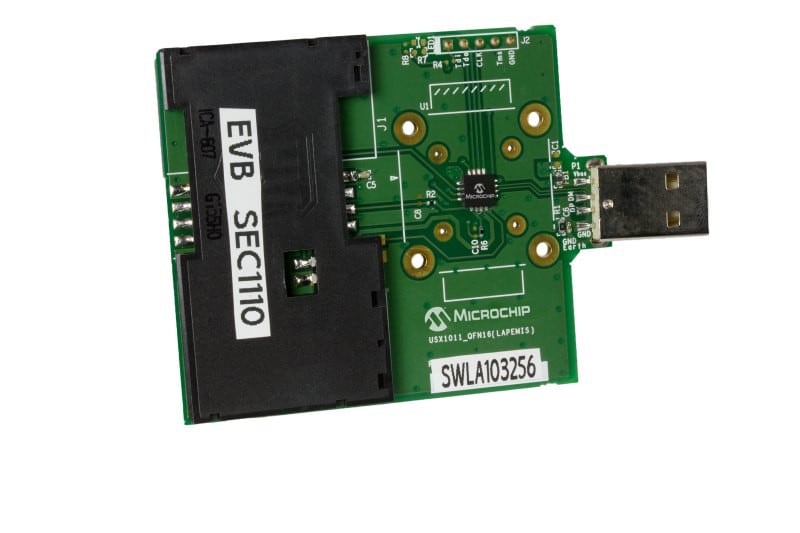

SEC1110 Smart Card to USB Bridge Customer Evaluation Board
Part Number: EVB-SEC1110
This evaluation board demonstrates standalone solutions that highlight the interfaces and features available on the SEC1110 Smart Card controller.

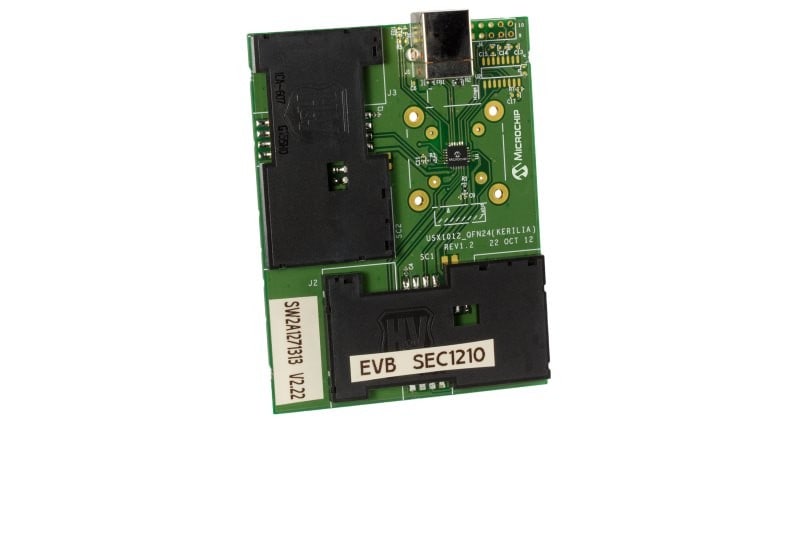

SEC1210 Smart Card to USB Bridge Customer Evaluation Board
Part Number: EVB-SEC1210
This evaluation board demonstrates standalone solutions that highlight the interfaces and features available on the SEC1210 Smart Card controller.

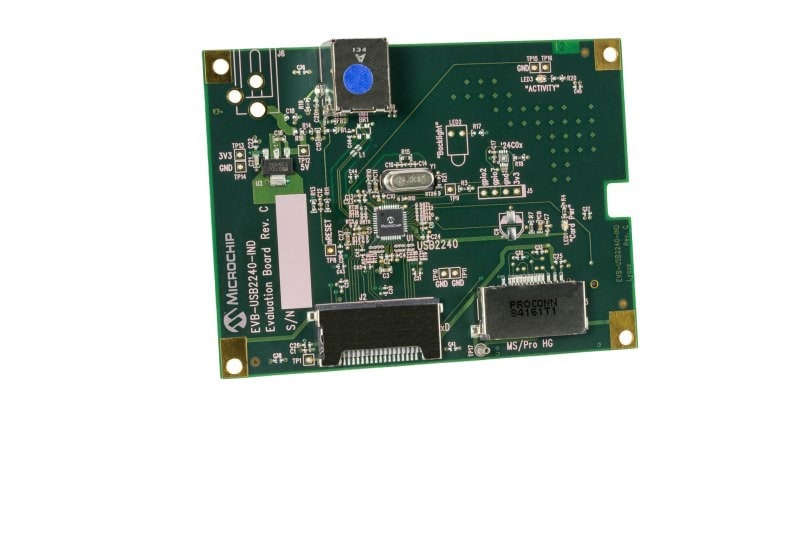

USB2240 Ultra-Fast High-Speed USB 2.0 Multi-Slot Flash Media Controller Evaluation Board
Part Number: EVB-USB2240-IND
This evaluation board demonstrates the unique features of the USB2240 Flash Media Controller for developing applications such as Flash media card readers/writers, printers, desktop and mobile PCs, consumer AV equipment and flat-panel displays.
USB2250 Ultra-Fast High-Speed USB 2.0 Multi-Slot Flash Media Controller Evaluation Board
Part Number: EVB-USB2250
This evaluation board demonstrates the features of the USB2250 Flash Media Controller for reading and writing to more than 24 popular Flash media formats.
USB2640 USB 2.0 Two-Port Hub with Ultra-Fast Flash Media Controller Evaluation Board
Part Number: EVB-USB2640
This evaluation board demonstrates the unique features of the USB2640 Ultra-Fast Flash Media Controller for developing applications such as Flash media card readers/writers, printers, desktop and mobile PCs, consumer AV equipment and flat-panel displays.
USB2642 USB 2.0 Two-Port Hub with UCS81001 Port Power Controller and Fast Flash Media Evaluation Board
Part Number: EVB-USB2642
This evaluation board demonstrates a standalone application platform for creating breakout box designs that extend the I2C or Secure Digital Input Output (SDIO) ports of a microcontroller into the breakout box over the upstream USB connection.
USB2660 USB 2.0 Two-Port Hub with Ultra-Fast Flash Media Controller Evaluation Board
Part Number: EVB-USB2660
This evaluation board demonstrates the unique features of the USB2660 Ultra-Fast USB 2.0 Multi-Format Flash Media Controller for developing applications such as Flash media card readers/writers, printers, desktop and mobile PCs, consumer AV equipment and flat-panel displays.

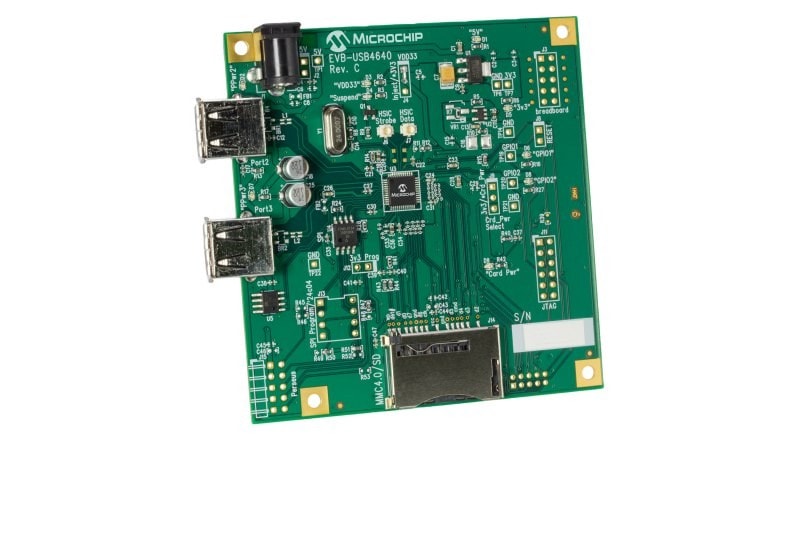

USB4640 HSIC 1.0 to USB 2.0 Two-Port Hub with Ultra-Fast Flash Media Controller Evaluation Board
Part Number: EVB-USB4640
This evaluation board demonstrates the unique features of the USB4640 Hi-Speed HSIC USB hub and card reader combo for developing applications such as Flash media card readers/writers, printers, desktop and mobile PCs, consumer AV equipment, flat-panel displays, smartphones, cell phones and other mobile devices.
