Overview

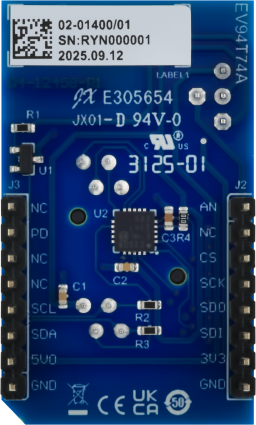

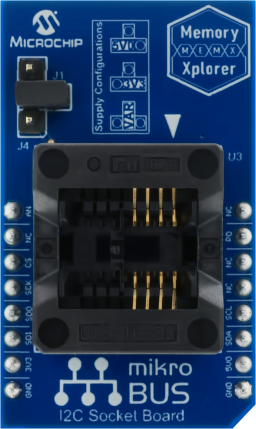

The Memory Xplorer I2C EEPROM Daughter Board (EV94T74A) is for use with the Memory Xplorer Base Board (EV60D49A) as the hardware interface for Microchip's Memory Xplorer evaluation platform. Memory Xplorer makes it easy for engineers and developers to configure and evaluate Serial EEPROMs, shortening the overall development time needed to bring new designs from prototype to production.
- Supports I2C (2-wire) Interface Protocol
- Uses SCL and SDA to communicate with the device
- Socket interface compatible with MIKROE development boards
- Variable Socket VCC Voltage
- Variable from 1.7V to 5.5V
- Controlled via inputs from Memory Xplorer
- I2C EEPROM Daughter Board (EV94T74A)
- Various loose Microchip I2C Serial EEPROM devices
- PC compatible system
- An available USB port on PC
- Windows®10 or higher operating systems(1)
Note 1: Testing has been performed on a 64-bit Windows®10 operating system.
Cannot load image!
Documentation
Filter by Document Type
Search Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| EV94T74A_EnviromentalDeclarations.zip | EHS Certificate | Download |
| Tool Details |
|---|
The Memory Xplorer Base Board (EV60D49A) is an easy-to-use interactive user tool that demonstrates the best-in-class features, functionality and low-power operation of Microchip Serial EEPROM devices.
|
