Mi‑V RISC‑V Soft CPU Ecosystem for FPGA-Based Embedded Systems

We offer a comprehensive ecosystem of software tool chains and IP cores for FPGA designs. Mi-V RV32 RISC-V soft CPUs are available for PolarFire^® SoC, PolarFire^®, RTG4™, SmartFusion^® 2 and IGLOO^® 2 FPGAs with complete design support through Libero^® SoC Design Suite. The Eclipse-based SoftConsole IDE contains a development environment, a Renode emulation platform, GCC compiler and debugger needed for C/C++ embedded firmware development.

The Libero SoC Design Suite and SoftConsole development environments provide all the required tools to integrate Mi-V soft CPUs in our FPGAs and develop, test and debug embedded firmware.

Portfolio

RISC-V Soft CPU	Mi-V RV32	Mi-V RV32IMAF_L1_AHB	Mi-V RV32IMA_L1_AHB	Mi-V RV32IMA_L1_AXI
LEs	4k–20k	26k	10k	10k
CoreMark^® Score	0.18–2.48	2.01	2.01	2.01
Cache Size	1 KB I$	2 KB I$, 8 KB D$	2 KB I$, 8 KB D$	2 KB I$, 8 KB D$
Tightly Coupled Memory (TCM)	Yes, Configurable Depth to 256 KB	N/A	N/A	N/A
Compressed	Optional	N/A	N/A	N/A
Multiply/Divide	Optional: MACC, Pipelined MACC or 32-Cycle Fabric	Yes	Yes	Yes
Atomics	N/A	Yes	Yes	Yes
Trace	Optional**	N/A	N/A	N/A
Floating Point	Optional Single-Precision	Single-Precision	N/A	N/A
Interface(s)	APB3/AHB/AXI	AHB	AHB	AXI
Debug	Optional	Yes	Yes	Yes
ECC	Optional	Optional	Optional	N/A
Availability	Now*	Now	Now	Now

*The Mi-V RV32 is recommended for all new designs

**Raw Trace requires additional Trace Encoder IP

Get Started:

Step 1: Download Latest Tools

Libero SoC Design Suite : Libero SoC Design Suite is a comprehensive tool for designing with our FPGAs and SoCs.

SoftConsole: SoftConsole is a free software development environment for embedded firmware development.

Step 2: Choose a Target Platform

PolarFire Evaluation Kit
PolarFire Splash Kit
RTG4™ FPGA Development Kit
Mi-V Creative Board
Renode

PolarFire Evaluation Kit

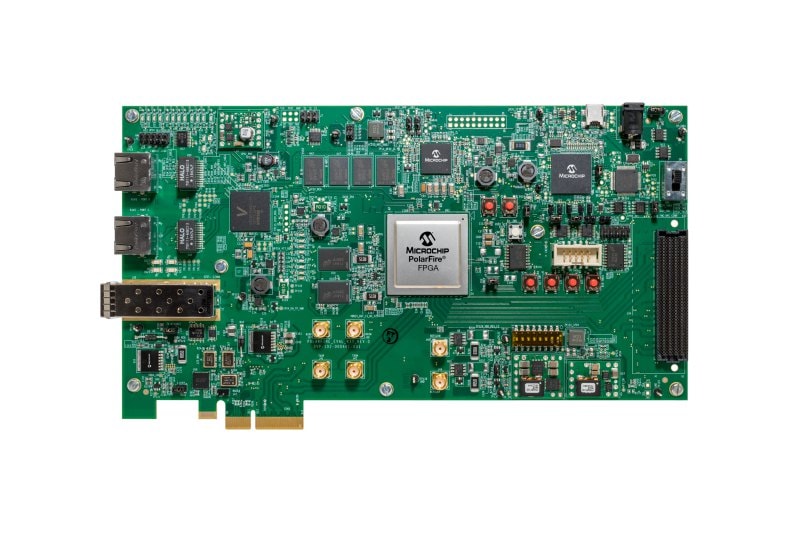

The PolarFire FPGA Evaluation kit is a full-featured kit that evaluates high-speed transceivers, 10 GbE, IEEE^® 1588, JESD204B, SyncE, CPRI and more. The kit includes HPC FMC, PCIe^®, dual GbE, SFP+ and USB.

Buy

Step 3: View Compatible Reference Material

Reference Material	Description
AN4997: How to Build a Mi-V Soft CPU Subsystem	A complete user guide to build a basic Mi-V CPU subsystem and execute a first embedded application
Mi-V RV32 User Guide Mi-V RV32IMA_L1_AHB User Guide Mi-V RV32IMA_L1_AXI User Guide Mi-V RV32IMAF_L1_AHB User Guide	User guide for Mi-V soft CPUs
Mi-V RV32 Migration Guide	A guide to aid migration from the Mi-V RV32IMA(F) range of soft CPU cores to the latest high-configurability Mi-V RV32 soft CPU core
AN4660: Application Note (Previously AC466) AN4660: Design Files (Previously AC466)	A guide to implement auto updates and in-application programming using a Mi-V soft CPU
AN4663: Demo Guide (Previously DG0798) AN4663: Design Files (Previously DG0798)	A guide to access the PolarFire^® FPGA system services using a Mi-V soft CPU
AN4623: Demo Guide (Previously DG0799) AN4623: Design Files (Previously DG0799)	A guide to run a 1G Ethernet loopback design using IOD CDR, CoreTSE and a Mi-V soft CPU
AN4664: Demo Guide (Previously DG0802) AN4664: Design Files (Previously DG0802)	A guide to implement, control and communicate using a PCIe^® root port using a Mi-V soft CPU
RISC-V ISA Specification	RISC-V specification documentation
Target: MPF300-EVAL-KIT	Complete kit information including ordering, documentation, support and more

PolarFire Splash Kit

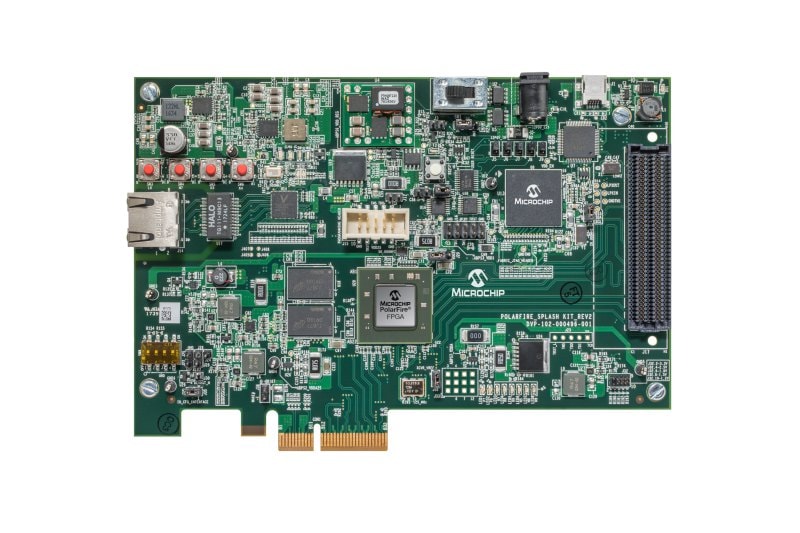

The PolarFire Splash Kit is a general-purpose kit that offers a platform for evaluation and development. The kit includes ports for GbE, PCIe, USB and LPC FMC.

Buy

Step 3: View Compatible Reference Material

Reference Material	Description
Mi-V RV32 User Guide Mi-V RV32IMA_L1_AHB User Guide Mi-V RV32IMA_L1_AXI User Guide Mi-V RV32IMAF_L1_AHB User Guide	User guide for Mi-V soft CPUs
AN4660: Application Note (Previously AC466) AN4660: Design Files (Previously AC466)	A guide to implement auto updates and in-application programming using a Mi-V soft CPU
AN4663: Demo Guide (Previously DG0798) AN4663: Design Files (Previously DG0798)	A guide to access the PolarFire^® FPGA system services using a Mi-V soft CPU
RISC-V ISA Specification RISC-V ISA Privileged Specification RISC-V Debug Specification	RISC-V specification documentation
Target: MPF300-SPLASH-KIT-ES	Complete kit information, including ordering, documentation, support and more (Earlier AC466)

RTG4™ FPGA Development Kit

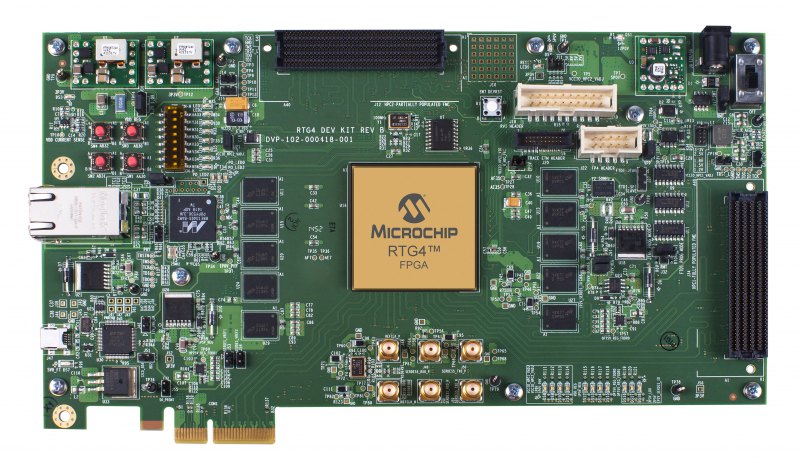

The RTG4 FPGA Development Kit provides aerospace customers with an evaluation platform for data transmission, serial connectivity, bus interface and high-speed designs using radiation-tolerant, high-performance RTG4 FPGAs.

Buy

Step 3: View Compatible Reference Material

Reference Material	Description
AC490: Application Note AC490: Design File	A complete user guide to build a basic Mi-V CPU subsystem for RTG4 FPGA and execute your first embedded application
Mi-V RV32 User Guide Mi-V RV32IMA_L1_AHB User Guide Mi-V RV32IMA_L1_AXI User Guide Mi-V RV32IMAF_L1_AHB User Guide	User guide for Mi-V soft CPUs
RISC-V ISA Specification RISC-V ISA Privileged Specification RISC-V Debug Specification	RISC-V specification documentation
Target: RTG4-DEV-KIT	Complete kit information including ordering, documentation, support and more

Mi-V Creative Board

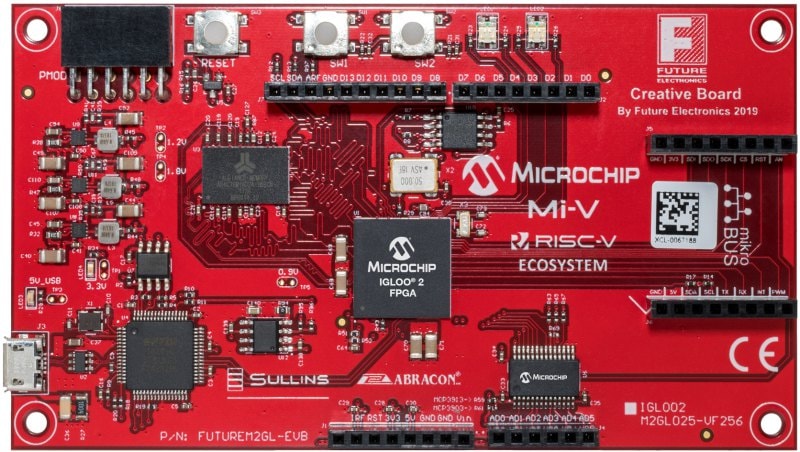

The Mi-V Creative development board by Future Electronics is a low-cost evaluation platform for hardware and software engineers using RISC-V soft CPUs on our IGLOO 2 FPGAs.

Buy

Step 3: View Compatible Reference Material

Reference Material	Description
Website	A complete guide to get started with the Mi-V Creative Development Board
Mi-V RV32 User Guide Mi-V RV32IMA_L1_AHB User Guide Mi-V RV32IMA_L1_AXI User Guide Mi-V RV32IMAF_L1_AHB User Guide	User guide for Mi-V soft CPUs
RISC-V ISA Specification RISC-V ISA Privileged Specification RISC-V Debug Specification	RISC-V specification documentation
Target: Mi-V Creative Development Board	Complete kit information including ordering, documentation, support and more

Renode

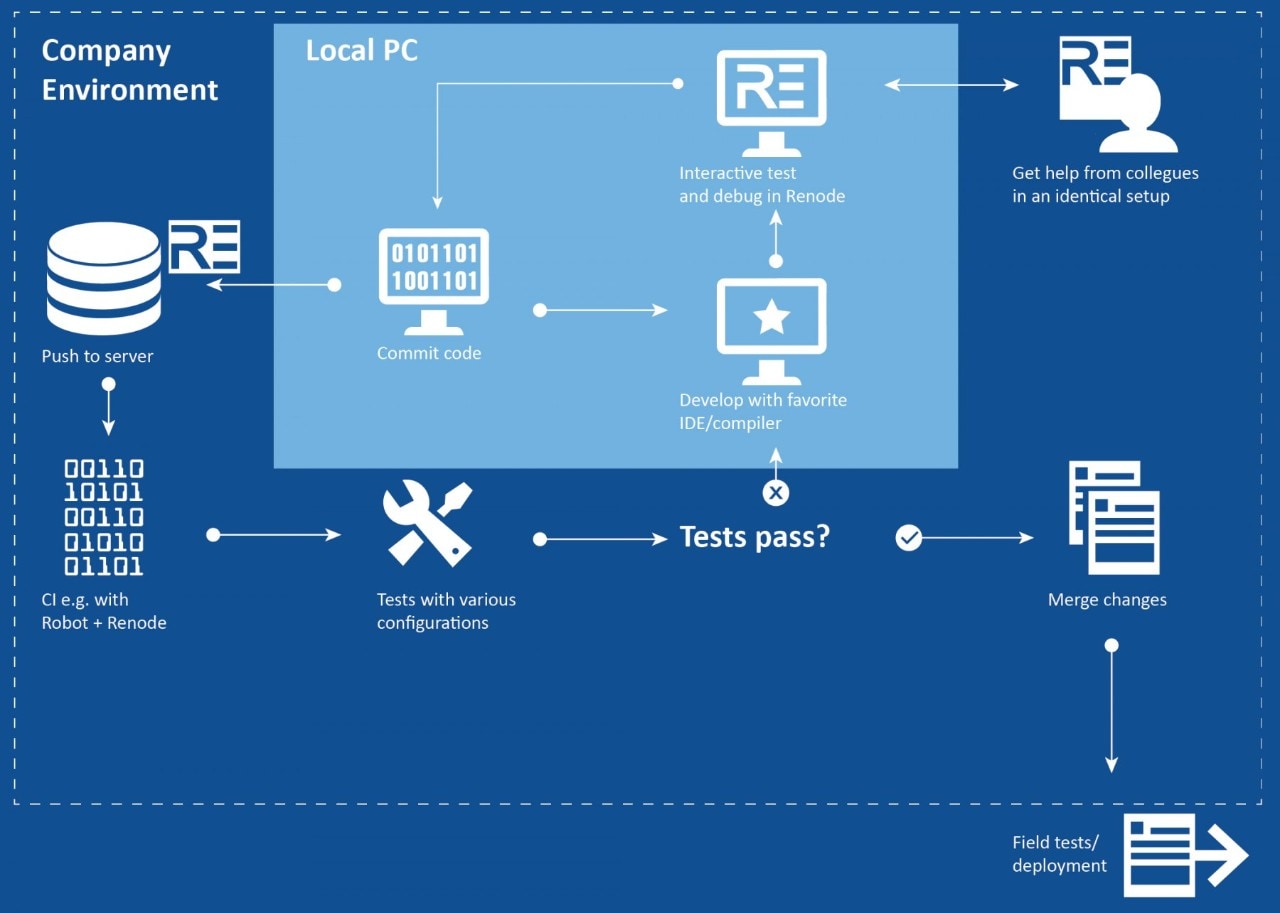

Renode provides a simulation model of Mi-V soft CPUs that you can use to debug firmware. Renode is bundled with SoftConsole and you can download it for free.

Step 3: View Compatible Reference Material

Soft CPU	Description
Mi-V RV32IMC User Guide	User Guide
Mi-V RV32IMA_L1_AHB User Guide	User Guide
Mi-V RV32IMA_L1_AXI User Guide	User Guide
Mi-V RV32IMAF_L1_AHB User Guide	User Guide

Documentation

Documentation	Description
Mi-V RISC-V Ecosystem Brochure	Brochure

Application Notes	Description
AN4660: Application Note (Previously AC466) AN4660: Design Files (Previously AC466)	A guide to implement auto updates and in-application programming using a Mi-V soft CPU
AN4663: Demo Guide (Previously DG0798) AN4663: Design Files (Previously DG0798)	A guide to access the PolarFire^® FPGA system services using a Mi-V soft CPU
AN4623: Demo Guide (Previously DG0799) AN4623: Design Files (Previously DG0799)	A guide to run a 1G Ethernet loopback design using IOD CDR, CoreTSE and a Mi-V soft CPU
AN4664: Demo Guide (Previously DG0802) AN4664: Design Files (Previously DG0802)	A guide to implement, control and communicate using a PCIe^® root port using a Mi-V soft CPU
AC490: RTG4™ FPGA: Building a Mi-V Processor Subsystem	A complete user guide to build a basic Mi-V CPU subsystem and execute a first embedded application in an RTG4 FPGA
AN4997: Application Note (Previously TU0775) AN4997: Design Files (Previously TU0775)	A complete user guide to build a basic Mi-V CPU subsystem and execute your first first embedded application in a PolarFire FPGA

Location	Description
Mi-V Ecosystem GitHub Repo	A repository of our RISC-V^® solutions including soft CPUs and PolarFire SoC FPGAs

Soft CPU	Description
Mi-V_RV32 V3.1	User Guide
Mi-V_RV32IMA_L1_AHB	Handbook
Mi-V_RV32IMA_L1_AXI	Handbook
Mi-V_RV32IMAF_L1_AHB	Handbook
MiV_ESS v2.0	User Guide

RISC-V Reference Material	Description
ISA Spec	RISC-V ISA Specification Document

Software Documentation	Description
Libero® SoC Design Suite	Libero SoC Design Suite Documentation
SoftConsole	SoftConsole Documentation
Renode Installation	SoftConsole v6.0 Release Notes

Support

Mi-V Soft CPUs GitHub Discussions

Try our discussions forum on our GitHub page. Browse the available database of questions and answers, post your questions and support others in the discussions.

Learn More

Mi-V Partner Information

Please contact partners directly for more information.

Learn More

Technical Support

Visit our technical support portal for assistance with your PolarFire SoC FPGA-based design.
