Patient monitors measure, record, distribute and display combinations of biometric values such as heart rate, SPO2, blood pressure, temperature and more. High-capability, multi-function monitors are typically used in hospitals and clinics to ensure a high level of quality patient care. Portable patient monitors are designed to be compact and power efficient. This allows them to be used in remote areas or by paramedics to aid diagnosis in the field, enable monitoring and transmitting data to healthcare providers in other locations.

To meet the demands faced by designers of patient monitors, we offer a broad portfolio of highly integrated microcontrollers (MCUs), graphics technology, software libraries and connectivity solutions. This broad offering enables innovation in the design of stand-alone biometric devices such as blood pressure monitors, pulse oximeters, ECG/EKG, and other products. Our solutions support patient monitoring functions like low-noise analog signal conditioning, touch-sensing technology, LCD control, wired and wireless connectivity, motor control and high-speed memory.

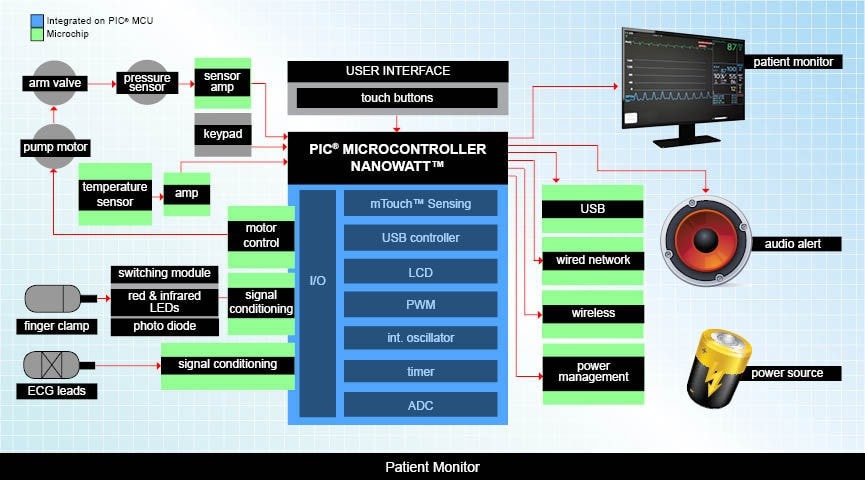

System Diagram


Our Offer for Components in Patient Monitors


  • Powerful 32-bit PIC® MCUs with flexible integrated graphics, USB and 10/100 Ethernet
  • USB-to-HDMI/DVI/VGA controllers
  • A broad range of PIC MCUs and parts to enable design of blood pressure monitors, pulse oximeters, ECG and other subsections of a patient monitor design
  • Agency-certified Wi-Fi®, Bluetooth® and Zigbee® modules

We Have What Patient Monitor Designers Need


  • Our full range of highly-integrated PIC MCUs and parts enable designs of every kind of patient monitor for use in hospitals, doctors' offices or in the field
  • Signal conditioning and power management components for use in all subsections of patient monitors
  • Wired and wireless networking solutions for fast integration with existing networks

Products


Low-End Graphics + Integrated USB + Touch Channels High-End Graphics + Integrated USB + Touch Channels + 10/100 Base-TX MAC USB to HDMI/DVI/VGA
PIC24FJ256DA206 PIC32MX695F512L UFX6000
PIC24FJ256DA210 PIC32MX795F512L UFX7000
Op Amps Instrumentation Amps SAR ADCs Delta-Sigma ADCs
MCP6V11 MCP6N11 MCP3021 MCP3421
MCP6V31 MCP6N16 MCP3221 MCP3425
MCP6V01   MCP3301 MCP3551
MCP6V26     MCP3911
Battery Management Switching Regulators LDO Regulators External Memory Wireless USB to Ethernet
MCP73811 MCP1640 MCP1710 SST49LF016C RN41 LAN7500
MCP73123 MCP16251 MCP1703A SST25VF064C RN131 LAN9500
MCP73871 MCP1624 MCP1754   MRF24J40MC
  MCP16301
  MCP16321

Documentation

Application Notes


Title Download
AN699 - Anti-Aliasing, Analog Filters for Data Acquisition Systems Download
AN990 - Analog Sensor Conditioning Circuits - An Overview Download
AN1189 - Implementing a Mass Storage Device Using the Microchip USB Device Firmware Framework Download
AN1264 - Integrating Microchip Libraries with a Real-Time Operating System Download
AN1387 - Using PIC32 MCUs to Develop Low-Cost Controllerless (LCC) Graphics Solutions Download
AN2788 - Patient Monitor Demonstration System Application Note Download
