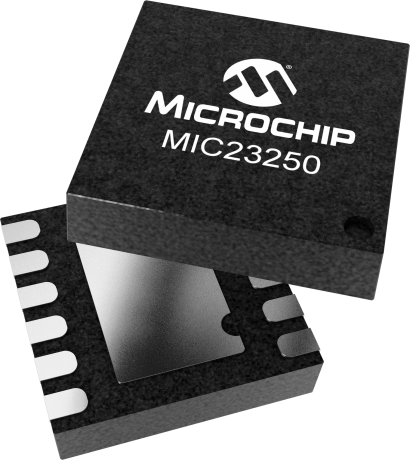

MIC23250

Dual 4MHz 400mA HyperLight Load® Synchronous Buck Regulator

Status: In Production

Features:

  • Input voltage range: 2.7V to 5.5V
  • Dual output current 400mA/400mA
  • Up to 94% peak efficiency and 85% efficiency at 1mA
  • 33µA dual quiescent current
  • 1µH inductor with a 4.7µF capacitor
  • 4MHz in PWM operation
  • Ultra fast transient response
  • Low voltage output ripple
  • 20mVpp in HyperLight Load® mode
  • 3mV output voltage ripple in full PWM mode
  • 0.01µA shutdown current
  • -40°C to +125°C junction temperature range
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC23250 is a high efficiency 4MHz dual 400mA synchronous buck regulator with HyperLight Load® mode. HyperLight Load® provides very high efficiency at light loads and ultra-fast transient response which is perfectly suited for supplying processor core voltages. An additional benefit of this proprietary architecture is very low output ripple voltage throughout the entire load range with the use of small output capacitors.

The devices is designed for use with a 1µH inductor and a 4.7µF output capacitor that enables a sub-1mm height.

The MIC23250 has a very low quiescent current of 33µA with both outputs enabled and can achieve over 85% efficiency at 1mA. At higher loads the MIC23250 provides a constant switching frequency around 4MHz while providing peak efficiencies up to 94%

The MIC23250 is designed to operate over the junction operating range from -40°C to +125°C.

Additional Features
    • Input voltage range: 2.7V to 5.5V
    • Dual output current 400mA/400mA
    • Up to 94% peak efficiency and 85% efficiency at 1mA
    • 33µA dual quiescent current
    • 1µH inductor with a 4.7µF capacitor
    • 4MHz in PWM operation
    • Ultra fast transient response
    • Low voltage output ripple
    • 20mVpp in HyperLight Load® mode
    • 3mV output voltage ripple in full PWM mode
    • 0.01µA shutdown current
    • -40°C to +125°C junction temperature range
Parametrics
Name
Value
Regulator Type
Step Down (Buck)
# of Outputs
2
Input Voltage Range Min (V)
2.7
Input Voltage Range Max (V)
5.5
Output Voltage Range Min (V)
0.72
Output Current (mA) max
400
Switching Frequency (kHz)
4000
Synchronous Rectifier
Yes
Operating Temp Range
-40 to 125
Vfb (V)
0.72
Duty Cycle Max (%)
0.86
SHUTDOWN Current (µA) (Typ)
0.01
Light Load Efficiency Mode
Yes

Documents

Jump to:

Software Library

Development Environment

  • Demo & Evaluation Boards
  • Software Libraries
Demo & Evaluation Boards
MIC23250-AAYMT Evaluation Board
MIC23250-AAYMT Evaluation Board ( MIC23250-AAYMT-EV )

The MIC23250 is a dual 400mA 4MHz switching regulator with HyperLight Load™ mode. The MIC23250 is highly efficient, consuming 33μA of quiescent current to operate both of its outputs. A Sub-1mm height solution is easily attainable using the tiny package (2mm x 2mm x 0.55mm) and only six external components. Small and fast, the MIC23250 can respond to a load transient at ultra-fast speed while...

Learn More
Add To Cart
MIC23250-C4YMT Evaluation Board
MIC23250-C4YMT Evaluation Board ( MIC23250-C4YMT-EV )

The MIC23250 is a dual 400mA 4MHz switching regulator with HyperLight Load™ mode. The MIC23250 is highly efficient, consuming 33μA of quiescent current to operate both of its outputs. A Sub-1mm height solution is easily attainable using the tiny package (2mm x 2mm x 0.55mm) and only six external components. Small and fast, the MIC23250 can respond to a load transient at ultra-fast speed while...

Learn More
Add To Cart
MIC23250-G4YMT Evaluation Board
MIC23250-G4YMT Evaluation Board ( MIC23250-G4YMT-EV )

The MIC23250 is a dual 400mA 4MHz switching regulator with HyperLight Load™ mode. The MIC23250 is highly efficient, consuming 33μA of quiescent current to operate both of its outputs. A Sub-1mm height solution is easily attainable using the tiny package (2mm x 2mm x 0.55mm) and only six external components. Small and fast, the MIC23250 can respond to a load transient at ultra-fast speed while...

Learn More
Add To Cart
MIC23250-S4YMT Evaluation Board
MIC23250-S4YMT Evaluation Board ( MIC23250-S4YMT-EV )

The MIC23250 is a dual 400mA 4MHz switching regulator with HyperLight Load™ mode. The MIC23250 is highly efficient, consuming 33μA of quiescent current to operate both of its outputs. A Sub-1mm height solution is easily attainable using the tiny package (2mm x 2mm x 0.55mm) and only six external components. Small and fast, the MIC23250 can respond to a load transient at ultra-fast speed while...

Learn More
Add To Cart
Software Libraries
Analog Simulation - MIC23250

The MIC23250 is a high efficiency 4MHz dual 400mA synchronous buck regulator with HyperLight Load® mode. HyperLight Load® provides very high efficiency at light loads and ultra-fast...

Learn More

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC23250-AAYMT-TR
0.012700
0.091958
12
UDFN
2.5x2.5x0.6mm
NiPdAu
e4
MIC23250-F4YMT-TR
0.006200
0.073000
10
UDFN
2x2x0.6mm
NiPdAu
e4
MIC23250-G4YMT-TR
0.006200
0.073000
10
UDFN
2x2x0.6mm
NiPdAu
e4
MIC23250-M4YMT-TR
0.006200
0.073000
10
UDFN
2x2x0.6mm
NiPdAu
e4
MIC23250-S4YMT-TR
0.006200
0.073000
10
UDFN
2x2x0.6mm
NiPdAu
e4
MIC23250-SKYMT-TR
0.006200
0.073000
10
UDFN
2x2x0.6mm
NiPdAu
e4
MIC23250-W4YMT-TR
0.006200
0.073000
10
UDFN
2x2x0.6mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
