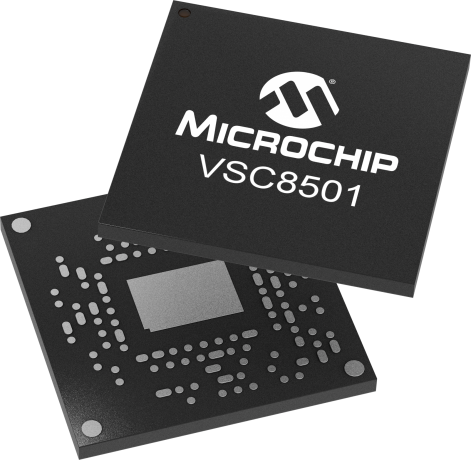

product primary image

VSC8501

1 Port GbE Cu PHY with (G/RG)MII

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The VSC8501 device is designed for space-constrained 10/100/1000BASE-T applications. It features integrated line-side termination to conserve board space, to lower EMI, and to improve system performance. To further reduce system complexity, component count, and system cost, the VSC8501 device can operate from a single 3.3 V supply using integrated voltage regulators that provide the necessary 1.0 V and 2.5 V rails for operation. Additionally, integrated RGMII timing compensation eliminates the need for on-board delay lines. The VSC8501 device includes Microsemi's EcoEthernet™ IEEE 802.3az Energy Efficient Ethernet technology that supports Energy Efficient Ethernet and power saving features to reduce power based on link state and cable reach. The device optimizes power consumption in all link operating speeds and features Wake-on-LAN (WOL) power management using magic packets. The VSC8501 device also includes fast link failure indication for high-availability networks. Fast link failure indication identifies the onset of a link failure in less than 1 ms typical to go beyond the IEEE 802.3 standard requirement of 750 ms ? ms (link master). Synchronous Ethernet (SyncE) and Ring Resiliency™ are supported. The device has two recovered clock outputs for SyncE applications. Programmable clock squelch control is included to inhibit undesirable clocks from propagating and to help prevent timing loops. Ring Resiliency allows a PHY port to switch between master and slave timing references with no link drop in 1000BASE-T mode.

Additional Features
  • EcoEthernet, the gold standard for Energy Efficient Ethernet (EEE)
    • EcoEthernet, the gold standard for Energy Efficient Ethernet (EEE)
    • Wake-on-LAN (WOL)
    • Fast link failure indication
    • Synchronous Ethernet support
    • Dual recovered clocks for timing reference
    • Ring Resiliency™
    • Integrated voltage regulator
    • Pin compatible with VSC8502
Parametrics
Name
Value
Ethernet Bandwidth
10/100/1000Mbps
LEDs
4
Temp. Range Min. (°C)
-40
Wake-on-LAN
Yes
Automotive
No
Interface1
MII/RGMII/GMII
Copper Support
Yes
SyncE
Yes
MAC I/O Voltage
1.2/2.5/3.3
Cable Diagnostics
Yes
On-Chip Termination
Yes

Documents

Jump to:

Data Sheets

06/03/2019
998KB

Supporting Collateral

User Guides


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
VSC8501XML
0.228000
1.776316
135
QFN
12x12x0.85mm
NiPdAu
e4
VSC8501XML-03
0.228000
1.776316
135
QFN
12x12x0.85mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
