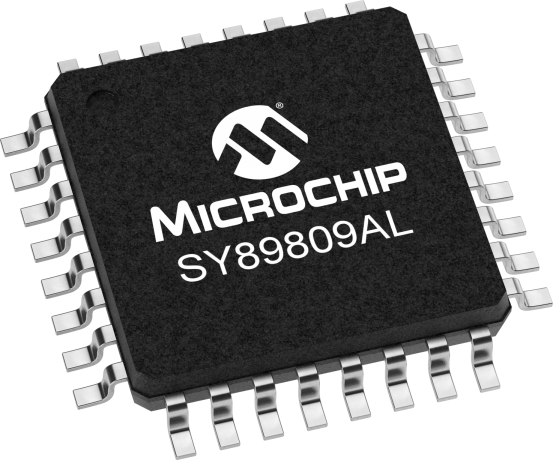

product primary image

SY89809AL

Status: In Production

Features:

  • 3.3V core supply, 1.8V output supply for reduced power
  • LVPECL and HSTL inputs
  • Nine differential HSTL (low-voltage swing) output pairs
  • HSTL outputs drive 50Ω-to-ground with no offset voltage
  • 750MHz maximum clock frequency
  • Low part-to-part skew (100ps typical)
  • Low pin-to-pin skew (15ps typical)
  • Available in 32-pin TQFP
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The SY89809AL is a high-performance bus clock driver with nine differential High-Speed Transceiver Logic (HSTL) output pairs. The part is designed for use in low-voltage (3.3V/1.8V) applications, which require a large number of outputs to drive precisely aligned, ultra-low skew signals to their destination. The input is multiplexed from either HSTL or Low-Voltage Positive-Emitter-Coupled Logic (LVPECL) by the CLK_SEL pin. The Output Enable (OE) is synchronous so that the outputs will only be enabled/disabled when they are already in the LOW state.This avoids any chance of generating a runt clock pulse when the device is enabled/disabled as can happen with an asynchronous control.The SY89809AL features low pin-to-pin skew (15ps typical) and low part-to-part skew (100ps typical). The SY89809AL is available in a single space-saving package, enabling a lower overall cost solution.

Additional Features
    • 3.3V core supply, 1.8V output supply for reduced power
    • LVPECL and HSTL inputs
    • Nine differential HSTL (low-voltage swing) output pairs
    • HSTL outputs drive 50Ω-to-ground with no offset voltage
    • 750MHz maximum clock frequency
    • Low part-to-part skew (100ps typical)
    • Low pin-to-pin skew (15ps typical)
    • Available in 32-pin TQFP
Parametrics
Name
Value
Product Type
Fanout & Buffer and Drivers
Description
2:9
Input
LVPECL/HSTL
Output
HSTL
Supply Voltage
1.8/3.3
Max Freq (GHz)
0.75
Max Prop Delay (ps)
1070
Icc (mA)
65
Max Within Device Skew (ps)
15
OE
True
RPE
False
FSI
False
Input Mux
True
Input EQ
False
Output Type
HSTL

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SY89809ALTZ-TR
0.338300
0.497500
32
TQFP
7x7x1.0mm
Matte Tin
e3
SY89809ALTZ
0.338300
0.800000
32
TQFP
7x7x1.0mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
