SAM3X8ERT

Status: Samples Available

Features:

  • ARM Cortex-M3 revision 2.0 running at up to 84 MHz
  • No Single Event Latch-Up Below an LET Threshold of 62 MeV.cm2 /mg @ 105°C
  • Total Ionizing Dose of 30 krad(Si)

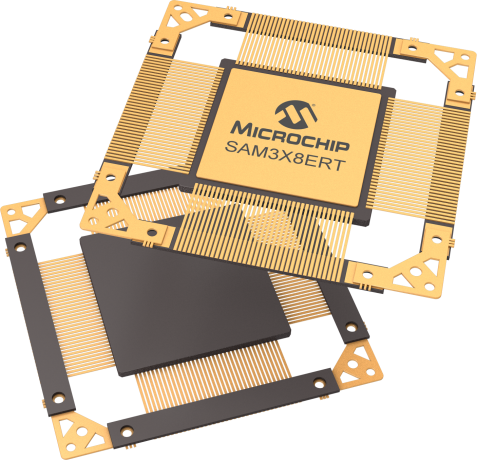

  • CQFP144, 144-lead CQFP, 22 x 22mm, pitch 0.5 mm

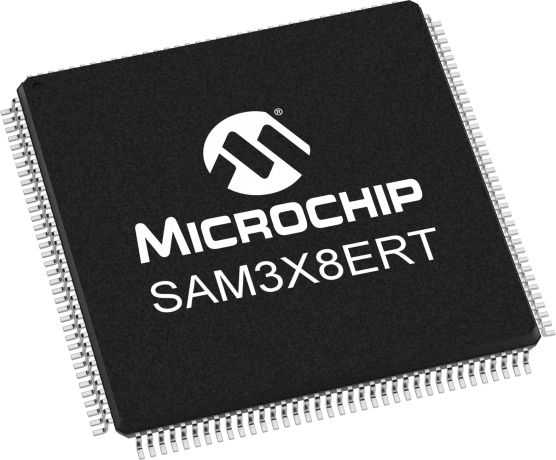

  • LQFP144, 144-lead LQFP, 20 x 20mm, pitch 0.5 mm
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The SAM3X8ERT is the radiation tolerant version of the popular Microchip SAM3X8E high-performance 32-bit ARM Cortex-M3 processor. The SAM3X8ERT runs at 84MHz and features 512KB of flash memory in 2 x 256KB banks and 100KB of SRAM in 64KB +32KB banks, with an additional 4KB as NFC (NAND Flash controller) SRAM.

Its highly-integrated peripheral set for connectivity and communication includes Ethernet, dual CAN, High Speed USB MiniHost and device with on-chip PHY, high-speed SD/SDIO/MMC, and multiple USARTs, SPIs, TWIs (I2C), and one I2S. The SAM3X8ERT also features a 12-bit ADC/DAC, temperature sensor, 32-bit timers, PWM timer and RTC. The 16-bit external bus interface supports SRAM, PSRAM, NOR and NAND Flash with error code correction.

This space-qualified version of the product adds:  Ceramic & Hermetic packages, extended temperature range -40°C to 105°C, extended qualification flow equivalent to QML-V or QML-Q space grade.  Radiation performance for the SAM3X8ERT:  SEL LET > 62 MeV.cm2/mg (at 105°C), and TID up to 30 Krad (Si).

Additional Features
  • Core
    • ARM Cortex-M3 revision 2.0 running at up to 84 MHz
    • Memory Protection Unit (MPU)
    • 24-bit SysTick Counter
    • Thumb®-2 instruction set
    • Nested Vector Interrupt Controller
  • Memories
    • 2 x 256Kbytes embedded Flash, 128-bit wide access, memory accelerator, dual bank
    • 100(64+32) Kbytes embedded SRAM with dual banks
    • 16 Kbytes ROM with embedded bootloader routines (UART, USB) and IAP routines
    • Static Memory Controller (SMC): SRAM, NOR, NAND support.
    • NAND Flash controller with 4 Kbytes RAM buffer and ECC
    • External Bus Interface - 16 bits, 8 chip selects, 23-bit address
  • System
    • Embedded voltage regulator for single-supply operation
    • POR, BOD and Watchdog for safe reset
    • Quartz or resonator oscillators: 3 to 20 MHz main and optional low power 32.768 kHz for RTC or device clock
    • High precision 8/12 MHz factory trimmed internal RC oscillator with 4 MHz Default Frequency for fast device startup
    • Slow Clock Internal RC oscillator as permanent clock for device clock in low power mode
    • One PLL for device clock and one dedicated PLL for USB 2.0 High Speed Mini Host/Device
    • Temperature Sensor
    • 17 peripheral DMA (PDC) channels and 6-channel central DMA plus dedicated DMA for High-Speed USB Mini Host/Device and Ethernet MAC
    • Low Power modes
    • Sleep, Wait and Backup modes, down to 2.5 μA in Backup mode with RTC, RTT, and GPBR
  • Peripheral Features
    • USB 2.0 Device/Mini Host: 480 Mbps, 4 Kbyte FIFO, up to 10 bidirectional Endpoints, dedicated DMA
    • 4 USARTs (ISO7816, IrDA®, Flow Control, SPI, Manchester and LIN support) and one UART
    • 2 TWI (I2C compatible), up to 6 SPIs, 1 SSC (I2S), 1 HSMCI (SDIO/SD/MMC) with up to 2 slots
    • 9-channel 32-bit Timer Counter (TC) for capture, compare and PWM mode, Quadrature Decoder Logic and 2-bit Gray Up/Down Counter for Stepper Motor
    • 32-bit low-power Real-time Timer (RTT) and low-power Real-time Clock (RTC) with calendar and alarm features
    • 256-bit General Purpose Backup Registers (GPBR)
    • Ethernet MAC 10/100 (EMAC - MII/RMII) with dedicated DMA
    • 2 CAN Controllers with 8 Mailboxes
    • True Random Number Generator (TRNG)
  • I/O
    • 103 I/O lines with external interrupt capability (edge or level sensitivity), debouncing, glitch filtering and on-die Series Resistor Termination
    • Six 32-bit Parallel Input/Output Controllers
  • Analog Features
    • 16-channel 12-bit 1 msps ADC with differential input mode and programmable gain stage
    • 2-channel 12-bit 1 msps DAC
  • Debugger Development Support
    • Serial Wire/JTAG Debug Port(SWJ-DP)
    • Debug access to all memories and registers in the system, including Cortex-M4 register bank when the core is running, halted, or held in reset.
    • Serial Wire Debug Port (SW-DP) and Serial Wire JTAG Debug Port (SWJ-DP) debug access.
    • Flash Patch and Breakpoint (FPB) unit for implementing breakpoints and code patches.
    • Data Watchpoint and Trace (DWT) unit for implementing watchpoints, data tracing, and system profiling.
    • Instrumentation Trace Macrocell (ITM) for support of printf style debugging.
    • IEEE1149.1 JTAG Boundary-scan on all digital pins.
  • Integrated Software Libraries and Tools
    • ASF-Atmel software Framework – SAM software development framework
    • Integrated in the Atmel Studio IDE with a graphical user interface or available as standalone for GCC, IAR compilers.
    • DMA support, Interrupt handlers Driver support
    • USB, TCP/IP, Wi-Fi and Bluetooth, Numerous USB classes, DHCP and Wi-Fi encryption Stacks
    • RTOS integration, FreeRTOS is a core component
  • Temperature operating range
    • -40°C to +105°C
  • Radiation Performances
    • No Single Event Latch-Up Below an LET Threshold of 62 MeV.cm2 /mg @ 105°C
    • Total Ionizing Dose of 30 krad(Si)
  • Packages
    • CQFP144, 144-lead CQFP, 22 x 22mm, pitch 0.5 mm
    • LQFP144, 144-lead LQFP, 20 x 20mm, pitch 0.5 mm
Parametrics
Name
Value
CPU
Rad Tol 32-bit ARM
Temp# Range Range (deg C)
0 to 0
CAN
Yes
LIN
Yes

Documents

Jump to:

Supporting Collateral

Application Notes

Download All

Brochures

Quality-Reliability-ISOs

Development Environment

  • Integrated Development Environments
Integrated Development Environments
ATATMEL-ICE
Atmel-ICE Full Kit ( ATATMEL-ICE )

Atmel-ICE is a powerful development tool for debugging and programming ARM® Cortex®-M based SAM and AVR microcontrollers with on-chip debug capability.

Atmel-ICE supports:

  • Programming and on-chip debugging of all AVR 32-bit MCUs on both JTAG and aWire interfaces
  • Programming and on-chip debugging of all AVR
...

Learn More
AT91SAM-ICE
SAM-ICE ( AT91SAM-ICE )

The SAM-ICE catalog part number (CPN) is now End of Life (EOL) and can no longer be offered.

For MPU and SAM developers, SAM-ICE has been replaced by the J-32 Debug Probe (DV164232)

Alternatively, SAM developers can use either Atmel ICE (

...

Learn More
DV164045
MPLAB ICD 4 In-Circuit Debugger ( DV164045 )

The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® and SAM Microcontrollers (MCUs), dsPIC® Digital Signal Controllers (DSCs), and CEC flash microcontrollers. This speed is provided by a SAME70 MCU with 300 MHz, 32-bit MCU with 2MB of RAM and a high-speed FPGA to yield

...

Learn More
DV164232
J-32 Debug Probe ( DV164232 )

The J-32 Debug Probe Debugger/Programmer provides affordable, fast and easy debugging and programming for Microchip’s PIC32 and SAM MCU and MPU products. Plus, SEGGER offers free, stand-alone applications to extend J-32 Debug Probe functionality:

J-32 Debug Probe is fully integrated into Microchip’s powerful MPLAB® X Integrated Development Environment and

...

Learn More

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SAM3X8ERT-DHB-E
N/A
0.000000
144
CQFP
22x22x6.25
NiAu
e4
SAM3X8ERT-DHB-SV
N/A
0.000000
144
CQFP
22x22x6.25
NiAu
e4
SAM3X8ERT-DHB-MQ
N/A
0.000000
144
CQFP
22x22x6.25
NiAu
e4
SAM3X8ERT-H8X-HP
1.392800
7.833333
144
LQFP
20x20x1.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
