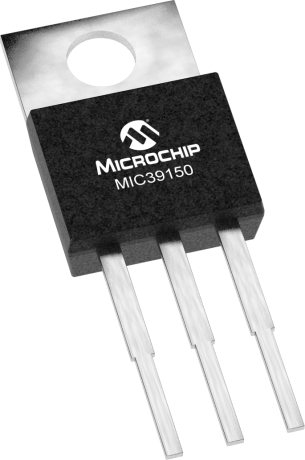

product primary image

MIC39150

1.5A 1.0% Fixed Voltage LDO

Status: In Production

Features:

  • 1.5A minimum guaranteed output current
  • 500mV maximum dropout voltage over temperature
  • Ideal for 3.0V to 2.5V conversion
  • Ideal for 2.5 to 1.8V or 1.65V conversion
  • 1% initial accuracy
  • Low ground current
  • Current limiting and thermal shutdown
  • Reverse battery and reverse lead insertion protection
  • Reverse leakage protection
  • Fast transient response
  • TTL/CMOS-compatible enable pin (MIC39151/2 only)
  • Error flag output (MIC39151 only)
  • Adjustable output (MIC39152 only)
  • Power D-Pak package (TO-252) Adjustable only
  • Power D²Pak Package (TO-263)
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The MIC39150, MIC39151, and MIC39152 are 1.5A LDO voltage regulators that provide a low-voltage, high-current output with a minimum of external components. Utilizing proprietary Super βeta PNP® pass element, the MIC39150/1/2 offers extremely low dropout (typically 375mV at 1.5A) and low ground current (typically 17mA at 1.5A).

The MIC39150/1/2 are ideal for PC add-in cards that need to convert from 3.3V to 2.5V or 2.5V to 1.8V with a guaranteed maximum dropout voltage of 500mV over all operating conditions. The MIC39150/1/2 exhibit fast transient response for heavy switching applications and requires only 10µF of output capacitance to maintain stability and achieve fast transient response.

The MIC39150/1/2 is fully protected with current limiting, thermal shutdown, reverse battery protection/lead insertion, and reverse leakage protection. The MIC39151 offers a TTL logic-compatible enable pin and an error flag that indicates undervoltage and overcurrent conditions. Offered in fixed voltages of 2.5V, 1.8V, and 1.65V, the MIC39150/1 comes in the TO-220 and TO-263 (D²Pak) packages. The MIC39152 adjustable option allows programming the output voltage anywhere between 1.24V and 15.5V and comes in 5-Pin, TO-263 (D²Pak) and TO-252 (D-Pak) packages.

For applications requiring input voltage greater than 16V or automotive load-dump protection, see the MIC29150/1/2/3 family.

Additional Features
    • 1.5A minimum guaranteed output current
    • 500mV maximum dropout voltage over temperature
      • Ideal for 3.0V to 2.5V conversion
      • Ideal for 2.5 to 1.8V or 1.65V conversion
    • 1% initial accuracy
    • Low ground current
    • Current limiting and thermal shutdown
    • Reverse battery and reverse lead insertion protection
    • Reverse leakage protection
    • Fast transient response
    • TTL/CMOS-compatible enable pin (MIC39151/2 only)
    • Error flag output (MIC39151 only)
    • Adjustable output (MIC39152 only)
    • Power D-Pak package (TO-252) Adjustable only
    • Power D²Pak Package (TO-263)
Parametrics
Name
Value
Product Type
Single LDOs
# of Out
1
IOUT #1
1500
IOUT #2
n/a
IOUT #3
n/a
IOUT #4
n/a
IOUT (mA)
1500
VIN Min (V)
2.25
VIN Max (V)
16
VOUT (V)
1.65, 1.8, 2.5
Voltage Drop Typ (mV)
375
IGND Typ (µA)
4000
Tol Typ %
±1
PSRR 1 kHz (dB)
53
Soft Start Pin
Load Dump
Rev Bat
Yes
Reverse Current Protect
Yes

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
MIC39150-1.8WU
1.511000
2.360000
3
TO-263
-
Matte Tin
e3
MIC39150-2.5WU
1.511000
2.360000
3
TO-263
-
Matte Tin
e3
MIC39150-2.5WU-TR
1.511000
2.506667
3
TO-263
-
Matte Tin
e3
MIC39150-1.8WU-TR
1.511000
2.506667
3
TO-263
-
Matte Tin
e3
MIC39150-1.65WU
1.511000
2.360000
3
TO-263
-
Matte Tin
e3
MIC39150-1.65WU-TR
1.511000
2.506667
3
TO-263
-
Matte Tin
e3
MIC39150-1.8WT
1.890200
2.660000
3
TO-220
-
Matte Tin
e3
MIC39150-1.65WT
1.890200
2.660000
3
TO-220
-
Matte Tin
e3
MIC39150-2.5WT
1.890200
2.660000
3
TO-220
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
