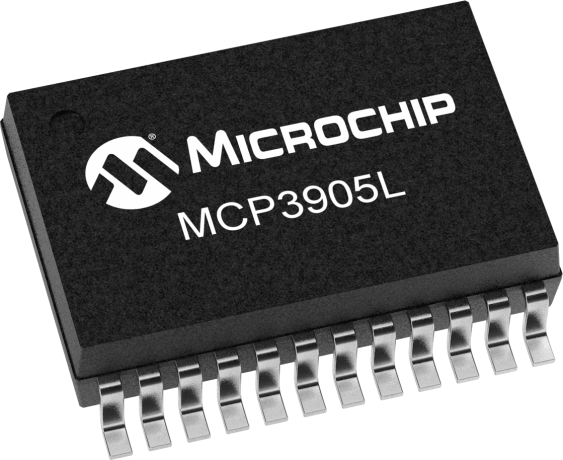

MCP3905L

Status: In Production

Features:

  • Supplies active (real) power measurement for single-phase, residential energy metering
  • Supports IEC 62053 International Energy Metering Specification and legacy IEC 1036/61036/687 Specifications
  • 16-bit, Delta-Sigma Analog-to-Digital Converters (ADCs)
  • Reduced pulse-width of calibration output frequency and mechanical counter drive for low power meter designs (MCP3905L)
  • Increased output frequency constant options for meter design (MCP3905L)
  • 0.1% typical measurement error over 500:1 dynamic range (MCP3905A / MCP3905L)
  • Programmable Gain Amplifier (PGA) for small signal inputs supports low value shunt current sensor
  • Ultra-low drift on-chip reference: 15 ppm/°C (typical)
  • Direct drive for electromagnetic mechanical counter and two-phase stepper motors
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The MCP3905L is an energy measurement IC supporting the IEC 62053 international energy metering specification. The output of the device includes a frequency proportional to the average active (real) power at the inputs as well as a higher frequency output proportional to the instantaneous power for meter calibration. The MCP3905L incorporates two 16-bit delta-sigma ADCs with a progammable gain up to 16, which enable small shunt meter designs for measuring a wide range of Ib and Imax currents. The integrated on-chip voltage reference has ultra-low temperature drift of 15 ppm per degree C. Also on-chip is a fixed-function DSP for active (real) power calculation. The MCP3905L offers reduced pulse width of calibration output frequency and mechanical counter drive for low power meter designs.

Additional Features
    • Supplies active (real) power measurement for single-phase, residential energy metering
    • Supports IEC 62053 International EnergyMetering Specification and legacy IEC1036/61036/687 Specifications
    • 16-bit, Delta-Sigma Analog-to-Digital Converters (ADCs)
    • Reduced pulse-width of calibration outputfrequency and mechanical counter drive for lowpower meter designs (MCP3905L)
    • Increased output frequency constant options formeter design (MCP3905L)
    • 0.1% typical measurement error over 500:1dynamic range (MCP3905A / MCP3905L)
    • Programmable Gain Amplifier (PGA) for smallsignal inputs supports low value shunt currentsensor
    • Ultra-low drift on-chip reference: 15 ppm/°C (typical)
    • Direct drive for electromagnetic mechanicalcounter and two-phase stepper motors
Parametrics
Name
Value
Measurement Error
0.1%
Dynamic Range
500:1
Gain Selection
1:16
Voltage Reference Drift Typical (ppm/°C)
15
PSRR % typ
0.01%
ADC Resolution (bits)
16
# of Channels
2
Power Type
Single-Phase
Device Type
Energy Meter IC
Interface
Pulse Output
Operating Voltage (V)
4.5 - 5.5
Temperature Range (°C)
-40 to 125

Documents

Jump to:

Data Sheet

07/22/2011
535KB

Brochures

Product Line Card

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
MCP3905 Energy Meter Evaluation Board
MCP3905 Energy Meter Evaluation Board ( MCP3905EV )

The MCP3905A Evaluation board is designed (using the new MCP3905A device) to test out a variety of energy meter designs. On the input side high voltage line and load AC-plug headers are included, along with mounting holes for shunts, current transformers, and screw-type connections for wiring. On the output side a large prototype area is included along with optical isolation and a standard PICtail...

Learn More
Add To Cart
MCP3905 Energy Meter Reference Design
MCP3905 Energy Meter Reference Design ( MCP3905RD-PM1 )

The MCP3905A Energy Meter Reference Design (using the new MCP3905A/06A device) is a stand-alone low cost energy meter. It can act as either a stand alone energy meter, or as the analog front end design for LCD microcontroller based meters. The MCP3905 design is specified with an energy measurement error of 0.1% typical across 1:500 dynamic range for high accurate energy meter designs. This...

Learn More
Add To Cart

Similar Devices

Product
No. of Channels
ADC Resolution (bits)
ADC SINAD (dB)
Price 5K
3
16
78
$0.67
6
16
78
$1.44
7
16
78
$2.28
3
24
84
$1.97
4
24
84
$2.49
7
24
84
$2.94
2
24
91
$1.44
6
24
91
$3.09
2
16
n/a
$1.34
2
16
n/a
$1.36
2
16
n/a
$1.47
2
16
82
$1.48
2
24
93.5
$1.46
2
24
94.5
$1.40
4
24
93.5
$2.34
6
24
94.5
$3.04
8
24
94.5
$3.76
1
24
93.5
$1.12
3
24
93.5
$1.84
2
24
94.5
$1.82
2
24
94.5
$1.82
2
24
94.5
$1.82
3
24
94.5
$1.82
2
24
94.5
$1.82
