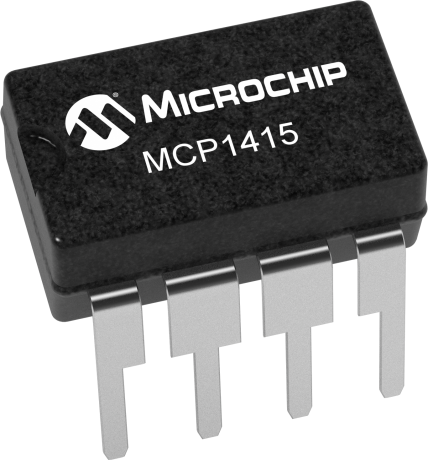

The MCP1415/16 devices are small footprint Low-Side MOSFET drivers capable of supplying 1.5A peak output current in a SOT23 5L package. The MCP1415 is an inverting lowside driver meaning that when the input signal is high, the output is low. The MCP1416 is a non-inverting lowside driver meaning that when the input signal is high, the output signal is also high. Although the name of the device is MOSFET driver, these devices have other applications besides driving the gate of a MOSFET. These devices are also used to direct drive a small DC motor, act as buffers for high speed data lines, and level translators to interface low voltage to high voltage.

• Latch-up Immunity: Highly Resistant to Ground Bounce and Negative Input Thresholds
• Matched Rise and Fall Times and Matched Propagation Delay Times
• Input Will Withstand Negative Swings of Up to 5V
• High Peak Output Source/Sink Current: 1.5A typically
• High Capacitive Load Drive Capability:
  • 470 pF in 10.0 ns (typ)
  • 1000 pF in 20.0 ns (typ)
• Wide Operating Range: 4.5V to 18V
• Low Output Impedance
• Low Supply Current:
  • 850 µA (With Logic '1' Input)
  • 100 µA (With Logic '0' Input)
• Can Withstand Up to 0.5 A of Output Reverse Current
• ESD Protected: 4 kV
• Low Shoot-Through / Cross-Conduction Current in Output Stage
• Immune to Double Pulsing the Output with Slow Ramping Input Signals
• Packaging: 5 Lead SOT-23
