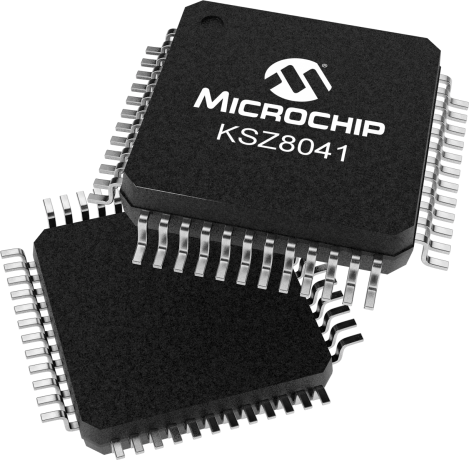

product primary image

KSZ8041

10/100 Ethernet Transceiver w/ Extended Temp

Status: In Production

Features:

  • Single-chip 10Base-T/100Base-TX physical layer solution
  • Fully compliant to IEEE 802.3u Standard
  • Power consumption of <180mW
  • Power down and power saving modes
  • Built-in 1.8V regulator for core
  • Single power supply (3.3V)
  • HP auto MDI/MDI-X for reliable detection and correction for straight-through and crossover cables with disable and enable option
  • Robust operation over standard cables
  • MII interface support (KSZ8041NL only)
  • External 50MHz system clock (KSZ8041NL or KSZ8041TL/FTL)
  • 25MHz crystal/clock input and 50MHz reference clock output to MAC (KSZ8041RNL)
  • External 125MHz system clock and 12.5MHz sync clock from MAC (KSZ8041TL/FTL only)
  • Fiber support 100Base-FX (KSZ8041FTL only)
  • MIIM (MDC/MDIO) management bus to 6.25MHz for rapid PHY register configuration
  • Interrupt pin option
  • Programmable LED outputs for link, activity and speed
  • ESD rating (6kV)
  • 32-pin QFN (5mm x 5mm)
  • 48-pin LQFP (KSZ8041MLL)
  • 48-pin TQFP (KSZ8041TL/FTL)
View More
Overview
Documents
Development Environment
RoHS Information
Buy Now

Device Overview

Summary

The KSZ8041 is a single supply 10Base-T/100Base-TX Physical Layer Transceiver, which provides MII/RMII/SMII interfaces to transmit and receive data. A unique mixed signal design extends signaling distance while reducing power consumption. HP Auto MDI/MDI-X provides the most robust solution for eliminating the need to differentiate between crossover and straight-through cables. The KSZ8041 represents a new level of features and performance and is an ideal choice of physical layer transceiver for 10Base-T/100Base-TX applications.

The KSZ8041RNL is an enhanced RMII version of the KSZ8041NL that does not require a 50MHz system clock. It uses a 25MHz crystal for its input reference clock and outputs a 50MHz RMII reference clock to the MAC. The KSZ8041NL and KSZ8041RNL are available in 32-pin, lead-free QFN packages. The KSZ8041TL and KSZ8041FTL are available in 48-pin, lead-free TQFP packages. The KSZ8041MLL is provided in the 48-pin, lead-free LQFP package.

Microchip's complimentary and confidential LANCheck® online design review service is available for customers who have selected our products for their application design-in. The LANCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features
    • Single-chip 10Base-T/100Base-TX physical layer solution
    • Fully compliant to IEEE 802.3u Standard
    • Low power
      • Power consumption of <180mW
      • Power down and power saving modes
      • Built-in 1.8V regulator for core
    • Single power supply (3.3V)
    • HP auto MDI/MDI-X for reliable detection and correction for straight-through and crossover cables with disable and enable option
    • Robust operation over standard cables
    • MII interface support (KSZ8041NL only)
    • RMII Interface Support
      • External 50MHz system clock (KSZ8041NL or KSZ8041TL/FTL)
      • 25MHz crystal/clock input and 50MHz reference clock output to MAC (KSZ8041RNL)
    • SMII Interface Support
      • External 125MHz system clock and 12.5MHz sync clock from MAC (KSZ8041TL/FTL only)
    • Fiber support 100Base-FX (KSZ8041FTL only)
    • MIIM (MDC/MDIO) management bus to 6.25MHz for rapid PHY register configuration
    • Interrupt pin option
    • Programmable LED outputs for link, activity and speed
    • ESD rating (6kV)
    • Variety of Packages
      • 32-pin QFN (5mm x 5mm)
      • 48-pin LQFP (KSZ8041MLL)
      • 48-pin TQFP (KSZ8041TL/FTL)
Parametrics
Name
Value
Description
10/100 Ethernet Transceiver with Extended Temperature Support
Ethernet Bandwidth
10/100Mbps / FX
LEDs
2
# of Ethernet Ports
1
Interface
MII/RMII/SMII
Temp. Range Min. (°C)
-40
Temp. Range Max. (°C)
85
HP-Auto MDIX
Yes
Automotive
Yes
Interface1
MII, RMII, SMI
Ethercat
Yes
Copper Support
Yes
Fiber Support
Yes
Supply Voltage (V)
3.3
Internal Regular
Yes
MAC I/O Voltage
3.3
Cable Diagnostics
Yes
Supports EtherCAT
Yes

Documents

Jump to:

Design Guides

02/19/2016
3129KB
02/19/2016
4507KB

IBIS

10/16/2015
67KB

Software Library

Development Environment

  • Demo & Evaluation Boards
  • Software Libraries
  • Application Examples
Demo & Evaluation Boards
KSZ8041NL EVAL BOARD
KSZ8041NL EVAL BOARD ( KSZ8041NL-EVAL )

The KSZ8041NL is a 10Base-T/100Base-TX Physical Layer Transceiver with MII and RMII MAC interfaces. It utilizes a unique mixed-signal design to extend signaling distance while reducing power consumption, and offers HP Auto MDI/MDI-X for reliable detection of and correction for crossover and straight-through cables, eliminating the need to differentiate between crossover and straight-through...

Learn More
Add To Cart
Software Libraries
Driver is located in Linux Kernel

The driver for this device resides in the Linux Kernel found here https://www.kernel.org/

Learn More

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
KSZ8041NL-AM-TR
0.064100
0.214000
32
VQFN
5x5x0.9mm
NiPdAu
e4
KSZ8041NLI-TR
0.061400
0.350000
32
VQFN
5x5x0.9mm
Matte Tin
e3
KSZ8041NLJ-TR
0.064100
0.214000
32
VQFN
5x5x0.9mm
NiPdAu
e4
KSZ8041NL-TR
0.061400
0.350000
32
VQFN
5x5x0.9mm
Matte Tin
e3
KSZ8041RNLI-TR
0.061400
0.350000
32
VQFN
5x5x0.9mm
Matte Tin
e3
KSZ8041RNL-TR
0.061400
0.350000
32
VQFN
5x5x0.9mm
Matte Tin
e3
KSZ8041NL-AM
0.064100
0.530612
32
VQFN
5x5x0.9mm
NiPdAu
e4
KSZ8041RNL
0.061400
0.408163
32
VQFN
5x5x0.9mm
Matte Tin
e3
KSZ8041NLI
0.061400
0.408163
32
VQFN
5x5x0.9mm
Matte Tin
e3
KSZ8041RNLI
0.061400
0.408163
32
VQFN
5x5x0.9mm
Matte Tin
e3
KSZ8041NL
0.061400
0.408163
32
VQFN
5x5x0.9mm
Matte Tin
e3
KSZ8041MLLI-TR
0.155500
0.768000
48
LQFP
7x7x1.4mm
Matte Tin
e3
KSZ8041MLL
0.155500
0.694000
48
LQFP
7x7x1.4mm
Matte Tin
e3
KSZ8041MLLI
0.155500
0.694000
48
LQFP
7x7x1.4mm
Matte Tin
e3
KSZ8041MLL-TR
0.155500
0.768000
48
LQFP
7x7x1.4mm
Matte Tin
e3
KSZ8041FTLI-TR
0.125200
0.738000
48
TQFP
7x7x1.0mm
Matte Tin
e3
KSZ8041TLI-TR
0.125200
0.738000
48
TQFP
7x7x1.0mm
Matte Tin
e3
KSZ8041FTL
0.125200
0.852000
48
TQFP
7x7x1.0mm
Matte Tin
e3
KSZ8041FTLI
0.125200
0.852000
48
TQFP
7x7x1.0mm
Matte Tin
e3
KSZ8041FTL-S
0.125200
0.852000
48
TQFP
7x7x1.0mm
Matte Tin
e3
KSZ8041FTL-TR
0.125200
0.738000
48
TQFP
7x7x1.0mm
Matte Tin
e3
KSZ8041TL
0.125200
0.852000
48
TQFP
7x7x1.0mm
Matte Tin
e3
KSZ8041TLI
0.125200
0.852000
48
TQFP
7x7x1.0mm
Matte Tin
e3
KSZ8041TLI-S
0.125200
0.852000
48
TQFP
7x7x1.0mm
Matte Tin
e3
KSZ8041TL-TR
0.125200
0.738000
48
TQFP
7x7x1.0mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
