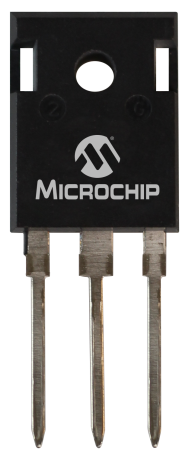

product primary image

IGBT-NPT-650V

650V Non-Punch-Thru IGBT

Status: In Production

Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The Ultra Fast NPT - IGBT® family of products is the newest generation of planar IGBTs optimized for outstanding ruggedness and the best trade-off between conduction and switching losses

Parametrics
Name
Value
Product Type
Discrete IGBT
[Power Dissipation [max] (W)]
543 - 892
[Collector Current (dc) [max] (A)]
56 - 100
Diode
FRED, No
