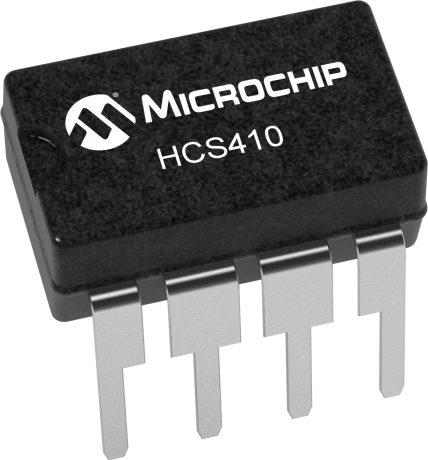

product primary image

HCS410

Status: In Production

Features:

  • Self-powered transponder and encoder, bi-directional authentication, user EEPROM, Queue counter
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The HCS410 is a code hopping transponder device designed for secure entry systems. The HCS410 utilizes the patented KEELOQ® code hopping system and bi-directional challenge-and-response for logical and physical access control. High security learning mechanisms make this a turnkey solution when used with the KEELOQ® decoders. The encoder keys and synchronization information are stored in protected on-chip EEPROM. A low cost batteryless transponder can be implemented with the addition of an inductor and two capacitors. A packaged module including the inductor and capacitor is also offered as the HCS410/WM. A single HCS410 can be used as an encoder for Remote Keyless Entry (RKE) and a transponder for immobilization in the same circuit and thereby dramatically reducing the cost of hybrid transmitter/transponder circuits.

Additional Features
Self-powered transponder and encoder, bi-directional authentication, user EEPROM, Queue counter
Parametrics
Name
Value
Protocols
9
Transmission Code Length Bits
69
Other Features
Self-powered transponder and encoder, bi-directional authentication, user EEPROM, Queue counter
Seed Length
60
Code Hoppings Bits
32
Operating Volage (V)
2.0 to 6.6
Tunable OSC
Yes
Function Codes
7
CRC
Yes

Documents

Jump to:

Data Sheets

User Guides

Development Environment

  • Integrated Development Environments
  • Programmers
Integrated Development Environments
MPLAB-X-IDE
MPLAB X Integrated Development Environment (IDE) ( MPLAB-X-IDE )

MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
MPLAB X IDE works seamlessly with the MPLAB development ecosystem of

...

Learn More
Programmers
MPLAB PM3 Universal Device Programmer
MPLAB PM3 Universal Device Programmer ( DV007004 )

The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

  • Socket: AC164301   PartNo: HCS410 (8P)
  • Socket: AC164302   PartNo: HCS410 (8SN)
Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
HCS410-I/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
HCS410T/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
HCS410T-I/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
HCS410/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
HCS410/P
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
HCS410-I/P
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
