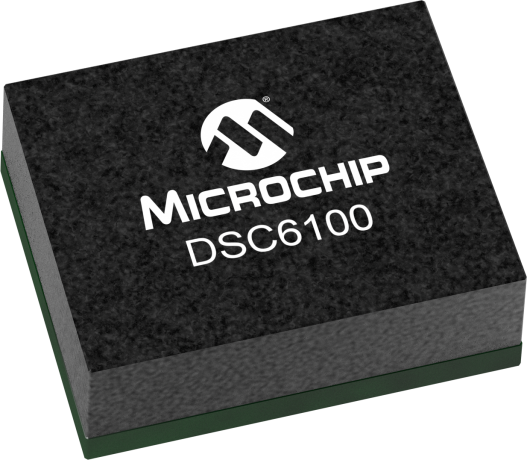

DSC6100

Recommended replacement: DSC6100B

Status: Not Recommended for new designs

Features:

  • 2 KHz to 100 MHz
  • Ultra–Low Power Consumption: 3 mA/12 µA (Active/Standby)
  • 1.6 mm x 1.2 mm
  • 2.0 mm x 1.6 mm
  • 2.5 mm x 2.0 mm
  • 3.2 mm x 2.5 mm
  • Frequency Select Input Supports 2 Predefined Frequencies
  • High Stability: ±25, ±50 ppm
  • Industrial: –40°C to 85°C
  • Ext. Commercial: –20° to 70°C
  • Qualified to MIL-STD-883
  • 20x Better MTTF Than Quartz Oscillators
  • Supply Range of 1.71V to 3.63V
  • Short Sample Lead Time: <2 weeks
  • Lead Free & RoHS Compliant
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The DSC6000 family of MEMS oscillators combine the industry leading low power consumption and ultra-small packages with exceptional frequency stability and jitter performance over temperature. The single-output DSC6000 MEMS oscillators are excellent choices for use as clock references in small, battery-powered devices such as wearable and Internet of Things (IoT) devices in which small size, low power consumption, and long-term reliability are paramount. They also meet the stringent mechanical durability and reliability requirements within Automotive Electronics Council standard Q100 (AEC-Q100), so they are well suited for under-hood applications as well.

The DSC6000 family consists of ultra-low power DSC60xx and a lower jitter version DSC61xx. They are available in ultra-small 1.6 mm x 1.2 mm and 2.0 mm x 1.6 mm packages. Other package sizes include: 2.5 mm x 2.0 mm and 3.2 mm x 2.5 mm. These packages are “drop-in” replacements for standard 4-pin CMOS quartz crystal oscillators.

Create an application specific part and order samples with the CLOCKWORKS CONFIGURATOR tool.



Please consider this device DSC6100B

Additional Features
    • Wide Frequency Range:
      • 2 KHz to 100 MHz
    • Ultra–Low Power Consumption: 3 mA/12 µA (Active/Standby)
    • Ultra-Small Footprints
      • 1.6 mm x 1.2 mm
      • 2.0 mm x 1.6 mm
      • 2.5 mm x 2.0 mm
      • 3.2 mm x 2.5 mm
    • Frequency Select Input Supports 2 Predefined Frequencies
    • High Stability: ±25, ±50 ppm
    • Wide Temperature Range
      • Industrial: –40°C to 85°C
      • Ext. Commercial: –20° to 70°C
    • Excellent Shock & Vibration Immunity
      • Qualified to MIL-STD-883
    • High Reliability
      • 20x Better MTTF Than Quartz Oscillators
    • Supply Range of 1.71V to 3.63V
    • Short Sample Lead Time: <2 weeks
    • Lead Free & RoHS Compliant
Parametrics
Name
Value
Supply Voltage (V)
1.71 - 3.63
Output Type
LVCMOS
Output Frequency Min (MHz)
0.002
Output Frequency Max (MHz)
100
# of Outputs
1
Output Logic
LVCMOS
Icc (mA)
3
Ultra Low Power
3
