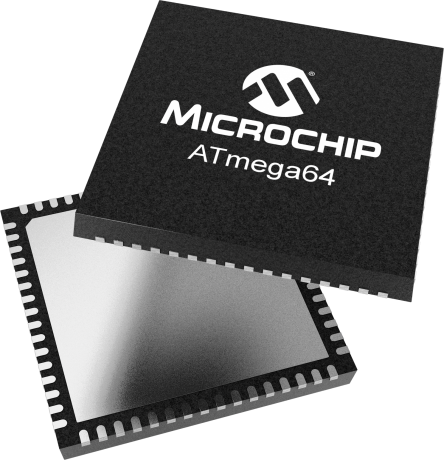

ATmega64

Status: In Production

Features:

  • 130 Powerful Instructions – Most Single Clock Cycle Execution
  •  32 x 8 General Purpose Working Registers + Peripheral
  • Control Registers
  • Fully Static Operation
  • Up to 16 MIPS Throughput at 16 MHz
  • On-chip 2-cycle Multiplier
  • 64Kbytes of In-System Reprogrammable Flash program memory
  • 2Kbytes EEPROM
  • 4Kbytes Internal SRAM
  • Write/Erase Cycles:
  • 10,000 Flash/100,000 EEPROM
  • Data retention: 20 years at 85°C/100 years at 25°C
  • Optional Boot Code Section with Independent Lock Bits
  • True Read-While-Write Operation
  • Up to 64Kbytes Optional
  • External Memory Space
  • Programming Lock for Software Security
  • SPI Interface for In-System Programming
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

Mature product; not recommended for new designs. Replaced by ATmega64A.

The ATmega64 is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega64 achieves throughputs approaching 1 MIPS per MHz, allowing the system designer to optimize power consumption versus processing speed.

Additional Features



    • Advanced RISC Architecture
      • 130 Powerful Instructions – Most Single Clock Cycle Execution
      •  32 x 8 General Purpose Working Registers + Peripheral
      • Control Registers
      • Fully Static Operation
      • Up to 16 MIPS Throughput at 16 MHz
      • On-chip 2-cycle Multiplier
      High Endurance Non-volatile Memory segments
      • 64Kbytes of In-System Reprogrammable Flash program memory
      • 2Kbytes EEPROM
      • 4Kbytes Internal SRAM
      • Write/Erase Cycles:
      • 10,000 Flash/100,000 EEPROM
      • Data retention: 20 years at 85°C/100 years at 25°C
      • Optional Boot Code Section with Independent Lock Bits
      • In-System Programming by On-chip Boot Program
        • True Read-While-Write Operation
        • Up to 64Kbytes Optional
      • External Memory Space
      • Programming Lock for Software Security
      • SPI Interface for In-System Programming



Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
64
CPU Speed (MIPS/DMIPS)
16
SRAM Bytes
4,096
Data EEPROM/HEF (bytes)
2048
Digital Communication Peripherals
2-UART, 1-SPI, 1-I2C
Capture/Compare/PWM Peripherals
2 Input Capture, 2 CCP, 8PWM
Timers
2 x 8-bit, 2 x 16-bit
Number of Comparators
1
Temperature Range (C)
-40 to 85
Operating Voltage Range (V)
2.7 to 5.5
Pin Count
64

Documents

Jump to:

Application Notes

Download All

Product Document

12/10/2016
2468KB

User Guides

08/02/2017
312KB

White Papers

Development Environment

  • Demo & Evaluation Boards
  • Emulators & Debuggers
  • Programmers
  • Application Examples
Demo & Evaluation Boards
Power Debugger kit
Power Debugger kit ( ATPOWERDEBUGGER )

Power Debugger is a powerful development tool for debugging and programming AVR microcontrollers using UPDI, JTAG, PDI, debugWIRE, aWire, TPI or SPI target interfaces and ARM® Cortex®-M based SAM microcontrollers using JTAG or SWD target interfaces.

In addition the Power Debugger has two independent current sensing channels for measuring and optimizing the power consumption of

...

Learn More
Add To Cart
ATSTK600 Kit
ATSTK600 Kit ( ATSTK600 )

A complete starter kit and development system for the 8-bit and 32-bit AVR microcontrollers that gives designers a quick start to develop code on the AVR, with advanced features for prototyping and testing new designs.

The AVR device connects to the STK600 using an innovative routing and socketcard sandwich system, which routes the signals from the device to the appropriate...

Learn More
Add To Cart
Emulators & Debuggers
MPLAB PICkit 4 In-Circuit Debugger
MPLAB PICkit 4 In-Circuit Debugger ( PG164140 )

Fast programming, increased functionality, at the same price as its predecessor.


The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC® ,  dsPIC®, and CEC flash microcontrollers, using the powerful graphical user interface of MPLAB X Integrated Development Environment

...

Learn More
Add To Cart
Programmers
MPLAB PICkit 4 In-Circuit Debugger
MPLAB PICkit 4 In-Circuit Debugger ( PG164140 )

Fast programming, increased functionality, at the same price as its predecessor.


The MPLAB® PICkit™ 4 In-Circuit Debugger/Programmer allows fast and easy debugging and programming of PIC® ,  dsPIC®, and CEC flash microcontrollers, using the powerful graphical user interface of MPLAB X Integrated Development Environment

...

Learn More
Add To Cart

Similar Devices

Product
Pins
Flash (KB)
RAM (B)
Price 5K
Notes
44
16
1,024
$3.22

44
16
1,024
$2.00

44
32
2,048
$3.91

44
32
2,048
$2.26

64
64
4,096
$5.66

64
64
4,096
$3.16

44
8
0
$1.94
