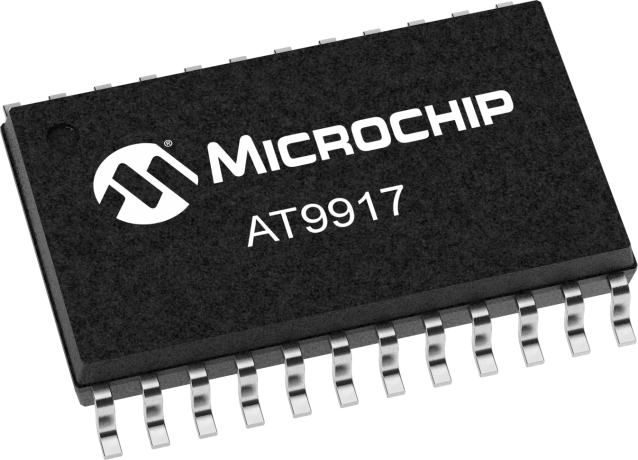

product primary image

AT9917

Automotive LED Driver IC w/ High Current Accuracy

Status: In Production

Features:

  • Switch mode controller for boost, SEPIC & buck converters
  • Closed loop control of output current
  • High PWM dimming ratio
  • Internal 40V linear regulator
  • Internal 3% voltage reference
  • Constant frequency operation with programmable slope compensation
  • Linear and PWM dimming
  • Programmable jitter to reduce EMI
  • +/-1.0A MOSFET gate driver
  • Output short circuit protection
  • Output over voltage protection
  • Programmable hiccup timer
  • Temperature fold-back with external NTC resistor
  • Soft start
  • Meets AEC-Q100 requirements
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The AT9917 is an advanced fixed frequency PWM IC designed to control single-switch, boost, SEPIC, and buck LED drivers in a constant current mode. The controller uses a peak current-mode control scheme (with programmable slope compensation) and includes an internal transconductance amplifier to control the output current with high accuracy. The IC includes a +/-1A gate driver that makes the AT9917 suitable for high power applications. An internal 40V linear regulator powers the IC eliminating the need for a separate power supply for the IC. The IC provides a FAULT output, which can be used to disconnect the LEDs in case of a fault condition (such as an alternator load dump in automobiles) using an external disconnect FET. AT9917 also provides a TTL compatible, low-frequency PWM dimming input that can accept an external control signal with a duty ratio of 0-100% and a frequency of up to several kilohertz. Temperature foldback of the output current is possible, using an external NTC resistor. The AT9917-based LED driver is suited for automotive LED driver applications. The AT9917 based LED lamp drivers can achieve efficiencies in excess of 90% when buck or boost topologies are used.

Additional Features
  • Switch mode controller for boost, SEPIC & buck converters
  • Closed loop control of output current
  • High PWM dimming ratio
  • Internal 40V linear regulator
  • Internal 3% voltage reference
  • Constant frequency operation with programmable slope compensation
  • Linear and PWM dimming
  • Programmable jitter to reduce EMI
  • +/-1.0A MOSFET gate driver
  • Output short circuit protection
  • Output over voltage protection
  • Programmable hiccup timer
  • Temperature fold-back with external NTC resistor
  • Soft start
  • Meets AEC-Q100 requirements
Parametrics
Name
Value
Topology
Boost, SEPIC
+Vin min (V)
5.3
+Vin max (V)
40
Output Current
External FET
Dimming
PWM / Linear
Package
TSSOP-24

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
Topology
+Vin min (V)
+Vin max (V)
Price 5K
Boost, SEPIC
5.3
40
$1.42
Buck
4.5
40
$0.73
Boost-Buck (Cuk)
5.3
40
$1.57
Boost-Buck (Cuk)
9
75
$0.90
Buck
4.5
42
$0.82

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT9917TS-G
0.073500
0.212400
24
TSSOP
4.4mm
Matte Tin
e3
AT9917TS-GVAO
0.073500
0.212400
24
TSSOP
4.4mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
