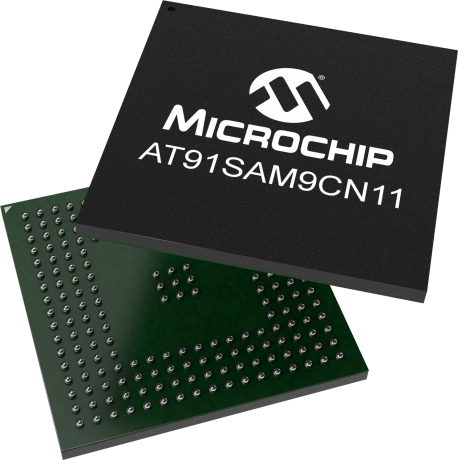

AT91SAM9CN11

Status: Not Recommended for new designs

Features:

  • ARM926EJ-S ARM® Thumb® Processor running up to 400 MHz
  • 16 Kbytes Data Cache, 16 Kbytes Instruction Cache, Memory Management Unit Memories
  • One 128-Kbyte internal ROM embedding standard or secure bootstrap routine
  • One 32-Kbyte internal SRAM, single-cycle access at system speed
  • 32-bit External Bus Interface supporting 8-bank DDR2/LPDDR, SDR/LPSDR, Static Memories
  • MLC/SLC NAND Controller, with up to 24-bit Programmable Multibit Error Correction Code (PMECC) System running up to 133 MHz
  • Power-on Reset, Reset Controller, Shutdown Controller, Periodic Interval Timer, Watchdog Timer and Real Time Clock
  • Boot Mode Select Option, Remap Command
  • Internal Low Power 32 kHz RC and Fast 12 MHz RC Oscillators
  • Selectable 32768 Hz Low-power Oscillator, 16 MHz Oscillator, one PLL for the system and one PLL optimized for USB
  • Six 32-bit-layer AHB Bus Matrix
  • Dual Peripheral Bridge with dedicated programmable clock
  • One dual port 8-channel DMA Controller
  • Advanced Interrupt Controller (AIC)
  • Two Programmable External Clock Signals
  • Low-power Mode
  • Shutdown Controller with four 32-bit General-purpose Backup Registers
  • Clock Generator and Power Management Controller
  • Very Slow Clock Operating Mode, Software Programmable Power Optimization Capabilities
  • LCD Controller
  • USB Device Full Speed with dedicated On-chip Transceiver
  • USB Host Full Speed with dedicated On-chip Transceiver
  • One High-speed SD card and SDIO Host Controller
  • Two Master/Slave Serial Peripheral Interfaces (SPI)
  • Two 3-channel 32-bit Timer/Counters (TC)
  • One Synchronous Serial Controller (SSC)
  • One 4-channel 16-bit PWM Controller
  • Two 2-wire Interfaces (TWI)
  • Four Universal Synchronous Asynchronous Receiver Transmitters (USART)
  • Two Universal Asynchronous Receiver Transmitters (UART)
  • One Debug Unit (DBGU)
  • One 12-channel 10-bit Analog-to-Digital Converter with up to 5-wire resistive Touchscreen support
  • Crystal Failure Detection
  • Independent Watchdog
  • Power-on Reset Cells
  • Register Write Protection
  • SHA (SHA1 and SHA256) Compliant with FIPS Publication 180-2 (SAM9CN11/SAM9CN12 devices)
  • True Random Number Generator (TRNG) compliant with NIST Special Publication 800-22
  • AES 256-, 192-, 128-bit Key Algorithm compliant with FIPS Publication 197 (SAM9CN11/SAM9CN12 devices)
  • 256 Fuse bits for crypto key and 64 Fuse bits for device configuration, including JTAG disable and forced boot from the on-chip ROM (Secure Boot feature - SAM9CN12 only)
  • Four 32-bit Parallel Input/Output Controllers
  • 105 Programmable I/O Lines Multiplexed with up to Three Peripheral I/Os
  • Input Change Interrupt Capability on Each I/O Line, optional Schmitt Trigger input
  • Individually Programmable Open-drain, Pull-up and Pull-down Resistor, Synchronous Output
  • 217-ball BGA, pitch 0.8 mm
  • 247-ball BGA, pitch 0.5 mm
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The Microchip's ARM®-based SAM9CN11 is an ARM926EJ-S based MPU that provides an encryption engine, user interface functionality and high-data-rate connectivity. Plus it offers power efficiency and reduced BOM cost, making it the ideal solution for cost-sensitive industrial applications that require security features in addition to graphics LCD and user interface software functionality.

Additional Features
    • Core:
      • ARM926EJ-S ARM® Thumb® Processor running up to 400 MHz
      • 16 Kbytes Data Cache, 16 Kbytes Instruction Cache, Memory Management Unit Memories
      • One 128-Kbyte internal ROM embedding standard or secure bootstrap routine
      • One 32-Kbyte internal SRAM, single-cycle access at system speed
      • 32-bit External Bus Interface supporting 8-bank DDR2/LPDDR, SDR/LPSDR, Static Memories
      • MLC/SLC NAND Controller, with up to 24-bit Programmable Multibit Error Correction Code (PMECC) System running up to 133 MHz
      • Power-on Reset, Reset Controller, Shutdown Controller, Periodic Interval Timer, Watchdog Timer and Real Time Clock
      • Boot Mode Select Option, Remap Command
      • Internal Low Power 32 kHz RC and Fast 12 MHz RC Oscillators
      • Selectable 32768 Hz Low-power Oscillator, 16 MHz Oscillator, one PLL for the system and one PLL optimized for USB
      • Six 32-bit-layer AHB Bus Matrix
      • Dual Peripheral Bridge with dedicated programmable clock
      • One dual port 8-channel DMA Controller
      • Advanced Interrupt Controller (AIC)
      • Two Programmable External Clock Signals
      • Low-power Mode
      • Shutdown Controller with four 32-bit General-purpose Backup Registers
      • Clock Generator and Power Management Controller
      • Very Slow Clock Operating Mode, Software Programmable Power Optimization Capabilities
    • Peripherals:
      • LCD Controller
      • USB Device Full Speed with dedicated On-chip Transceiver
      • USB Host Full Speed with dedicated On-chip Transceiver
      • One High-speed SD card and SDIO Host Controller
      • Two Master/Slave Serial Peripheral Interfaces (SPI)
      • Two 3-channel 32-bit Timer/Counters (TC)
      • One Synchronous Serial Controller (SSC)
      • One 4-channel 16-bit PWM Controller
      • Two 2-wire Interfaces (TWI)
      • Four Universal Synchronous Asynchronous Receiver Transmitters (USART)
      • Two Universal Asynchronous Receiver Transmitters (UART)
      • One Debug Unit (DBGU)
      • One 12-channel 10-bit Analog-to-Digital Converter with up to 5-wire resistive Touchscreen support
    • Safety:
      • Crystal Failure Detection
      • Independent Watchdog
      • Power-on Reset Cells
      • Register Write Protection
      • SHA (SHA1 and SHA256) Compliant with FIPS Publication 180-2 (SAM9CN11/SAM9CN12 devices)
    • Cryptography:
      • True Random Number Generator (TRNG) compliant with NIST Special Publication 800-22
      • AES 256-, 192-, 128-bit Key Algorithm compliant with FIPS Publication 197 (SAM9CN11/SAM9CN12 devices)
      • 256 Fuse bits for crypto key and 64 Fuse bits for device configuration, including JTAG disable and forced boot from the on-chip ROM (Secure Boot feature - SAM9CN12 only)
    • I/O:
      • Four 32-bit Parallel Input/Output Controllers
      • 105 Programmable I/O Lines Multiplexed with up to Three Peripheral I/Os
      • Input Change Interrupt Capability on Each I/O Line, optional Schmitt Trigger input
      • Individually Programmable Open-drain, Pull-up and Pull-down Resistor, Synchronous Output
    • Packages:
      • 217-ball BGA, pitch 0.8 mm
      • 247-ball BGA, pitch 0.5 mm
Parametrics
Name
Value
Part Family
SAM9N
Core
ARM926
Max CPU Speed (MHz)
400
Core Voltage Range (V)
0.9 to 1.1
Vbat/Vddbu battery backup
Yes
Internal Oscillator
32KHz
SRAM (KB)
32
L1 Cache Memory (Instructions) (KB)
16
L1 Cache Memory (Data) (KB)
16
DRAM Interface
SDRAM/LPSDRAM/LPDDR/DDR2
DRAM Bus Size (Bits)
16
NAND Interface
Yes
ECC Bits on NAND Interface
24
Number of EBIs
1
SDIO/SD-CARD/eMMC
1
Direct Memory Access Channels
19
Max I/O Pins
105
Pincount
217
UART
7
ISO 7816
4
SPI
6
I2C
2
SSC
1
LIN
Yes
USB Device Only Ports
1 FS
USB Host Only Ports
1 FS
Graphics Controller/GPU
Yes
Graphic LCD
24-bit
Crypto Engine
Yes
ADC Input
12
Max ADC Resolution (bits)
10
Max ADC Sampling Rate (ksps)
440
Hardware RTCC/RTC
Yes
Watch Dog Timer
Yes
Max 16-Bit Digital Timers
6
Input Capture
6
Standalone Output Compare/Standard PWM
6
Temperature Range (C)
-40 to 85

Documents

Jump to:

Board Design Files

User Guides

Development Environment

  • Software & Configurators
  • Emulators & Debuggers
  • Production Programmers
Software & Configurators
SAM-BA In-system Programmer
SAM-BA In-system Programmer ( SAM-BA In-system Programmer )

SAM-BA software provides an open set of tools for in-system programming of internal and external memories connected to our 32-MCUs and MPUs. You can program your device through the JTAG, debug UART or USB interfaces. If you use the MPU’s secure boot feature, you should use the Secure SAM-BA edition.

The latest generations of MPUs are supported on SAM-BA v3 available on the

...

Learn More
Emulators & Debuggers
J-32 Debug Probe
J-32 Debug Probe ( DV164232 )

The J-32 Debug Probe Debugger/Programmer provides affordable, fast and easy debugging and programming for Microchip’s PIC32 and SAM MCU and MPU products. Plus, SEGGER offers free, stand-alone applications to extend J-32 Debug Probe functionality:

J-32 Debug Probe is fully integrated into Microchip’s powerful MPLAB® X Integrated Development Environment and

...

Learn More
Add To Cart
Production Programmers
J-32 Debug Probe
J-32 Debug Probe ( DV164232 )

The J-32 Debug Probe Debugger/Programmer provides affordable, fast and easy debugging and programming for Microchip’s PIC32 and SAM MCU and MPU products. Plus, SEGGER offers free, stand-alone applications to extend J-32 Debug Probe functionality:

J-32 Debug Probe is fully integrated into Microchip’s powerful MPLAB® X Integrated Development Environment and

...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
AT91SAM9CN11-CU
0.526700
1.507937
217
LFBGA
15x15x1.46mm
SAC105
e8
AT91SAM9CN11-CUR
0.526700
1.452000
217
LFBGA
15x15x1.46mm
SAC105
e8
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
