PIC® MCUs for Closed-Loop Control


Design a fast, reliable real-time control system tailored to your application with the newest members of the PIC18-Q10 product family. You can use the Configurable Logic Cells (CLCs) available on the 28-pin PIC18F26Q10 and PIC18F27Q10 MCUs and 40-pin PIC18F45Q10PIC18F46Q10 and PIC18F47Q10 MCUs to create custom hardware-based logic functions. All devices in this family contain integrated Intelligent Analog, configurable peripherals and 5V operation for increased noise immunity. Each device also includes a full complement of Core Independent Peripherals (CIPs), including Cyclic Redundancy Check/Memory Scan (CRC/Scan), Windowed Watchdog Timer (WWDT) and Hardware Limit Timer (HLT) for use in safety-critical applications, as well as Pulse-Width Modulators (PWMs) and multiple communications interfaces. The Intelligent Analog peripherals include Zero Cross Detect (ZCD), on-chip comparators and an Analog-to-Digital Converter with Computation (ADC2). These MCUs are well suited for a broad range of industrial control, consumer, automotive, capacitive touch sensing and Internet of Things (IoT) applications.

Getting Started

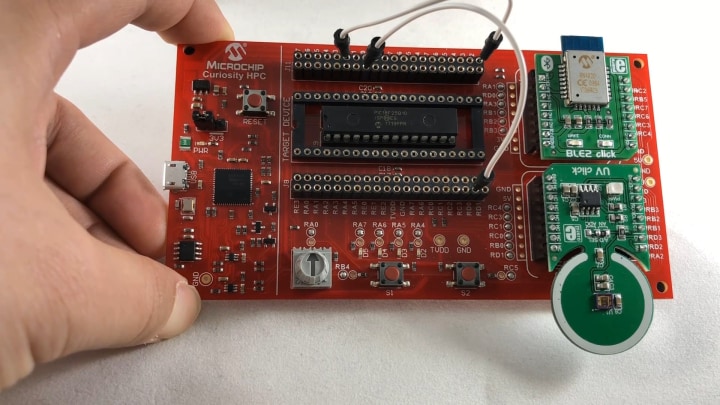

Take your next idea to market with a development board that you can keep in your pocket. With full program and debug capabilities, the PIC18F47Q10 Curiosity Nano Evaluation Kit offers complete support for your next design.

The PIC18-Q10 family is also supported by MPLAB® Code Configurator (MCC), a free software plug-in that provides a graphical interface to configure peripherals and functions specific to your application.  MCC is incorporated into our award-winning Integrated Development Environments (IDEs), the downloadable MPLAB X IDE and the cloud-based MPLAB Xpress IDE. Several code examples are available to help you get started immediately with your development.

Reliable and Deterministic Response


The PIC18-Q10 family of MCUs feature Core Independent Peripherals that provide the ability to accomplish tasks in hardware while freeing up the Central Processing Unit (CPU) to do other tasks or go to sleep to save power. The hardware-based peripherals offload timing-critical and core-intensive functions from the CPU, allowing it to focus on more complex tasks within the system. This decreases system complexity by eliminating additional code and external components, reduces power consumption, allowing for deterministic response time as well as decreased validation time.

Intelligent Analog


The products offer Intelligent Analog peripherals including Zero Cross Detect (ZCD), on-chip comparators and a 10-bit ADC with Computation (ADC2) automating Capacitive Voltage Divider (CVD) techniques for advanced touch sensing, averaging, filtering, oversampling and automatic threshold comparison.

PIC18-Q10 Key Attributes


  • 64 MHz internal oscillator
  • Up to 128 KB Flash program memory
  • Up to 1 KB data EEPROM
  • Up to 3615 B data SRAM
  • 10-bit ADC2 (ADC with Computation), up to 35 channels
  • Four 16-bit timers
  • Complementary Waveform Generator (CWG)
  • Two comparators
  • Zero Cross Detect (ZCD)
  • Windowed Watch Dog Timer (WWDT)
  • Peripheral Pin Select (PPS)
  • Data Signal Modulator (DSM)
  • Up to 8 Configurable Logic Cells (CLC)
  • 5-bit DAC
  • EUSART, SPI and I2C
  • Available in 28-, 40- and 44-pins

Building Blocks for Function Enablement


Analog to Digital Converter with Computation  (ADC2)
The Analog to Digital Converter with Computation helps accelerate common math tasks normally done in software by providing post-processing functions like averaging, low-pass filter, oversampling and threshold comparison.

Zero Cross Detect (ZCD)
The Zero Cross Detect module can monitor AC line voltage and indicate zero crossing activity. This information is made directly available to the on-board Waveform Generation peripherals for use in TRIAC control applications, greatly reducing both CPU demand and overall development cost by lowering the bill of materials.

10-bit PWM
The 10-bit PWM provides edge-aligned output which can be used with the Complementary Waveform Generator.

Complementary Waveform Generator (CWG)
The Complementary Waveform Generator provides a complementary waveform with rising and falling edge dead band control, enabling high-efficiency synchronous switching with no processor overhead. The CWG also incorporates auto shutdown, auto restart and can interface directly with other peripherals/external inputs.

Hardware Limit Timer (HLT)
The Hardware Limit Timer can detect faults in motors, power supplies, and other external devices. It can automatically notify the system to make provisions to shut down and/or safely restart.

CRC/SCAN module and Windowed Watchdog Timer (WWDT)
The CRC/SCAN module and the Windowed Watchdog Timer work in tandem to provide engineers with the tools necessary to incorporate functional safety into their application. By ensuring the integrity of the program FLASH contents, PICF19197 devices support the implementation of safety standards such as Class B and UL 1998.

Peripheral Pin Select (PPS)
Peripheral Pin Select provides ultimate flexibility when routing digital signals to device pins. With PPS, any digital peripheral can be connected to any I/O pin on-the-fly for a customized layout. This allows users to maintain layout compatibility with older PIC® MCUs, even as new features are implemented.

Capture Compare PWM (CCP)
The Capture Compare PWM provides 16-bit signal capture and compare, as well as 10-bit PWM output functionality.

Data Signal Modulator (DSM)
The Data Signal Modulator (DSM) offers smooth signal switching. When paired with a 16-bit PWM, LED dimming engine functionality is created.

Configurable Logic Cell
The Configurable Logic Cell offers hardware-based combinational and sequential logic functions to simplify and accelerate many common tasks. The CLC can also be used as “glue” logic between peripherals, eliminating the need for CPU intervention during steady-state activity in complex control loops.

Power Conserving Functionality
IDLE and DOZE low-power modes allow applications to optimize device performance and power consumption. The Peripheral Module Disable (PMD) allows unused peripherals to be turned off individually, further reducing power consumption. The device features the industry-leading eXtreme Lower Power (XLP) technology.

PIC18-Q10 Family Products

View All Parametrics
Product Program Memory Size (KB) SRAM (Bytes) Emulated EEPROM in Flash Pin count Operational Amplifier ADC Input Status 5K Pricing CPU Type Architecture Family Program Memory Size (KWords) Bootload capable Max I/O Pins Max CPU Speed (MHz) Peripheral Pin Select / Pin Muxing Vbat/Vddbu battery backup Brown-Out Reset Low Voltage Detection Power On Reset Internal Oscillator Hardware RTCC/RTC Watch Dog Timer Number of Comparators Number of ADCs Max ADC Resolution (Bits) Max ADC Sampling Rate (ksps) ADC with Computation Number of DACs DAC Outputs Max DAC Resolution (Bits) Internal Voltage Reference (Bandgap) Zero Cross detect Slope Compensation / Programmable Ramp Generator Data Signal Modulator CTMU Max 8-Bit Digital Timers Max 16-Bit Digital Timers Signal Measurement Timer Hardware Limit Timer Stand alone PWMs Capture / Compare/PWM (CCP) Enhanced Capture/Compare/PWM (ECCP) Max PWM outputs (including complementary) Number of PWM Time Bases PWM Max Resolution (Bits) Quadrature Encoder Interface Angular Timer Math Accelerator UART SPI I2C Number of USB Modules USB Interface USB Active Clock Tuning Number of CAN Modules CAN Transmit Buffers CAN Receive Buffers Ethernet LIN IrDA Parallel Port Class B Support CRC Configurable Logic Cell (CLC/CCL) Complementary Waveform Generator / Complementary Output Generator Numerically Controlled Oscillator Programmable Switched Mode Controller Hardware Touch Peripheral Hardware Direct Touch Channel Buttons Hardware Touch Matrix Nodes Touch Library Support Hardware Cap Voltage Divider Segmented LCD Keeloq Hardware Crypto Engine JTAG Temp Range Min Temp Range Max Operation Voltage Min (V) Operation Voltage Max (V) High Voltage Capable Packages
PIC18F26Q10 64 3615 1024 28 0 24 In Production $0.78 8-bit PIC MCU 8 8-bit MCU 32 No 25 64 Yes No BOR None Yes 64MHZ, 64KHz No Yes 2 1 10 100 Yes 1 1 5 Yes Yes 0 1 No 3 4 0 1 2 2 0 0 0 10 0 No No 2 2 2 0 None No 0 0 0 None Yes No No No Yes 8 1 0 0 ADC2 with HCVD 0 0 Yes 0 No No None -40 125 1.8 5.5 No 28/QFN, 28/SOIC, 28/SPDIP, 28/SSOP, 28/VQFN
PIC18F27Q10 128 3615 1024 28 0 24 In Production $0.89 8-bit PIC MCU 8 8-bit MCU 64 No 25 64 Yes No BOR None Yes 64MHZ, 64KHz No Yes 2 1 10 100 Yes 1 1 5 Yes Yes 0 1 No 3 4 0 1 2 2 0 0 0 10 0 No No 2 2 2 0 None No 0 0 0 None Yes No No No Yes 8 1 0 0 ADC2 with HCVD 0 0 Yes 0 No No None -40 125 1.8 5.5 No 28/QFN, 28/SOIC, 28/SPDIP, 28/SSOP, 28/VQFN
PIC18F46Q10 64 3615 1024 40 0 35 In Production $1.01 8-bit PIC MCU 8 8-bit MCU 32 No 36 64 Yes No BOR None Yes 64MHZ, 64KHz No Yes 2 1 10 0 Yes 1 1 5 Yes Yes 0 1 No 3 4 0 1 2 2 0 0 0 10 0 No No 2 2 2 0 None No 0 0 0 None Yes No No No Yes 8 1 0 0 ADC2 with HCVD 0 0 Yes 0 No No None -40 125 1.8 5.5 No 40/PDIP, 40/QFN, 44/TQFP
PIC18F47Q10 128 3615 1024 40 0 35 In Production $1.10 8-bit PIC MCU 8 8-bit MCU 64 No 36 64 Yes No BOR None Yes 64MHZ, 64KHz No Yes 2 1 10 0 Yes 1 1 5 Yes Yes 0 1 No 3 4 0 1 2 2 0 6 0 10 0 No No 2 2 2 0 None No 0 0 0 None Yes No No No Yes 8 1 0 0 ADC2 with HCVD 0 0 Yes 0 No No None -40 125 1.8 5.5 No 40/PDIP, 40/QFN, 44/TQFP
PIC18F24Q10 16 1024 256 28 0 24 In Production $0.65 8-bit PIC MCU 8 8-bit MCU 8 No 25 64 Yes No BOR None Yes 64MHZ, 64KHz No Yes 2 1 10 100 Yes 1 1 5 Yes Yes 0 1 No 3 4 0 1 2 2 0 0 0 10 0 No No 1 1 1 0 None No 0 0 0 None Yes No No No Yes 0 1 0 0 ADC2 with HCVD 0 0 Yes 0 No No None -40 125 1.8 5.5 No 28/QFN, 28/SOIC, 28/SPDIP, 28/SSOP, 28/VQFN
PIC18F25Q10 32 2048 256 28 0 24 In Production $0.71 8-bit PIC MCU 8 8-bit MCU 16 No 25 64 Yes No BOR None Yes 64MHZ, 64KHz No Yes 2 1 10 100 Yes 1 1 5 Yes Yes 0 1 No 3 4 0 1 2 2 0 0 0 10 0 No No 1 1 1 0 None No 0 0 0 None Yes No No No Yes 0 1 0 0 ADC2 with HCVD 0 0 Yes 0 No No None -40 125 1.8 5.5 No 28/QFN, 28/SOIC, 28/SPDIP, 28/SSOP, 28/VQFN
PIC18F45Q10 32 2048 256 40 0 35 In Production $0.96 8-bit PIC MCU 8 8-bit MCU 16 No 36 64 Yes No BOR None Yes 64MHZ, 64KHz No Yes 2 1 10 0 Yes 1 1 5 Yes Yes 0 1 No 3 4 0 1 2 2 0 0 0 10 0 No No 2 2 2 0 None No 0 0 0 None Yes No No No Yes 8 1 0 0 ADC2 with HCVD 0 0 Yes 0 No No None -40 125 1.8 5.5 No 40/PDIP, 40/QFN, 44/TQFP

PIC18-Q10 Product Family

The PIC18 Q10 family of microcontrollers is optimized for robust, real time control with integrated intelligent analog, configurable peripherals and 5V operation for increased noise immunity. Each device includes a full complement of Core Independent Peripherals for safety critical applications, PWMs, multiple communications interfaces and an 10- Analog-to-Digital Converter with Computation (ADC2) that performs advanced calculations and filtering of data in hardware without any intervention from the core. They are well suited for a broad range of applications including industrial control, consumer, automotive, touch sensing and Internet of Things (IoT).
