5V SAM C Microcontrollers Based on Arm® Cortex®-M0+ Core
The SAM C Arm Cortex-M0+-based microcontroller (MCU) series builds on decades of innovation and experience in embedded Flash microcontroller technology. It not only sets a new benchmark for flexibility and ease of use, but also combines the performance and energy efficiency of an Arm Cortex-M0+ based MCU with an optimized architecture and peripheral set. SAM C devices are truly differentiated 5V MCUs that are ideal for home appliances, industrial control and other 5V applications.
Start Your New Design With Improved, Enhanced and Lower-Cost PIC32C MCUs
Compatible products with expanded options or features and that support the same set of 5V applications as SAM C MCUs include:
PIC32CM MC Family
- Cost optimized for motor and industrial control applications
- Extended memory option of 128 KB Flash and 16 KB RAM
- Pin compatible with SAM C MCUs in 32- and 48-pin packages
- Advanced analog peripherals for motor control
PIC32CM JH Family
- Extended memory options of up to 512 KB Flash and 64 KB RAM
- Enhanced capacitive touch
- Secure boot option
- Pin compatible with SAM C MCUs in 32-, 48- and 64-pin packages

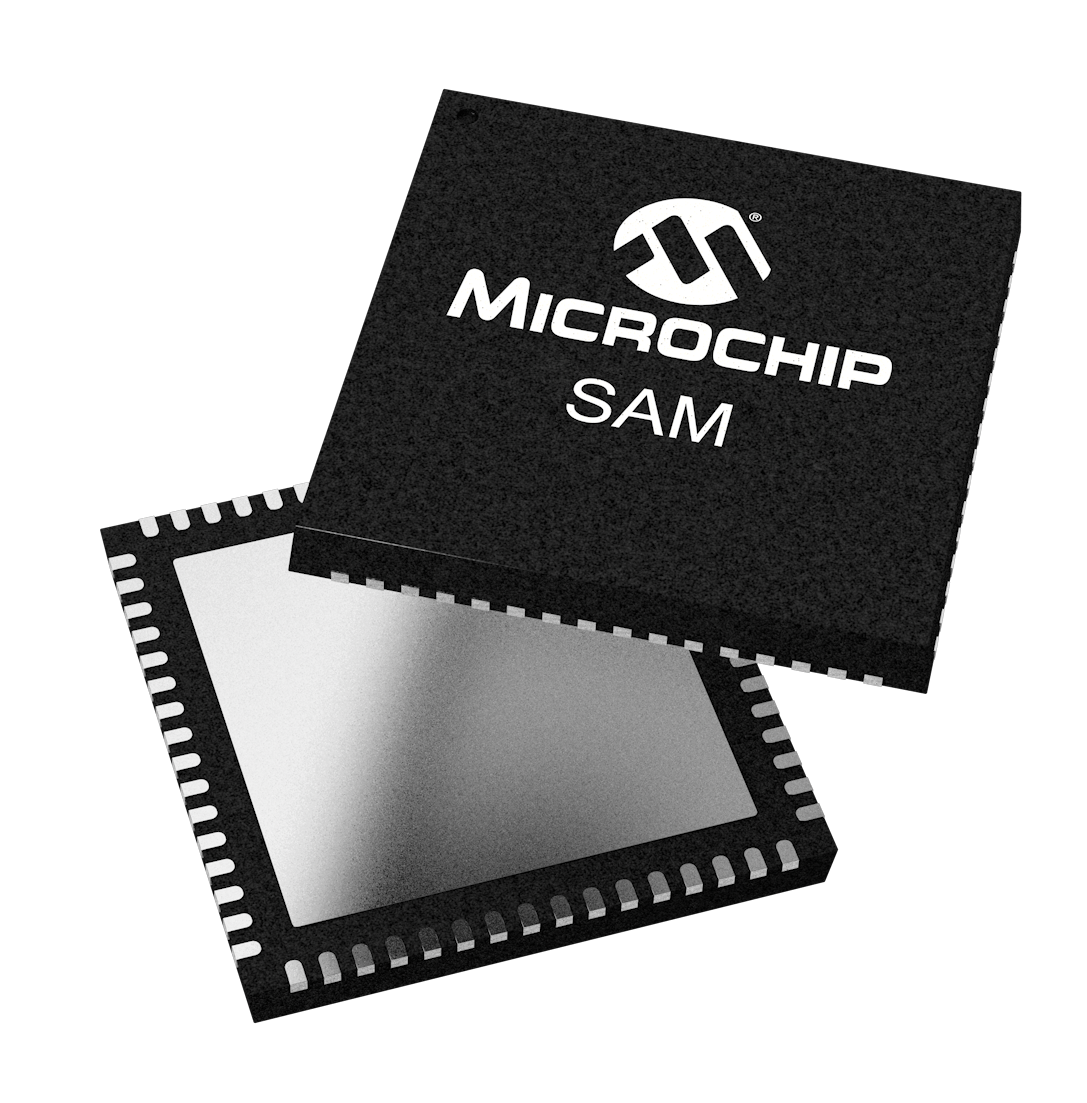

SAM C Arm® Cortex®-M0+-Based Microcontrollers (MCUs)
SAM C20 MCUs
SAM C20 devices integrate high-precision 12-bit analog and internal oscillators, five 16-bit timer/counters (SAM C20J and SAM C20G, and three in SAM C20E), 32-bit Real-Time Clock and Calendar (RTCC), real-time performance, peripheral event system and flexible clocking options and sleep modes. The devices also include six (SAM C20J and SAM C20G, four in the SAM C20E) serial communication modules (SERCOMs) that can be configured from the application to act as an USART, UART, SPI and I2C. The series supports button, slider and wheel touch capability without the need for external components.
Key Features
- Arm Cortex-M0+ based MCU running up to 48 MHz
- Up to 256 KB embedded Flash and 32 KB SRAM
- 2.7V to 5.5V operating voltage
- Up to eight flexible serial communication modules (SERCOMs)
- 12-bit Analog-to-Digital Converter (ADC)
- Hardware touch support with Peripheral Touch Controller
- QFP, QFN and WLCSP package options
SAM C21 MCUs
SAM C21 devices integrate high-precision 12-bit analog and internal oscillators, five 16-bit timer/counters, three timer/counters for control applications, 32-bit RTCC, real-time performance, peripheral event system, DMA, temperature sensor, divide and square root accelerator, 16-bit sigma-delta ADC (SDADC) and flexible clocking options and sleep modes. The devices also include up to two CAN interfaces with CAN FD 1.0 support. There are up to eight SERCOMs that can be configured from the application to act as an USART, UART, SPI, I2C, RS485 and LIN bus. The series supports button, slider and wheel touch capability without the need for external components.
Key Features
- Arm Cortex-M0+ based MCU running up to 48 MHz
- Up to 256 KB embedded Flash and 32 KB SRAM
- 2.7V to 5.5V operating voltage
- CAN interface supporting ISO CAN FD; ISO 11898-2:2015
- DMA and Event system
- Up to eight flexible SERCOMs
- 12-bit ADC
- 16-bit SDADC
- Temperature sensor
- Divide and square root accelerator (DIVAS)
- Hardware touch support with the Peripheral Touch Controller
- QFP, QFN and WLCSP package options
Target Applications
SAM C and PIC32 C Family of Microcontrollers
- SAM C Family of Microcontrollers
- 32-bit SAM and PIC32C Microcontrollers
Similar Devices
Loading
Similar Devices
SAMC21N Xplained Pro Evaluation Kit
Part Number: ATSAMC21N-XPRO

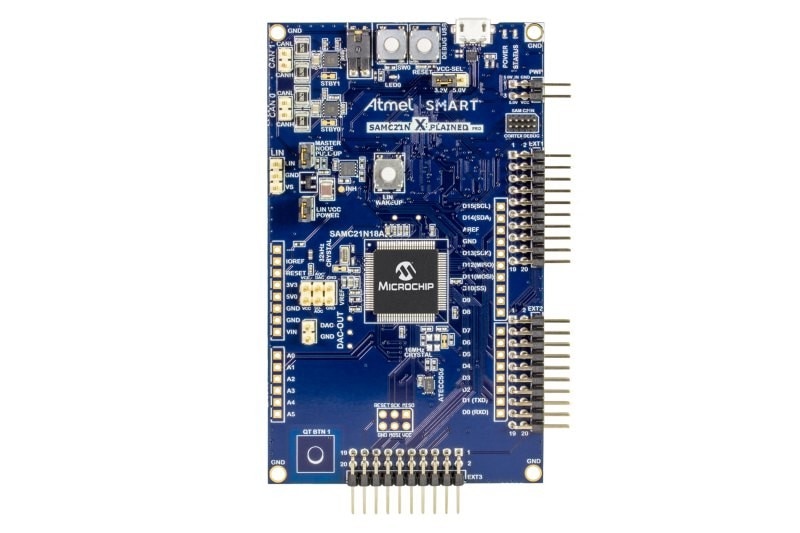

The SAMC21N Xplained Pro evaluation kit is a hardware platform for evaluating the ATSAMC21N18A microcontroller (MCU). Supported by the Studio integrated development platform, the kit provides easy access to the features of the ATSAMC21N18A and explains how to integrate the device into a custom design.
SAM C21 Xplained Pro Evaluation Kit
Part Number: ATSAMC21-XPRO

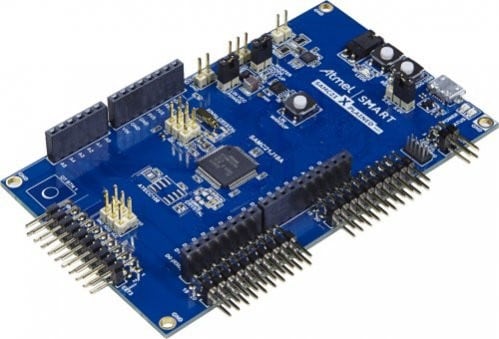

The SAM C21 Xplained Pro evaluation kit is a hardware platform for evaluating the ATSAMC21J18A microcontroller (MCU). Supported by the Studio integrated development platform, the kit provides easy access to the features of the ATSAMC21J18A and explains how to integrate the device into a custom design.
SAM C Family Motor Control Plug-In-Module
Part Number: MA320206
The SAMC21 Plug-In-Module (PIM) is designed to support motor control application development utilizing the following two products:
This PIM is intended for motor control application development of various BLDC-, PMSM- and ACIM-type motor and drive systems.
MPLAB® X Integrated Development Environment (IDE)
MPLAB X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers and digital signal controllers. MPLAB X IDE works seamlessly with the MPLAB development ecosystem of software and tools, many of which are completely free.
MPLAB® Harmony v3 Software Framework
MPLAB Harmony v3 is a flexible, fully integrated embedded software development framework for 32-bit microcontrollers (MCUs). It enables robust framework development of interoperable RTOS-friendly libraries with quick and extensive Microchip support for third-party software integration. MPLAB Harmony includes a set of peripheral libraries, drivers and system services that are readily accessible for application development. The code development format allows for maximum re-use and reduces time to market.
- Application Notes
- Brochures
- Data Sheets
- Errata
- Product Documents
- Technical Briefs
|
Title
|
|
|---|---|
| AN_42644 - AT12200: SAM C Divide and Square Root Accelerator (DIVAS) Driver | Download |
| AN_42647 - AT13486: SAM C System Clock Management (SYSTEM CLOCK) Driver | Download |
| AN_42701 - AT12198: SAM C Brown Out Detector (BOD) Driver | Download |
| AN_42496 - AT12199: SAM C21 Sigma-Delta Analog-to-Digital Converter (SDADC) Drive | Download |
| AN_42465 - AT6486: Using DIVAS on SAMC Microcontroller | Download |
| AN_42470 - AT6490: Using LIN on SAMC Microcontroller | Download |
| AN_42466 - AT6491: Getting Started with SAM C21 | Download |
| AN_42484 - AT13485: SAM C System (SYSTEM) Driver | Download |
| AN_42115 - AT03255: SAM D/R/L/C Serial Peripheral Interface (SERCOM SPI) Driver | Download |
| SAM-BA Monitor for ROMless Cortex M Devices - SAM-BA® Monitor for ROMless Cortex Devices Application Note | Download |
| AN2465 - SAM D21 SERCOM SPI Configuration | Download |
| AN_42256 - AT07058: SAM D10/D11/D21/DA1/R/L/C Timer Counter for Control Applications (TCC) Driver | Download |
| AN_42257 - AT07683: SAM D09/D10/D11/D21/DA1/R/L/C Direct Memory Access Controller (DMAC) Driver | Download |
| AN_42118 - AT03256: SAM D/R/L/C Serial USART (SERCOM USART) Driver | Download |
| AN_42125 - AT03265: SAM D10/D11/D20/D21/R/L/C EEPROM Emulator (EEPROM) Service | Download |
| AN_42121 - AT03262: SAM D/R/L/C System Pin Multiplexer (SYSTEM PINMUX) Driver | Download |
| AN_42126 - AT03266: SAM D/R/L/C RTC Calendar (RTC CAL) Driver | Download |
| AN_42123 - AT03263: SAM D/R/L/C Timer Counter (TC) Driver | Download |
| AN_42122 - AT03261: SAM D/R/L/C System Interrupt (SYSTEM INTERRUPT) Driver | Download |
| AN_42124 - AT03264: SAM D/R/L/C Watchdog (WDT) Driver | Download |
| AN_42114 - AT03247: SAM D/R/L/C Non-Volatile Memory (NVM) Driver | Download |
| AN_42107 - AT03229: SAM D/R/L/C Peripheral Access Controller (PAC) Driver | Download |
| AN_42116 - AT03254: SAM D/R/L/C I2C Slave Mode (SERCOM I2C) Driver | Download |
| AN_42106 - AT03242: SAM D20/D21/D10/D11/DA1/L/C Analog Comparator (AC) Driver | Download |
| AN_42112 - AT03246: SAM D/R/L/C External Interrupt (EXTINT) Driver | Download |
| AN_42108 - AT03245: SAM D/R/L/C Event System (EVENTS) Driver | Download |
| AN_42117 - AT03250: SAM D/R/L/C I2C Master Mode (SERCOM I2C) Driver | Download |
| AN_42111 - AT03249: SAM D/R/L/C RTC Count (RTC COUNT) Driver | Download |
| AN_42113 - AT03248: SAM D/R/L/C Port (PORT) Driver | Download |
| Production Programming of Microchip AVR and SAM Microcontrollers | Download |
| Using Atmel-ICE for AVR Programming In Mass Production | Download |
| AN_42728 - AT15004:Using SAM-BA for Linux on SAM Devices | Download |
| AN_42382 - AT04056: Getting Started with FreeRTOS on SAM Flash MCUs | Download |
| EMI, EMC, EFT, and ESD Circuit Design Consideration for 32-bit Microcontrollers Application Note | Download |
| AN_42468 - AT8547: RS-485 Communications using the SAM C21 Xplained Pro and RS-485 Xplained Pro | Download |
| AN_42467 - AT10294: Using the Sigma-Delta Analog to Digital Converter on SAMC MCU (SDADC) | Download |
| AN_42464 - AT6493: SAM C21/CAN BUS/Firmware | Download |
| AN_42448 - AT10942: SAM Configurable Custom Logic (CCL) Driver | Download |
| AN_42451 - AT11380: SAM L/C Analog-to-Digital Converter (ADC) Driver | Download |
| AN_42506 - AT13481: SAM L22/C21/C20 Frequency Meter (FREQM) Driver | Download |
| AN_42438 - AT09423: SAM-BA Overview and Customization Process | Download |
| SERCOM USART on Microchip Cortex Devices (SAM and PIC32C) | Download |
|
Title
|
|
|---|---|
| SAM C20/C21 Family Data Sheet | Download |
|
Title
|
|
|---|---|
| Basic 32-Bit MCU Design and Troubleshooting Checklist | Download |
|
Title
|
|
|---|---|
| Clock System Configuration and Usage on SAM C2x (Cortex M0+) Devices | Download |
| The Difference Between MPLAB Harmony v3 PLIBs and Drivers, and When to Use Them | Download |
