PIC32MZ EF Family

Highest-Performance PIC32 Microcontrollers with Floating Point Unit (FPU) and Advanced Peripheral set

The PIC32MZ EF series of high-performance microcontrollers (MCUs) with industry-leading connectivity and peripheral options has been created to empower you to build complex applications quickly. These devices are fully supported by the MPLAB® Harmony integrated software framework, which features software solutions to accelerate the development of graphics and connectivity applications.

Key Features

  • 252 MHz/415 DMIPS performance
  • Up to 2 MB dual-panel live update Flash and 512 KB RAM
  • Excellent  connectivity options (Hi-Speed USB, CAN, and 10/100 Ethernet)
  • Integrated double-precision FPU accelerating performance in process-intensive applications
  • Optional full-featured hardware crypto accelerator
  • Rich peripheral set
  • Extended temperature and AECQ-100 Grade 1 qualification

PIC32MZ EF Family Products

View All Parametrics
Product Status Automotive Recommended 5K Pricing Class B Safety Library CPU Type Architecture Max CPU Speed (MHz) Program Memory Size (KB) SRAM (KB) DRAM Interface Data EEPROM/HEF (Bytes) Auxiliary Flash (KB) SDIO/SD-CARD/eMMC Temperature Range Operation Voltage Range Integrated HW Graphics Controller Direct Memory Access Channels ADC Input Max ADC Resolution (Bits) Number of DACs USB Interface Number of USB Modules Number of Comparators Timers Capture/Compare/PWM Peripherals Motor Control PWM Outputs UART/SPI/I2C Number of Op Amps I2S Peripheral Pin Select / Pin Muxing Vbat/Vddbu battery backup Low Power External Memory Bus Interface QSPI Quadrature Encoder Interface Crypto Engine Hardware Touch Peripheral Number of CAN Modules Type of CAN module Ethernet Pin count Packages
PIC32MZ0512EFE064 In Production Yes $6.00 Yes 32-bit MIPS MCU 32 200 512 128 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 24 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 4 -SPI 4 -I2C 0 4 Yes No No No 1 0 No 0 None 10/100 Base-TX Mac 64 64/QFN, 64/TQFP
PIC32MZ0512EFE100 In Production Yes $6.47 Yes 32-bit MIPS MCU 32 200 512 128 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 40 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 0 None 10/100 Base-TX Mac 100 100/TFBGA, 100/TQFP
PIC32MZ0512EFE124 In Production Yes $6.91 Yes 32-bit MIPS MCU 32 200 512 128 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 0 None 10/100 Base-TX Mac 124 124/VTLA
PIC32MZ0512EFE144 In Production Yes $7.06 Yes 32-bit MIPS MCU 32 200 512 128 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 0 None 10/100 Base-TX Mac 144 144/LQFP, 144/TFBGA, 144/TQFP
PIC32MZ0512EFF064 In Production Yes $6.14 Yes 32-bit MIPS MCU 32 200 512 128 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 24 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 4 -SPI 4 -I2C 0 4 Yes No No No 1 0 No 2 CAN 10/100 Base-TX Mac 64 64/QFN, 64/TQFP
PIC32MZ0512EFF100 In Production Yes $6.62 Yes 32-bit MIPS MCU 32 200 512 128 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 40 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 2 CAN 10/100 Base-TX Mac 100 100/TFBGA, 100/TQFP
PIC32MZ0512EFF124 In Production Yes $7.06 Yes 32-bit MIPS MCU 32 200 512 128 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 2 CAN 10/100 Base-TX Mac 124 124/VTLA
PIC32MZ0512EFF144 In Production Yes $7.20 Yes 32-bit MIPS MCU 32 200 512 128 No 0 160 0 -40 to 125 2.2V - 3.6V No 15 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 2 CAN 10/100 Base-TX Mac 144 144/LQFP, 144/TFBGA, 144/TQFP
PIC32MZ0512EFK064 In Production Yes $6.29 Yes 32-bit MIPS MCU 32 200 512 128 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 24 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 4 -SPI 4 -I2C 0 4 Yes No No No 1 0 Yes 2 CAN 10/100 Base-TX Mac 64 64/QFN, 64/TQFP
PIC32MZ0512EFK100 In Production Yes $6.76 Yes 32-bit MIPS MCU 32 200 512 128 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 40 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 Yes 2 CAN 10/100 Base-TX Mac 100 100/TFBGA, 100/TQFP
PIC32MZ0512EFK124 In Production Yes $7.20 Yes 32-bit MIPS MCU 32 200 512 128 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 Yes 2 CAN 10/100 Base-TX Mac 124 124/VTLA
PIC32MZ0512EFK144 In Production Yes $7.35 Yes 32-bit MIPS MCU 32 200 512 128 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 Yes 2 CAN 10/100 Base-TX Mac 144 144/LQFP, 144/TFBGA, 144/TQFP
PIC32MZ1024EFE064 In Production Yes $6.44 Yes 32-bit MIPS MCU 32 200 1024 256 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 24 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 4 -SPI 4 -I2C 0 4 Yes No No No 1 0 No 0 None 10/100 Base-TX Mac 64 64/QFN, 64/TQFP
PIC32MZ1024EFE100 In Production Yes $6.91 Yes 32-bit MIPS MCU 32 200 1024 256 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 40 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 0 None 10/100 Base-TX Mac 100 100/TFBGA, 100/TQFP
PIC32MZ1024EFE124 In Production Yes $7.35 Yes 32-bit MIPS MCU 32 200 1024 256 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 0 None 10/100 Base-TX Mac 124 124/VTLA
PIC32MZ1024EFE144 In Production Yes $7.50 Yes 32-bit MIPS MCU 32 200 1024 256 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 0 None 10/100 Base-TX Mac 144 144/LQFP, 144/TFBGA, 144/TQFP
PIC32MZ1024EFF064 In Production Yes $6.58 Yes 32-bit MIPS MCU 32 200 1024 256 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 24 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 4 -SPI 4 -I2C 0 4 Yes No No No 1 0 No 2 CAN 10/100 Base-TX Mac 64 64/QFN, 64/TQFP
PIC32MZ1024EFF100 In Production Yes $7.06 Yes 32-bit MIPS MCU 32 200 1024 256 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 40 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 2 CAN 10/100 Base-TX Mac 100 100/TFBGA, 100/TQFP
PIC32MZ1024EFF124 In Production Yes $7.50 Yes 32-bit MIPS MCU 32 200 1024 256 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 2 CAN 10/100 Base-TX Mac 124 124/VTLA
PIC32MZ1024EFF144 In Production Yes $7.64 Yes 32-bit MIPS MCU 32 200 1024 256 No 0 160 0 -40 to 125 2.2V - 3.6V No 15 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 2 CAN 10/100 Base-TX Mac 144 144/LQFP, 144/TFBGA, 144/TQFP
PIC32MZ1024EFK064 In Production Yes $6.73 Yes 32-bit MIPS MCU 32 200 1024 256 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 24 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 4 -SPI 4 -I2C 0 4 Yes No No No 1 0 Yes 2 CAN 10/100 Base-TX Mac 64 64/QFN, 64/TQFP
PIC32MZ1024EFK100 In Production Yes $7.20 Yes 32-bit MIPS MCU 32 200 1024 256 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 40 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 Yes 2 CAN 10/100 Base-TX Mac 100 100/TFBGA, 100/TQFP
PIC32MZ1024EFK124 In Production Yes $7.64 Yes 32-bit MIPS MCU 32 200 1024 256 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 Yes 2 CAN 10/100 Base-TX Mac 124 124/VTLA
PIC32MZ1024EFK144 In Production Yes $7.79 Yes 32-bit MIPS MCU 32 200 1024 256 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 Yes 2 CAN 10/100 Base-TX Mac 144 144/LQFP, 144/TFBGA, 144/TQFP
PIC32MZ1024EFG064 In Production Yes $7.17 Yes 32-bit MIPS MCU 32 200 1024 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 24 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 4 -SPI 4 -I2C 0 4 Yes No No No 1 0 No 0 None 10/100 Base-TX Mac 64 64/QFN, 64/TQFP
PIC32MZ1024EFG100 In Production Yes $7.64 Yes 32-bit MIPS MCU 32 200 1024 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 40 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 0 None 10/100 Base-TX Mac 100 100/TFBGA, 100/TQFP
PIC32MZ1024EFG124 In Production Yes $8.09 Yes 32-bit MIPS MCU 32 200 1024 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 0 None 10/100 Base-TX Mac 124 124/VTLA
PIC32MZ1024EFG144 In Production Yes $8.23 Yes 32-bit MIPS MCU 32 200 1024 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 0 None 10/100 Base-TX Mac 144 144/LQFP, 144/TFBGA, 144/TQFP
PIC32MZ1024EFH064 In Production Yes $7.32 Yes 32-bit MIPS MCU 32 200 1024 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 24 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 4 -SPI 4 -I2C 0 4 Yes No No No 1 0 No 2 CAN 10/100 Base-TX Mac 64 64/QFN, 64/TQFP
PIC32MZ1024EFH100 In Production Yes $7.79 Yes 32-bit MIPS MCU 32 200 1024 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 40 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 2 CAN 10/100 Base-TX Mac 100 100/TFBGA, 100/TQFP
PIC32MZ1024EFH124 In Production Yes $8.23 Yes 32-bit MIPS MCU 32 200 1024 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 2 CAN 10/100 Base-TX Mac 124 124/VTLA
PIC32MZ1024EFH144 In Production Yes $8.38 Yes 32-bit MIPS MCU 32 200 1024 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 15 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 2 CAN 10/100 Base-TX Mac 144 144/LQFP, 144/TFBGA, 144/TQFP
PIC32MZ1024EFM064 In Production Yes $7.47 Yes 32-bit MIPS MCU 32 200 1024 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 24 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 4 -SPI 4 -I2C 0 4 Yes No No No 1 0 Yes 2 CAN 10/100 Base-TX Mac 64 64/QFN, 64/TQFP
PIC32MZ1024EFM100 In Production Yes $7.94 Yes 32-bit MIPS MCU 32 200 1024 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 40 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 Yes 2 CAN 10/100 Base-TX Mac 100 100/TFBGA, 100/TQFP
PIC32MZ1024EFM124 In Production Yes $8.38 Yes 32-bit MIPS MCU 32 200 1024 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 Yes 2 CAN 10/100 Base-TX Mac 124 124/VTLA
PIC32MZ1024EFM144 In Production Yes $8.53 Yes 32-bit MIPS MCU 32 200 1024 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 Yes 2 CAN 10/100 Base-TX Mac 144 144/LQFP, 144/TFBGA, 144/TQFP
PIC32MZ2048EFG064 In Production Yes $8.05 Yes 32-bit MIPS MCU 32 200 2048 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 24 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 4 -SPI 4 -I2C 0 4 Yes No No No 1 0 No 0 None 10/100 Base-TX Mac 64 64/QFN, 64/TQFP
PIC32MZ2048EFG100 In Production Yes $8.53 Yes 32-bit MIPS MCU 32 200 2048 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 40 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 0 None 10/100 Base-TX Mac 100 100/TFBGA, 100/TQFP
PIC32MZ2048EFG124 In Production Yes $8.97 Yes 32-bit MIPS MCU 32 200 2048 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 0 None 10/100 Base-TX Mac 124 124/VTLA
PIC32MZ2048EFG144 In Production Yes $9.11 Yes 32-bit MIPS MCU 32 200 2048 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 0 None 10/100 Base-TX Mac 144 144/LQFP, 144/TFBGA, 144/TQFP
PIC32MZ2048EFH064 In Production Yes $8.20 Yes 32-bit MIPS MCU 32 252 2048 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 24 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 4 -SPI 4 -I2C 0 4 Yes No No No 1 0 No 2 CAN 10/100 Base-TX Mac 64 64/QFN, 64/TQFP
PIC32MZ2048EFH100 In Production Yes $8.67 Yes 32-bit MIPS MCU 32 252 2048 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 40 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 2 CAN 10/100 Base-TX Mac 100 100/TFBGA, 100/TQFP
PIC32MZ2048EFH124 In Production Yes $9.11 Yes 32-bit MIPS MCU 32 200 2048 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 2 CAN 10/100 Base-TX Mac 124 124/VTLA
PIC32MZ2048EFH144 In Production Yes $9.26 Yes 32-bit MIPS MCU 32 252 2048 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 15 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 No 2 CAN 10/100 Base-TX Mac 144 144/LQFP, 144/TFBGA, 144/TQFP
PIC32MZ2048EFM064 In Production Yes $8.35 Yes 32-bit MIPS MCU 32 200 2048 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 24 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 4 -SPI 4 -I2C 0 4 Yes No No No 1 0 Yes 2 CAN 10/100 Base-TX Mac 64 64/QFN, 64/TQFP
PIC32MZ2048EFM100 In Production Yes $8.82 Yes 32-bit MIPS MCU 32 200 2048 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 40 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 Yes 2 CAN 10/100 Base-TX Mac 100 100/TFBGA, 100/TQFP
PIC32MZ2048EFM124 In Production Yes $9.26 Yes 32-bit MIPS MCU 32 200 2048 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 Yes 2 CAN 10/100 Base-TX Mac 124 124/VTLA
PIC32MZ2048EFM144 In Production Yes $9.35 Yes 32-bit MIPS MCU 32 200 2048 512 No 0 160 0 -40 to 125 2.2V - 3.6V No 8 48 12 0 High Speed 1 2 9 x 16-bit 4 x 32-bit 9 -Std. PWM 32-bit PWM resolutions 9 -Input Capture 0 6 -UART 6 -SPI 5 -I2C 0 6 Yes No No No 1 0 Yes 2 CAN 10/100 Base-TX Mac 144 144/LQFP, 144/TFBGA, 144/TQFP

Tools and Software

Product Description

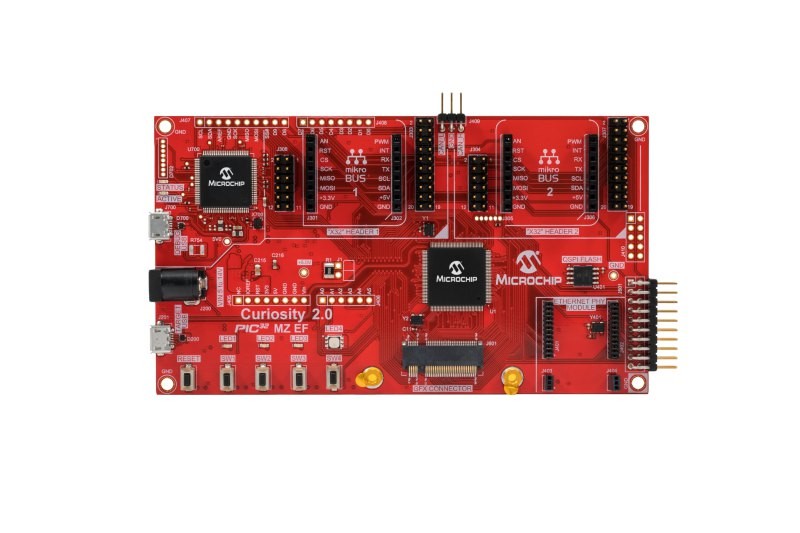

Curiosity PIC32MZ EF 2.0 Development Board

Part Number: DM320209

The Curiosity PIC32MZ EF 2.0 Development Board provides you with the freedom to develop a variety of applications, including Bluetooth® audio, CAN, graphics/user interfaces, Internet of Things (IoT), robotics and proof-of-concept designs. It includes an integrated programmer and debugger and requires no additional hardware to get started.

PIC32MZ Embedded Connectivity with FPU (EF) Starter Kit (Crypto)

Part Number: DM320007-C

The PIC32MZ Embedded Connectivity with Floating Point Unit (EF) Family Starter Kit for crypto development provides a low-cost method for the development and testing of USB and Ethernet-based applications with PIC32MZ EF family devices.

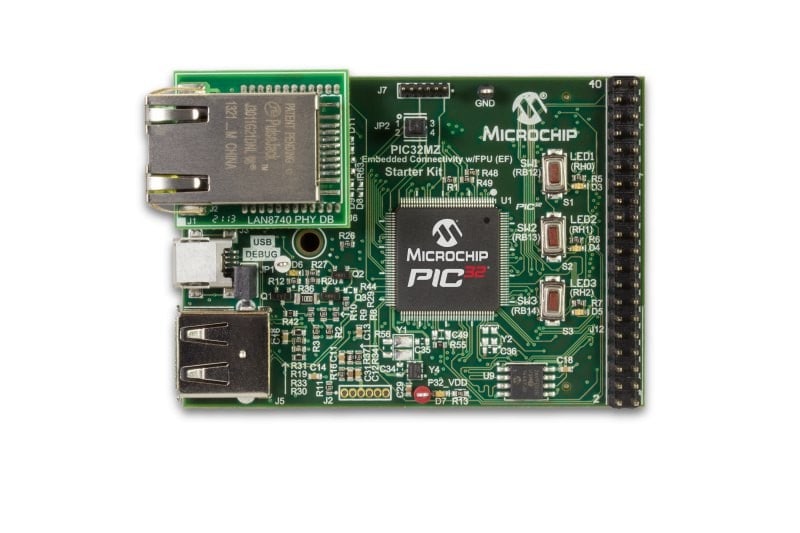

PIC32MZ Embedded Connectivity with FPU (EF) Starter Kit

Part Number: DM320007

The PIC32MZ Embedded Connectivity with Floating Point Unit (EF) Family Starter Kit provides a low-cost method for the development and testing of USB and Ethernet-based applications with PIC32MZ EF family devices.

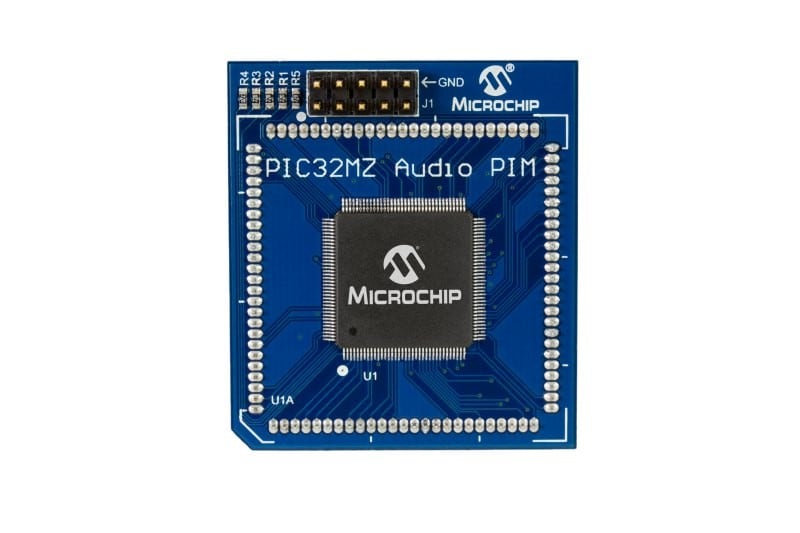

PIC32MZ EF Audio 144-pin PIM for Bluetooth Audio Development Kit

Part Number: MA320018

The PIC32MZ2048EFH144 Plug-in Module (PIM) is designed to demonstrate the audio capabilities of the PIC32MZ EF family of devices using the PIC32 Bluetooth Audio Development Kit. A 200 MHz PIC32MZ2048EFH144 MCU with 2 MB Flash, 512 KB RAM, FPU, 48-channel ADC, Hi-Speed USB, CAN 2.0B and 10/100 Ethernet is installed on the PIM.

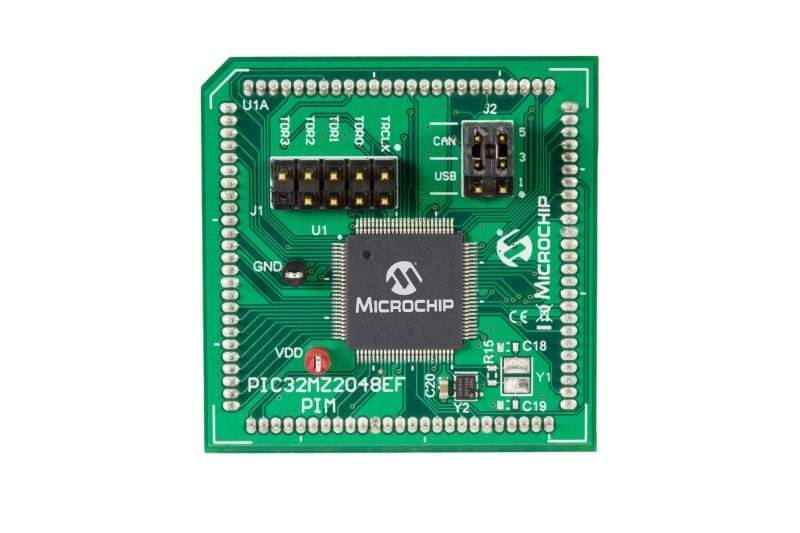

PIC32MZ EF PIM

Part Number: MA320019

The PIC32MZ EF PIM is designed to demonstrate the capabilities of the PIC32MZEF family of devices using the Explorer 16 Development Board. It enables USB, Ethernet and CAN development with the PIC32MZ series of MCUs. A 200 MHz PIC32MZ2048EFH100 MCU with 2 MB Flash, 512 KB RAM, FPU, 48-channel ADC, Hi-Speed USB, CAN 2.0B and 10/100 Ethernet is installed on the PIM.

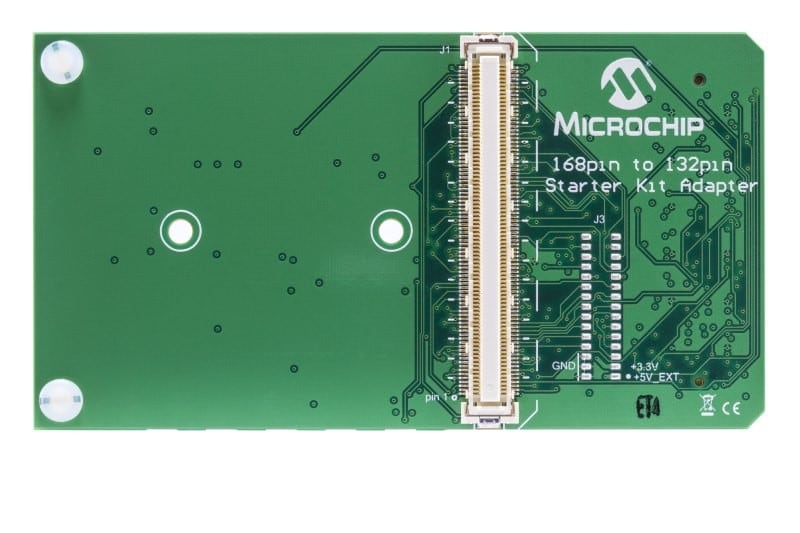

PIC32MZ Starter Kit Adapter Board

Part Number: AC320006

The PIC32MZ Starter Kit Adapter Board features a 168-pin to 132-pin connector and enables the use of PIC32MZ starter kits that have a 168-pin interface with the following PIC32 hardware:

  • Multimedia Expansion Board (MEB) – Part # DM320005
  • PIC32 I/O Expansion Board – Part # DM320002
  • Low-Cost Controller-less (LCC) Graphics PICtail™ Plus Daughter Board – Part # AC164144
  • Graphics LCD Controller PICtail Plus SSD1926 Board – Part # AC164127-5
  • Graphics PICtail Plus Epson S1D13517 Board – Part # AC164127-7

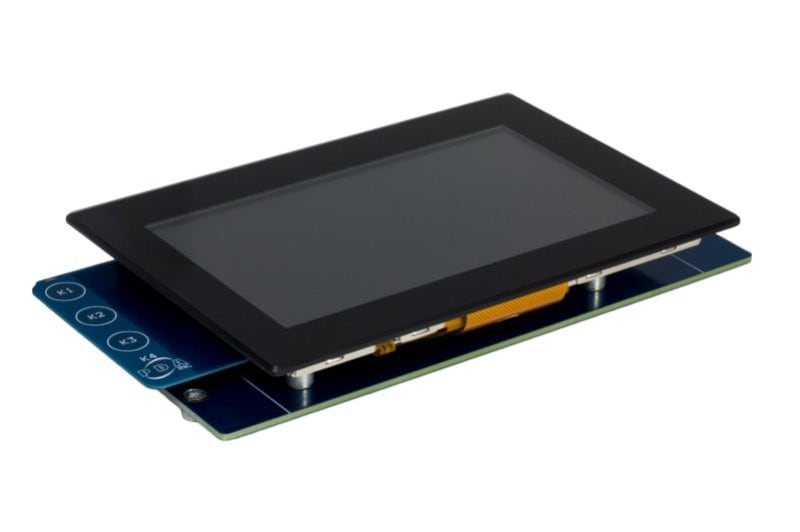

High-Performance 4.3" WQVGA Display Module with maXTouch® Technology

Part Number: AC320005-4

The High-Performance 4.3" WQVGA Display Module with maXTouch Technology is designed for evaluating our graphics display solution and graphics library for 32-bit MCUs. This board is compatible with the Multimedia Expansion Board II (DM320005-2), as well as with Xplained Pro and Xplained Ultra evaluation kits. This board has a TFT 480 × 272 display with 24-bit parallel RGB interface with a maXTouch technology capacitive touch interface.

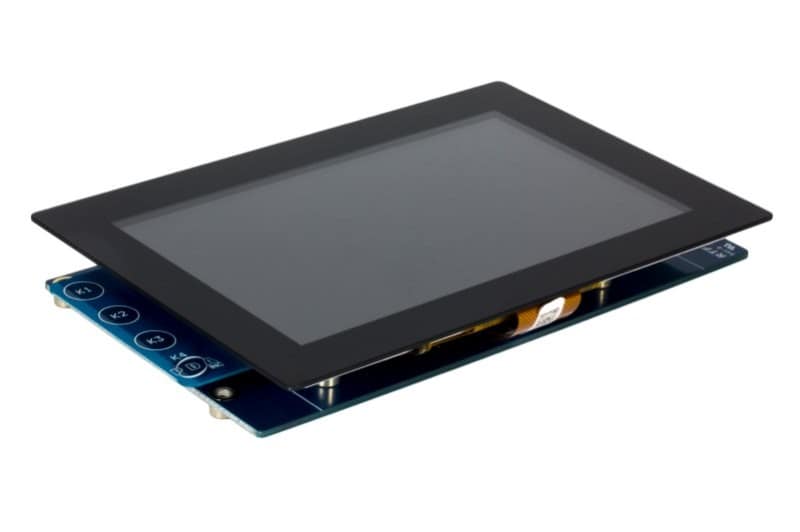

High-Performance WVGA Display Module with maXTouch® Technology

Part Number: AC320005-5

The High-Performance WVGA Display Module with maXTouch Technology is designed MCUmicrocontrollers. This board is compatible with both versions of the Multimedia Expansion Board II (DM320005-2 or DM320005-5), as well as with Xplained Pro and Xplained Ultra evaluation kits. This board has a TFT 800 × 480 display with a 24-bit parallel RGB interface with a maXTouch technology capacitive touch interface.

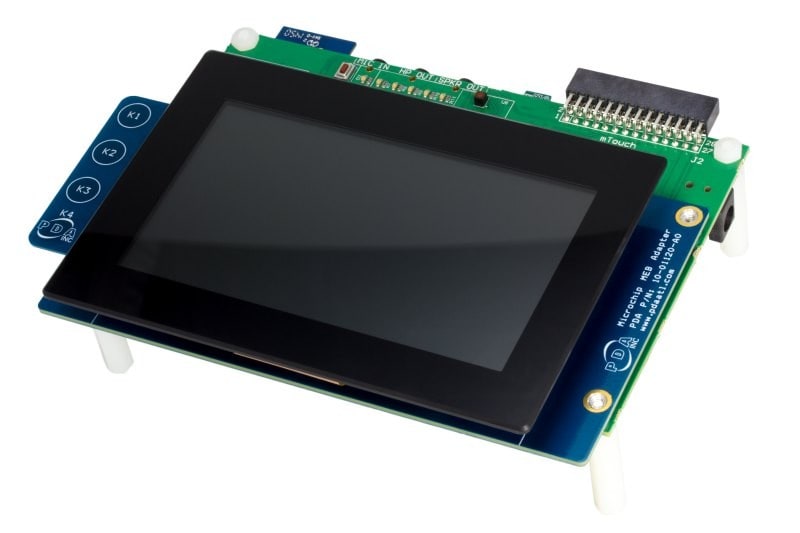

DM320005-5 - Multimedia Expansion Board II
