ZL70103 APPLICATIONS DEVELOPMENT KIT

The ZLE70103BADA ADK Includes:

One Base Station Unit

• The RF section is based on the ZL70123 base station module, which is included on the Base Station Mezzanine (BSM300A) board.
• The application microcontroller allows programming and debugging using a JTAG debug interface.
• The dual-band helical antenna (400 MHz and 2.45 GHz) is designed to have an optimal radiation pattern. The SMA connector allows for conducted RF measurements.

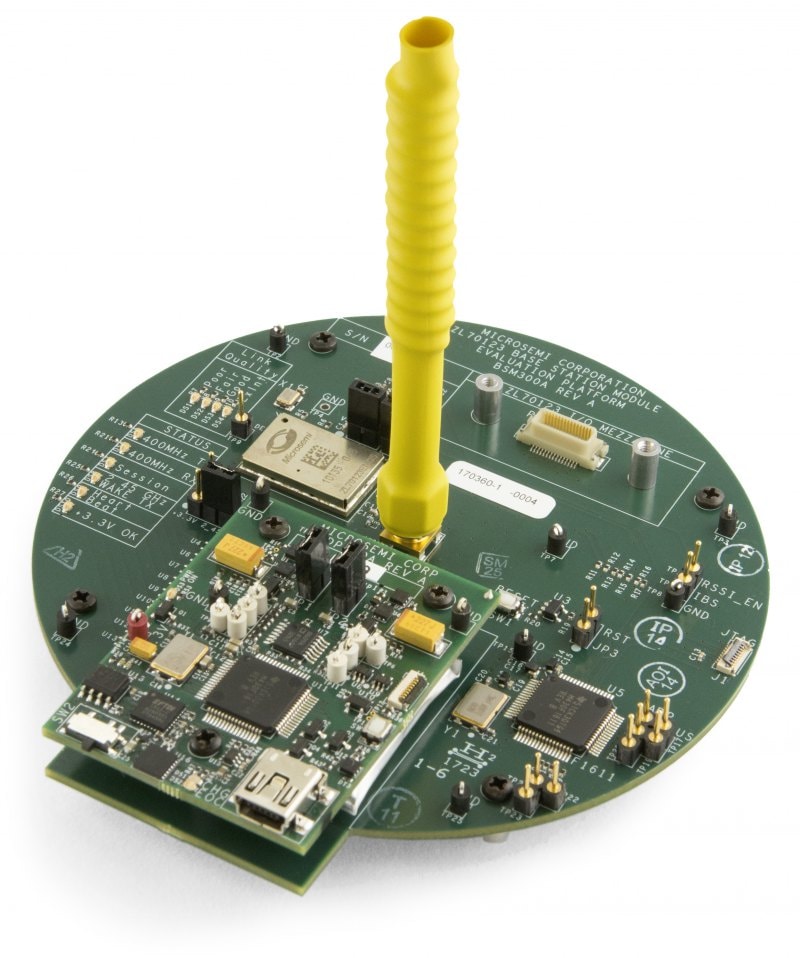

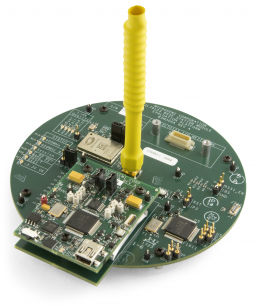

• The BSM300A board is paired with an ADP100A board that provides connectivity to a PC over a USB2.0 interface and provides 3.3 volt power to the BSM300A board.

One Implant Unit

• The RF section is based on the ZL70323 miniaturized standard implant module, which is included on the Application Implant Mezzanine (AIM300A) board.
• The application microcontroller allows programming and debugging using a JTAG debug interface.
• The dual-band printed loop antenna (400 MHz and 2.45 GHz) is matched to 50 ohms for operation in air. The SMA connector allows for conducted RF measurements.
• The AIM300A board is paired with an ADP100A board that provides connectivity to a PC over a USB2.0 interface and provides programmable power supplies with current/voltage measurement capabilities to the AIM300A board.

One MICS Test Adapter (MTA100A) board that can mount to either mezzanine board to allow for observation and monitoring of key analog and digital signals.

Full Documentation
The software download includes the ADK User's Guide, Source Code Overview, and extensive hardware documentation (board schematics, layout, Gerber files, and Bill of Material (BOM)) for all included boards.
