Overview
The MIC24097 is a constant-frequency, synchronous buck converter featuring a unique adaptive on-time control architecture. The MIC24097 operates over an input supply range of 4.5V to 20V. The output voltage is adjustable down to 0.6V with an guaranteed accuracy of ±1%. The device operates with programmable switching frequency up to 800 kHz. The MIC24097 is available in a 39-pin 6 mm x 7 mm VQFN package, with a -40°C to +125°C junction operating temperature range.

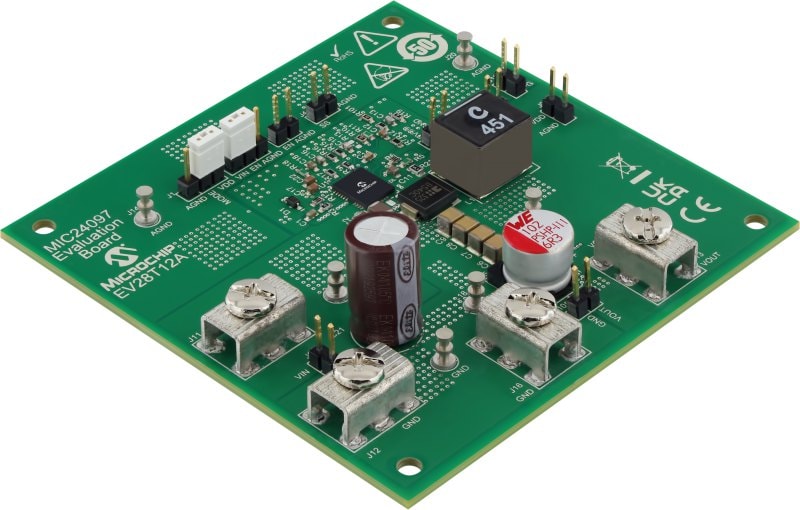

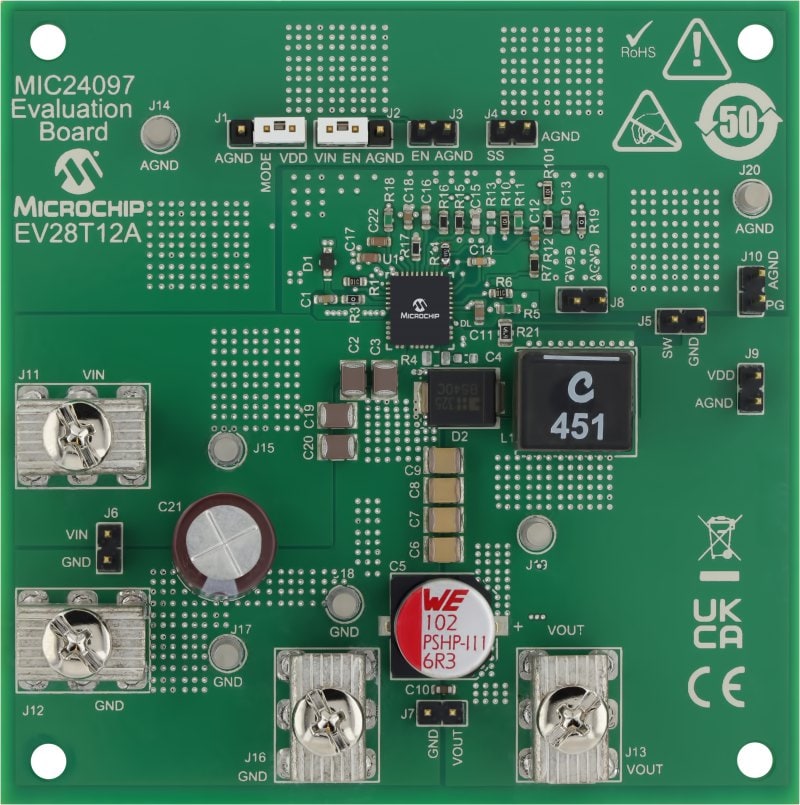

The MIC24097 Evaluation Board features:
- Input voltage range: 4.5V to 20V (optimized for 12V Bus)
- Adjustable output from 0.6V to 12V (also limited by duty cycle)
- High current capability of 20A
- Adaptive Constant On Time Control
- Tight output voltage regulation
- 0.6V internal reference with ±1% accuracy (±0.5% over -40°C to +105°C)
- Up to 800 kHz switching frequency
- High voltage internal LDO for single supply operation
- Supports start-up into pre-bias output
- Internal compensator
- Precision enable function
- Programmable HLL/CCM operation using Mode pin
- Programmable soft start time
-Droop feature to support Adaptive Voltage Positioning (AVP) for improved load transient response
- Hiccup short circuit protection and programmable current limit
- Thermal shut down with hysteresis
- Compact size: 6 mm x 7 mm 39-pin QFN
- -40°C to +125°C junction temperature range
Documentation
|
Title
|
Document Category
|
|||
|---|---|---|---|---|
| MIC24097 Evaluation Board (EV28T12A) BOM | Board Design Files | Download | ||
| MIC24097 Evaluation Board (EV28T12A) Schematic | Board Design Files | Download | ||
| MIC24097 Evaluation Board (EV28T12A) Gerbers | Board Design Files | Download | ||
| MIC24097 Evaluation Board (EV28T12A) EU-DoC | Certifications | Download | ||
| MIC24097 Evaluation Board (EV28T12A) UK-DoC | Certifications | Download | ||
| MIC24097 Evaluation Board (EV28T12A) China-RoHS-Declaration | Certifications | Download | ||
| MIC24097 Evaluation Board (EV28T12A) EU-REACH-Statement | Certifications | Download | ||
| MIC24097 Evaluation Board (EV28T12A) Altium files | Board Design Files | Download | ||
| MIC24097 Evaluation Board User's Guide | User Guides | Download |
