Part Number: EV06P75A

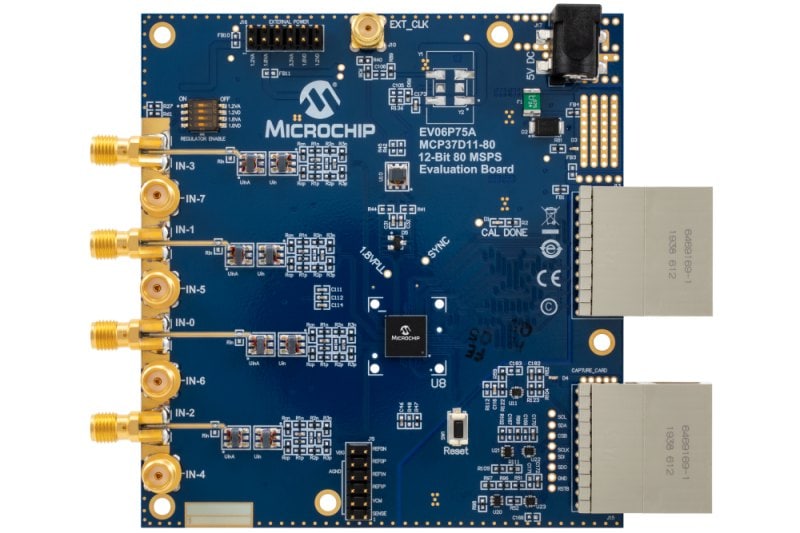

MCP37D11-80 EVALUATION BOARD AND EVALUATION KIT
Full feature evaluation of the MCP37D11-80 A/D converter through Graphical User Interface (GUI) including:
• Dynamic performance monitoring: SNR, SFDR, THD, and other FFT analyses
• Static performance monitoring: INL, DNL, Offset Error, etc.
• PLL or DLL operating mode
• Read and Write of Register bits
• Various digital signal post processing options: Digital Decimation, Digital Down-Conversion (I/Q Data), etc.
• Power consumption analysis
• Sample rates up to 80 Msps
• Up to 8-channel inputs
• Dynamic performance monitoring: SNR, SFDR, THD, and other FFT analyses
• Static performance monitoring: INL, DNL, Offset Error, etc.
• PLL or DLL operating mode
• Read and Write of Register bits
• Various digital signal post processing options: Digital Decimation, Digital Down-Conversion (I/Q Data), etc.
• Power consumption analysis
• Sample rates up to 80 Msps
• Up to 8-channel inputs
Overview

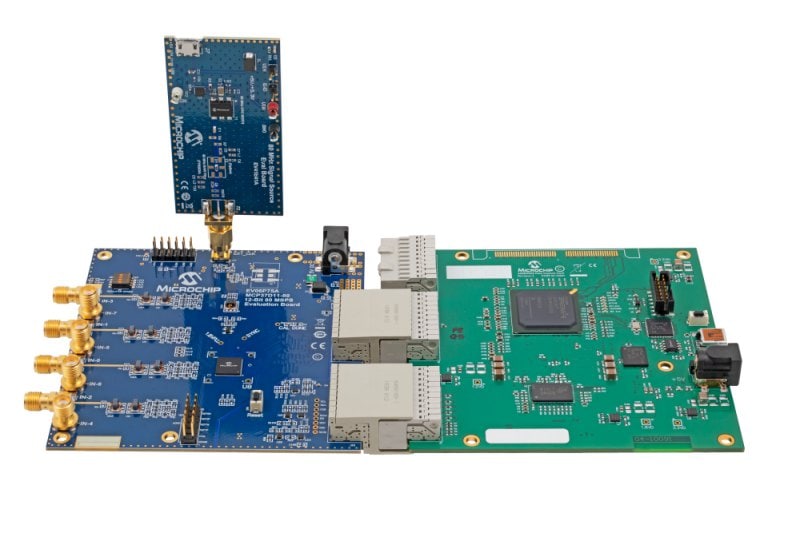

This evaluation board works with the MCP37XXX High-Speed Pipeline ADC data capture card (ADM00506) and PC GUI ( Pipeline ADC Utility GUI ).
Documentation
|
Title
|
|||
|---|---|---|---|
| MCP37D11-80 12-bit 80 Msps ADC Evaluation Board (EV06P75A) Gerber Files | Download | ||
| MCP37D11-80 12-bit 80 Msps ADC Evaluation Board (EV06P75A) Schematics | Download | ||
| MCP37D11-80 12-bit 80 Msps ADC Evaluation Board (EV06P75A) BOM | Download | ||
| MCP37DX1.80 ADC Evaluation Kit User Guide | Download |
