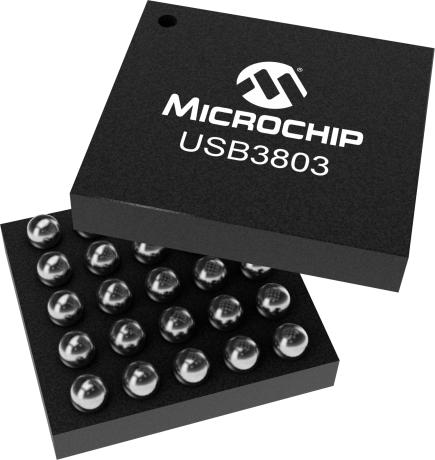

product primary image

USB3803

Status: In Production

Features:

  • Integrated USB 2.0-compatible 3-port hub
  • Advanced power saving features including 1μA standby current
  • Bypass Switch for low power, single port operation
  • USB-IF BC 1.1 detection
  • Supports Single or Multi-TT configurations for Full and Low-Speed connections
  • Enhanced configuration options available through serial I2C slave port
  • Internal default configuration option when serial I2C host is not available
  • Incorporates proprietary Microchip technologies: MultiTRAK™, PortMap, PortSwap, PHYBoost, VariSense™ and flexPWR®
  • External 12, 19.2, 26 or 38.4MHz clock inputs
  • Internal 3.3V and 1.2V voltage regulators for single supply operation
  • USB Port ESD Protection (DP/DM) up to ±15kV (IEC 61000-4-2)
  • Commercial (0° to 70°C) and industrial (-40° to 85°C) temperature range options
  • 25-ball WLCSP, RoHS-compliant package
  • Mobile Phones
  • Tablet Computers
  • Ultra-mobile PCs
  • e-Readers
  • Digital Still Cameras
  • Digital Video Camcorders
  • Gaming Consoles
  • Mobile Accessory Docks
  • Portable Media Players
  • GPS Personal Navigation Devices
  • Media Players/Viewers
  • Wireless Modem Dongles/Cards
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

As mobile devices continue to add more features and the complexity of connectivity increases, it has become necessary to have a flexible hub which can be used in multiple ways as USB port expansion in portable applications like tablets, or as a purely embedded device to seamlessly bridge complex mobile architectures. Microchip's extremely small size USB3803 USB 2.0 hub controller offers three downstream ports with highly integrated portable features specifically designed for mobile embedded applications where more than one USB port is required. The USB3803 can easily attach to an upstream port as a Full-Speed or Full/Hi-Speed USB hub, while supporting Low, Full and Hi-Speed (if operating as a Hi-Speed hub) downstream devices on all enabled downstream ports. Additionally, extremely low current standby and bypass mode features make the device well-suited for mobile, battery-powered embedded systems where power consumption, small package size, minimal BOM and Battery Charger (BC) detection capabilities are critical design requirements.

The USB3803 integrates BC detection circuitry and supports both USB-IF 1.1 and legacy charger specifications, while flexible power regulators facilitate simple design into battery-powered devices. Microchip's complimentary and confidential USBCheck™ online design review service is available for customers who select the USB3803 for their application design-in.*


*The USBCheck online design review service is subject to Microchip's Program Terms and Conditions and requires a myMicrochip account.

Additional Features

    Highlights

    • Integrated USB 2.0-compatible 3-port hub
    • Advanced power saving features including 1μA standby current
    • Bypass Switch for low power, single port operation
    • USB-IF BC 1.1 detection
    • Supports Single or Multi-TT configurations for Full and Low-Speed connections
    • Enhanced configuration options available through serial I2C slave port
    • Internal default configuration option when serial I2C host is not available
    • Incorporates proprietary Microchip technologies: MultiTRAK™, PortMap, PortSwap, PHYBoost, VariSense™ and flexPWR®
    • External 12, 19.2, 26 or 38.4MHz clock inputs
    • Internal 3.3V and 1.2V voltage regulators for single supply operation
    • USB Port ESD Protection (DP/DM) up to ±15kV (IEC 61000-4-2)
    • Commercial (0° to 70°C) and industrial (-40° to 85°C) temperature range options
    • 25-ball WLCSP, RoHS-compliant package

    Target Applications

    • Mobile Phones
    • Tablet Computers
    • Ultra-mobile PCs
    • e-Readers
    • Digital Still Cameras
    • Digital Video Camcorders
    • Gaming Consoles
    • Mobile Accessory Docks
    • Portable Media Players
    • GPS Personal Navigation Devices
    • Media Players/Viewers
    • Wireless Modem Dongles/Cards
Parametrics
Name
Value
Upstream Port
USB 2.0
USB Speed
USB 2.0
Downstream Ports
3
MGMT I/F
I2C
Op Voltage (V)
3.3
MultiTRAK Tech
Yes
PortMap
Yes
PortSwap
Yes
PHYBoost
Yes
Temp. Range Min.
-40
Temp. Range Max.
85

Documents

Jump to:

User Guides

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
USB3803 USB 2.0 Mobile Hub Evaluation Board
USB3803 USB 2.0 Mobile Hub Evaluation Board ( EVB-USB3803 )

The USB3803 USB 2.0 hub controller offers three downstream ports with highly integrated portable features specifically designed for mobile embedded applications where more than one USB port is required. The USB3803 can easily attach to an upstream port as Full-Speed or Full/Hi-Speed USB hub, while supporting Low, Full and Hi-Speed downstream devices on all enabled downstream ports. Additionally,...

Learn More
Add To Cart

Similar Devices

Product
Price 5K
$1.31
$1.03

$2.52
$4.04

$1.09

$1.41
$1.97
$1.45
$3.17
$3.02
$1.97
$2.56
$2.63
$1.80
$2.70
$1.80
$2.70
$2.89
$2.85

$3.54
$3.71

$4.17
$4.84
$4.17
$3.10
$3.44
$5.16
$5.16

$5.04

$5.40
$5.76
$5.16
$5.40
$5.76
$4.78
$5.35
$5.20
$5.07
$5.63

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
USB3803C-1-GL-TR
0.009450
0.040000
25
WLCSP
1.97x1.97x0.57
SAC
e1
USB3803CI-1-GL-TR
0.009450
0.040000
25
WLCSP
1.97x1.97x0.57
SAC
e1
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
