PoE-Splitter

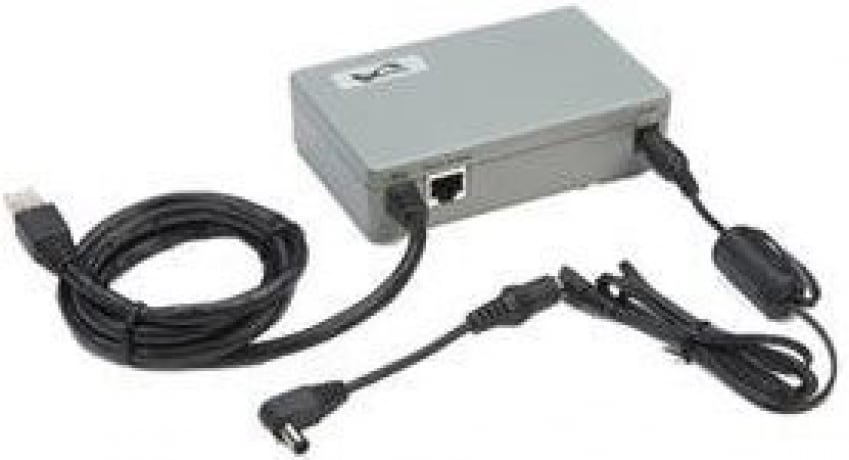

Single port PoE splitter for contemporary devices unable to accept power via Ethernet

Status: In Production

Features:

  • Number of ports: 1
  • Data rate: 1000 Mbps
  • PoE output: 10W (PD-AS-601/5), 54W (PD-AS-951/12-24)
  • Power conversion: Power conversion from 48V to 5V output (PD-AS-601/5), from 48V to 12V or 24V DC output (PD-AS-951/12-24)
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

Many contemporary terminals such as 802.11n access points, thin clients, video phones, PTZ (Pan/Tilt/Zoom), and IP cameras were designed and deployed without the ability to accept power via their Ethernet input. Such devices can only accept power through their DC jack while their RJ45 input accepts only data. Also, such devices might require voltage levels lower than the PoE standard minimum voltage (44V in IEEE802.3af or 50V in 802.3at). Using a Microsemi splitter, these terminals can immediately become PoE ready without any modification required on their side. The splitter is identified as a powered device (PD) in front of the powering Microsemi midspan and after being detected and powered by the midspan, it physically splits the combined data and power stream into two separate cords (Ethernet data & DC power) which then go directly to the respective inputs on the terminal. The splitter also adjusts voltage to the level required by the terminal (5V, 12V or 24V).

Additional Features
  • Number of ports: 1
  • Data rate: 1000 Mbps
  • PoE output: 10W (PD-AS-601/5), 54W (PD-AS-951/12-24)
  • Power conversion: Power conversion from 48V to 5V output (PD-AS-601/5), from 48V to 12V or 24V DC output (PD-AS-951/12-24)
Parametrics
Name
Value
Product Type
PoE Accessories
PoE Systems Type
Splitter
Power Per Port
54W
Operating Environment
Indoor
Number of Ports
1
Data Rate
1G
Input Power
PoE
Operating Humidity (%)
90
Operating Temperature (°C)
0 to 40
Warranty (Years)
1

Documentation data is currently unavailable.


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD-AS-601/5
180.0000
200.0000
N/A
N/A
280x230x215mm
N/A
N/A
PD-AS-951/12-24
310.0000
440.0000
N/A
N/A
451x266x210mm
N/A
N/A
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
